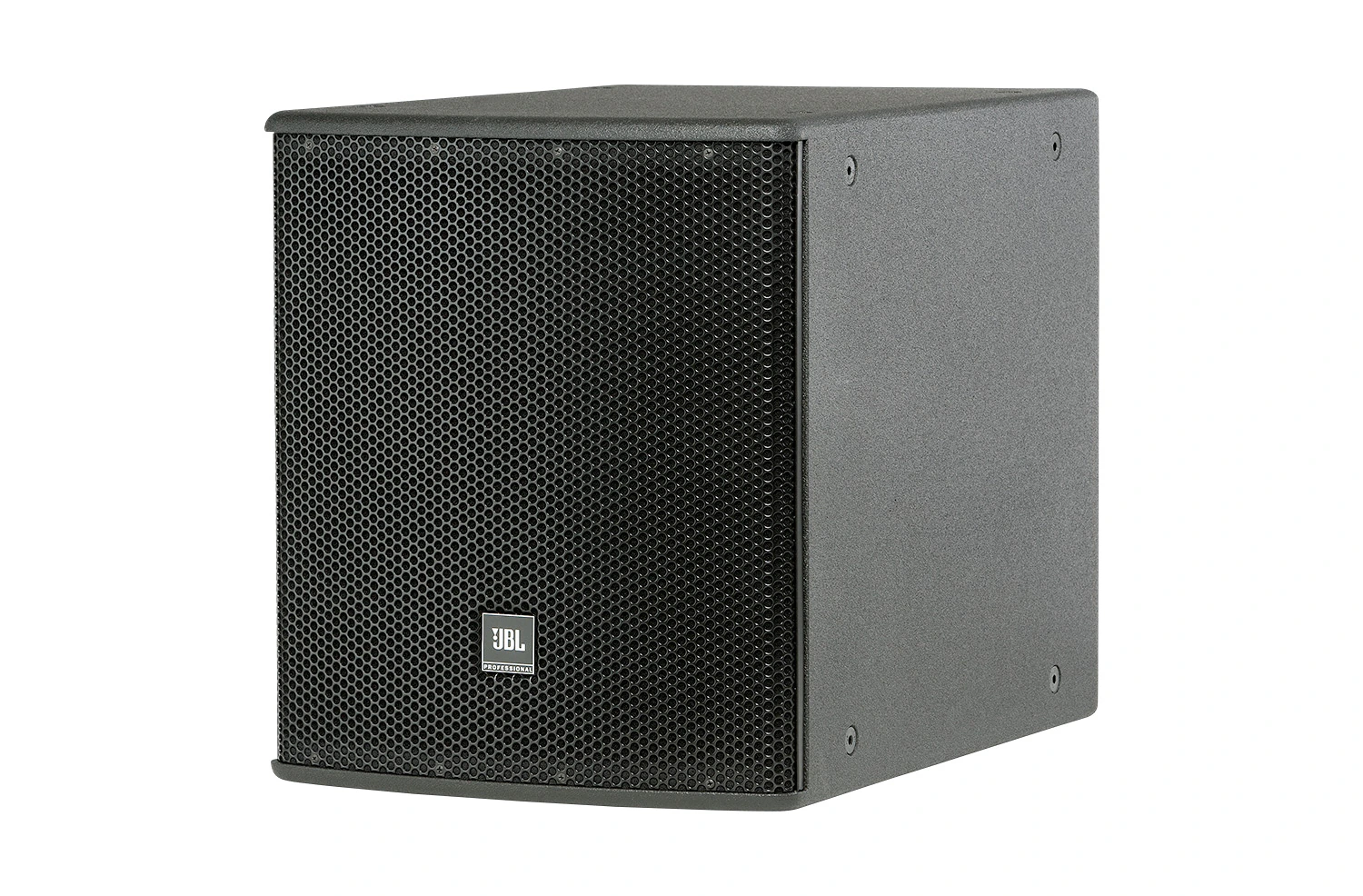

JBL Professional ASB6115

Større billeder

Højtydende kompakt 15-tommers subwoofer

ASB6115 er et højtydende, let front-ladet bassrefleks-subwoofer-kabinet, der huser JBL's 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. Denne woofer har neodymium-magnet og ultra robust membran for ekstra lang levetid.

Funktioner

2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts kontinuerlig pink noise, 3200 watts peak power handling capacity
Stort ventilationsområde for høj output med lav forvrængning
FIR Tuning Set matcher fase profil til full-range modeller
Til ground-stacked eller suspended applikationer i stand-alone arrays eller i kombination med andre
AE Series produkter

For at forbedre pålideligheden under vejrforhold og reducere vandindtræk kan kabinet dimensionerne på WRC & WRX modeller være forskellige fra standard model dimensioner. Kontakt CustomAudio@harman.com for tegninger og/eller dimension information om WRC & WRX modeller.)

Downloads

Specifications

	Størrelse	Uploadet
ASB6115 Spec Sheet opdateret: dec 2020	485 kB	dec 2020

Manuals

	Version	Sprog	Størrelse	Uploadet
Weather Resistant Configurations version A, opdateret: maj 2023	A		86,1 kB	maj 2023
AE/PD Connector Pinout Guide opdateret: okt 2019			8,25 kB	okt 2019

Brochures

	Størrelse	Uploadet
AE Series Brochure opdateret: okt 2020	4,05 MB	okt 2020
AM Brochure opdateret: okt 2020	1,54 MB	okt 2020

CAD Drawings

	Version	Størrelse	Uploadet
AE Series - Revit/BIM Files version 11.0, opdateret: jul 2024	11.0	730 kB	jul 2024
AE Series - Customer Drawings version 2.0, opdateret: maj 2024	2.0	2,69 MB	maj 2024
AE Series - WR Models Customer Drawings version 3.0, opdateret: apr 2026	3.0	3,8 MB	apr 2026

Compliances

	Størrelse	Uploadet
AE Series ASB - Declaration of Conformity opdateret: jul 2024	93,5 kB	jul 2024

Preset Libraries

	Størrelse	Uploadet
AE Series DCi Series Preset Library opdateret: maj 2024	471 kB	maj 2024

Application Guides

	Sprog	Størrelse	Uploadet
Directional Bass Using 3-Element Arrays opdateret: aug 2021		570 kB	aug 2021

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10dB)	32 Hz - 1 kHz
Frequency Response (±3 dB)	42 Hz - 1 kHz
Transducer Power Rating (AES)	800 W (3200 W peak), 2 hrs.
System Power Rating	675 W (2700 W peak), 100 hrs.
Maximum SPL (1m)	35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Net Weight (each)	20.6 kg (45.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance	8 ohms
