JBL Professional AC566

Større billeder

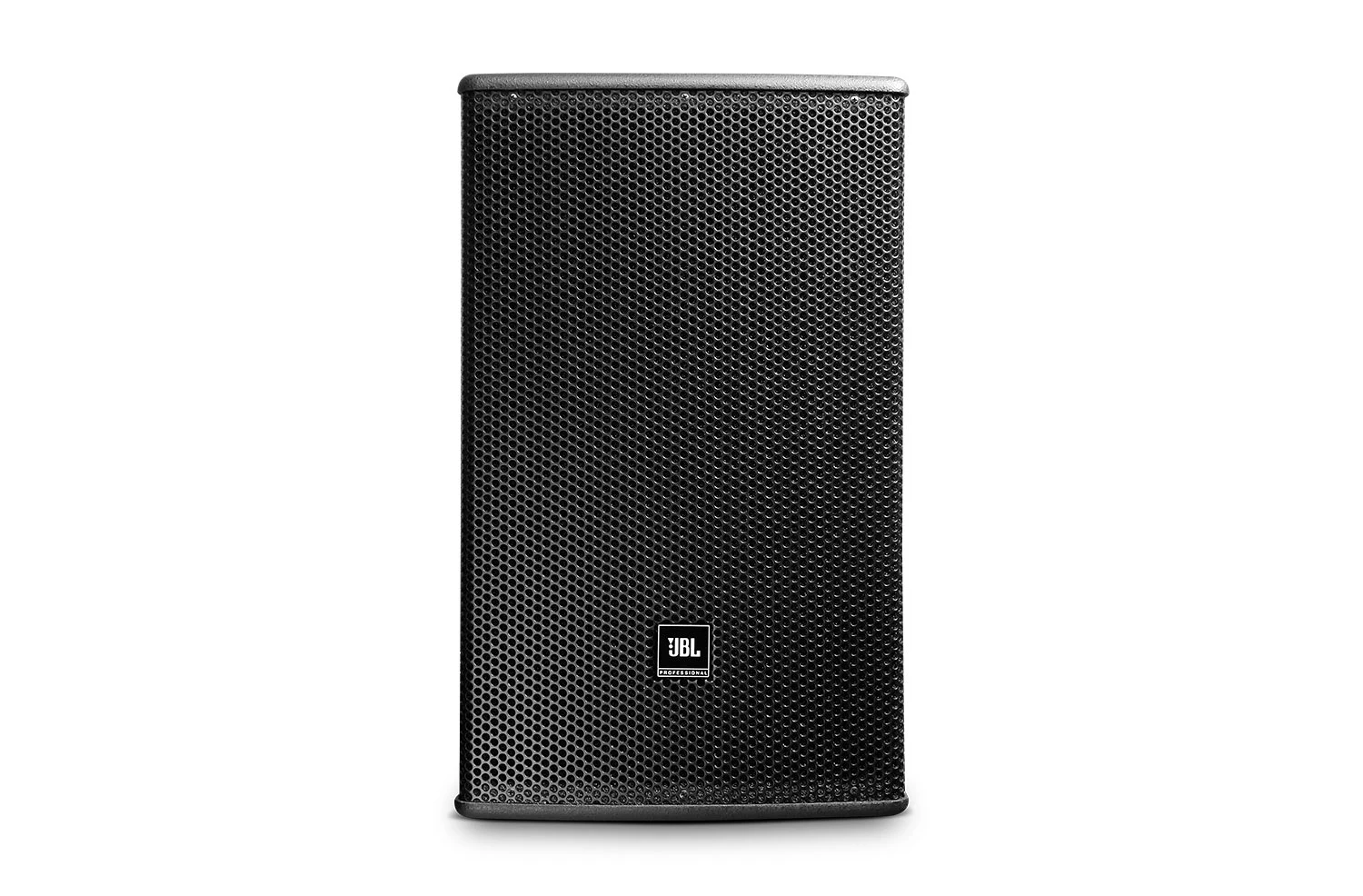

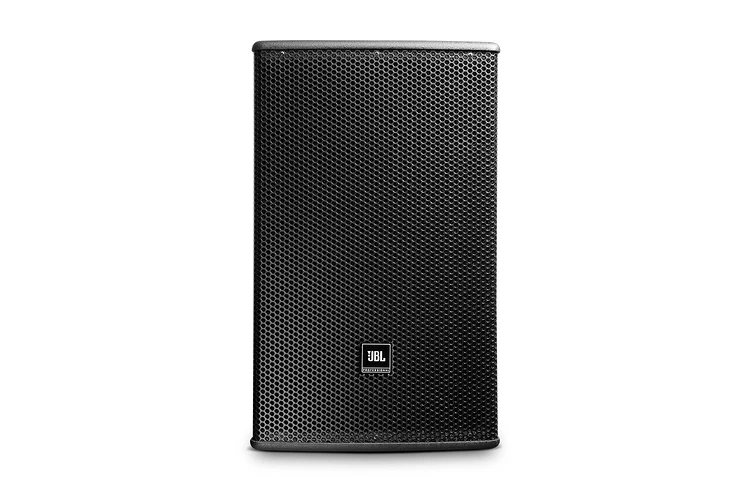

15-tommers 2-vejs højtaler med 60° x 60° horn

AC566 er et kompakt 2-vejs fuldrækkehojttalersystem bestående af én 384 mm (15 tommer) lavfrekvensdriver og én 25 mm (1 tommer) udgangs-/35 mm (1,5 tommer) stemmesvingkompressionsddriver. Hornet giver 60° x 60° dækning i vertikal og horisontal orientering. Høj-haldende passive crossovers minimerer båndoverlap og velbegrænset off-axis respons. Kabinet-et er udstyret med M10 gevindede ophængningspunkter. Fire gevindede indsatser placeret på bagsiden af huset tillader montering af en MultiMount® eller lignende monteringstype. AC566 er del af JBL's AE Application Engineered Series, en alsidigt familie af højttalere til en bred vifte af fastinstallationsapplikationer

Funktioner

Robust 15mm kabinet med sort struktureret finish
384 mm (15 tommer) lavfrekvent transducer
60° x 60° bølgeleder med 25 mm (1 tomme) udgang 35 mm (1,5") membran-kompressionsdriver
Dobbelt Neutrik NL4-stik plus skrueterminalelser
Flere fastgøringspunkter for ultimativ fleksibilitet

Anvendelser

Forsamlingssteder
Klubber & barer
Gudshuse
Multimedierum
Detail- & hospitalitetsrum
Præsentationslokaler
Uddannelsesfaciliteter

Downloads

Specifications

	Størrelse	Uploadet
AC566 Spec Sheet opdateret: apr 2019	484 kB	apr 2019

Brochures

	Sprog	Størrelse	Uploadet
Loudspeakers for Sports Facilities opdateret: jul 2024		5,71 MB	jul 2024

CAD Drawings

	Version	Størrelse	Uploadet
AE Expansion Series Customer Drawings version 1.0, opdateret: mar 2025	1.0	5,73 MB	mar 2025
AE Expansion Series Brackets Customer Drawings version 1.0, opdateret: mar 2025	1.0	438 kB	mar 2025

Simulation Data

	Version	Størrelse	Uploadet
AE Expansion Series - EASE GLL version 1.0, opdateret: mar 2025	1.0	315 kB	mar 2025
AE Expansion Series - CLF Files version 1.0, opdateret: mar 2025	1.0	785 kB	mar 2025

Declaration of Conformity

	Version	Sprog	Størrelse	Uploadet
AE Expansion Series - EU Declaration of Conformity version 1.0, opdateret: mar 2025	1.0		76 kB	mar 2025

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10dB)	60 Hz - 20 kHz
Frequency Response (±3 dB)	75 Hz - 18 kHz
System Sensitivity (1w @ 1m)	98 dB
Nominal Impedance	8 ohms
Maximum SPL (1m)	122 dB (128 dB peak)
System Power Rating	350W (1400W peak), 2 hrs (AES rated) 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern	60° x 60° (H x V)
Crossover	1.5 kHz
LF Driver	1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil
HF Driver	1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure	15 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment	14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D)	680 mm x 420 mm x 445 mm 26.7 in x 16.5 in x 17.5 in
Net Weight (each)	19.8 kg (43.6lbs)
Crossover Modes	Passive
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
