Two-Way Full-Range Loudspeaker System with 1 x 15" LF

Larger Images

Two-Way Full-Range Loudspeaker System with 1 x 15" LF

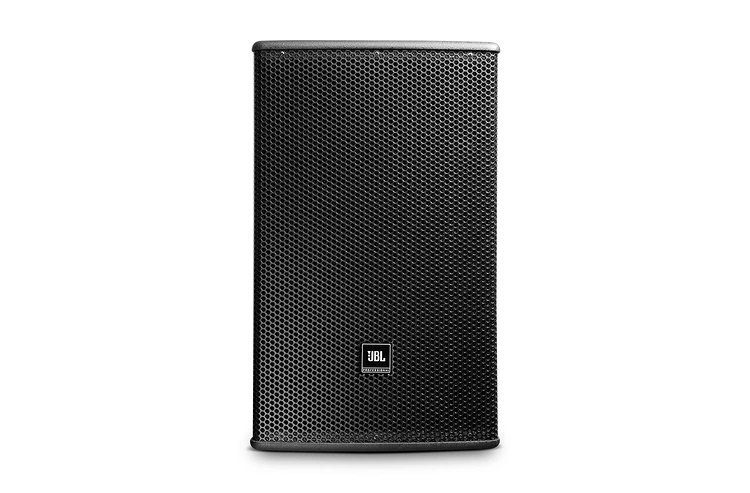

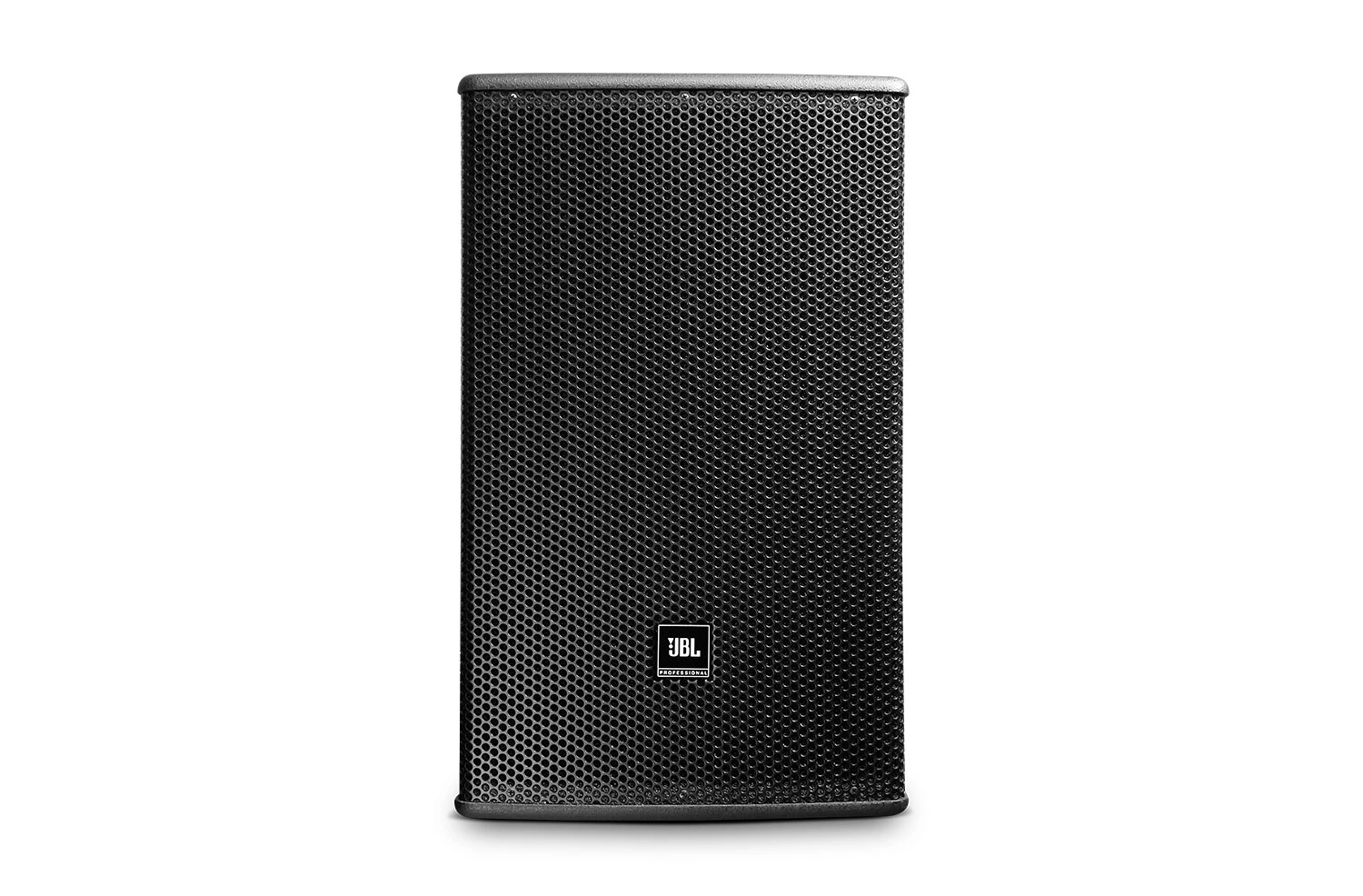

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications



  • Robust 15mm enclosure with black textured finish
  • 384 mm (15 in) LF transducer
  • 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility


  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities


  Version Language Size Uploaded
file type icon AC566 Spec Sheet
updated: Apr 2019
    484 KB Apr 2019
CAD Drawings
file type icon AC Bracket 2D Drawings PDFs
updated: Apr 2019
    434 KB Apr 2019
file type icon AE Expansion 2D Drawings
updated: Apr 2019
    5,21 MB Apr 2019
file type icon AE Expansion Series Declarations of Conformity
updated: Okt 2020
    76 KB Okt 2020
file type icon AC Expansion Series Declaration of Conformity
updated: Okt 2020
    139 KB Okt 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mar 2022
    21 MB Mar 2022
file type icon Ease GLL Files
updated: Okt 2020
    2,05 MB Okt 2020
file type icon AE Expansion GLL Files
updated: Okt 2020
    315 KB Okt 2020
CLF Files
file type icon AE Expansion CLF Files
updated: Okt 2019
    785 KB Okt 2019
file type icon AC566 - Angle
updated: Apr 2019
    190 KB Apr 2019
file type icon AC566 - No Grill
updated: Apr 2019
    101 KB Apr 2019
file type icon AC566 - Front
updated: Apr 2019
    211 KB Apr 2019
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: Mei 2021
  en  5,71 MB Mei 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 75 Hz - 18 kHz
System Sensitivity (1w @ 1m) 98 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
System Power Rating 350W (1400W peak), 2 hrs (AES rated)
250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 60° x 60° (H x V)
Crossover 1.5 kHz
LF Driver 1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil
HF Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 680 mm x 420 mm x 445 mm 26.7 in x 16.5 in x 17.5 in
Net Weight (each) 19.8 kg (43.6lbs)
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
