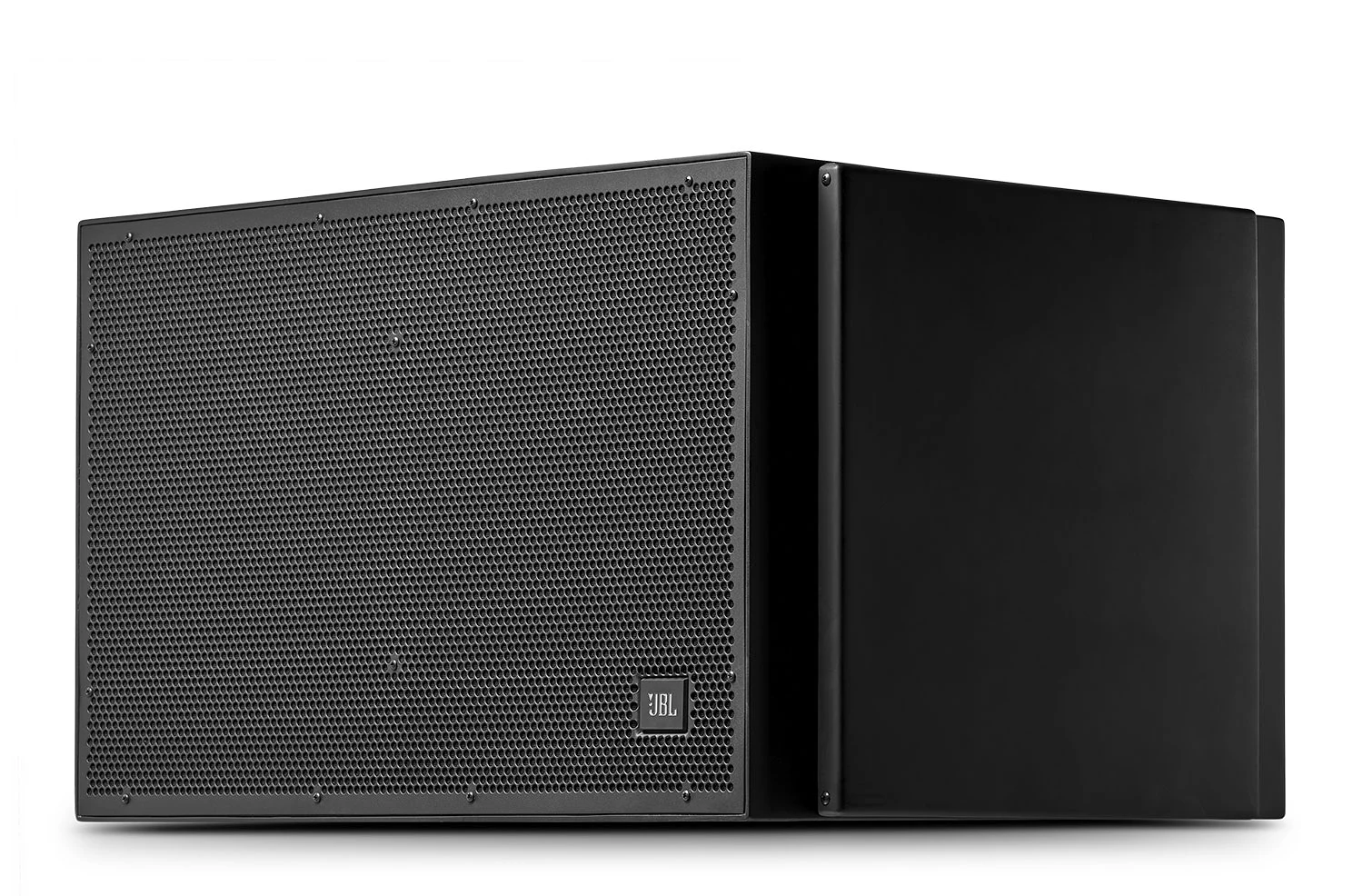

VLA-C125S

Dual 15" Subwoofer with Differential Drive®

VLA-C125S
صور أكبر

Dual 15" Subwoofer with Differential Drive®

The VLA-C125S uses JBL proven technology components, featuring dual 15” Differential Drive® transducers.

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit.

الميزات

  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Dual 15” transducers

التنزيلات

Specifications
  الإصدار الحجم تاريخ التحميل
file type icon VLA-C125S Spec Sheet
الإصدار 4, تم التحديث: أغسطس 2023
4  1.15 MB أغسطس 2023
Manuals
  الإصدار اللغة الحجم تاريخ التحميل
file type icon VLA Compact - Users Guide
en الإصدار A, تم التحديث: مارس 2025
A  en  6.52 MB مارس 2025
Brochures
  اللغة الحجم تاريخ التحميل
file type icon Loudspeakers for Sports Facilities
en تم التحديث: يوليو 2024
en  5.71 MB يوليو 2024
CAD Drawings
  الإصدار اللغة الحجم تاريخ التحميل
file type icon VLA-Compact Customer Drawings
en الإصدار B, تم التحديث: يوليو 2022
B  en  3.94 MB يوليو 2022
file type icon VLA Compact - Revit/BIM Library
الإصدار 1.0, تم التحديث: مارس 2025
1.0    5.49 MB مارس 2025
file type icon VLA Compact - SketchUp Library
الإصدار 1.0, تم التحديث: مارس 2025
1.0    797 KB مارس 2025
Software
  الإصدار الحجم تاريخ التحميل
file type icon VLA-C Calculator Instructions
الإصدار C, تم التحديث: يوليو 2020
C  3.35 MB يوليو 2020
download icon for VLA-C Calculator VLA-C Calculator
الإصدار 1.1.2, تاريخ الإصدار: يوليو 2020
1.1.2   5.53 MB يوليو 2020
Simulation Data
  الإصدار الحجم تاريخ التحميل
file type icon VLA Compact - EASE GLL
الإصدار B, تم التحديث: مارس 2025
B  9.01 MB مارس 2025
Accessories
  الإصدار اللغة الحجم تاريخ التحميل
file type icon VLA-C-SB2 2D Dimensional Drawing PDF
en الإصدار A, تم التحديث: أكتوبر 2020
A  en  157 KB أكتوبر 2020
file type icon VLA-C-SB2 Suspension Brkt Kit Contents & Instructions
الإصدار A, تم التحديث: أكتوبر 2020
A    1.48 MB أكتوبر 2020
file type icon VLA-C-125S-ACC Cardioid Subwoofer Kit
الإصدار A, تم التحديث: يونيو 2020
A    2.79 MB يونيو 2020
Preset Libraries
  الإصدار الحجم تاريخ التحميل
file type icon VLA-C iTech HD Preset Library - R2.0
الإصدار 2.0, تم التحديث: نوفمبر 2023
2.0  637 KB نوفمبر 2023
file type icon VLA-C DCi Preset Library - R2.0
الإصدار 2.0, تم التحديث: نوفمبر 2023
2.0  747 KB نوفمبر 2023

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10dB) 52 Hz – 210 Hz
Frequency Response (±3 dB) 62 Hz – 123 Hz
System Power Rating 1600 W Continuous Pink Noise (6400 W peak), 2 hrs800 W Continuous Pink Noise (3200W peak), 100 hrs
Maximum Input Voltage 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 127 dB Cont. Ave (2 hrs), 133 dB Peak
Sensitivity 98 dB (52 Hz – 210 Hz, 2.83V)
Impedance 4Ω, 3.0Ω min @ 195 Hz
Amplifiers Crown DCi Family with DSP on-board
Recommended Crown DCi 2 | 2400N Crown DCi 4 | 2400N
LF Driver 2 x 2275H, 304 mm (15 in) diameter , each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C125S to VLA-C125S: 0° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. Full set of terminals on back panel, plus optional-use inter-cabinet connection terminals located on top and bottom panels of cabinet.
Colors -GR: Gray (similar to Pantone 420C), -BK: Black
Dimensions (H x W x D) 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in)
Net Weight (each) 56.7 kg (125 lbs)
Shipping Weight (ea) 62.6 kg (138 lbs)
Included Accessories 2 x VLA-C125S Bracket Plates
8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates
2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts.
Optional Accessories VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
VLA-C125S-ACC Kit – For wiring of 3 VLA-C-125S subwoofers in cardioid configuration (2 front-facing and 1 rear-facing). Allows for neat, unexposed inter-cabinet wiring via the tops and bottoms of cabinets.
