LSR2325P
Descontinuado

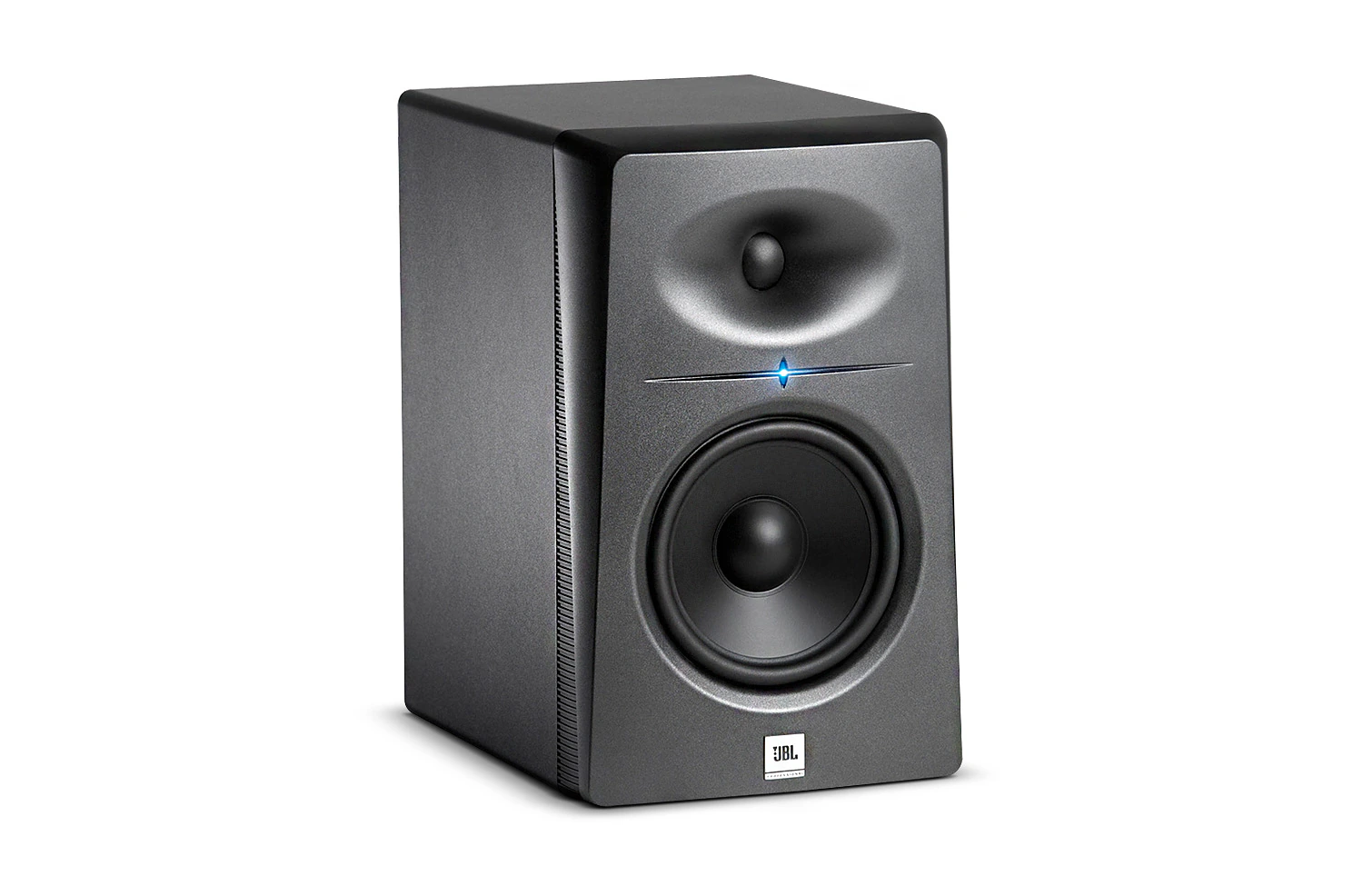

5" Two-Way Bi-Amplified Powered Studio Monitor

Imágenes más grandes

5" Two-Way Bi-Amplified Powered Studio Monitor

The LSR2325P Bi-Amplified Two-Way Model is based on a 5" (132 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.

Características

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Level Control
  • Magnetic Shielding
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

Descargas

Manuals
  Idioma Tamaño Subido
file type icon LSR2300 User's Guide French
fr actualizado: oct 2019
fr  5,92 MB oct 2019
file type icon LSR2300 User's Guide German
de actualizado: oct 2019
de  5,82 MB oct 2019
file type icon LSR2300 User's Guide Spanish
es actualizado: oct 2019
es  5,92 MB oct 2019
Brochures
  Tamaño Subido
file type icon LSR2300 Brochure
actualizado: oct 2020
1,37 MB oct 2020
Compliances
  Tamaño Subido
127 KB oct 2019
User Guides
  Tamaño Subido
file type icon LSR2300 Users Guide
actualizado: oct 2020
5,91 MB oct 2020
Images
  Tamaño Subido
file type icon LSR2325P Hi Res photo
actualizado: oct 2020
218 KB oct 2020
Install Guides
  Tamaño Subido
file type icon R&B Mounting Brackets
actualizado: oct 2020
26,2 KB oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range 43 Hz - 20 kHz
Max SPL Continous Each / Pair: > 101 dB / > 107 dB
Max SPKL Peak Each / Pair: > 112 dB / > 118 dB
Drivers (LF / HF) 5” (132 mm) 235G1” (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
CONEXIONES DE ENTRADA Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 55 W / 35 W
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Frecuencia de crossover 1.7 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 15 mm (5/8 in) MDF
Acabado Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 303 mm x 187 mm x 258 mm (11.9 in x 7.4 in x 10 in)
PESO NETO 7.7 Kg (16 lb)
