SRX812

12-inch 2-Way Multipurpose Passive Speaker

صور أكبر

12-inch 2-Way Multipurpose Passive Speaker

SRX812 is a two-way full range passive portable speaker with a 12” woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



الميزات

  • Premium JBL Transducers
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 57Hz-20kHz
  • Max SPL: 129dB (Peak)
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


مزيد من التفاصيل

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

التنزيلات

Specifications
  الإصدار الحجم تاريخ التحميل
file type icon SRX812 Spec Sheet
الإصدار 11/19, تم التحديث: ديسمبر 2019
11/19  1.05 MB ديسمبر 2019
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon JBL 2025 PPA Brochure
en الإصدار B, تم التحديث: أغسطس 2025
en  8.45 MB أغسطس 2025
Compliances
  الحجم تاريخ التحميل
file type icon SRX800 Passive Series Compliance
تم التحديث: أكتوبر 2020
139 KB أكتوبر 2020
Software
  الحجم تاريخ التحميل
file type icon Audio Architect
تم التحديث: أبريل 2019
9.96 KB أبريل 2019
Android download icon SRX Connect
تاريخ الإصدار: أغسطس 2023
أغسطس 2023
Windows download icon HiQnet Audio Architect
تاريخ الإصدار: نوفمبر 2020
نوفمبر 2020
iOS download icon SRX Connect
تاريخ الإصدار: أغسطس 2023
أغسطس 2023
Speaker Tunings
  الحجم تاريخ التحميل
file type icon SRX800 Passive I-Tech HD Tunings
تم التحديث: أكتوبر 2020
23.7 KB أكتوبر 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
تم التحديث: أكتوبر 2020
41.3 KB أكتوبر 2020
file type icon SRX Passive Bi-amp tunings Table
تم التحديث: أكتوبر 2020
2.69 MB أكتوبر 2020
Images
  الحجم تاريخ التحميل
file type icon SRX800 Driver
تم التحديث: أبريل 2019
158 KB أبريل 2019
file type icon SRX800 Handle
تم التحديث: أبريل 2019
208 KB أبريل 2019

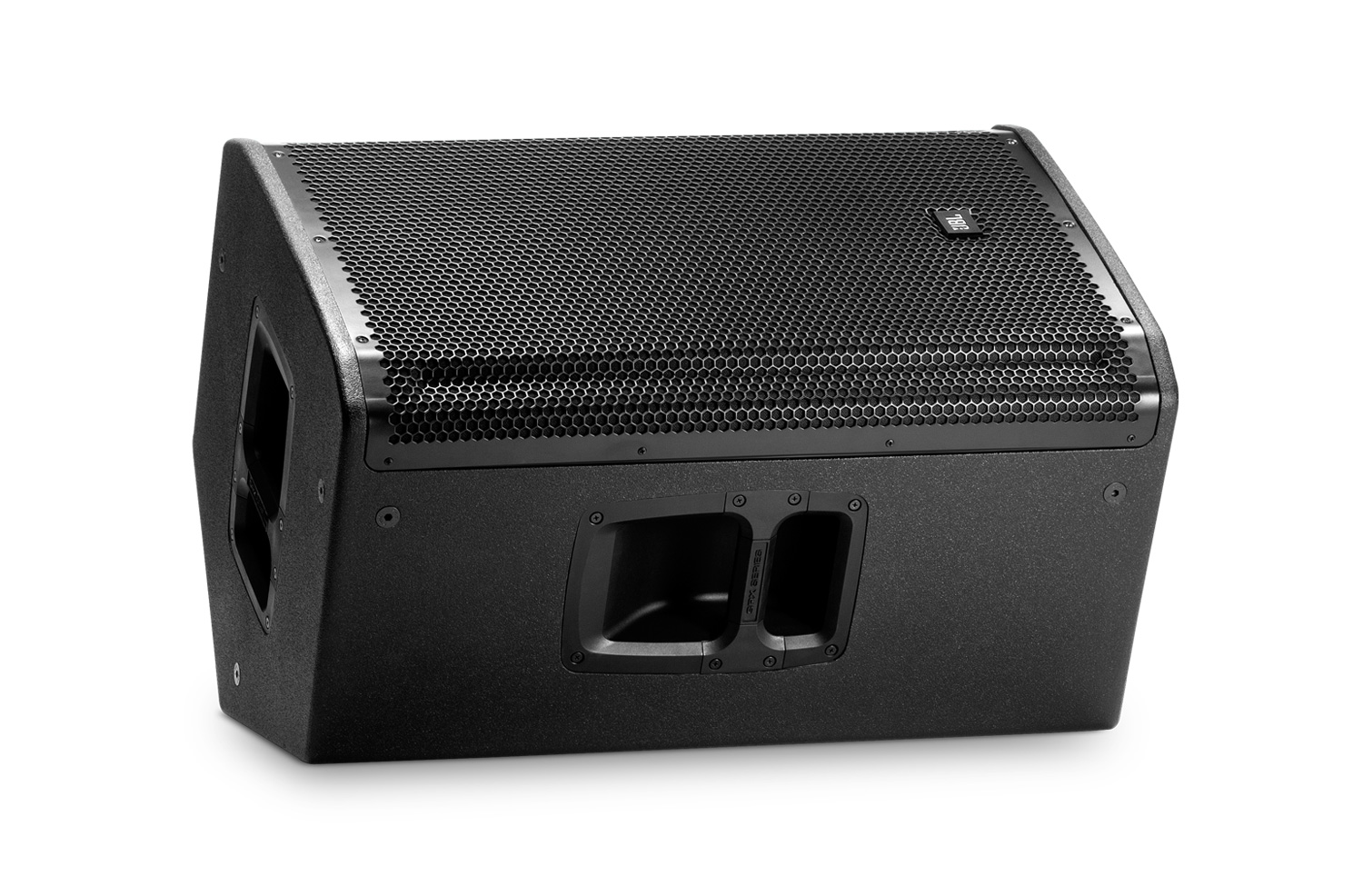

file type icon SRX812 Monitor
تم التحديث: أكتوبر 2019
345 KB أكتوبر 2019

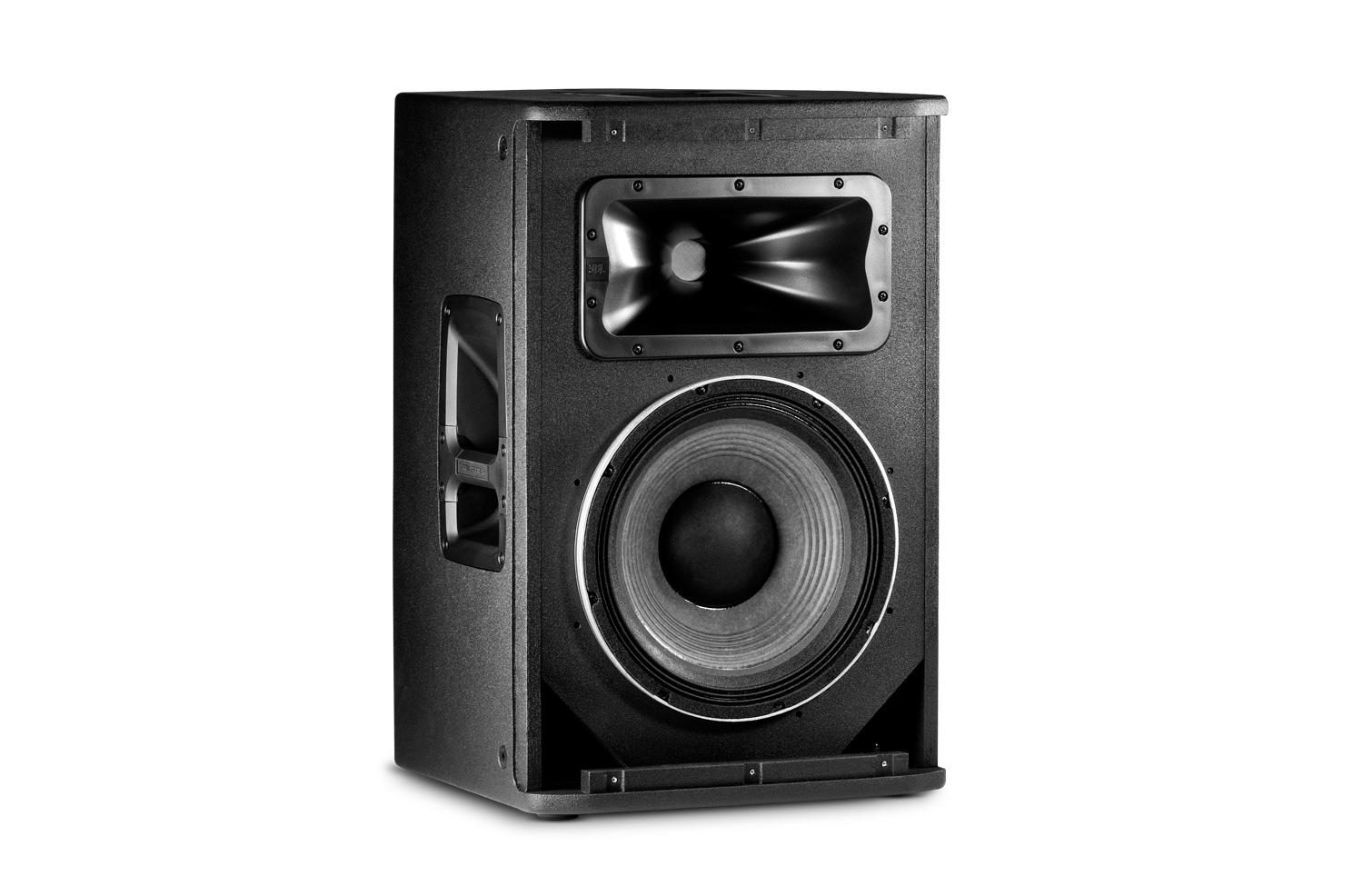

file type icon SRX812 Angle No-Grill
تم التحديث: أكتوبر 2019
218 KB أكتوبر 2019

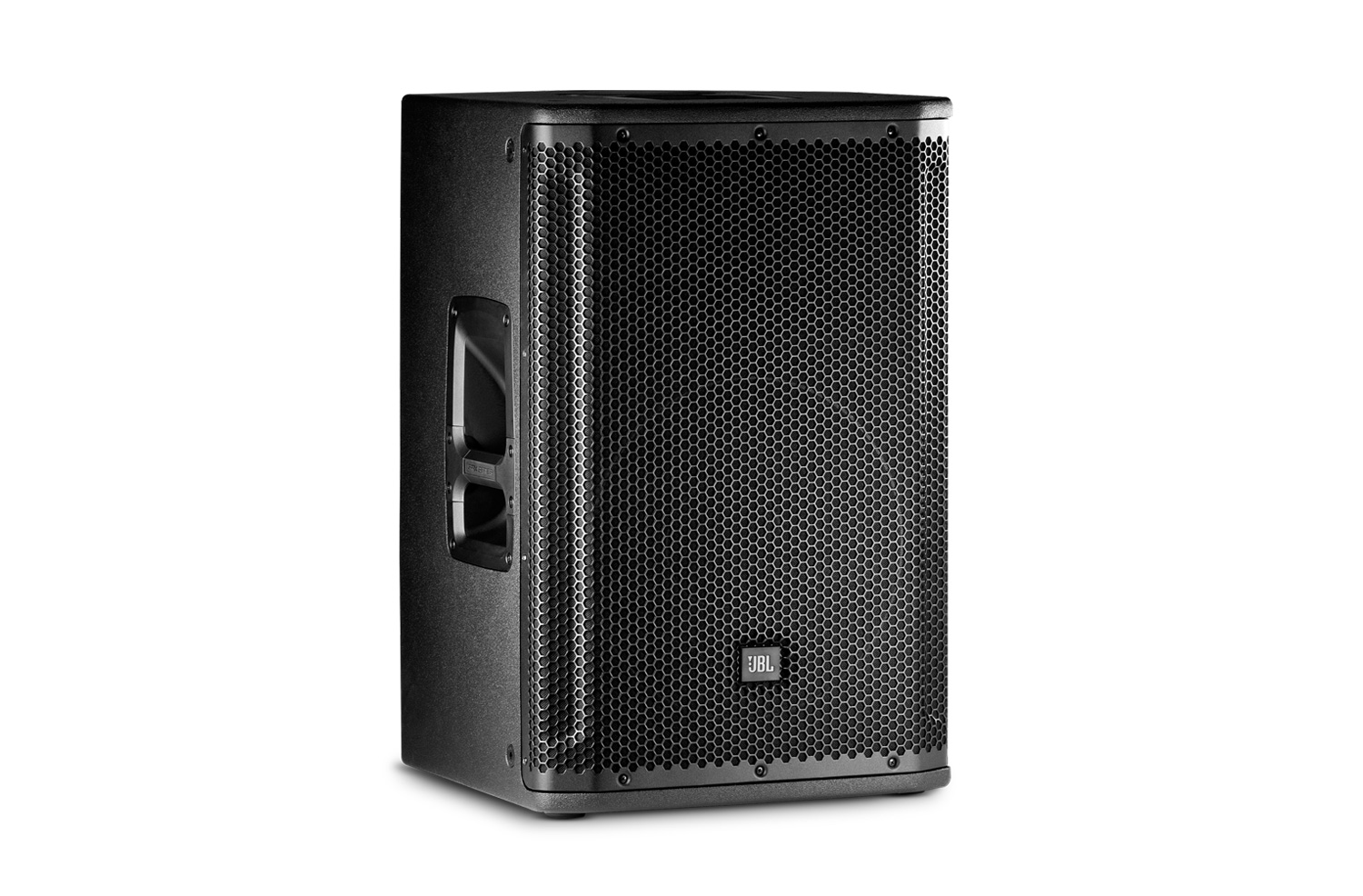

file type icon SRX812 Angle
تم التحديث: أكتوبر 2019
291 KB أكتوبر 2019

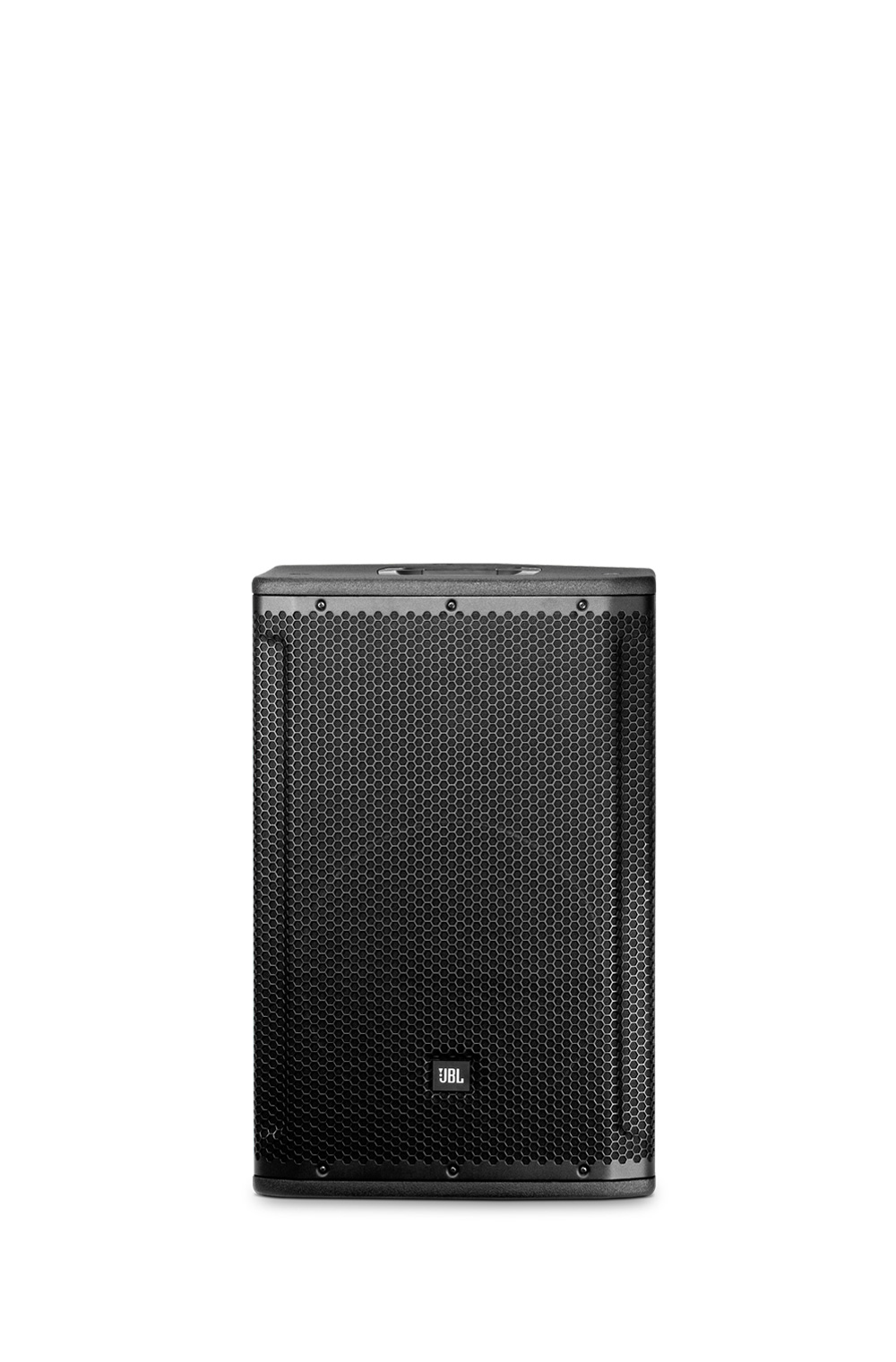

file type icon SRX812 Front
تم التحديث: أكتوبر 2019
211 KB أكتوبر 2019

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

System Type Passive 12”, two-way, bass-reflex
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (-3 dB) 57hz - 20khz
Sensitivity 94dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver JBL 2272H
HF Driver JBL 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure 18mm Duraflex coated plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Weight 55.0 lbs (24.9kg)
Shipping Weight 65 lbs (29.3kg)
