PRX418S

18" Subwoofer

较大的图像

18" Subwoofer

PRX418S is an eighteen inch subwoofer which, when combined with the two-way models, provides a sub/sat system capable of generating 135 dB of full-range, high quality audio.



特点

  • Tough DuraFlexT finish enclosure
  • Heavy Duty 16 gauge protective screen backed steel grille


下载

  Version Language Size Uploaded
Specifications
PRX418S Spec Sheet
updated: 4月29日
    1.0 MB 4月29日
Brochures
PRX400 Brochure
updated: 4月29日
    990.9 KB 4月29日
    2.5 MB 10月22日
Compliances
    144.2 KB 10月22日
Images
PRX418S Front Angle
updated: 4月29日
    3.9 MB 4月29日

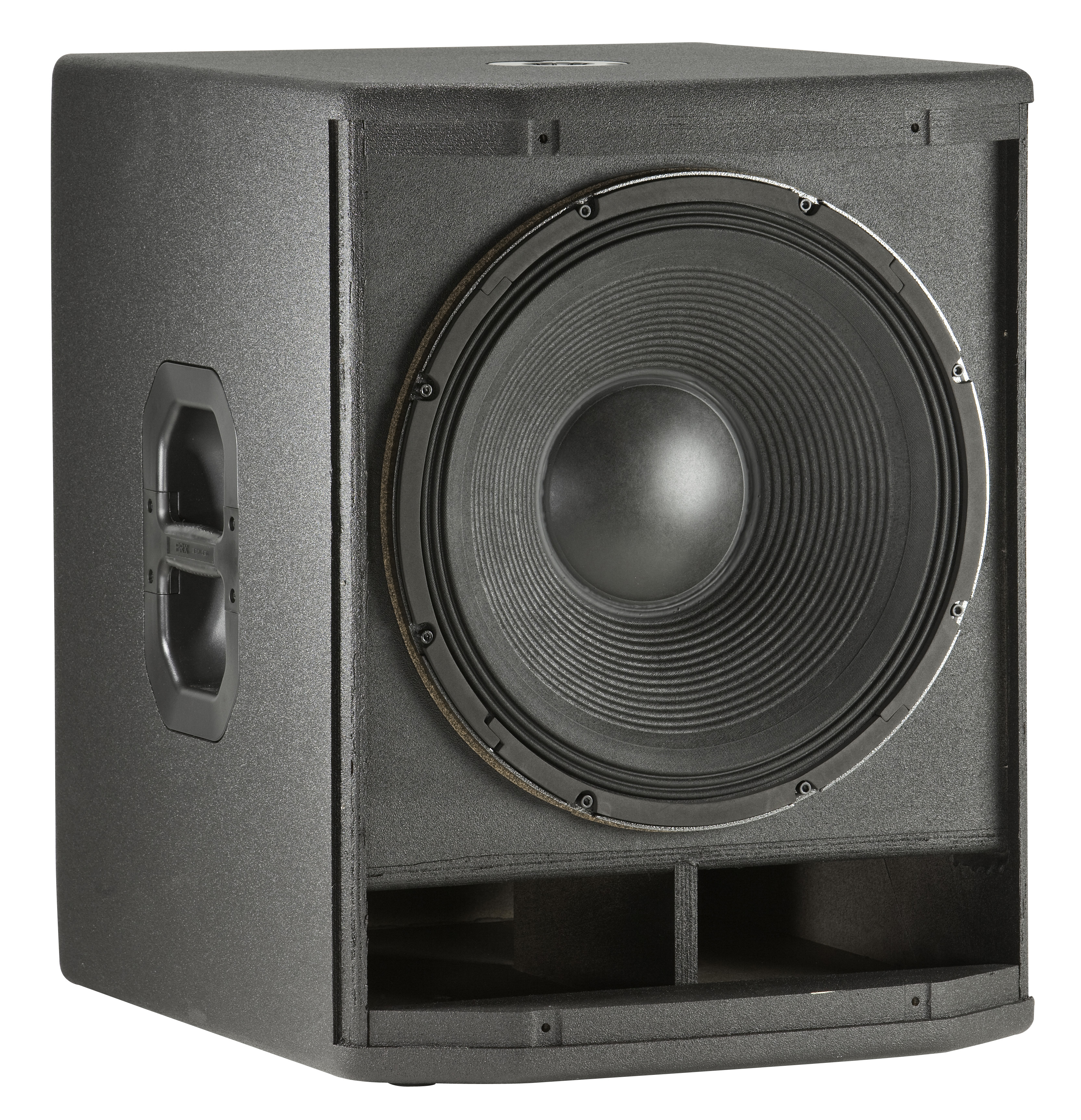

PRX418S Fr Angle No Grill
updated: 4月29日
    3.8 MB 4月29日
Speaker Tunings
PRX400 Series Tunings
updated: 10月22日
    41.2 KB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 35 Hz – 250 Hz

频率响应

52 Hz – 120 Hz
System Sensitivity 95 dB SPL (1w@1m)
Power Rating, Pink Noise 800 W / 1600 W / 3200 W(Continuous/Program/Peak)
Maximum SPL (1m) 130 dB SPL peak
标称阻抗 8 ohms
尺寸(高 x 宽 x 厚) 678 mm x 536 mm x 615 mm (26.7" x 21.1" x 24.2")
净重量 36 kg (79 lbs.)
输入通道 Two Neutrik® Speakon® NL-2 / ¼" TS phone combo jacks
Enclosure Duraflex coated plywood

Accessories

PRX418S-CVR | Padded Cover for PRX418S
PRX418S-CVR Main photo
较大的图像

Padded Cover for PRX418S. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
