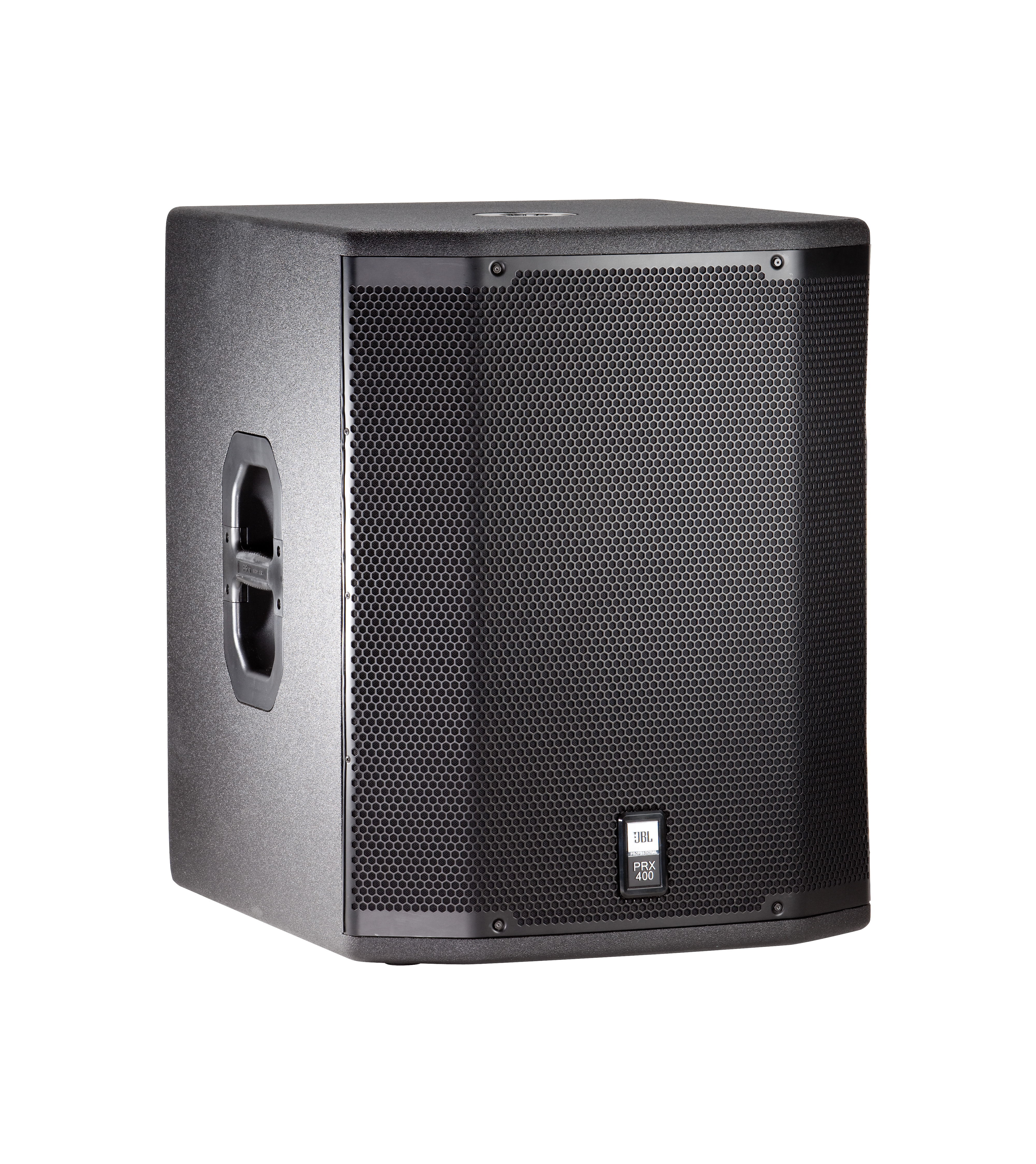

PRX418S

18" Subwoofer

Grandes images

18" Subwoofer

PRX418S is an eighteen inch subwoofer which, when combined with the two-way models, provides a sub/sat system capable of generating 135 dB of full-range, high quality audio.



Caractéristiques

  • Tough DuraFlexT finish enclosure
  • Heavy Duty 16 gauge protective screen backed steel grille


Téléchargements

Specifications
  Taille Téléchargé
file type icon PRX418S Spec Sheet
mis à jour : avr. 2019
1,04 Mo avr. 2019
Brochures
  Version Langue Taille Téléchargé
file type icon PRX400 Brochure
mis à jour : jan. 2021
    991 ko jan. 2021
file type icon Portable Sound Full Line 2015 Catalog
mis à jour : oct. 2020
    2,54 Mo oct. 2020
file type icon JBL 2025 PPA Brochure
en version B, mis à jour : août 2025
en  8,45 Mo août 2025
Compliances
  Taille Téléchargé
file type icon PRX400 Series Declaration of Conformity
mis à jour : oct. 2020
144 ko oct. 2020
Images
  Taille Téléchargé
file type icon PRX418S Front Angle
mis à jour : avr. 2019
3,89 Mo avr. 2019
file type icon PRX418S Fr Angle No Grill
mis à jour : avr. 2019
3,81 Mo avr. 2019
Speaker Tunings
  Taille Téléchargé
file type icon PRX400 Series Tunings
mis à jour : oct. 2020
41,2 ko oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range 35 Hz – 250 Hz
Frequency Response 52 Hz – 120 Hz
System Sensitivity 95 dB SPL (1w@1m)
Power Rating, Pink Noise 800 W / 1600 W / 3200 W(Continuous/Program/Peak)
Maximum SPL (1m) 130 dB SPL peak
Nominal Impedance 8 ohms
Dimensions (H x W x D) 678 mm x 536 mm x 615 mm (26.7" x 21.1" x 24.2")
Net Weight 36 kg (79 lbs.)
Inputs Two Neutrik® Speakon® NL-2 / ¼" TS phone combo jacks
Enclosure Duraflex coated plywood

Accessoires

PRX418S-CVR | Housse rembourrée pour PRX418S
PRX418S-CVR Main photo
Grandes images
PRX418S-CVR detail thumbnail #1 PRX418S-CVR detail thumbnail #2 PRX418S-CVR detail thumbnail #3

Padded Cover for PRX418S. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Grandes images
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Grandes images
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Grandes images
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Réglable de 4'2" (1270MM) à 6'5" (1956MM)
  • Trépied de haut-parleur à réglage manuel
  • Conçu pour une utilisation avec les modèles JBL suivants : JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Grandes images
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Pied d'enceinte à réglage manuel avec extrémité filetée M20, tube de 38 mm et 35 mm. Le JBLPOLE-MA est doté d'un remarquable collier de réglage de hauteur avec un bouton ergonomique en « Z » qui permet un réglage confortable. Offrant l'assemblage le plus robuste, le collier de réglage de hauteur prévient le serrage excessif et les problèmes de casse associés à tous les modèles en plastique.

  • Léger
  • Colliers en alliage moulé
  • Douille filetée M20
  • Compatible avec tous les caissons de basses dotés d'un filetage de tige M20 standard (JBL PRX, VRX, STX et SRX818) - Veuillez consulter les fiches produit individuelles pour confirmation

Documentation
