NANO355

Portable Passive 15" Two-Way Speaker

NANO355
较大的图像

Portable Passive 15" Two-Way Speaker

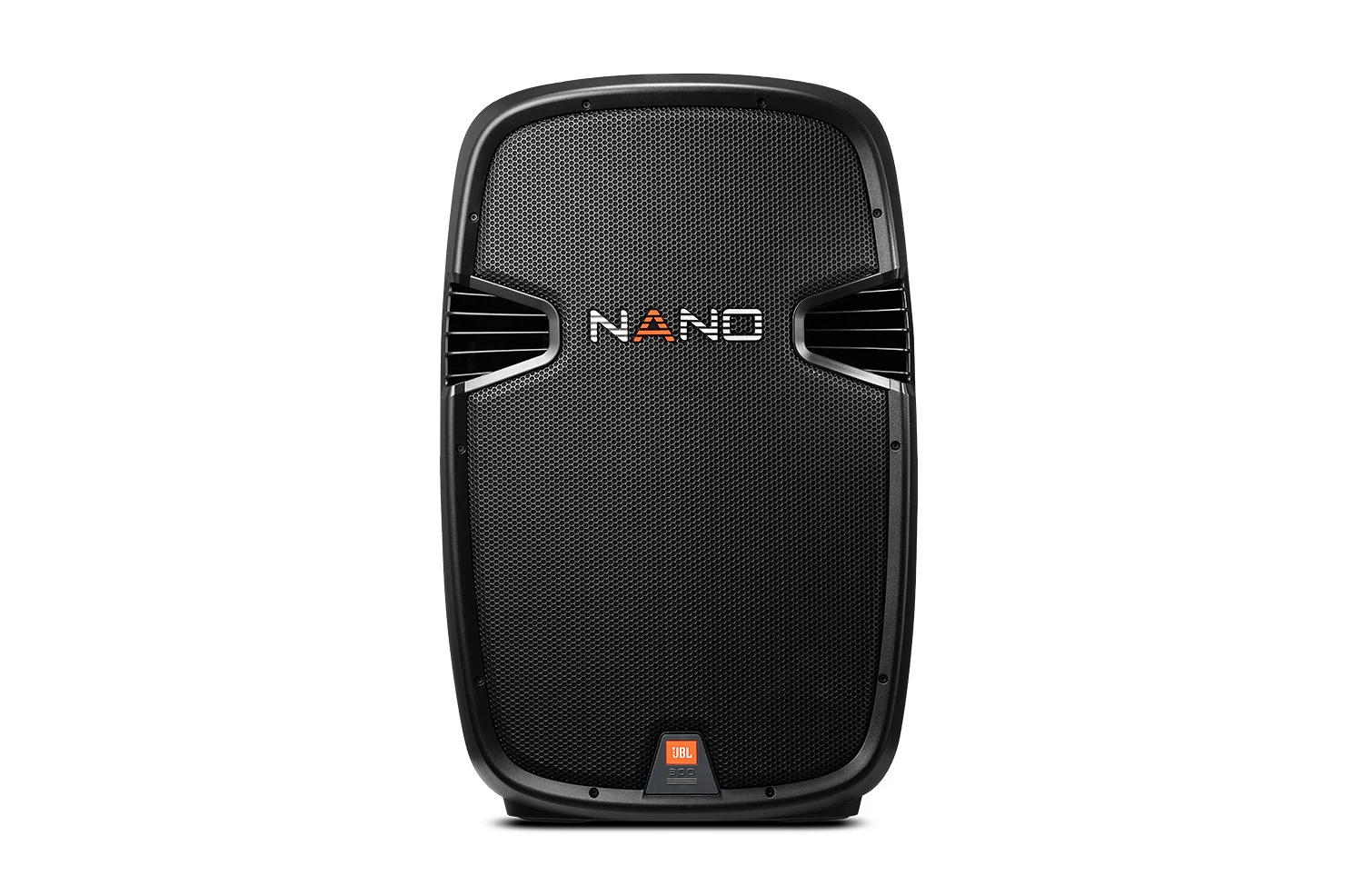

JBL NANO355 is a 15-inch, 2-way passive speaker system designed for multi-purpose portable applications. The NANO355 is comprised of a premium 15-inch (380 mm) woofer and a 1-inch (25.4mm) polymer diaphragm high frequency compression driver coupled with a 100° × 60° (H × V) coverage waveguide. The compact system is capable of handling 350 watts continuously and 1400 watts peak. The NANO355 is embedded with an advanced network, for extremely consistent on- and off-axis performance. The SonicGuardTM protection circuitry prevents the high frequency compression driver from excess power without compromising the system’s performance. Dual Neutrik® NL4/¼” combo connectors allow adding additional systems in parallel. The NANO355 features ultra light weight and true portability and is designed for versatile uses. The three ergonomic soft-touch handles make it easy to lift and transport. The angled enclosure, multiple M10 suspension points and a 36-mm pole socket highly increase the system’s utility as either main or monitor speaker. Rugged copolymer enclosure and screen-backed steel grille further adds durability of the entire system.

特点

  • Multi-angle enclosure for main or monitor applications
  • Ultra light weight, extremely compact and highly portable
  • JBL premium HF and LF drivers for high-precision acoustic reproduction
  • 100° × 60°(H × V) asymmetrical waveguide from uniform audience coverage
  • SonicGuardTM HF protection circuit
  • Soft touch top grip for easy handling
  • Multiple M10 suspension points for easy and safe rigging
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosure for durability, lightweight, and portability
  • Sound reinforcement for live performance, band gigging, small concert

下载

  Version Language Size Uploaded
Spec Sheets
file type icon NANO355 Spec Sheet Eng
updated: 12月 2019
    601.6 KB 12月 2019
file type icon NANO355 Spec Sheet Cn
updated: 12月 2019
    719.6 KB 12月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 15”, 2-way, bass-reflex design
频率范围 (-10dB) 38 Hz - 20 kHz
Frequency Response (-3 dB) 50 Hz - 18 kHz
覆盖范围 100° × 60°(H × V)
Directivity Index (DI) 9 dB
Directivity Factor (Q) 8
分频点 2.3 kHz
System Power Rating (Continuous/Program/Peak) 350 W/700 W/1400 W

灵敏度

98 dB
Maximum SPL (1m) 130 dB
标称阻抗 8 ohms
低频驱动单元 1 × 15” (380 mm) woofer
HF 驱动程序 1 × JBL 2414H 1” (25.4 mm) polymer diaphragm compression driver
Input Connector Parallel Neutrik® NL4 / ¼” combo connectors
HF Protection SonicGuardTM Circuit
Enclosure PP impact copolymer, multi-purpose main & monitor orientation
Handles One left/right side, one on top
Suspension/Mounting 36 mm pole socket with stabilizing screw 4 × M10 suspension points, 1 × M10 pull-back point
网罩 Power coated perforated steel with acoustically transparent black screen backing
尺寸(高 x 宽 x 厚) 685 mm × 438 mm × 366 mm 27 inch × 17.3 inch × 14.4 inch
净重量 16 kg (35 lbs)
