Portable Passive 10” Two-Way, Bass-Reflex Design


Portable Passive 10” Two-Way, Bass-Reflex Design

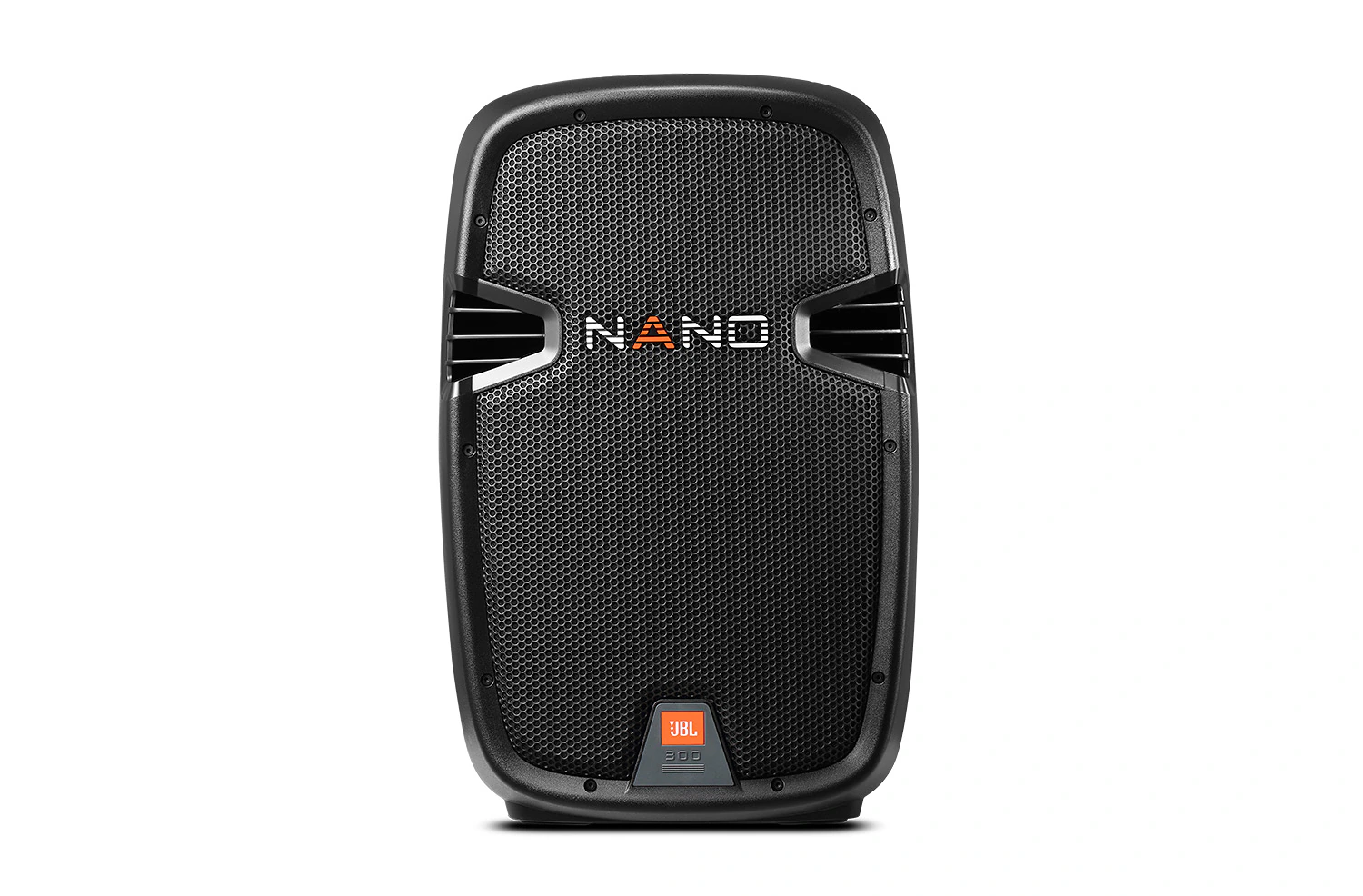

JBL NANO350 is a 10-inch, 2-way passive speaker system designed for multi-purpose portable applications. The NANO350 is comprised of a premium 10-inch (254 mm) woofer and a 1-inch (25.4mm) polymer diaphragm high frequency compression driver coupled with a 100° × 60° (H × V) coverage waveguide. The compact system is capable of handling 300 watts continuously and 1200 watts peak. The NANO350 is embedded with an advanced network, for extremely consistent on- and off-axis performance. The SonicGuardTM protection circuitry prevents the high frequency compression driver from excess power without compromising the system’s performance. Dual Neutrik® NL4/¼” combo connectors allow adding additional systems in parallel. The NANO350 features ultra light weight and true portability and is designed for versatile uses. The ergonomic soft-touch handle makes it easy to lift and transport. The angled enclosure, multiple M10 suspension points and a 36-mm pole socket highly increase the system’s utility as either main or monitor speaker. Rugged copolymer enclosure and screen-backed steel grille further adds durability of the entire system.


  • Multi-angle enclosure for main or monitor applications
  • Ultra light weight, extremely compact and highly portable
  • JBL premium HF and LF drivers for high-precision acoustic reproduction
  • 100° × 60°(H × V) asymmetrical waveguide from uniform audience coverage
  • SonicGuardTM HF protection circuit
  • Soft touch top grip for easy handling
  • Multiple M10 suspension points for easy and safe rigging
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosure for durability, lightweight, and portability
  • Sound reinforcement for live performance, band gigging, small concert


  Version Language Size Uploaded
Spec Sheets
file type icon NANO350 Spec Sheet Eng
updated: 12月 2019
    1.2 MB 12月 2019
file type icon NANO350 Spec Sheet Cn
updated: 12月 2019
    1.3 MB 12月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 10”, 2-way, bass-reflex design
频率范围 (-10dB) 50 Hz - 19 kHz
Frequency Response (-3 dB) 65 Hz - 18 kHz
覆盖范围 100° × 60°(H × V)
Directivity Index (DI) 9 dB
Directivity Factor (Q) 8
分频点 1.9 kHz
System Power Rating(Continuous/Program/Peak) 300 W/600 W/1200 W


94 dB
Maximum SPL (1m) 125 dB
标称阻抗 8 ohms
低频驱动单元 1 × 10” (250 mm) woofer
HF 驱动程序 1 × JBL 2414H-1 1” (25.4 mm) polymer diaphragm compression driver
Input Connector Parallel Neutrik® NL4 / ¼” combo connectors
HF Protection SonicGuardTM Circuit
Enclosure PP impact copolymer, multi-purpose main & monitor orientation
Handles One on the top
Suspension/Mounting 36 mm pole socket with stabilizing screw 3 × M10 suspension points, 1 × M10 pull-back point
网罩 Power coated perforated steel with acoustically transparent black screen backing
尺寸(高 x 宽 x 厚) 490 mm × 313 mm × 262 mm 19.3 inch × 12.3 inch × 10.3 inch
净重量 9.8 kg (22 lbs)
