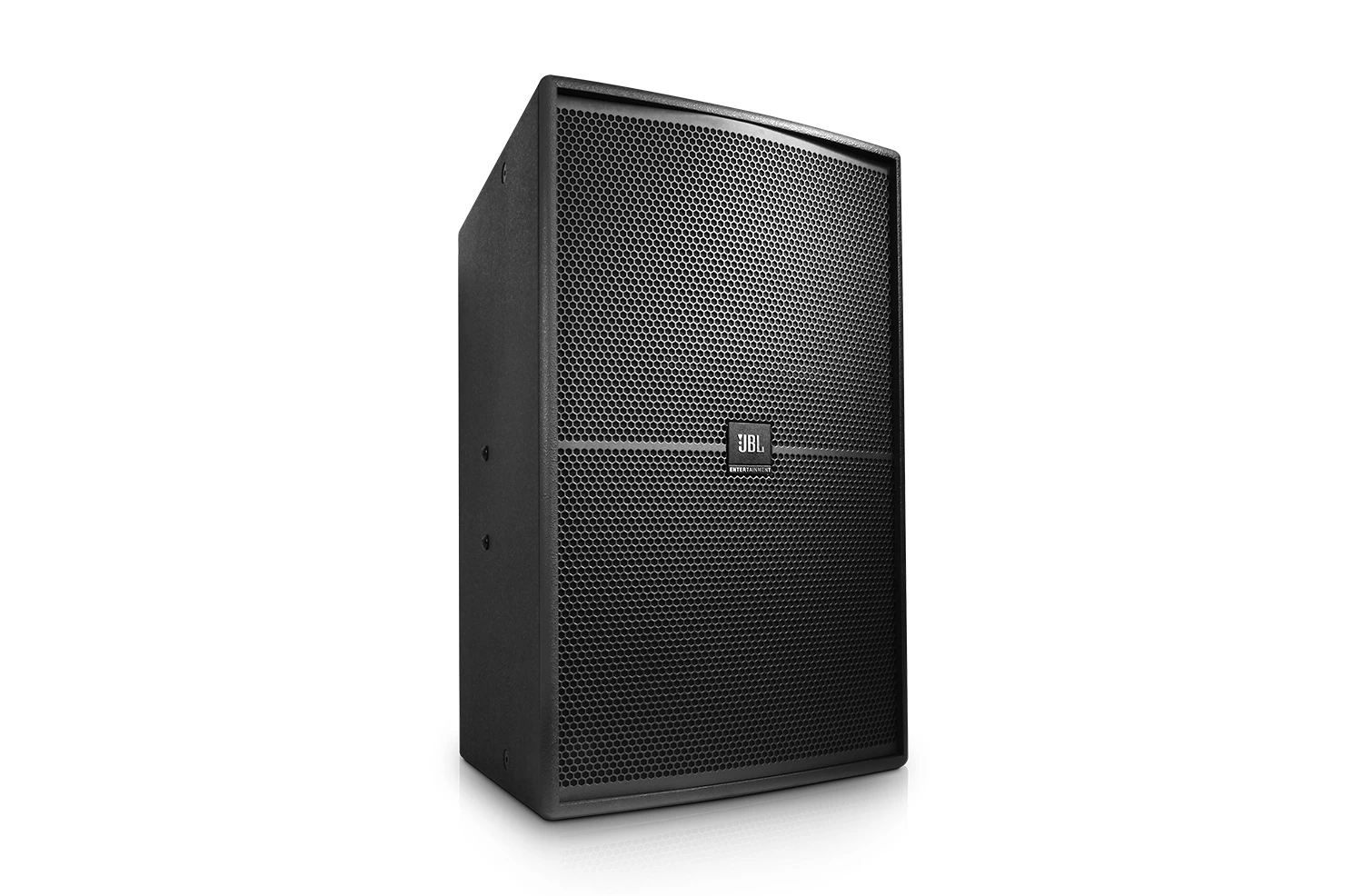

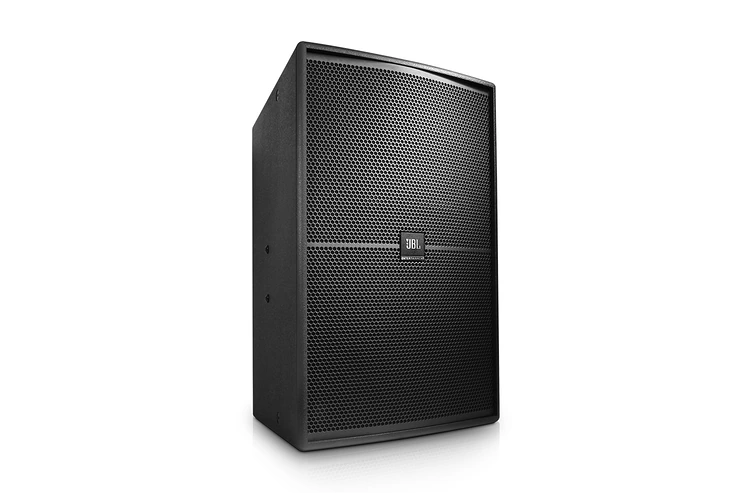

KP2015

15 Inch 2-Way Full Range Loudspeaker System

KP2015
较大的图像

15 Inch 2-Way Full Range Loudspeaker System

The KP2015 is a compact and premium high-output full-range loudspeaker.

The KP2015 uses a 380 mm (15 in) humidity protection woofer with optimal demodulating/ cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2414H-C 25 mm (1 in) annular polymer diaphragm compression driver for 350 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

特点

  • 15″ High efficiency woofer design
  • 1″ annular polymer diaphragm compression driver
  • Enclosure constructed of 15 mm medium density fiberboard with rugged durable finish
  • 70° x 100° coverage pattern for even and smooth response on and off axis
  • Attractive cloth backed robust steel grille design
  • Precision engineered crossover for optimal driver integration
  • Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
  • Two colors for multiple applications: Black and JBL ENTERTAINMENT 10th anniversary exclusive edition
  • Karaoke sound reinforcement
  • Club live sound reinforcement
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Brochures
file type icon Karaoke Catalogue Brochure
updated: 10月 2020
    4.1 MB 10月 2020
Spec Sheets
file type icon KP2015 Spec Sheet - English
updated: 1月 2023
    684.1 KB 1月 2023
file type icon KP2015 Spec Sheet - Chinese
updated: 1月 2023
    776.8 KB 1月 2023
HI-RES IMAGEs

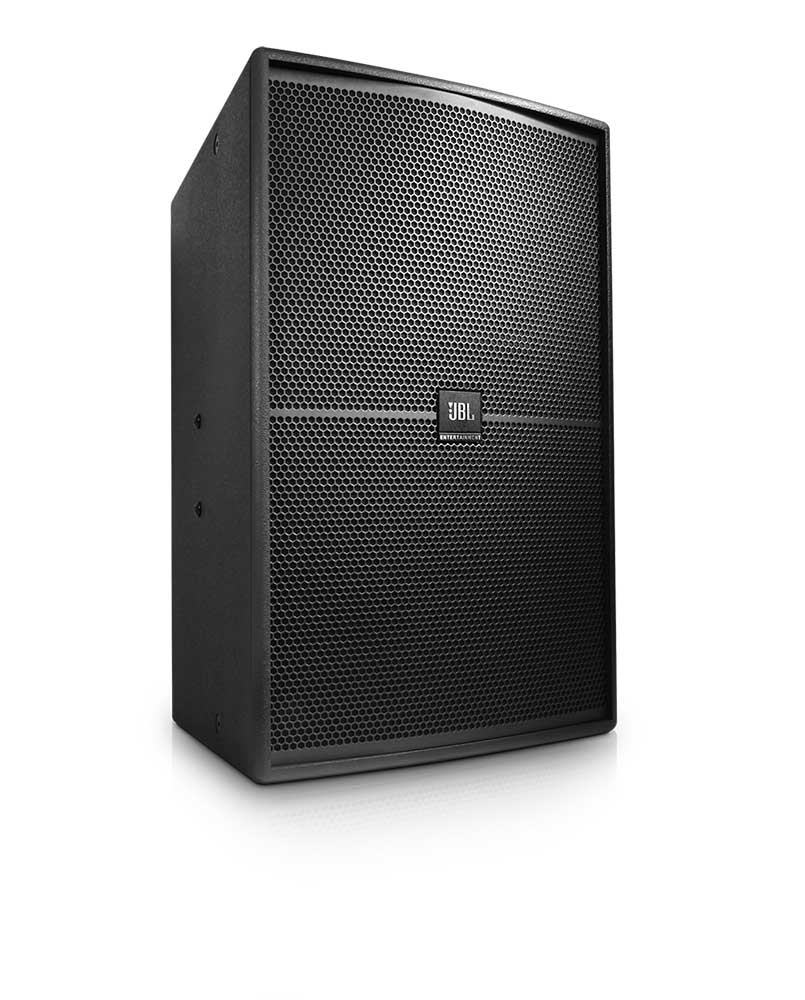

file type icon KP2015 Hi Res Image
updated: 10月 2020
    87.4 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 15″, 2-way, bass-reflex
频率范围 (-10dB) 45 Hz - 20 KHz
Frequency Response (±3 dB) 75 Hz - 17 KHz
System Sensitivity (1w @ 1m) 98 dB
标称阻抗 8 ohms
Maximum SPL (1m) 123 dB (129 dB peak)
Power Rating(Continuous/Program/Peak) 350 W / 700 W / 1400 W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 688 mm x 430 mm x 450 mm (27.1 in x 16.9 in x 17.7 in)
净重量 24.0 kg (52.9 lbs)
低频驱动单元 1 x 15″ woofer
HF 驱动程序 1 x 2414H-C
输入接口 1 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, MDF
Enclosure Color Black(KP2015)/White(KP2015-WH)
