18 Inch High-Power Passive Subwoofer


18 Inch High-Power Passive Subwoofer

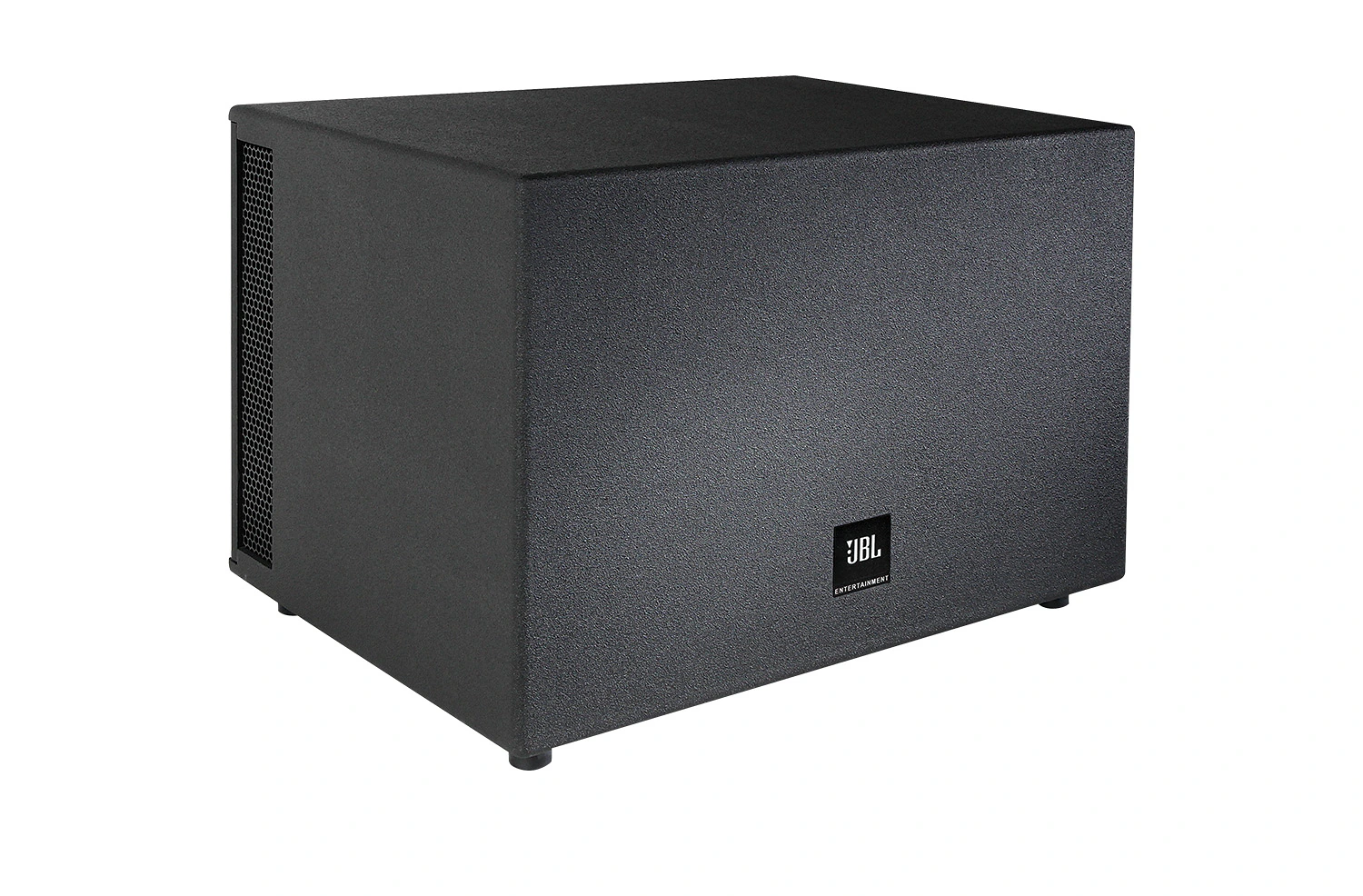

The KP18S is a single 18” compact, high power subwoofer for Karaoke sound reproduction. It utilizes a JBL long excursion woofer. The high-performance driver, in conjunction with the dedicated enclosure design, provides the best bandwidth to size ratio. The KP18S subwoofer is designed to provide low-frequency reinforcement for the entire JBL KP Series family of full-range loudspeakers.


  • 18” high-power and long-excursion cone driver for extended low-frequency reproduction
  • Sophisticated acoustic cabinet design for high efficiency
  • High sensitivity with low power compression
  • Low profile and compact
  • Enclosure features a combination of 18mm and 25mm multi-ply birch construction with attractive durable finish
  • Karaoke sound reinforcement


  Version Language Size Uploaded
Data Sheets
file type icon KP18S DataSheet - CN
updated: 10月 2020
    3.3 MB 10月 2020
file type icon KP18S DataSheet - EN
updated: 12月 2019
    2.7 MB 12月 2019
file type icon Karaoke Catalogue Brochure
updated: 10月 2020
    4.1 MB 10月 2020
Spec Sheets
file type icon KP18S Spec Sheet - CN
updated: 10月 2020
    677.1 KB 10月 2020
file type icon KP18S Spec Sheet - EN
updated: 10月 2020
    544.7 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 18”, bass-reflex
频率范围 (-10dB) 32 Hz – 150 Hz
Frequency Response (±3 dB) 42 Hz – 150 Hz
System Sensitivity (1w @ 1m) 96 dB
标称阻抗 8 ohms
Maximum SPL (1m) 124 dB (130 dB peak)
Power Rating (Continuous/Program/Peak 600 W/1200 W/2400 W
尺寸(高 x 宽 x 厚) 554mm x 750mm x 561mm (21.81 in x 29.53 in x 22.09 in)
净重量 36.6 Kg (80.7 lbs)
低频驱动单元 1 x 18“ woofer
输入接口 2 x Neutrik® Speakon® NL4MP
Enclosure Rectangular, 18 mm and 25 mm, multi-ply birch
