Ultra-Compact Indoor/Outdoor Background/Foreground Speaker

The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

特点

  • Components:
    • 3” woofer with woven fiberglass cone
    • 1/2” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware*, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
  • High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.

下载

  Version Language Size Uploaded
Data Sheets
Control 23-1 Spec Sheet
version B, updated: 10月23日
  551.4 KB 10月23日
Manuals
    67.7 KB 10月31日
CAD Drawings
    5.8 MB 10月22日
Control 23-1/L 2D Drawing
updated: 10月22日
    288.1 KB 10月22日
Control 23-1/L 3D Drawing
updated: 10月22日
    3.7 MB 10月22日
Bim Objects
BIM (Revit) Files
updated: 10月22日
    12.4 MB 10月22日
Control 23-1 BIM Object
updated: 8月27日
    8月27日
Compliances
    130.9 KB 10月18日
    179.3 KB 12月17日
    75.9 KB 10月18日
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 1月14日
3.6.2     804.8 KB 1月14日
Ease Data
    539.8 KB 10月22日
Install Guides
    774.0 KB 9月27日
    227.1 KB 9月30日
    76.4 KB 11月02日
Guide to Business Music
updated: 10月22日
    52.4 KB 10月22日
MTC-PC2 & MTC-PC3 Installation
updated: 9月30日
    42.5 KB 9月30日
Images
Control 23-1 Angle
updated: 10月22日
    325.8 KB 10月22日
Control 23-1 Front White
updated: 10月22日
    323.1 KB 10月22日

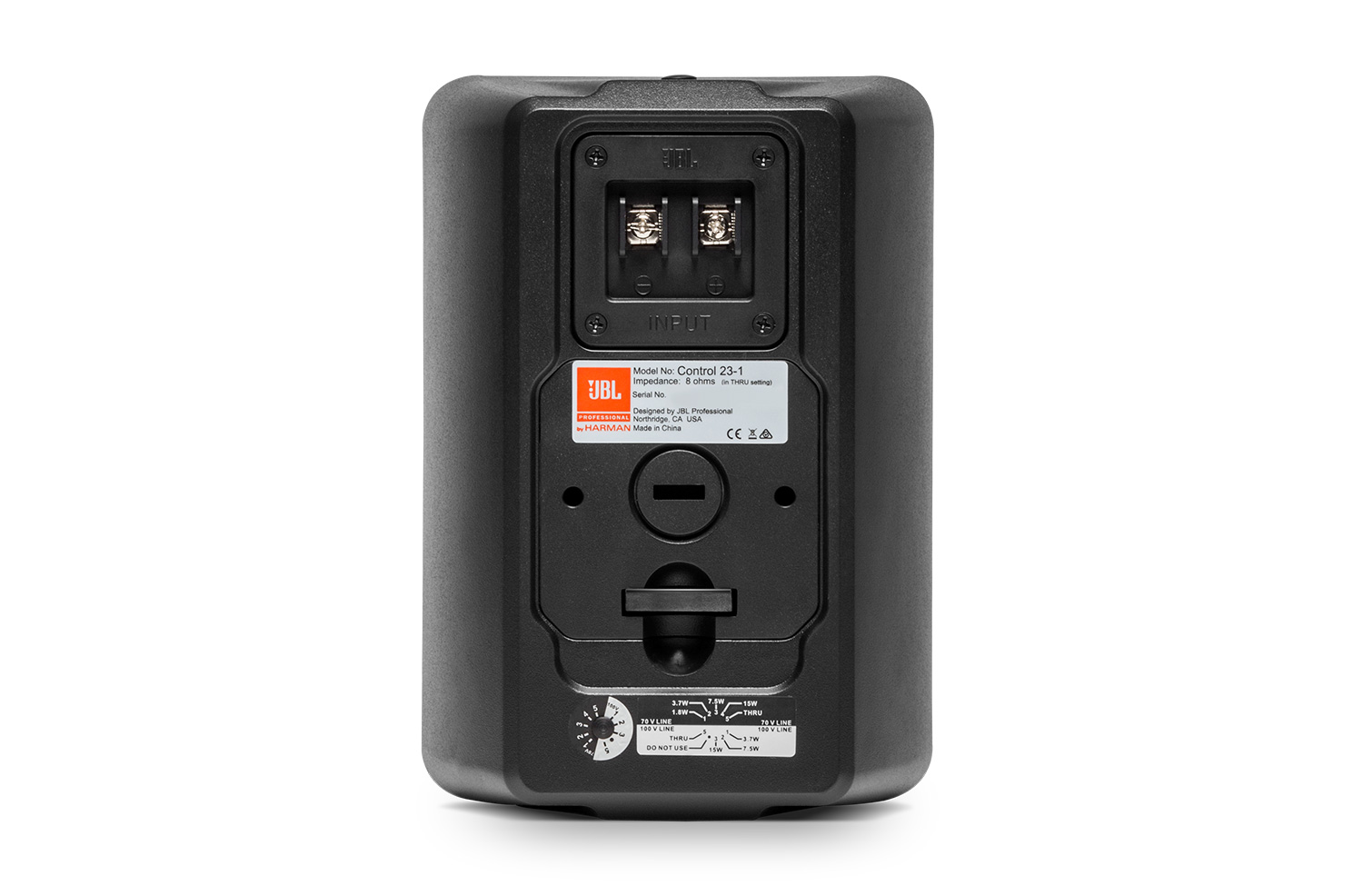

Control 23-1 Back
updated: 10月22日
    175.5 KB 10月22日
Accessories
U-Bracket Install guide
updated: 10月22日
    67.7 KB 10月22日
Speaker Tunings
    557.0 KB 10月22日
Clf Files
CLF Files
version 03-16-20, updated: 3月16日
03-16-20    22.5 MB 3月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 70 Hz to 20 kHz
Frequency Response (±3 dB) 95 Hz - 19 kHz
额定功率 100W Continuous Program (2 hrs)50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 17.2 V RMS (2 hrs), 34.4 V peak
Maximum SPL (1m) 103 dB ave. Continuous Pink Noise (109 dB peak)

灵敏度

86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
覆盖角度 100° x 100°
Directivity Factor (Q) 5.8 (averaged 1kHz – 16kHz)
Directivity Index (DI) 7.2 dB (averaged 1kHz – 16kHz)
阻抗 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 2nd order high-pass
变压器抽头 70V: 15W, 7.5W, 3.7W, 1.8W100V: 15W, 7.5W, 3.7W Insertion Loss <0.43 dB at any tap settingThru Setting: 8Ω nominal
Recommended ProtectiveHigh-Pass 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
Drivers LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
网罩 Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
装配硬件 InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
输入连接器 Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating ROHS-compliant; Transformer UL Recognized per UL1876
Colors Black (RAL9004) or white (-WH, RAL9016)
尺寸(高 x 宽 x 厚) 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.
净重量 1.8 kg (4.0 lbs)

运输重量

3.85kg (8.5 lbs) for the pair-pack (for 2 speakers) 12.0kg (26.5lbs) for the master-pack (for 6 speakers)

随附配件

InvisiBall™ wall-mounting system), 4 mm x 80 mm hex key
Optional Accessories MTC-23UB-1 – Yolk-type U-bracket (&-WH) MTC-23WMG-1 – WeatherMax grille with backing (&-WH) MTC-23CM – Ceiling-Mount InvisiBall adapter (&-WH)
