Control 23-1

Ultra-kompakter Indoor-/Outdoor-Hintergrund-/Vordergrundsprecher

Control 23-1
Größere Bilder

Ultra-kompakter Innen-/Außen Hintergrund-/Vordergrundlautsprecher

Der Control® 23-1 ist ein zweigleisiger 3”-Lautsprecher mit einem reichen Klangcharakter, breiter Abdeckung, gleichmäßiger Verteilung, vielseitiger Montage und einem zeitgemäßen, hochgestalteten Look, der in eine Vielzahl von Dekoren passt. Dies macht den Control 23-1 zu einer ausgezeichneten Wahl für eine Vielzahl von Anwendungen, darunter Einzelhandelsgeschäfte, Restaurants, Fitnessstudios, Freizeitparks, Bildungseinrichtungen, Gastgewerbe, Musikcafés, Freizeiteinrichtungen und überall dort, wo ein hochwertiger, kompakter Innen-/Außen Vordergrund-/Hintergrundmusik- (und/oder Paging-) Lautsprecher benötigt wird.

Eigenschaften

  • Components:
    • 3” woofer with woven fiberglass cone
    • 1/2” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware*, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
  • High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.

Downloads

Data Sheets
  Version Größe Hochgeladen
file type icon Control 23-1 Spec Sheet
Version B, aktualisiert: Okt 2020
551 KB Okt 2020
Manuals
  Größe Hochgeladen
67,7 KB Okt 2019
Brochures
  Version Sprache Größe Hochgeladen
file type icon Loudspeakers for Sports Facilities
en aktualisiert: Jul 2024
  en  5,71 MB Jul 2024
file type icon Control Contractor Brochure (2024)
en Version D, aktualisiert: Feb 2024
en  14 MB Feb 2024
file type icon Control Contractor Brochure (2025)
en Version A, aktualisiert: Mär 2026
en  23 MB Mär 2026
file type icon Control Contractor Brochure (2026)
en aktualisiert: Mär 2026
  en  21 MB Mär 2026
CAD Drawings
  Größe Hochgeladen
5,81 MB Okt 2020
file type icon Control 23-1/L 2D Drawing
aktualisiert: Okt 2020
288 KB Okt 2020
file type icon Control 23-1/L 3D Drawing
aktualisiert: Okt 2020
3,74 MB Okt 2020
BIM Objects
  Größe Hochgeladen
file type icon Control 23-1 BIM Object
aktualisiert: Aug 2019
Aug 2019
Compliances
  Größe Hochgeladen
179 KB Dez 2019
75,9 KB Okt 2019
131 KB Okt 2019
Software
  Version Größe Hochgeladen
Windows download icon Distributed System Design (DSD)
Version 3.9, aktualisiert: Nov 2025
3.9   612 KB Nov 2025
Simulation Data
  Version Größe Hochgeladen
file type icon JBL Pro ALL CLF Files
Version 12-10-21, aktualisiert: Mai 2023
12-10-21  24 MB Mai 2023
Ease Data
  Größe Hochgeladen
file type icon Control 23-1, 25-1, 28-1 EASE Data
aktualisiert: Okt 2020
540 KB Okt 2020
Install Guides
  Größe Hochgeladen
76,4 KB Nov 2019
file type icon Guide to Business Music
aktualisiert: Okt 2020
52,4 KB Okt 2020
file type icon Painting HIPS Loudspeaker Cabinets
aktualisiert: Jun 2023
377 KB Jun 2023
file type icon MTC-PC2 & MTC-PC3 Installation
aktualisiert: Apr 2025
58,7 KB Apr 2025
227 KB Sep 2019
Accessories
  Größe Hochgeladen
file type icon WeatherMax Grille Photos
aktualisiert: Apr 2021
2,75 MB Apr 2021
file type icon U-Bracket Install guide
aktualisiert: Okt 2020
67,7 KB Okt 2020
Images
  Größe Hochgeladen

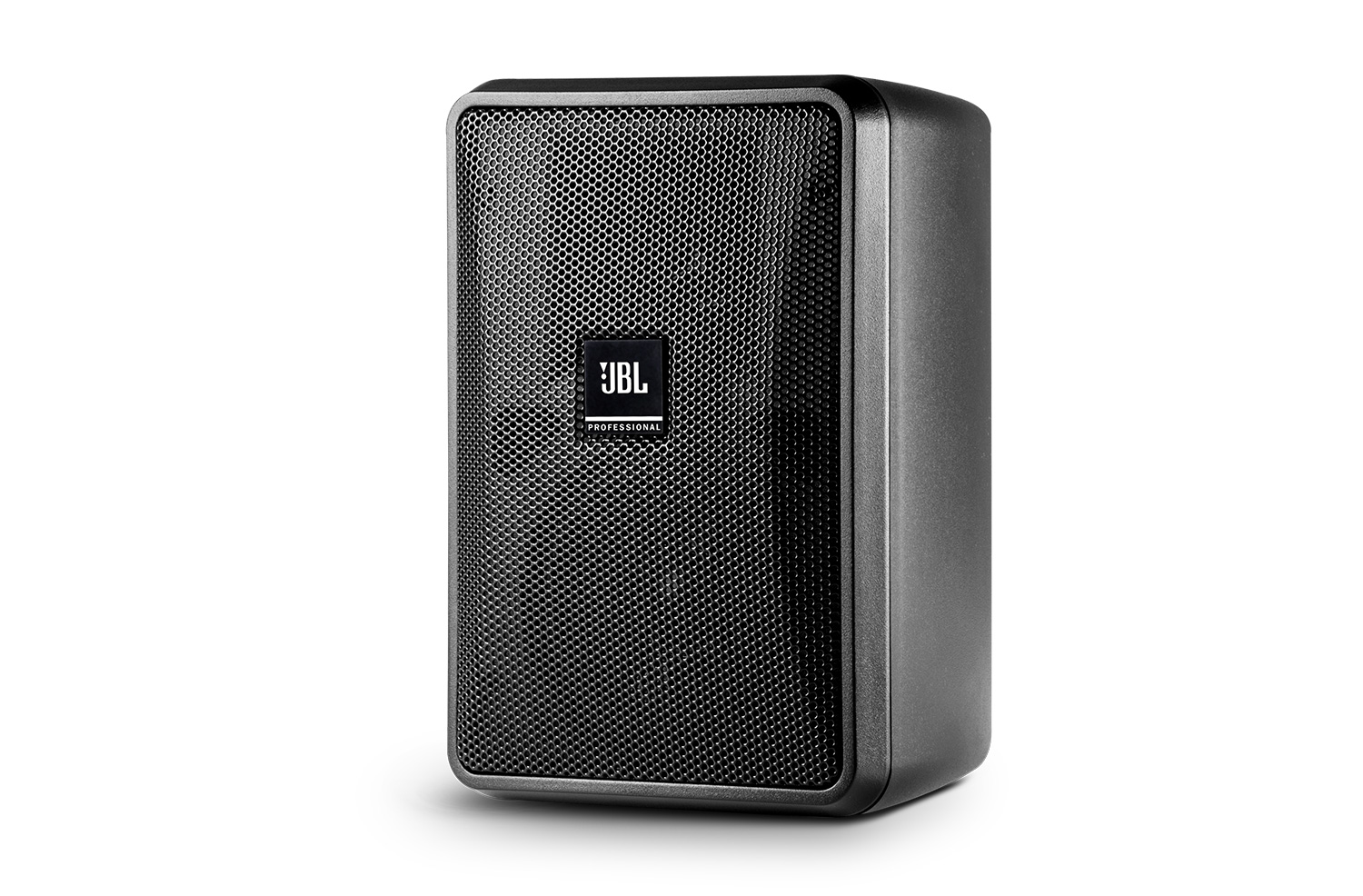

file type icon Control 23-1 Angle
aktualisiert: Okt 2020
326 KB Okt 2020

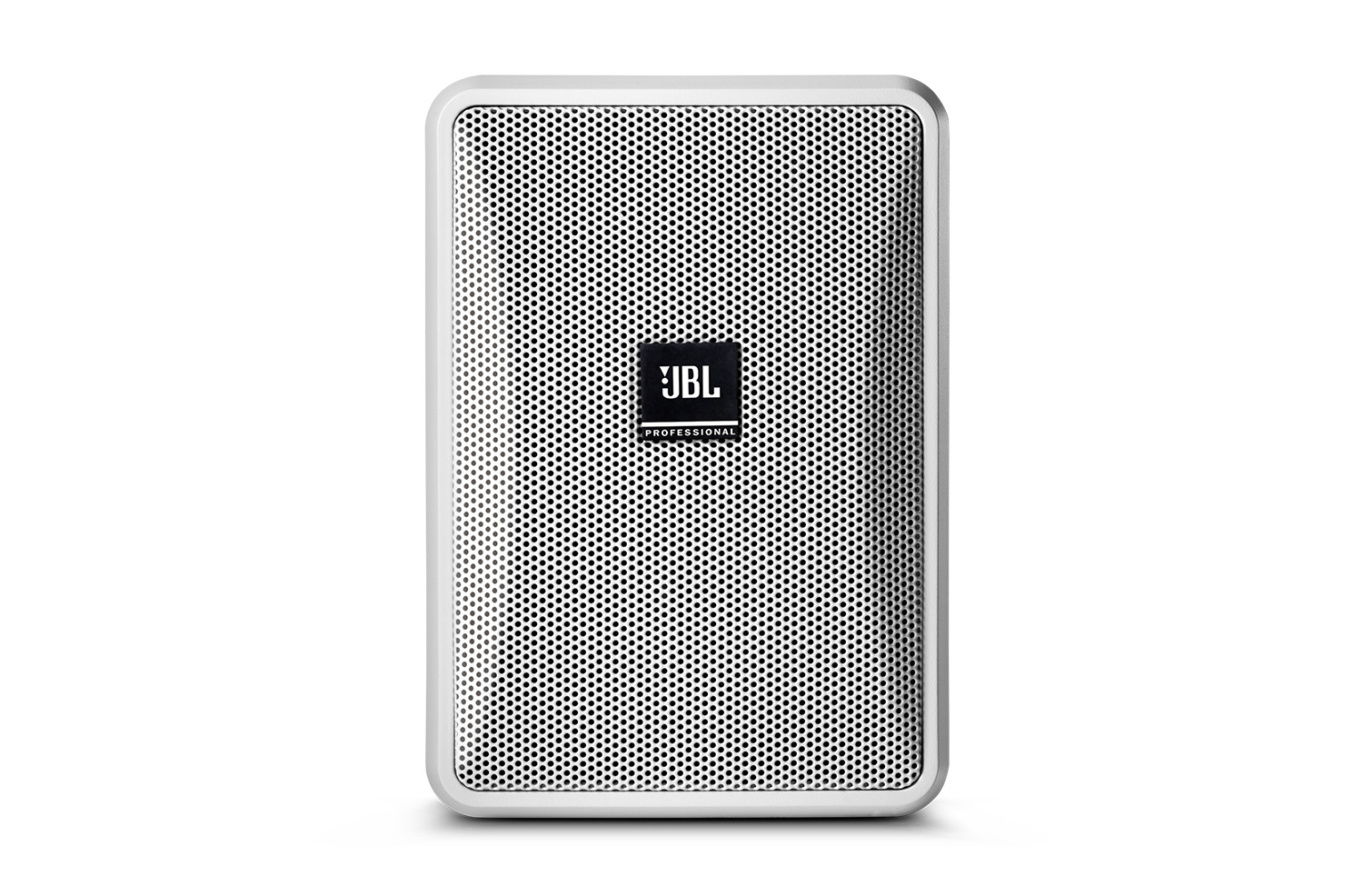

file type icon Control 23-1 Front White
aktualisiert: Okt 2020
323 KB Okt 2020
file type icon Control 23-1 Back
aktualisiert: Okt 2020
175 KB Okt 2020
Speaker Tunings
  Version Größe Hochgeladen
file type icon Commercial, CBT, and AWC Tunings 220616
Version A, aktualisiert: Mai 2023
557 KB Mai 2023

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Teile & Service

Spezifikationen

Frequency Range (-10dB) 70 Hz to 20 kHz
Frequency Response (±3 dB) 95 Hz - 19 kHz
Power Rating 100W Continuous Program (2 hrs)50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 17.2 V RMS (2 hrs), 34.4 V peak
Maximum SPL (1m) 103 dB ave. Continuous Pink Noise (109 dB peak)
Sensitivity 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
Coverage Angle 100°H x 100°V
Directivity Factor (Q) 5.8 (averaged 1kHz – 16kHz)
Directivity Index (DI) 7.2 dB (averaged 1kHz – 16kHz)
Impedance 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 2nd order high-pass
Transformer Taps 70V: 15W, 7.5W, 3.7W, 1.8W100V: 15W, 7.5W, 3.7W Insertion Loss <0.43 dB at any tap settingThru Setting: 8Ω nominal
Recommended ProtectiveHigh-Pass 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
Drivers LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating ROHS-compliant; Transformer UL Recognized per UL1876
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight 1.8 kg (4.0 lbs)
Shipping Weight 3.85kg (8.5 lbs) for the pair-pack (for 2 speakers) 12.0kg (26.5lbs) for the master-pack (for 6 speakers)
Included Accessories InvisiBall™ wall-mounting system), 4 mm x 80 mm hex key
Optional Accessories MTC-23UB-1 – Yolk-type U-bracket (&-WH) MTC-23WMG-1 – WeatherMax grille with backing (&-WH) MTC-23CM – Ceiling-Mount InvisiBall adapter (&-WH)
