18-inch Powered Subwoofer
Hình ảnh lớn hơn
Tính năng
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- JBL Premium Transducers
- Drivecore Amplification By Crown
- Full User Configurable DSP
- 18" Subwoofer
- Network Control
- JBL Engineered Application Presets
- LCD Screen and Glow in the Dark Ink on Back Panel
- Accepts JBL WK-4S Caster Kit
- M20 Threaded Pole Mount
Unprecedented Control
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Applications
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
Thêm Chi tiết
PURPOSEFUL DESIGN
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

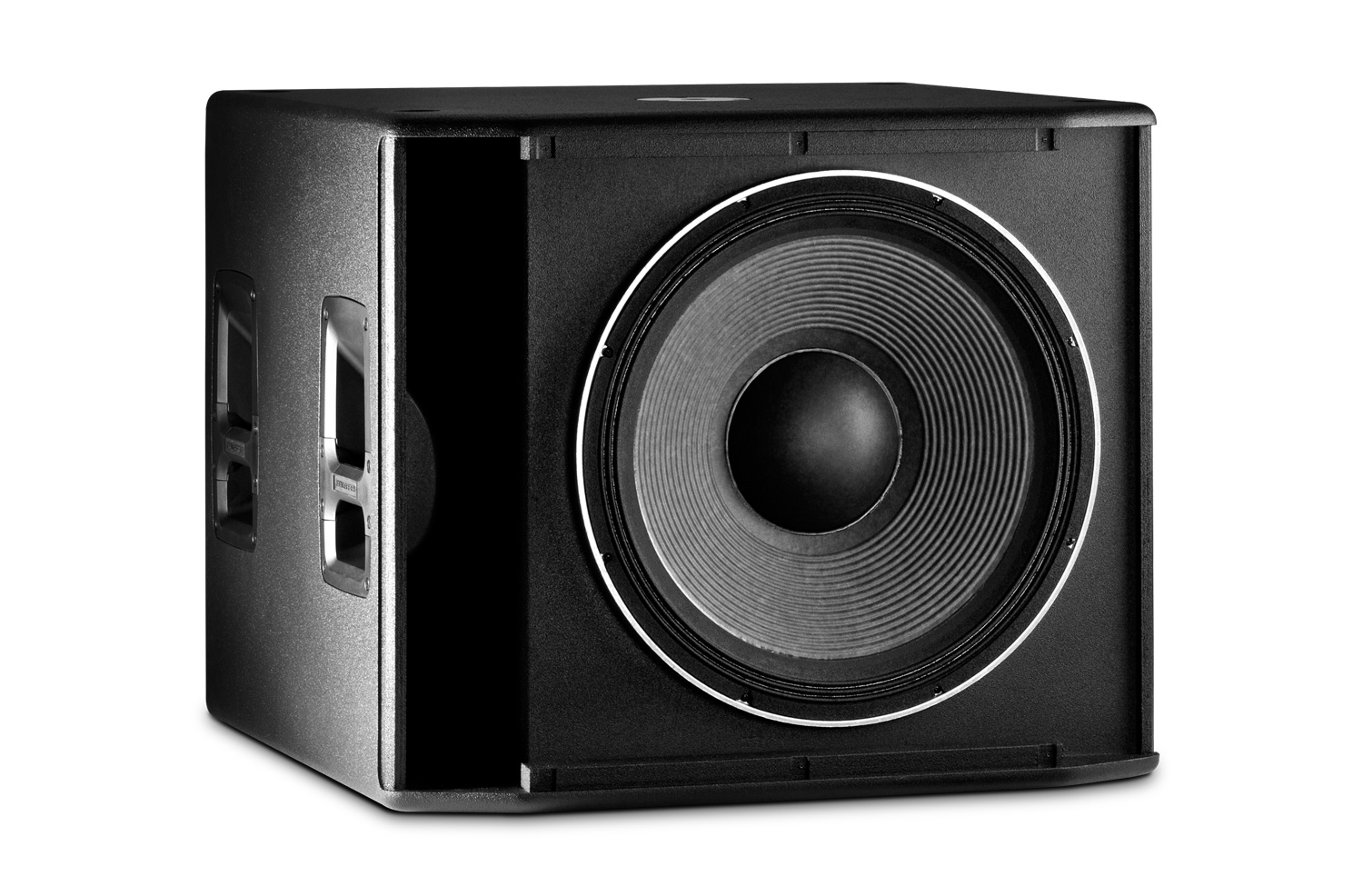

TRANSDUCER TECHNOLOGY
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.
DRIVECORE BY CROWN
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

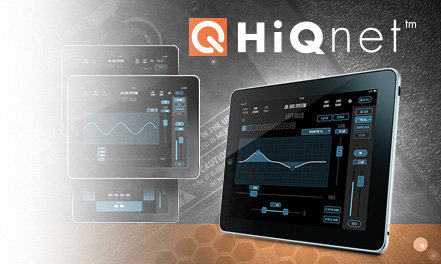

HIQNET NETWORK CONTROL
With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.
Tải xuống
Data Sheets
| Kích thước | |
|
|
2 MB |
Specifications
| Kích thước | |
|
|
900 KB |
Manuals
| Kích thước | |
|
|
300 KB |
|
|
400 KB |
Brochures
| Kích thước | |
|
|
8 MB |
phiên bản B,
cập nhật: Thg 8 2025
Compliances
| Kích thước | |
|
|
200 KB |
Software
| Kích thước | |
|
|
100 KB |
|
|
|
|
|
|
|
|
User Guides
| Kích thước | |
|
|
2 MB |
|
|
7 MB |
Images
| Kích thước | |
|
|
200 KB |
|
|
200 KB |
|
|
400 KB |
|
|
300 KB |
|
|
500 KB |
|
|
400 KB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
Phụ tùng & Dịch vụ
Thông số kỹ thuật
| System Type | Self powered 18”, subwoofer system |
| Maximum SPL (1m) | 135 dB |
| Frequency Range (-10dB) | 29 Hz - 150 Hz |
| Frequency Response (-3 dB) | 35 Hz - 120 Hz |
| Amplifier Design | Class D |
| Power Rating | 1000 W Peak |
| Dimensions (H x W x D) | 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in) |
| Net Weight (each) | 39.5 kg (87 lb) |
| EQ | 20 parametric EQ's, speaker delay, and 50 available slots for presets |
| Inputs | Neutrik ¼ - XLR input; Neutrik XLR Output |
| Outputs | 2 x XLR |
| Enclosure | 18 mm Duraflex coated plywood |
| LF Driver | 1 x 18 in Differential Drive® |
| System Processing | DSP based, resident in Input Module |
Phụ kiện
SRX818SP-CVR-DLX | Deluxe padded cover for SRX818SP
Hình ảnh lớn hơn
Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
Hình ảnh lớn hơn
Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)
