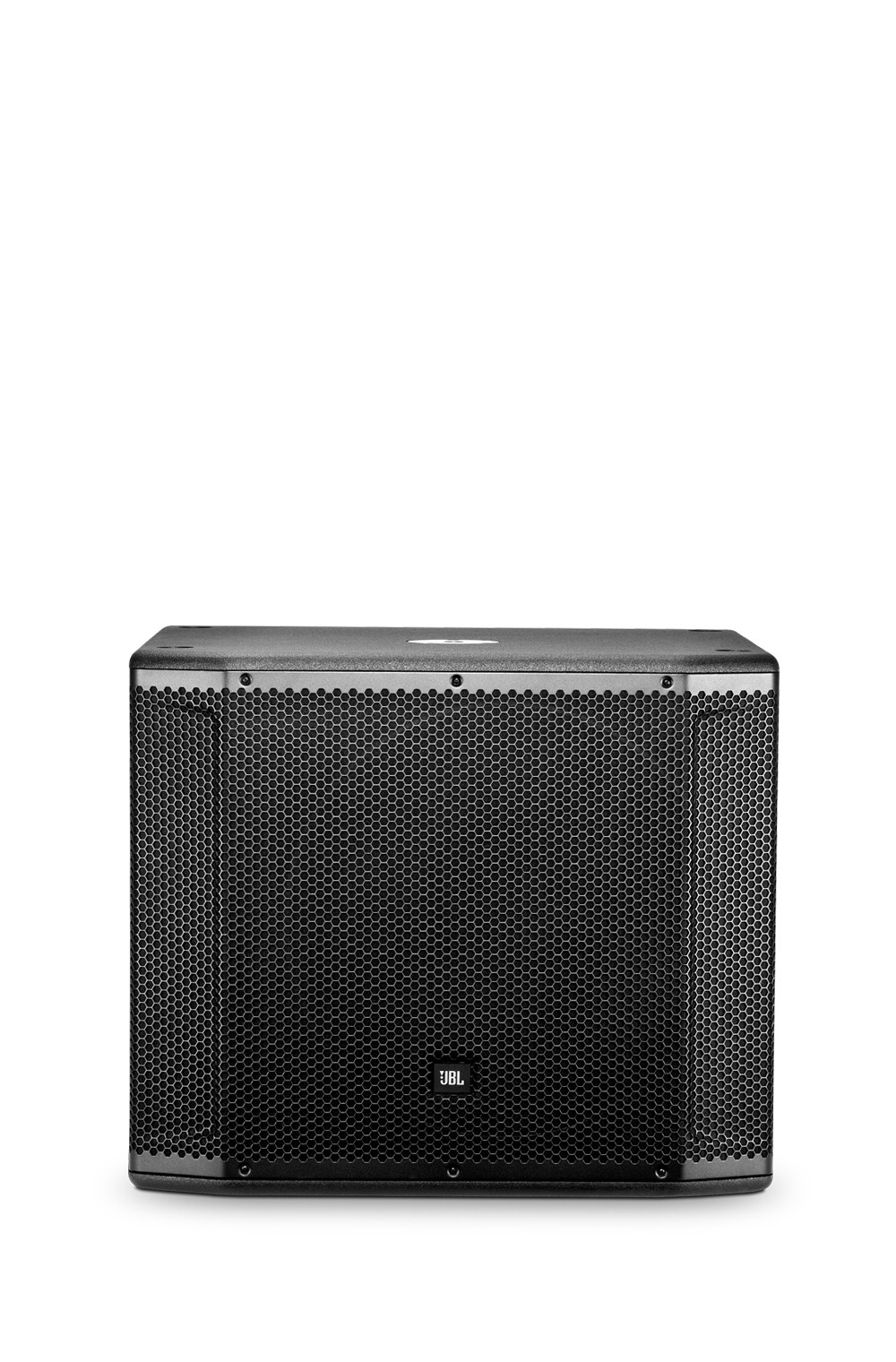

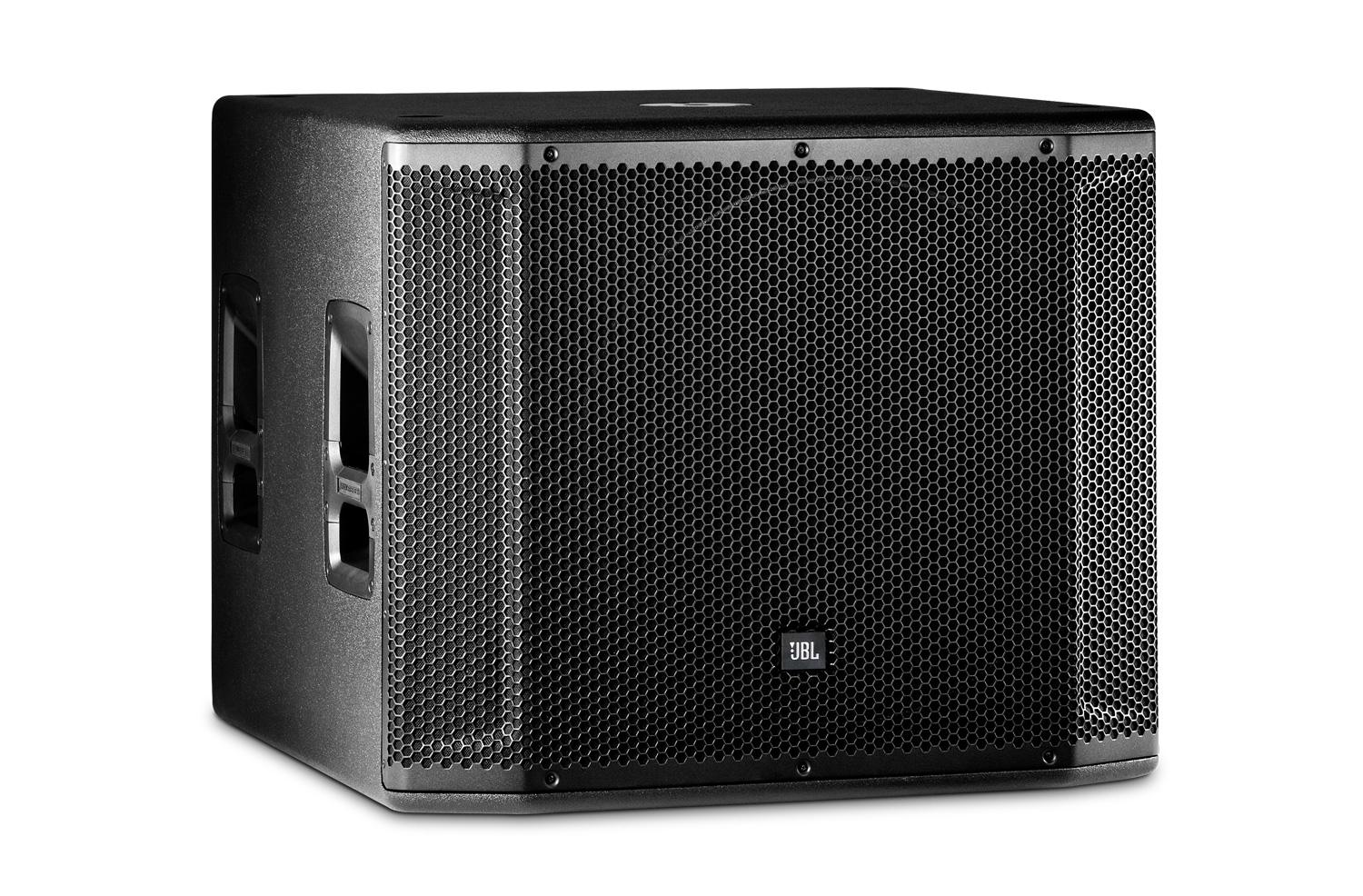

18-Zoll-Aktiv-Subwoofer
Größere Bilder
Eigenschaften
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- JBL Premium Transducers
- Drivecore Amplification By Crown
- Full User Configurable DSP
- 18" Subwoofer
- Network Control
- JBL Engineered Application Presets

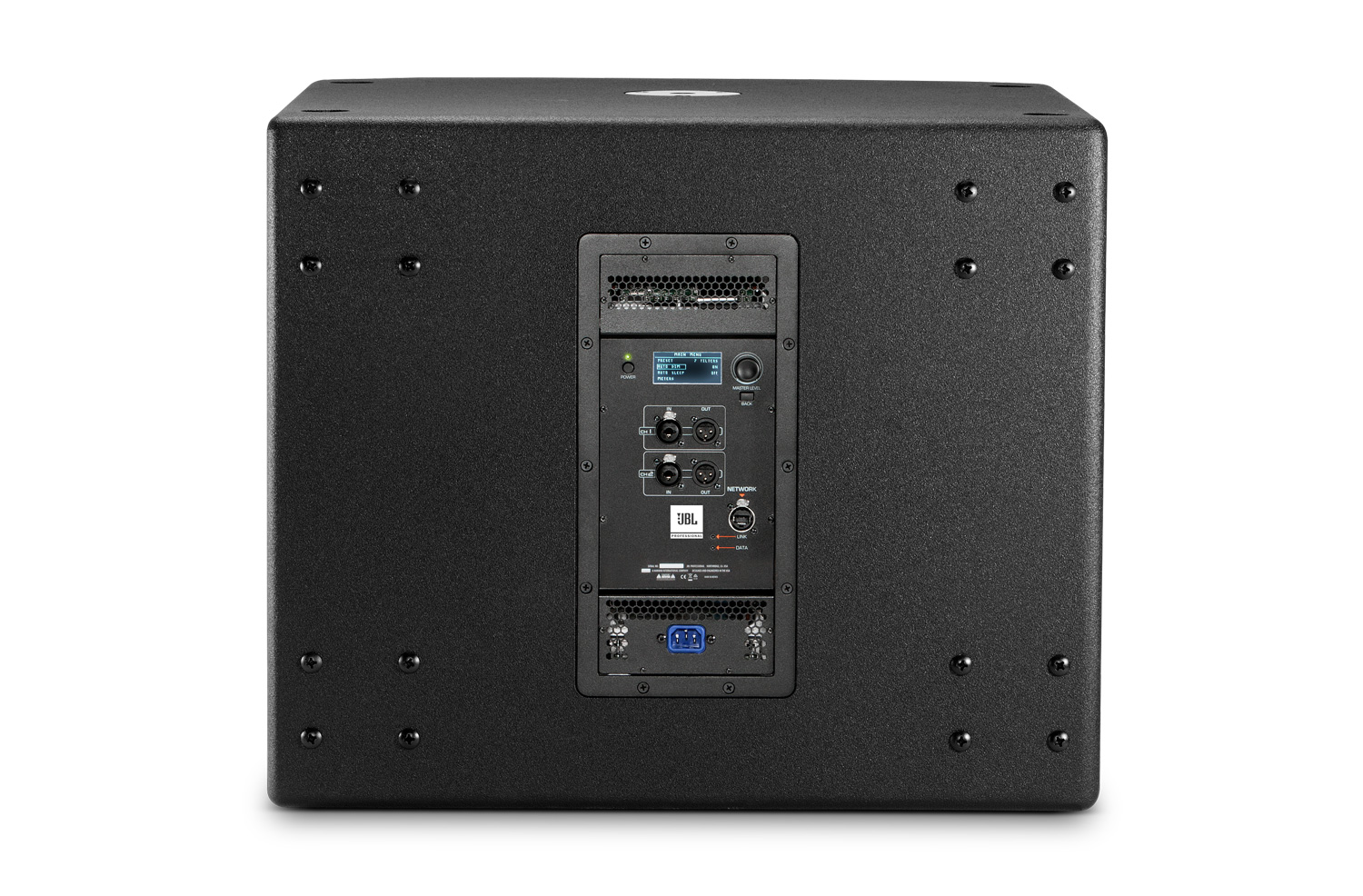

- LCD Screen and Glow in the Dark Ink on Back Panel
- Accepts JBL WK-4S Caster Kit
- M20 Threaded Pole Mount
Unprecedented Control
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Applications
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
Mehr Details
PURPOSEFUL DESIGN
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

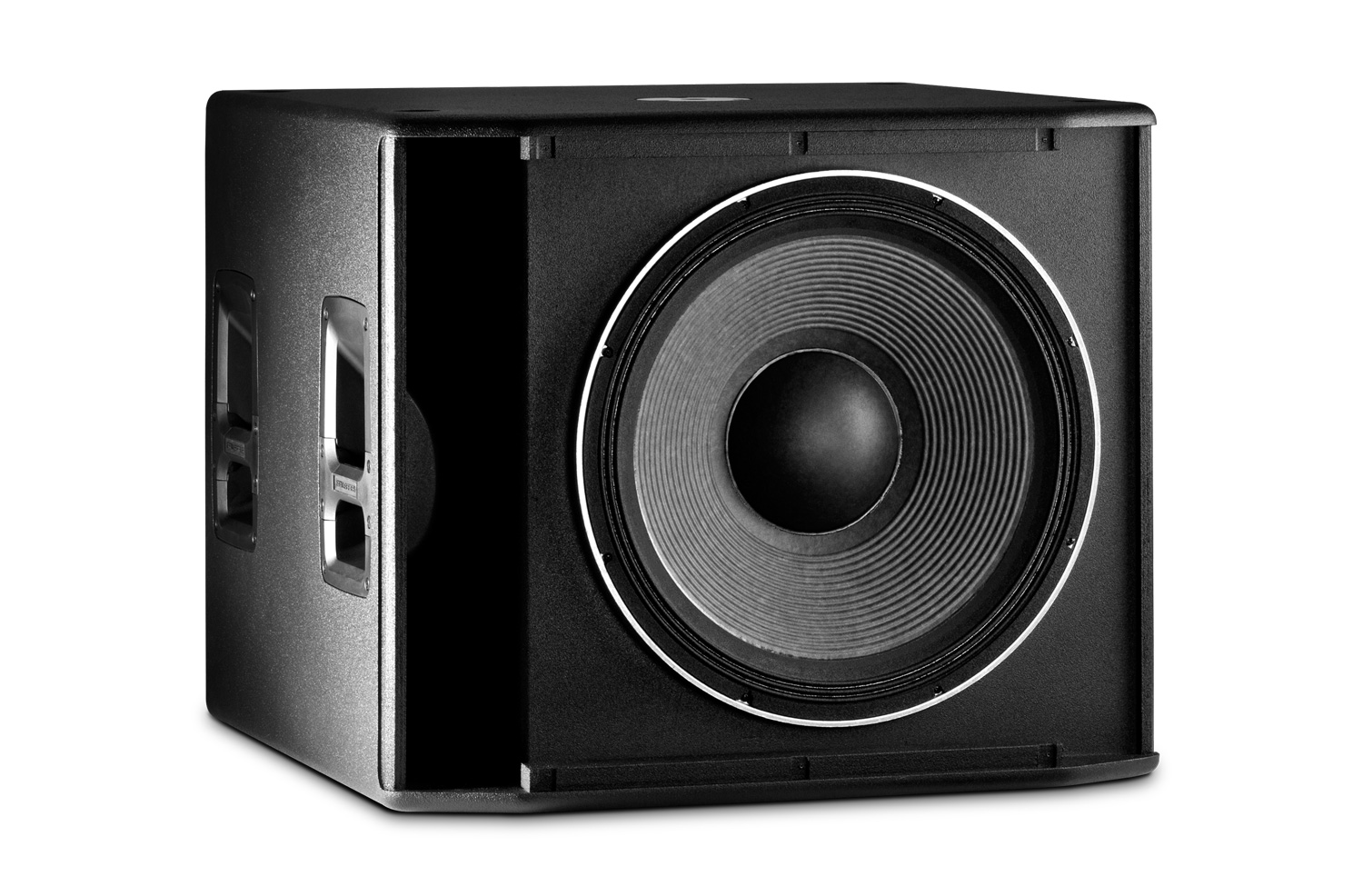

TRANSDUCER TECHNOLOGY
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.
DRIVECORE BY CROWN
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.
HIQNET NETWORK CONTROL
With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.
Downloads
Data Sheets
| Größe | |
|
|
1,79 MB |
Specifications
| Größe | |
|
|
860 KB |
Manuals
| Größe | |
|
|
286 KB |
|
|
427 KB |
Brochures
| Größe | |
|
|
8,45 MB |
Version B,
aktualisiert: Aug 2025
Compliances
| Größe | |
|
|
154 KB |
Software
| Größe | |
|
|
114 KB |
|
|
|
|
|
|
|
|
User Guides
| Größe | |
|
|
1,55 MB |
|
|
7,41 MB |
Images
| Größe | |
|
|
158 KB |
|
|
208 KB |
|
|
371 KB |
|
|
314 KB |
|
|
498 KB |
|
|
429 KB |
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
Teile & Service
Spezifikationen
| System Type | Self powered 18”, subwoofer system |
| Maximum SPL (1m) | 135 dB |
| Frequency Range (-10dB) | 29 Hz - 150 Hz |
| Frequency Response (-3 dB) | 35 Hz - 120 Hz |
| Amplifier Design | Class D |
| Power Rating | 1000 W Peak |
| Dimensions (H x W x D) | 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in) |
| Net Weight (each) | 39.5 kg (87 lb) |
| EQ | 20 parametric EQ's, speaker delay, and 50 available slots for presets |
| Inputs | Neutrik ¼ - XLR input; Neutrik XLR Output |
| Outputs | 2 x XLR |
| Enclosure | 18 mm Duraflex coated plywood |
| LF Driver | 1 x 18 in Differential Drive® |
| System Processing | DSP based, resident in Input Module |
Zubehör
SRX818SP-CVR-DLX | Deluxe padded cover for SRX818SP
Größere Bilder
Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
Größere Bilder
Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)
