JBL Professional C2PM

Hình ảnh lớn hơn

Model C2PM

Perfect for a range of professional applications including:

Recording / Video Production
Entertainment Installations
AV Presentations
Monitoring of Electronic Musical Instruments

Tính năng

Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 kHz
35 watt power amplifier and high sensitivity drivers produce exceptional output: 111 dB peak SPL
Balanced XLR, ¼”, and unbalanced RCAinputs allow connection to a range of signal sources
Stereo headphone jack allows monitoring using headphones
Ergonomic, side-mounted volume control
High frequency adjust control - allows the user to contour HF response to application requirements
Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
Wall-mount capable using optional MTC-2P mounting kit
Included snap-on pedestal to optimize listening angle for desktop applications

Đánh giá

“JBL has hit the sweet spot with the versatile Control 2P, a compact powered monitor that fits multiple applications from audio production to AV, electronic instruments, and home entertainment.” —High Fidelity Review

“These speakers belie their small size with a quality and accuracy of sound that can provide producers and editors a pretty fair indication of what their audio really sounds like.” —Post Magazine

Tải xuống

Brochures

	Kích thước	Đã tải lên
Control 2P Brochure cập nhật: Thg 4 2019	700 KB	Thg 4 2019
Recording & Broadcast Full Line Catalog cập nhật: Thg 10 2020	2 MB	Thg 10 2020

Compliances

	Kích thước	Đã tải lên
Control 2P Declaration of Conformity cập nhật: Thg 10 2019	100 KB	Thg 10 2019
JBL Control Series Passive Speakers DoC cập nhật: Thg 12 2019	200 KB	Thg 12 2019

User Guides

	Kích thước	Đã tải lên
Control 2P Users Guide cập nhật: Thg 4 2019	2 MB	Thg 4 2019

Images

	Kích thước	Đã tải lên

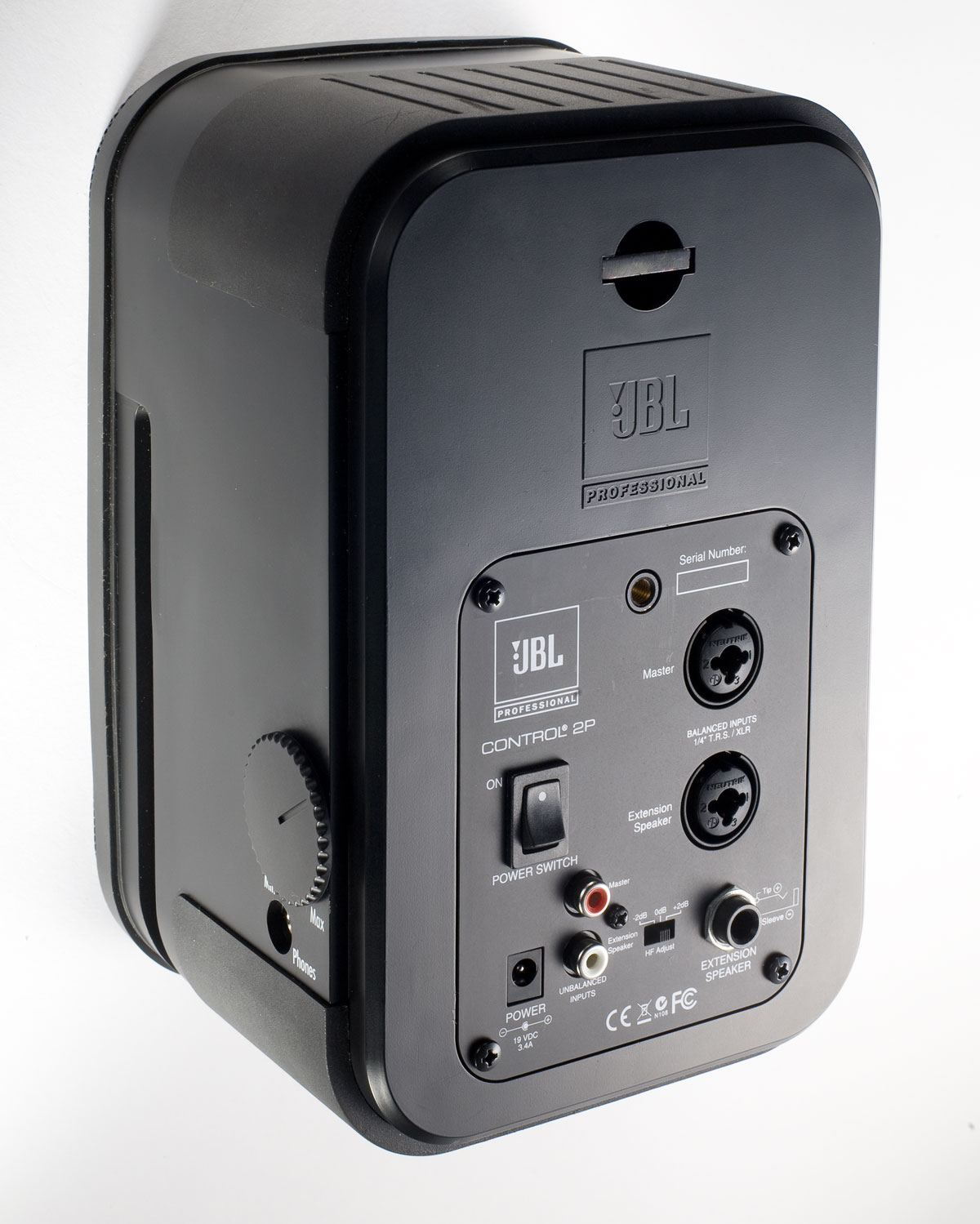

Control 2P Rear View cập nhật: Thg 4 2019	200 KB	Thg 4 2019

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Phụ tùng & Dịch vụ

Thông số kỹ thuật

Drivers	LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter
Frequency Range	80 Hz - 20 kHz
Amplifier Power Rating	35 Watts
Maximum SPL (1m)	111 dB
Crossover Frequency	4.2 kHz
Input Sensitivity	+4 dBu XLR 1/4"; 0 dBu RCA
Input Connectors	Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA
Power Requirements	19 VDC / 3.42 A - use only supplied power supply
Headphone Jack	3.5 mm (1/8")
Dimensions (H x W x D)	235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)
Net Weight (each)	2.6 kg (5.5 lb)
Grille	Zinc-plated steel
Mounting Hardware	Optional
Included Accessories	Speaker wire, power supply, 2 snap-on pedestals.
Optional Accessories	MTC-2P Mounting Kit (2 brackets, power supply holder)
	* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks of Neutrik.
LF Driver	5.25in (135 mm)
LF Driver Power Handling	35 Watts per channel
Frequency Response (±3 dB)	100 Hz – 18 kHz
Maximum Peak SPL	111 dB
Enclosure	Polypropylene Structural Foam
Coverage Angle	120°H x120°V
