Model C2PM
Perfect for a range of professional applications including:
- Recording / Video Production
- Entertainment Installations
- AV Presentations
- Monitoring of Electronic Musical Instruments
Perfect for a range of professional applications including:
Size | ||||
Brochures | ||||
updated: abr 2019
|
675 KB | |||
updated: oct 2020
|
1,81 MB | |||
Compliances | ||||
updated: oct 2019
|
129 KB | |||
updated: dic 2019
|
179 KB | |||
User Guides | ||||
updated: abr 2019
|
1,81 MB | |||
Images | ||||
updated: abr 2019
|
188 KB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Drivers | LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter |
Frequency Range | 80 Hz - 20 kHz |
Amplifier Power Rating | 35 Watts |
Maximum SPL (1m) | 111 dB |
Crossover Frequency | 4.2 kHz |

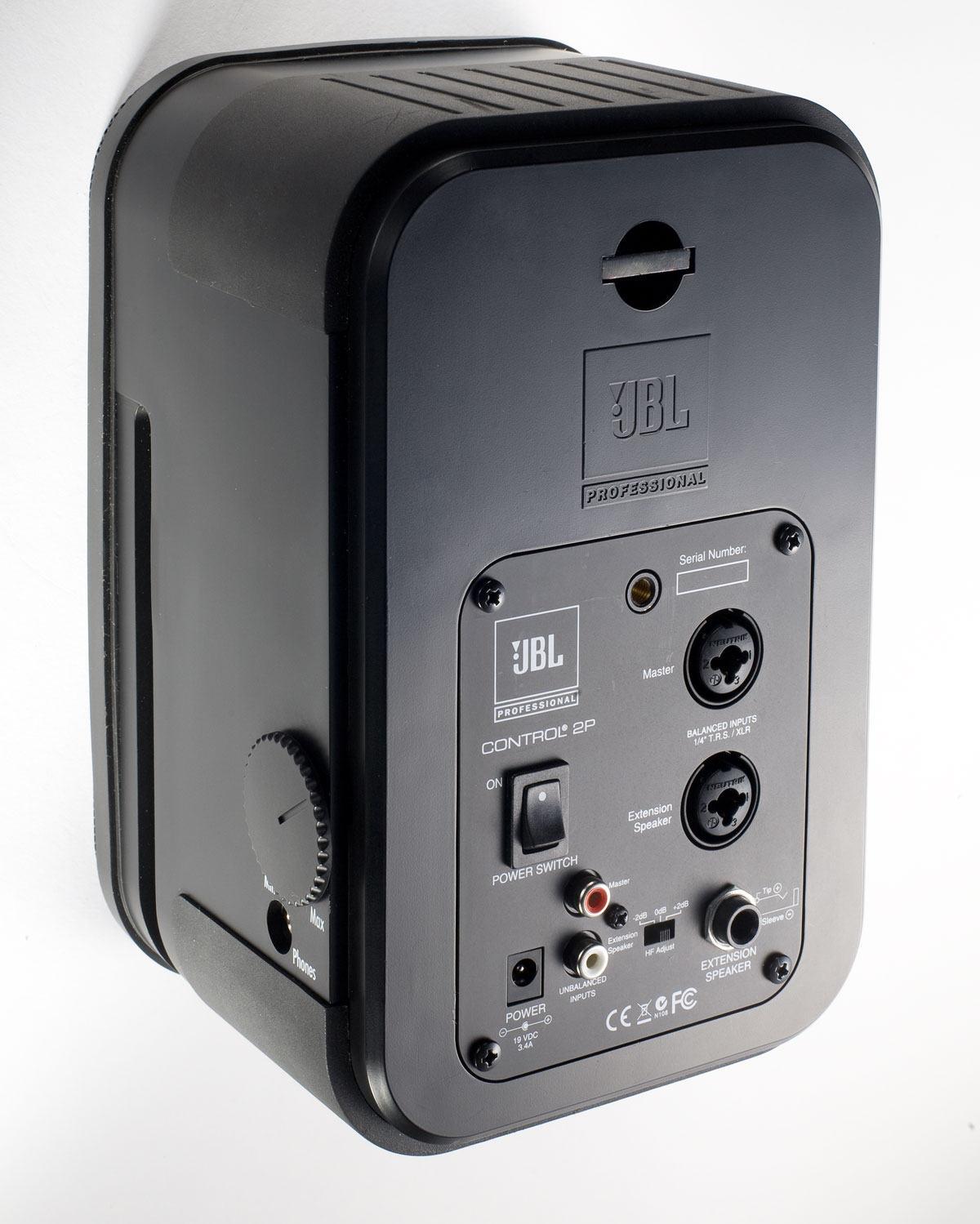

Input Sensitivity | +4 dBu XLR 1/4"; 0 dBu RCA |
Input Connectors | Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA |
Power Requirements | 19 VDC / 3.42 A - use only supplied power supply |
Headphone Jack | 3.5 mm (1/8") |
Dimensions (H x W x D) | 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in) |
Net Weight (each) | 2.6 kg (5.5 lb) |
Grille | Zinc-plated steel |
Mounting Hardware | Optional |
Included Accessories | Speaker wire, power supply, 2 snap-on pedestals. |
Optional Accessories | MTC-2P Mounting Kit (2 brackets, power supply holder) |
  | * Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks |
LF Driver | 5.25in (135 mm) |
LF Driver Power Handling | 35 Watts per channel |
Frequency Response (±3 dB) | 100 Hz – 18 kHz |
Maximum Peak SPL | 111 dB |
Enclosure | Polypropylene Structural Foam |
Coverage Angle | 120°H x120°V |

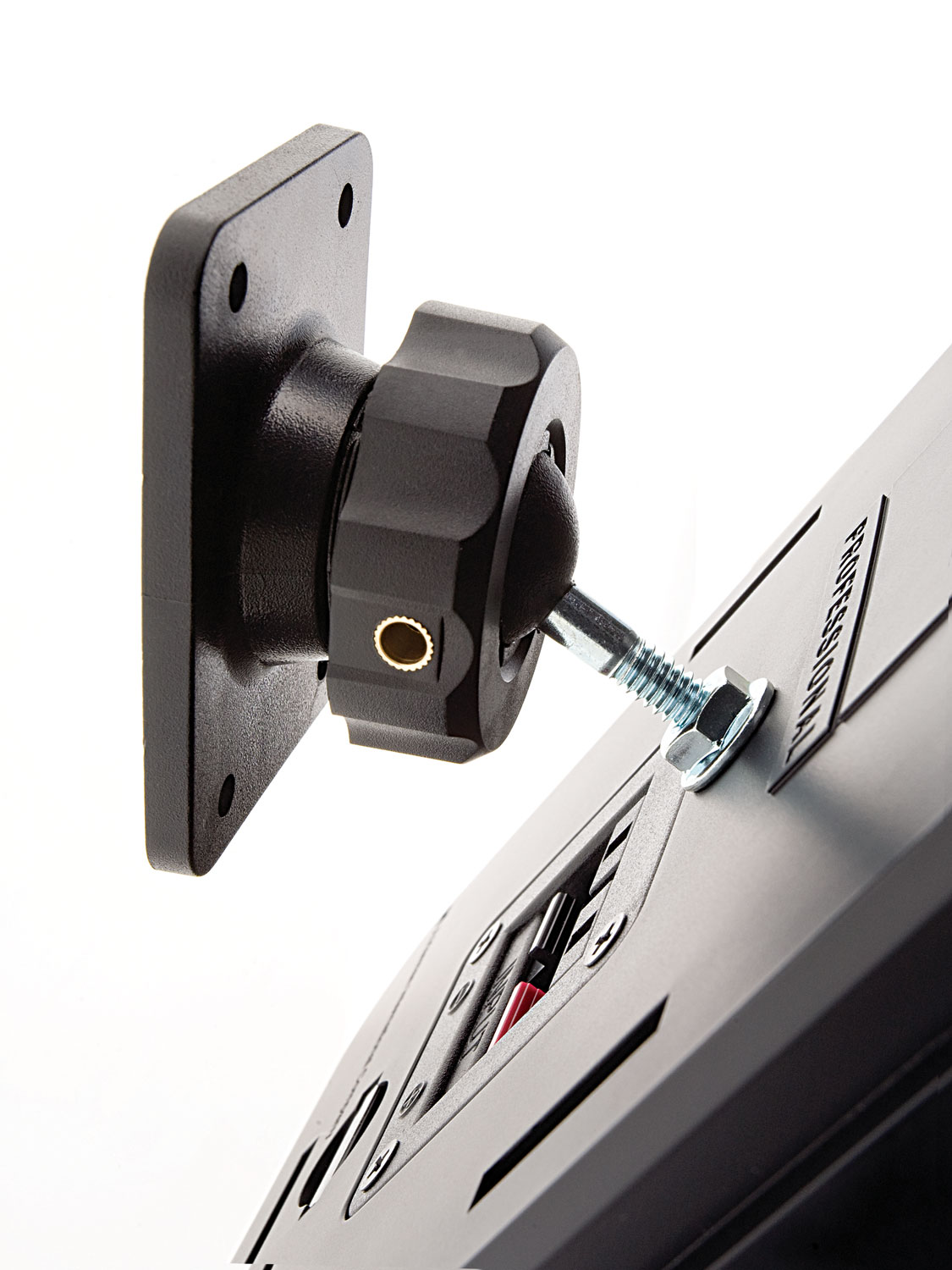

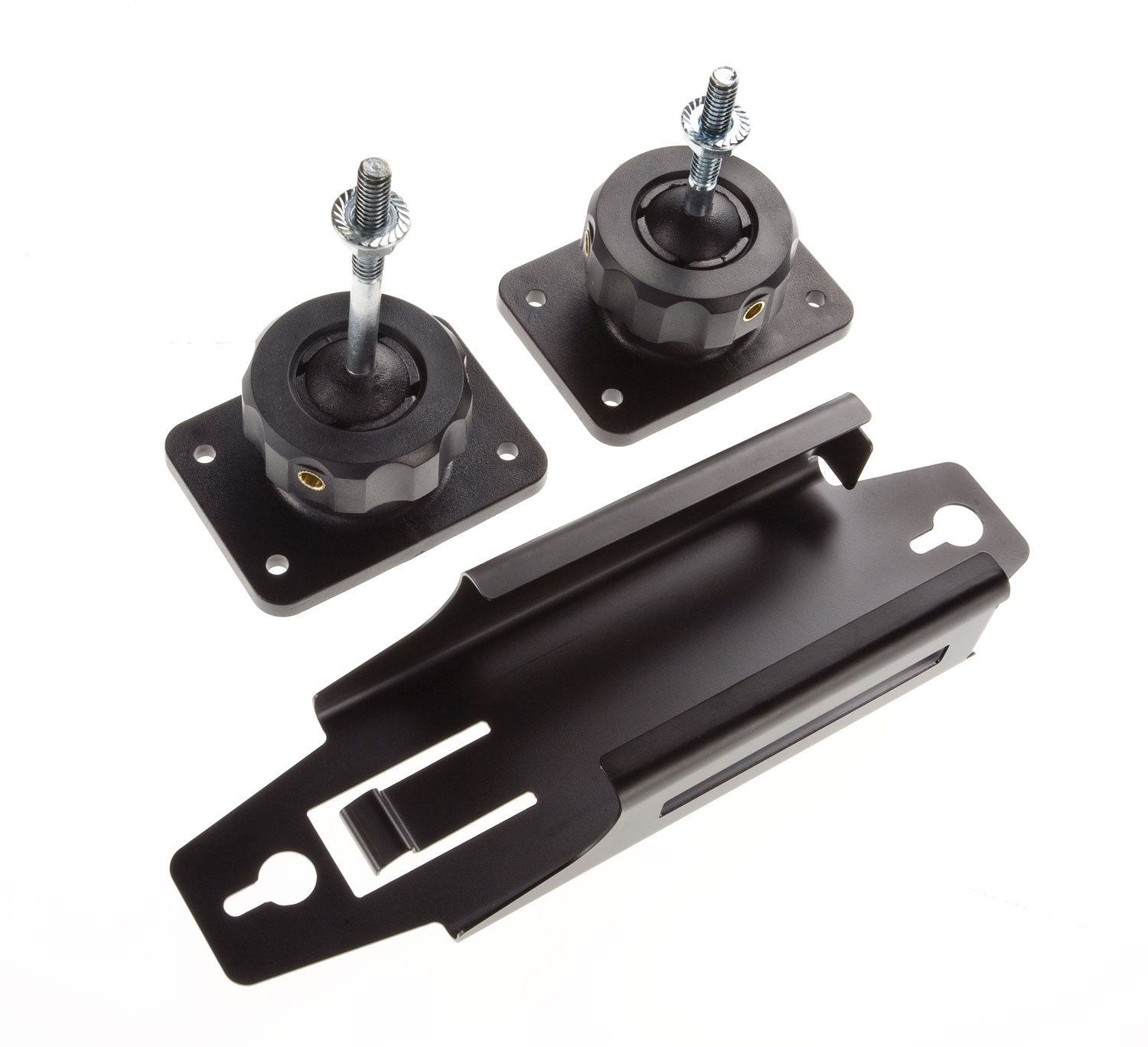

Contains:
2 Mounting Brackets
1 Power Supply Holder
1 Mounting Bracket Wrench
