Control 2P (Host Only)

Larger Images

Model C2PM

Perfect for a range of professional applications including:

  • Recording / Video Production
  • Entertainment Installations
  • AV Presentations
  • Monitoring of Electronic Musical Instruments




  • Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 kHz
  • 35 watt power amplifier and high sensitivity drivers produce exceptional output: 111 dB peak SPL
  • Balanced XLR, ¼”, and unbalanced RCAinputs allow connection to a range of signal sources
  • Stereo headphone jack allows monitoring using headphones
  • Ergonomic, side-mounted volume control
  • High frequency adjust control - allows the user to contour HF response to application requirements
  • Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
  • Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
  • Wall-mount capable using optional MTC-2P mounting kit
  • Included snap-on pedestal to optimize listening angle for desktop applications


“JBL has hit the sweet spot with the versatile Control 2P, a compact powered monitor that fits multiple applications from audio production to AV, electronic instruments, and home entertainment.” —High Fidelity Review

“These speakers belie their small size with a quality and accuracy of sound that can provide producers and editors a pretty fair indication of what their audio really sounds like.” —Post Magazine


  Version Language Size Uploaded
file type icon Control 2P Brochure
updated: Apr 2019
    675 KB Apr 2019
file type icon Recording & Broadcast Full Line Catalog
updated: Okt 2020
    1,81 MB Okt 2020
file type icon Control 2P Declaration of Conformity
updated: Okt 2019
    129 KB Okt 2019
file type icon JBL Control Series Passive Speakers DoC
updated: Des 2019
    179 KB Des 2019
User Guides
file type icon Control 2P Users Guide
updated: Apr 2019
    1,81 MB Apr 2019

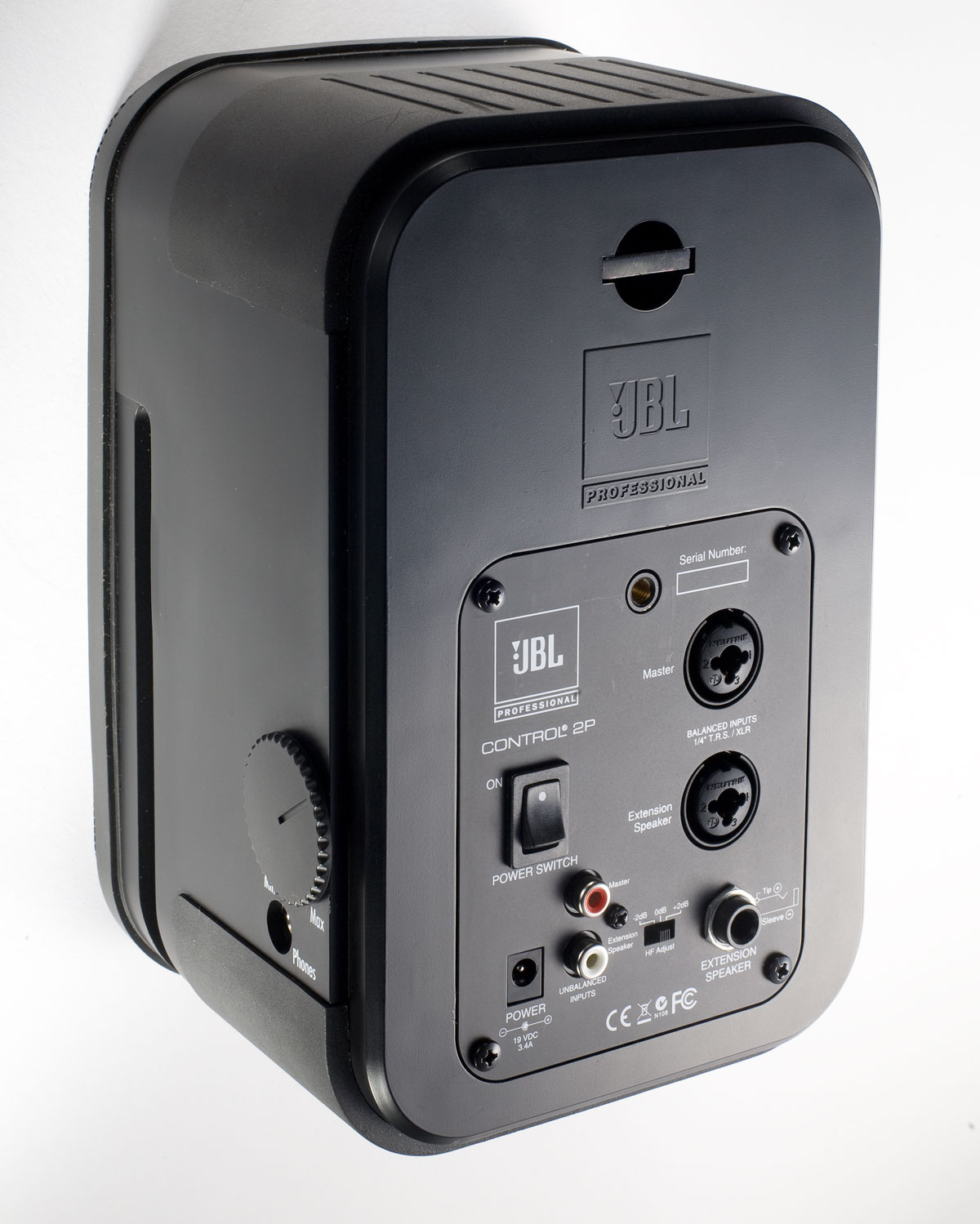

file type icon Control 2P Rear View
updated: Apr 2019
    188 KB Apr 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Drivers LF: 135 mm (5.25 in) low frequency loudspeaker
HF: 19 mm (.75 in) Polycarbonate dome tweeter
Frequency Range 80 Hz - 20 kHz
Amplifier Power Rating 35 Watts
Maximum SPL (1m) 111 dB
Crossover Frequency 4.2 kHz
Input Sensitivity +4 dBu XLR 1/4"; 0 dBu RCA
Input Connectors Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA
Power Requirements 19 VDC / 3.42 A - use only supplied power supply
Headphone Jack 3.5 mm (1/8")
Dimensions (H x W x D) 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)
Net Weight (each) 2.6 kg (5.5 lb)
Grille Zinc-plated steel
Mounting Hardware Optional
Included Accessories Speaker wire, power supply, 2 snap-on pedestals.
Optional Accessories MTC-2P Mounting Kit (2 brackets, power supply holder)

* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks
of Neutrik.

LF Driver 5.25in (135 mm)
LF Driver Power Handling 35 Watts per channel
Frequency Response (±3 dB) 100 Hz – 18 kHz
Maximum Peak SPL 111 dB
Enclosure Polypropylene Structural Foam
Coverage Angle 120°H x120°V


MTC-2P Mounting kit | The Control 2P Host Speaker and Extension Speaker can be wall-mounted using the optional MTC-2P
MTC-2P Mounting kit Main photo
Larger Images

The Control 2P Host Speaker and Extension Speaker can be wall-mounted using the optional MTC-2P mounting kit.

2 Mounting Brackets
1 Power Supply Holder
1 Mounting Bracket Wrench
