VT4880ADP-DA, VT4880ADP (discontinued)

Powered Fullsize Arrayable 2-18" Subwoofer

VT4880ADP-DA, VT4880ADP
Larger Images

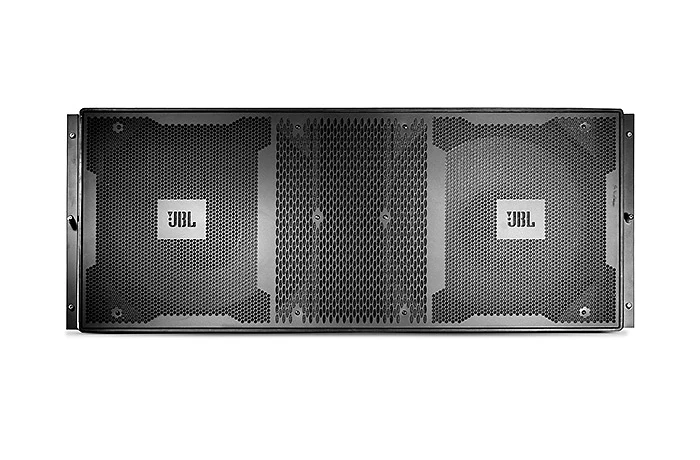

Powered Fullsize Arrayable 2-18" Subwoofer

The VT4880ADP Full Size Powered Dual 18" Arrayable Subwoofer is designed to deliver highquality reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance-venue applications. Ideal companion to VT4889ADP full size powered three-way systems.

Features

  • JBL DrivePack® DP3-electronics package with robust high efficiency Class-I power
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages automatically selected for 50 or 60 Hz
  • New 2269G Advanced Technology Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers with Ultra-Long Excursion capabilities
  • JBL PlyMax® engineered wood materials provide rigid, yet lightweight enclosure
  • Rugged DuraFlex™ exterior finish; weatherized loudspeaker cones
  • Patented, integrated S.A.F.E. suspension system with premium heat-treated alloys
  • For use in stand alone arrays or in combination with other VERTEC system models

Downloads

  Version Language Size Uploaded
file type icon DPDA Input Module Spec Sheet
en updated: มี.ค. 2024
  en  475 กิโลไบต์ มี.ค. 2024
file type icon VT4880ADPDA Spec Sheet
en updated: มี.ค. 2024
  en  907 กิโลไบต์ มี.ค. 2024
file type icon VT4880ADP Spec Sheet
en updated: มี.ค. 2024
  en  407 กิโลไบต์ มี.ค. 2024
file type icon VT DP Fullsize Product User's Guide
en updated: มี.ค. 2024
  en  2.15 เมกะไบต์ มี.ค. 2024
Specifications
file type icon VT4880ADPDA Spec Sheet
updated: ก.ค. 2019
    907 กิโลไบต์ ก.ค. 2019
file type icon DPDA Input Module Spec Sheet
updated: ก.ค. 2019
    475 กิโลไบต์ ก.ค. 2019
file type icon VT-4880ADP Spec Sheet
updated: ก.ค. 2019
    407 กิโลไบต์ ก.ค. 2019
Brochures
file type icon VerTec Line Brochure
updated: ต.ค. 2020
    2.09 เมกะไบต์ ต.ค. 2020
CAD Drawings
file type icon VT4880ADP 3D DXF
updated: ก.ค. 2019
    3.55 เมกะไบต์ ก.ค. 2019
file type icon VT4880ADP 2D DXF
updated: ก.ค. 2019
    3.1 เมกะไบต์ ก.ค. 2019
file type icon VT4880ADP 2D PDF
updated: ก.ค. 2019
    107 กิโลไบต์ ก.ค. 2019
Compliances
file type icon VerTec Series (Powered) Declaration of Conformity
updated: ต.ค. 2019
    89.4 กิโลไบต์ ต.ค. 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: ส.ค. 2023
1.3.1     18 เมกะไบต์ ส.ค. 2023
platform icon PerformanceManager
version 3.0.0, updated: ก.พ. 2024
3.0.0     124 เมกะไบต์ ก.พ. 2024
Speaker Tunings
file type icon VT4880ADPDA V4Preset
updated: ต.ค. 2019
    32.9 กิโลไบต์ ต.ค. 2019
file type icon V4 DSP_DPCN_VT4880ADP
updated: ต.ค. 2019
    55.5 กิโลไบต์ ต.ค. 2019
file type icon V4 DSP DPAN_VT4880ADP
updated: ต.ค. 2019
    52.9 กิโลไบต์ ต.ค. 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: ต.ค. 2020
    680 กิโลไบต์ ต.ค. 2020
Accessories
file type icon VT Fullsize Array Frame and Adapter CAD
updated: ต.ค. 2020
    6.2 เมกะไบต์ ต.ค. 2020
User Guides
file type icon VerTec DP Fullsize User’s Guide
updated: ต.ค. 2020
    2.15 เมกะไบต์ ต.ค. 2020
Images

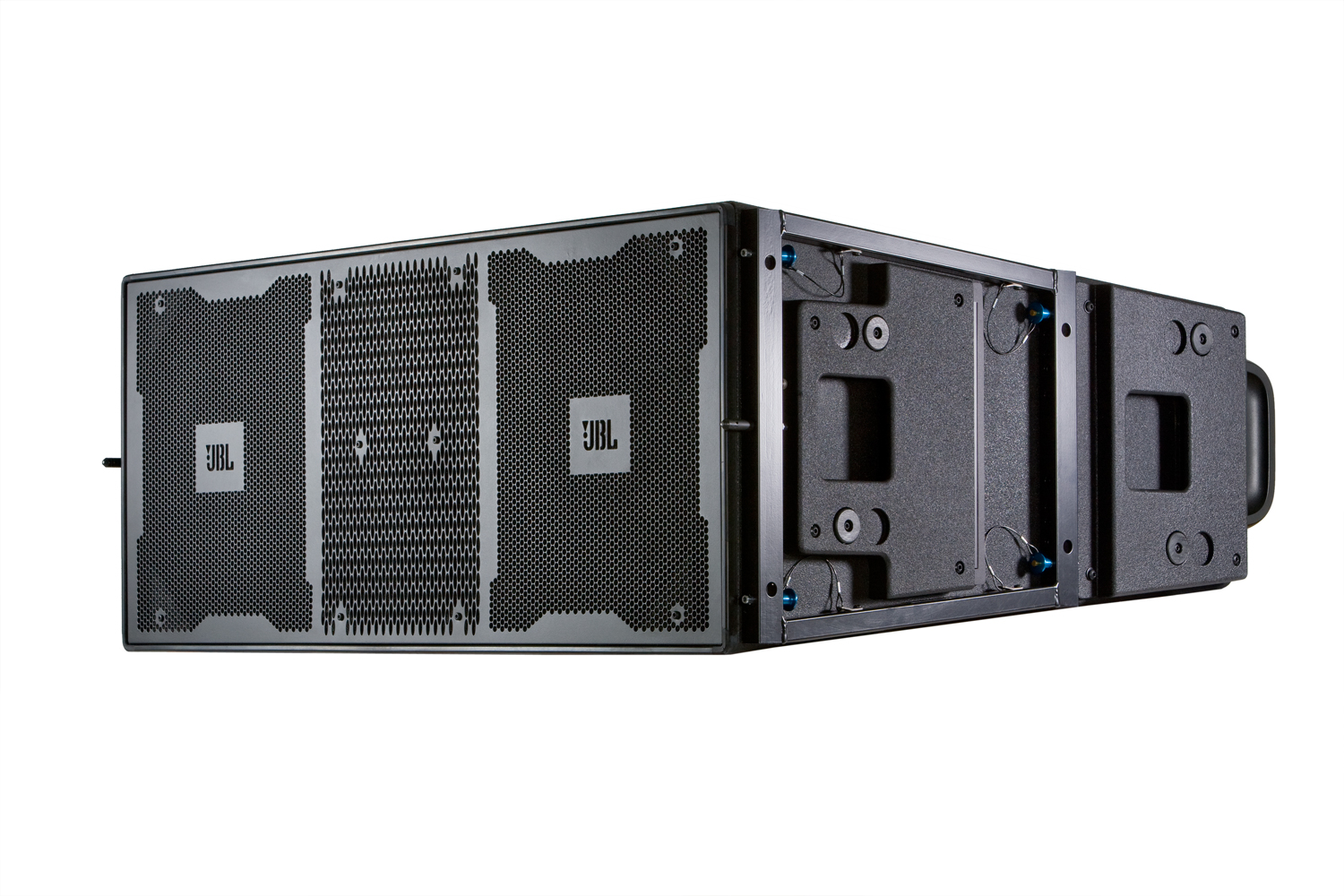

file type icon VT-4880ADP photo
updated: ก.ค. 2019
    661 กิโลไบต์ ก.ค. 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 25 Hz - 160 Hz (-10 dB)
Frequency Response 29 Hz - 120 Hz (± 3 dB)
Power Rating 6900W Peak3500W Continuous
aximum Peak Output 143 dB SPL, 1m (2π half-space ground-based application)
Bandpass Nominal Impedance 2 x 4 ohm
Dimensions (W x H x D) 1229 mm x 493 mm x 1011 mm (48.4 in x 19.4 in x 39.8 in)
Weight 99.4 kg (219 lb)
