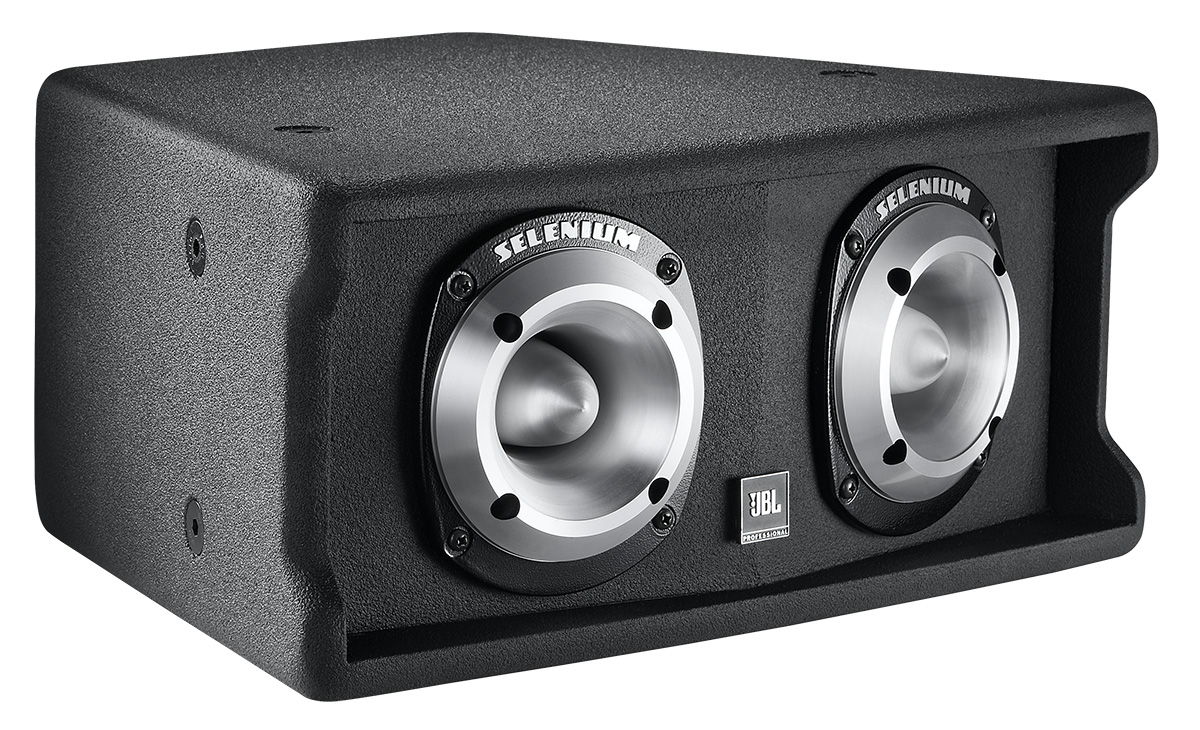

MD1 (discontinued)

Super Tweeter Loudspeaker

MD1
Larger Images

Super Tweeter Loudspeaker

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD1 is an ultra highfrequency module consisting of dual JBL Selenium ST400 Super Tweeters for superior highfrequency response and is intended to be used in conjunction with the MD2 midhigh system, MD3 low-frequency system, and MD7 ultra highoutput subwoofer system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity,
and breathtaking purity.



Features

  • Dual JBL Selenium ST400 Super Tweeters
  • Extremely high sensitivity
  • Low Distortion
  • High fidelity
  • High temperature voice coil for durability and reliability

Applications

  • Sophisticated dance clubs
  • Anywhere dramatic use of super high-frequency is desired


Downloads

  Version Language Size Uploaded
file type icon Marquis Dance Brochure
en updated: มี.ค. 2024
  en  538 กิโลไบต์ มี.ค. 2024
file type icon MD1 Spec Sheet
en updated: มี.ค. 2024
  en  555 กิโลไบต์ มี.ค. 2024
Data Sheets
file type icon MD1 Spec Sheet
updated: ต.ค. 2019
    555 กิโลไบต์ ต.ค. 2019
Specifications
file type icon Marquis Dance Club Series Spec Sheets
updated: ก.ค. 2019
    3.97 เมกะไบต์ ก.ค. 2019
Brochures
file type icon Marquis Dance Club Series Brochure
updated: ก.ค. 2019
    538 กิโลไบต์ ก.ค. 2019
CAD Drawings
file type icon Marquis Dance Series 2D DXF Drawings
updated: ต.ค. 2019
    612 กิโลไบต์ ต.ค. 2019
file type icon Marquis Dance Series 3D DXF Drawings
updated: ต.ค. 2019
    10.4 เมกะไบต์ ต.ค. 2019
file type icon Marquis Dance Series Customer Drawings PDF
updated: ต.ค. 2019
    205 กิโลไบต์ ต.ค. 2019
Compliances
file type icon Marquis Dance Club Series Declaration of Conformity
updated: ต.ค. 2019
    144 กิโลไบต์ ต.ค. 2019
Images
file type icon MD1 hi-res image
updated: ก.ค. 2019
    326 กิโลไบต์ ก.ค. 2019
Speaker Tunings
file type icon Marquis Dance Club Series Tunings
updated: ต.ค. 2019
    1.47 เมกะไบต์ ต.ค. 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 5.5 kHz - 20 kHz
Power Rating 130 W (520 W peak) 2 hrs
Coverage Pattern Dual 40° x 40°
Crossover Frequencies 6 kHz to 10 kHz
Maximum SPL (1m) 129 dB cont avg (135 dB peak)
Ultra High-Frequency Driver 2 x JBL Selenium ST400 Super Tweeters
Nominal Impedance 2 x 8 ohms
Sensitivity 111 dB SPL, 2.83V @ 1m (3.3 ft)
Enclosure Trapezoidal, 16 mm (5/8 in) exterior grade 11 ply Finnish birch plywood
Suspension Attachment 10 M10 points
Finish Black DuraFlex™ finish
Input Connectors Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through).
Dimensions (H x W x D in vertical orientation) 184.2 x 421.3 x 305.8 mm (7.2 x 16.6 x 12 in)
Net Weight 8.2 kg (18.0 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
