The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.
LEARN MORE
With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.
LEARN MORE| Storlek | |
|
|
1,38 MB |
| Storlek | |
|
|
487 KB |
| Storlek | |
|
|
65,2 KB |
| Storlek | |
|
|
141 KB |
| Storlek | |
|
|
|
|
|
| Storlek | |
|
|
624 KB |
| Storlek | |
|
|
64,6 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

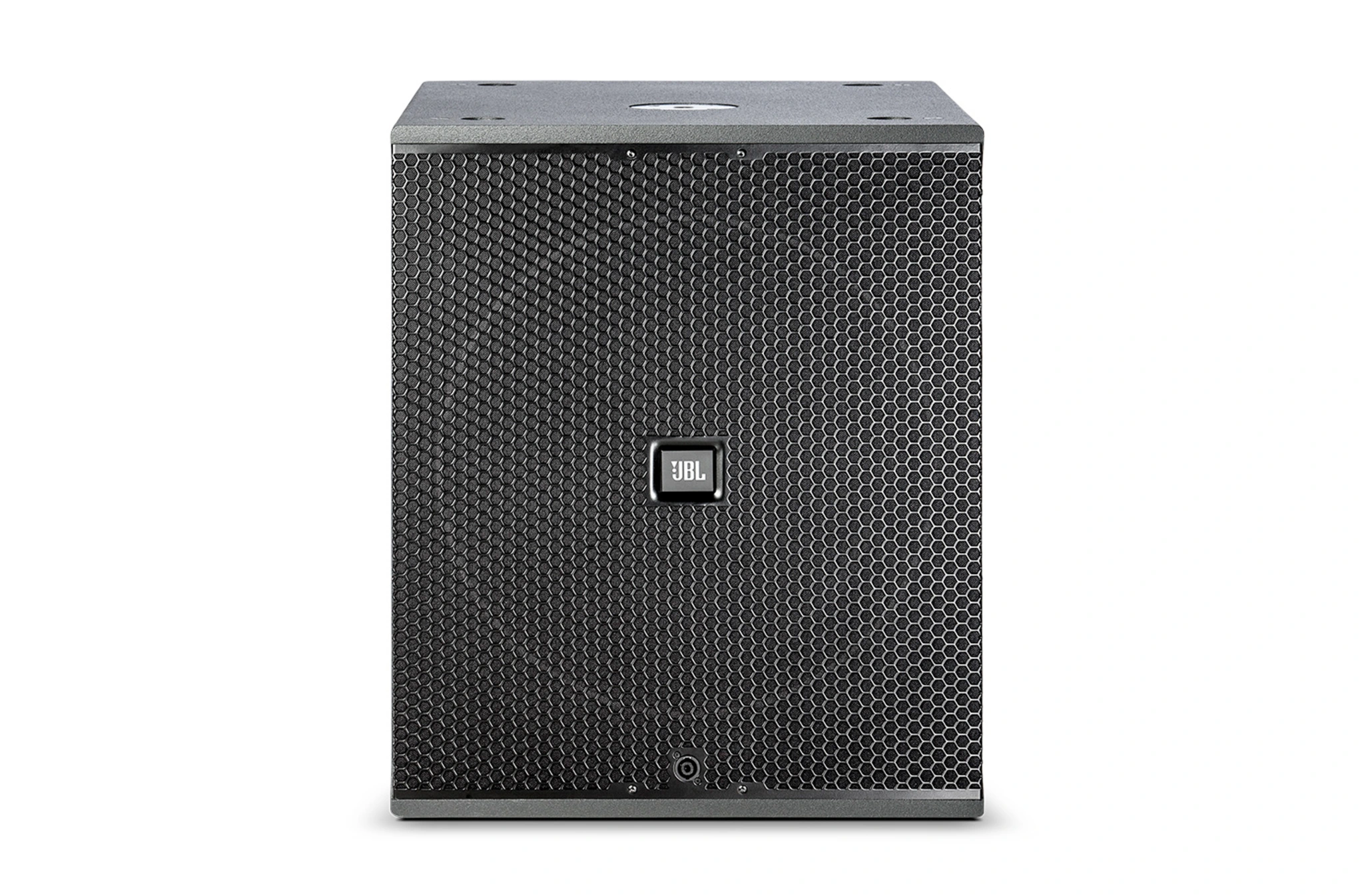

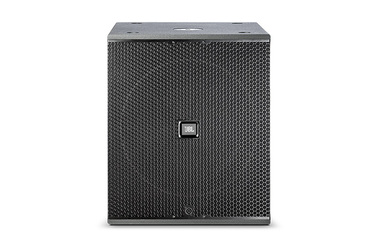

| System Type | High Power Single 18” Differential Drive® Subwoofer |
| Components | 1 x 2269H, 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer |
| Frequency Range (-10dB) | 24 Hz - 100 Hz |
| Frequency Response (±3 dB) | 32.5 Hz - 80 Hz |
| Sensitivity | 97db half space |
| Nominal Impedance | 8 ohms |
| Transducer Power Rating (AES 2 hour) | 2000W cont 8000W peak |
| Dimensions (H x W x D) | 640.1mm x 548.6mm x 713.7mm (25.2in x 21.6in x 28.1in) |
| Net Weight (each) | 45.4 kg (100 lbs) |
| LF Driver | 1 x 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer |
| Maximum SPL (1m) | 133dB (Preset: VTX F18S 80) |
| Enclosure | 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish |
