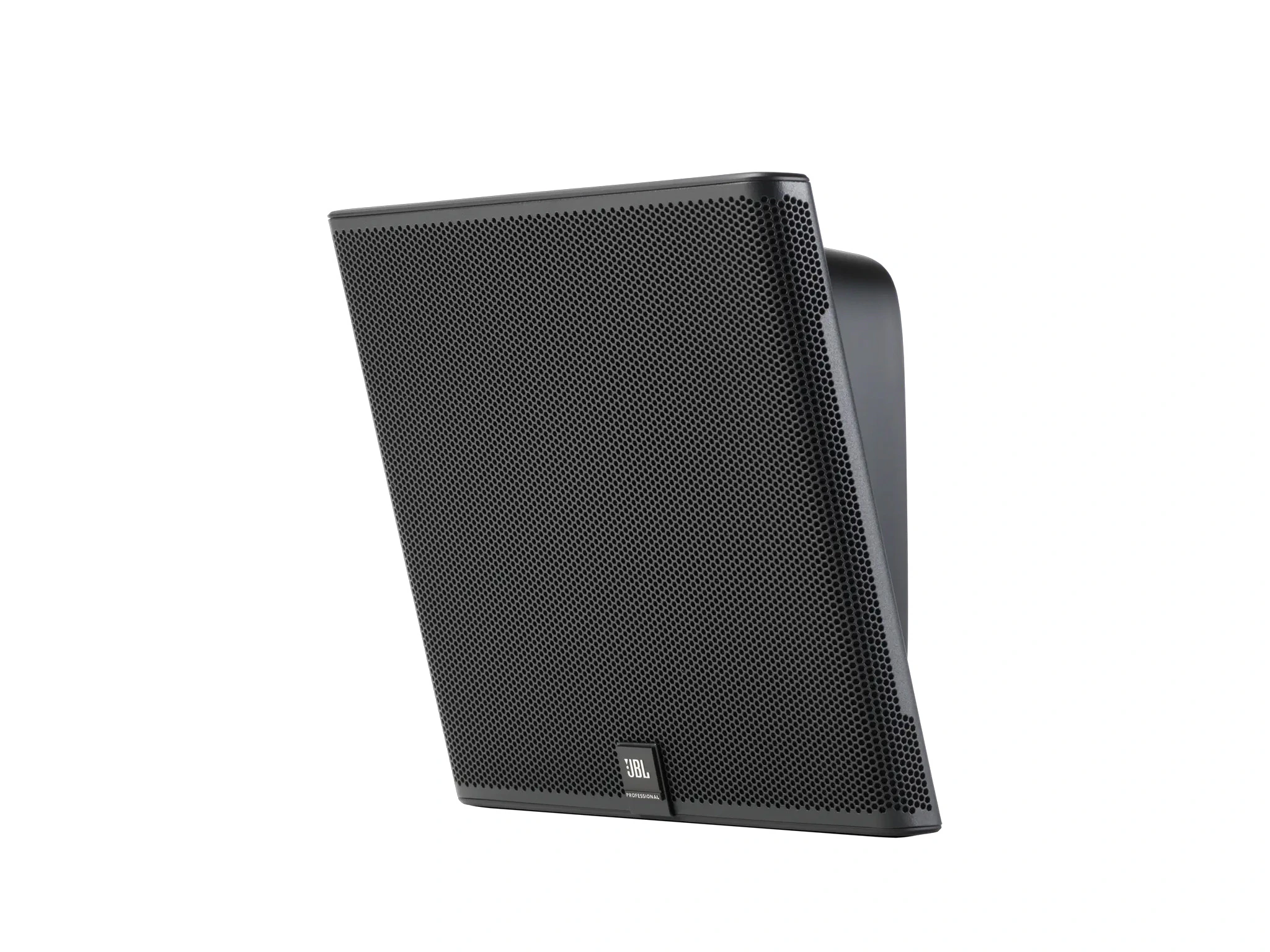

SLP12/T

Sleek, Low-Profile On-Wall Loudspeaker

SLP12/T
Större bilder

Sleek, Low-Profile On-Wall Loudspeaker
The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Funktioner

  • Transducer: 75 mm (3 in) full-range
  • Power handling: 40W continuous pink noise, 80W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Available in black or white finishes

Nedladdningar

Specifications
  Språk Storlek Uppladdat
file type icon SLP12/T Spec Sheet
en uppdaterad: mar 2025
en  2,76 MB mar 2025
Manuals
  Storlek Uppladdat
file type icon SLP Installation Guide
uppdaterad: sep 2022
424 KB sep 2022
Brochures
  Version Språk Storlek Uppladdat
file type icon Control Contractor Brochure (2024)
en version D, uppdaterad: feb 2024
en  14 MB feb 2024
CAD Drawings
  Version Språk Storlek Uppladdat
file type icon SLP Wall Bracket 2D and 3D Drawings
en version A, uppdaterad: jul 2023
en  174 KB jul 2023
file type icon SLP Dimensional & CAD Drawings
uppdaterad: dec 2022
    3,02 MB dec 2022
Declaration of Conformity
  Språk Storlek Uppladdat
en  124 KB jul 2023
Certifications
  Språk Storlek Uppladdat
file type icon SLP 12/T HETMA Approval
en uppdaterad: jun 2024
en  192 KB jun 2024
Speaker Tunings
  Version Storlek Uppladdat
file type icon Commercial, CBT, and AWC Tunings 220616
version A, uppdaterad: maj 2023
557 KB maj 2023
  63,6 KB okt 2025
SLP EASE Files
  Storlek Uppladdat
file type icon SLP12/T - SLP EASE File
uppdaterad: jan 2023
1,32 MB jan 2023
SLP CLF Files
  Storlek Uppladdat
file type icon SPL12/T - SLP CLF File
uppdaterad: jan 2023
326 KB jan 2023

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range (-10dB) 74 Hz - 20 kHz
Frequency Response (+/-3 dB) 91 Hz - 18 kHz
Power Rating 80W Continuous Program (2 hrs)
40W (160W peak) Continous Pink Noise (2 hrs)
20W (80W peak) Continuous Pink Noise (100 hrs)
Sensitivity 84 dB (80 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 106 dB peak (100 dB continuous, 2 hr) at 1m
Coverage Angle 120°H x 120°V
Directivity Factor (Q) 7.5
Directivity Index (DI) 8.8 dB
Nominal Impedance 8Ω (at 8Ω tap setting)
Transformer Taps 70V: 15 W, 7.5 W, 3.8 W, 1.9W
100V: 15 W, 7.5W, 3.8W
Driver 75mm (3 in) full-range driver, polypropylene cone
20 mm (0.8 in) voice coil on Kapton™ voice coil former
Terminals 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm)
Enclosure Material Polycarbonate + ABS, UL94V-0 flammability rated
Color Black or white
Dimensions 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in)
Net Weight 1.9 kg (4.2 lbs)
Included Accessories Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
