SLP12/T

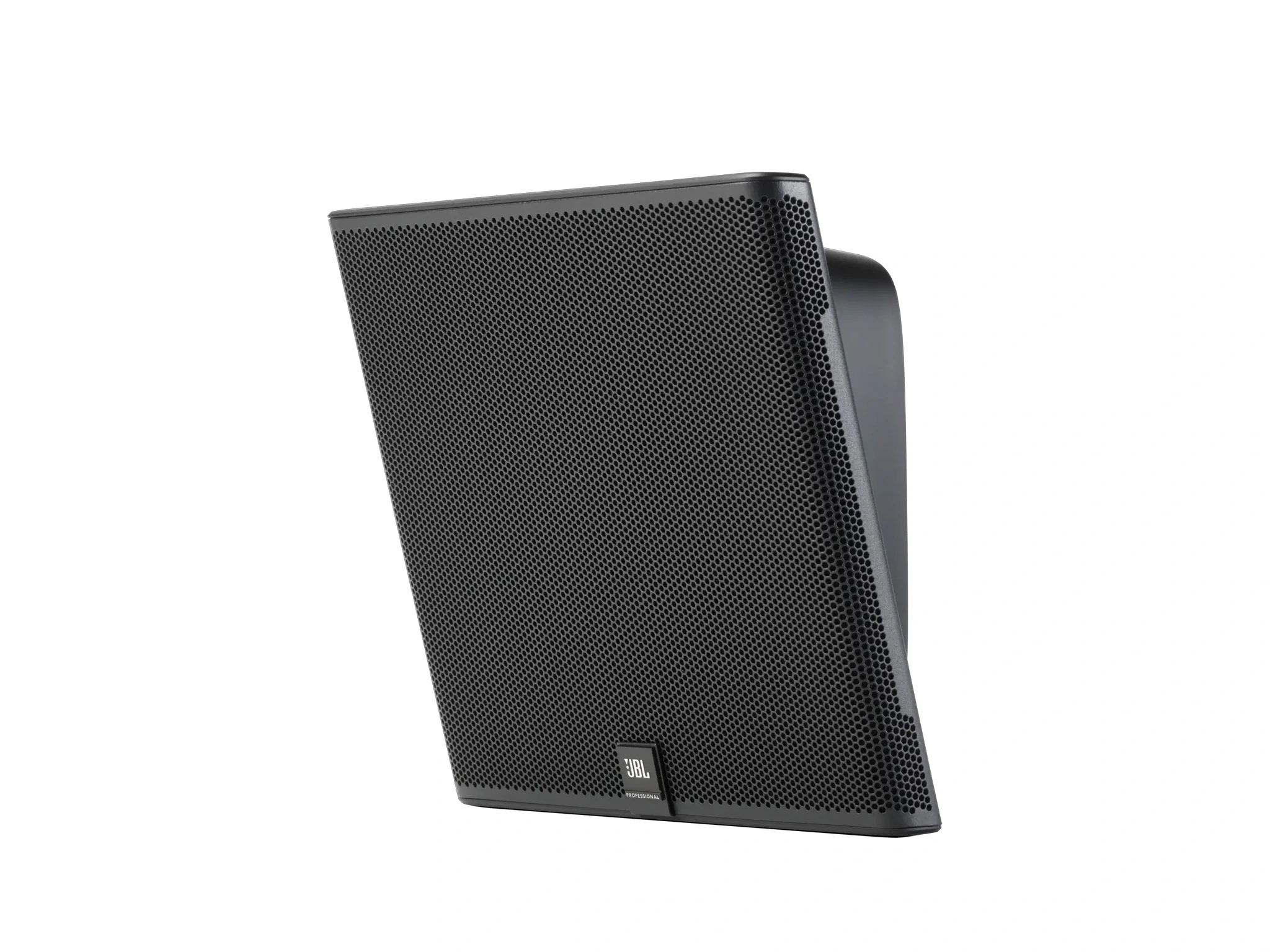

Sleek, Low-Profile On-Wall Loudspeaker

SLP12/T
较大的图像

Sleek, Low-Profile On-Wall Loudspeaker
The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

特点

  • Transducer: 75 mm (3 in) full-range
  • Power handling: 40W continuous pink noise, 80W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Available in black or white finishes

下载

  Version Language Size Uploaded
Specifications
file type icon SLP12/T Spec Sheet
en updated: 1月 2024
  en  1.4 MB 1月 2024
Manuals
file type icon SLP Installation Guide
updated: 9月 2022
    423.8 KB 9月 2022
Brochures
file type icon Control Contractor Brochure (2024)
en version E, updated: 3月 2024
en  14.2 MB 3月 2024
CAD Drawings
file type icon SLP Wall Bracket 2D and 3D Drawings
en version A, updated: 7月 2023
en  174.0 KB 7月 2023
file type icon SLP Dimensional & CAD Drawings
updated: 12月 2022
    3.0 MB 12月 2022
Speaker Tunings
file type icon Instructions for Control Contractor Expansion FIR Tunings (DCI)
updated: 9月 2023
    984.3 KB 9月 2023
file type icon CCE2 Series FIR Tunings for DCI Amps
updated: 9月 2023
    939.9 KB 9月 2023
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Declaration of Conformity
file type icon SLP Series Declaration of Conformity
en updated: 7月 2023
  en  123.8 KB 7月 2023
SLP EASE Files
file type icon SLP12/T - SLP EASE File
updated: 1月 2023
    1.3 MB 1月 2023
SLP CLF Files
file type icon SPL12/T - SLP CLF File
updated: 1月 2023
    326.2 KB 1月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 74 Hz - 20 kHz
频率响应(±3 dB) 91 Hz - 18 kHz
额定功率 80W Continuous Program (2 hrs)
40W (160W peak) Continous Pink Noise (2 hrs)
20W (80W peak) Continuous Pink Noise (100 hrs)

灵敏度

84 dB (80 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 106 dB peak (100 dB continuous, 2 hr) at 1m
覆盖角度 120°H x 120°V
Directivity Factor (Q) 7.5
Directivity Index (DI) 8.8 dB
标称阻抗 8Ω (at 8Ω tap setting)
变压器抽头 70V: 15 W, 7.5 W, 3.8 W, 1.9W
100V: 15 W, 7.5W, 3.8W
驱动单元 75mm (3 in) full-range driver, polypropylene cone
20 mm (0.8 in) voice coil on Kapton™ voice coil former
Terminals 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm)
音箱材料 Polycarbonate + ABS, UL94V-0 flammability rated
颜色 Black or white

尺寸

248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in)
净重量 1.9 kg (4.2 lbs)

随附配件

Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
