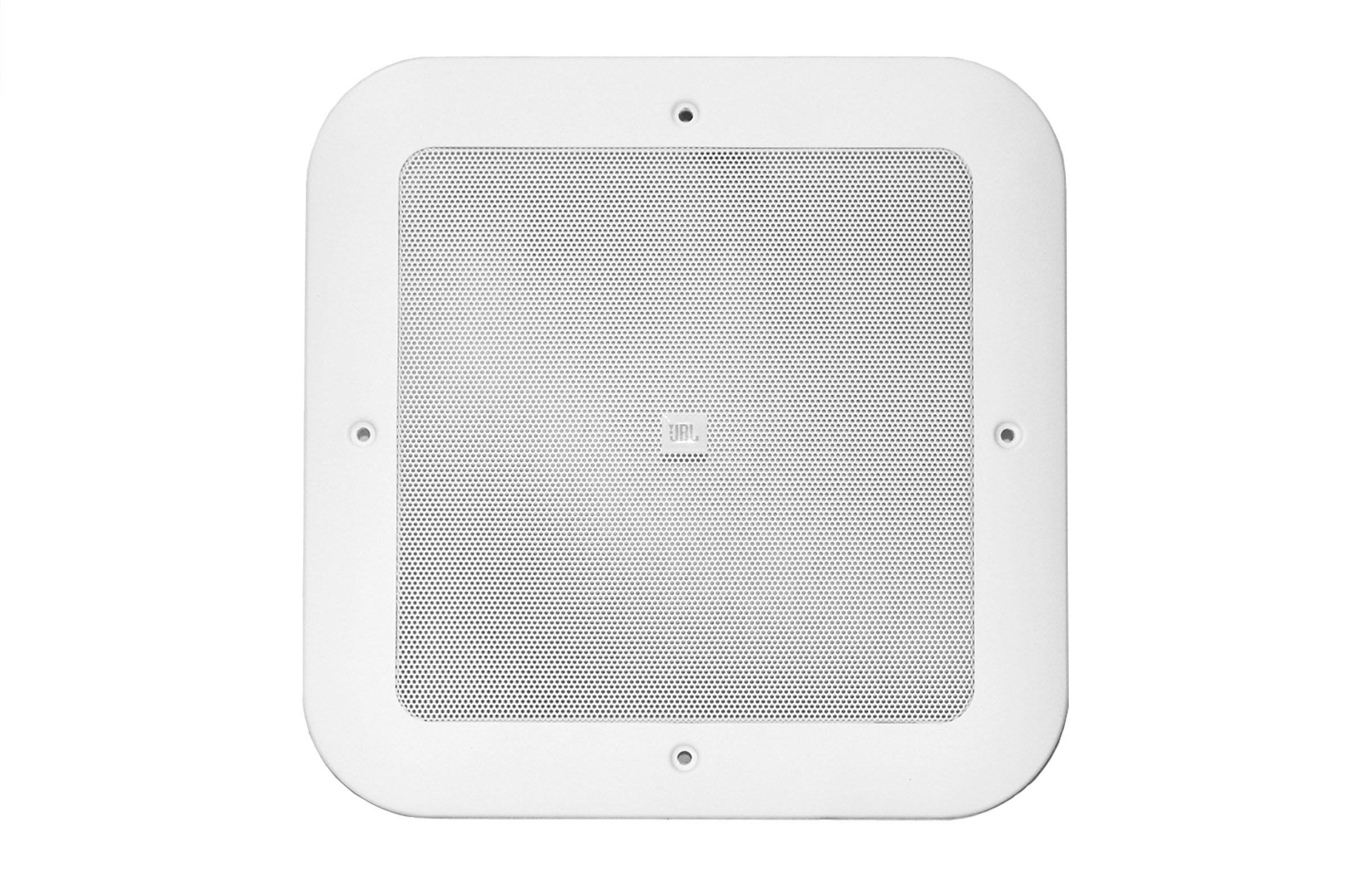

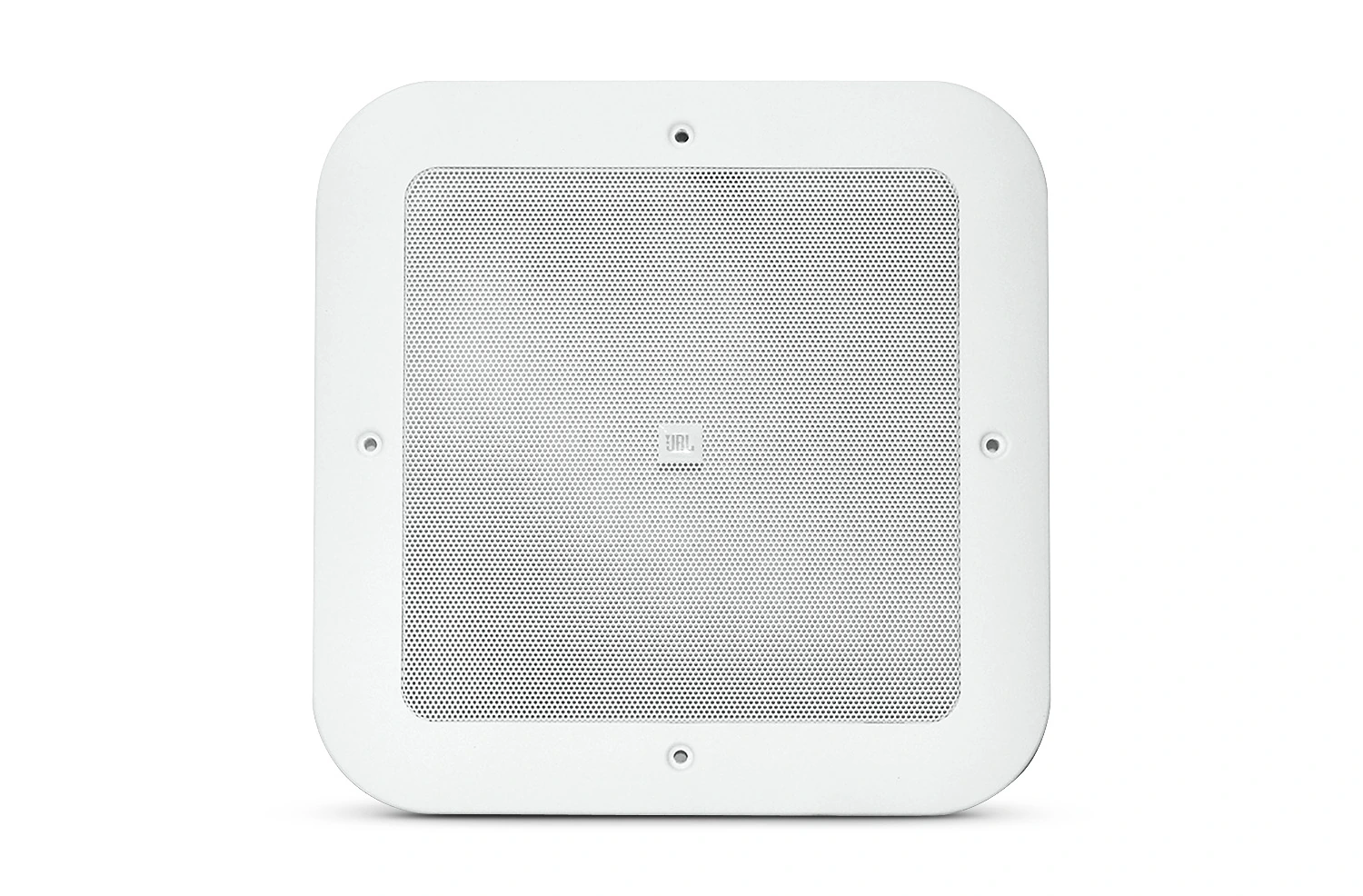

Square Grille for Control 200 and Control 300 Series
Större bilder
Funktioner
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.
Nedladdningar
Specifications
| Storlek | |
|
|
557 KB |
Images
| Storlek | |
|
|
337 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.
Reservdelar och service
Specifikationer
| Dimensions (H x W x D) | 340 x 340 mm (13.4 x 13.4 in)square grille x depth from baffle of 10 mm (0.4 in) |
| Material | Zinc plated 19 gauge steel |
| Finish | Powder coated RAL9016 “Traffic White”, satin finish |
| Grille Attachment to Baffle | 4 pcs M4 machine screws in corners |
| Net Weight | 0.7 kg (1.5 lbs) |
| Shipping Weight | 1.0 kg (2.2 lbs) |
| Included Accessories | 5 pcs M4 powder coated machine screws. 5 pcs M4 powder coated countersink washers |
