JBL Professional C2PS

Större bilder

Model C2PS

Perfect for a range of professional applications including:

Recording / Video Production
Entertainment Installations
AV Presentations
Monitoring of Electronic Musical Instruments

Funktioner

Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 Khz
35 watt per-channel power amplifier and high sensitivity drivers produce exceptional output:
115 DB max SPL per pair
Balanced XLR, ¼”, and unbalanced RCA inputs allow connection to a range of signal sources
Stereo headphone jack allows monitoring using headphones
Ergonomic, side-mounted volume control - simultaneously controls left and right speakers
High frequency adjust control - allows the user to contour HF response to application requirements
Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving

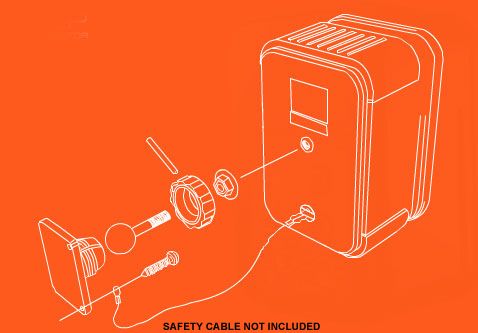

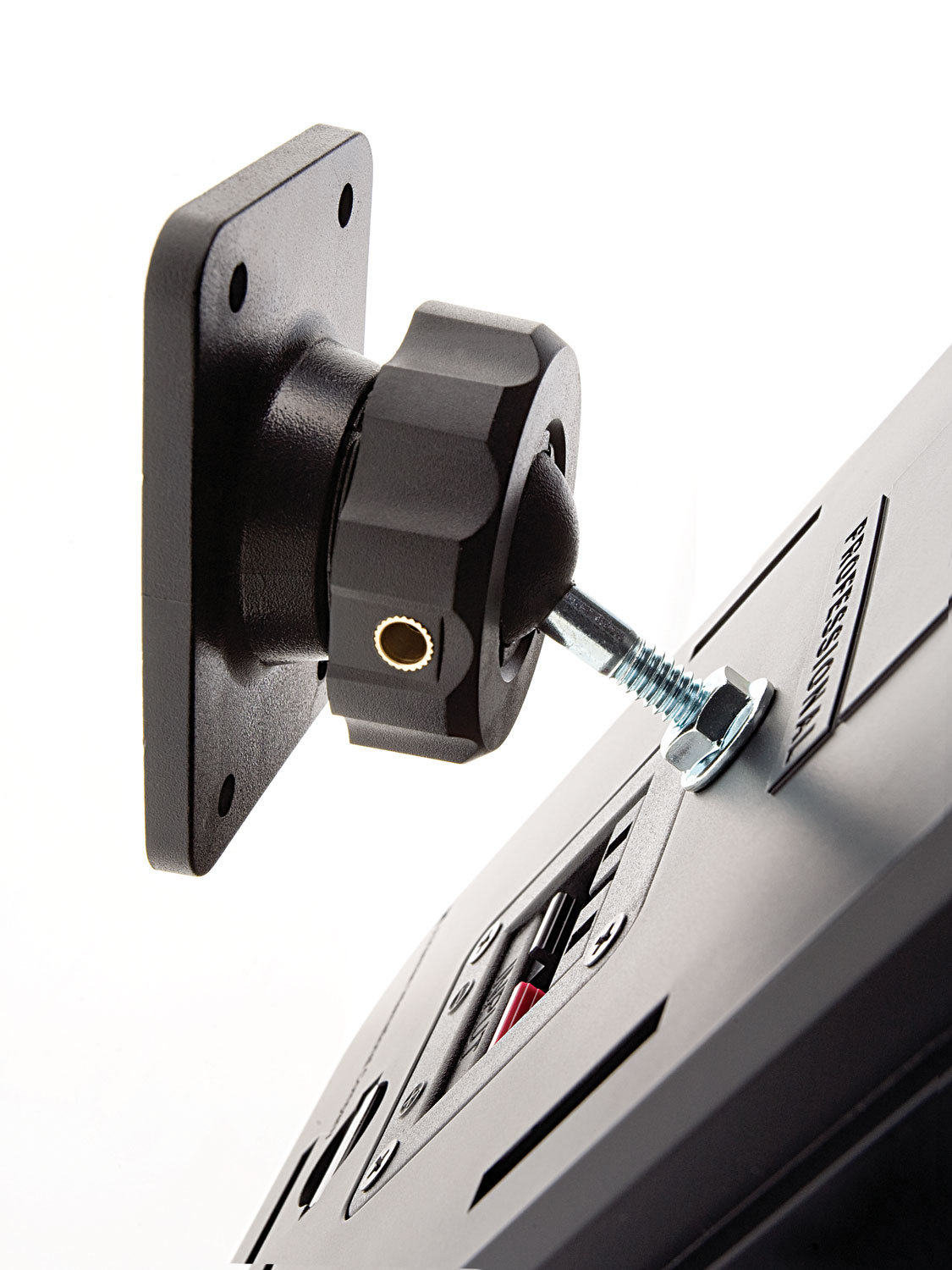

Wall-mount capable using optional MTC-2P mounting kit
Included snap-on pedestals optimize listening angle for desktop applications

Recensioner

“JBL has hit the sweet spot with the versatile Control 2P, a compact powered monitor that fits multiple applications from audio production to AV, electronic instruments, and home entertainment.” —High Fidelity Review

“These speakers belie their small size with a quality and accuracy of sound that can provide producers and editors a pretty fair indication of what their audio really sounds like.” —Post Magazine

Nedladdningar

Brochures

	Storlek	Uppladdat
Control 2P Brochure uppdaterad: apr 2019	675 KB	apr 2019
Recording & Broadcast Full Line Catalog uppdaterad: okt 2020	1,81 MB	okt 2020

Compliances

	Storlek	Uppladdat
Control 2P Declaration of Conformity uppdaterad: okt 2019	129 KB	okt 2019
JBL Control Series Passive Speakers DoC uppdaterad: dec 2019	179 KB	dec 2019

User Guides

	Storlek	Uppladdat
Control 2P Users Guide uppdaterad: apr 2019	1,81 MB	apr 2019

Images

	Storlek	Uppladdat

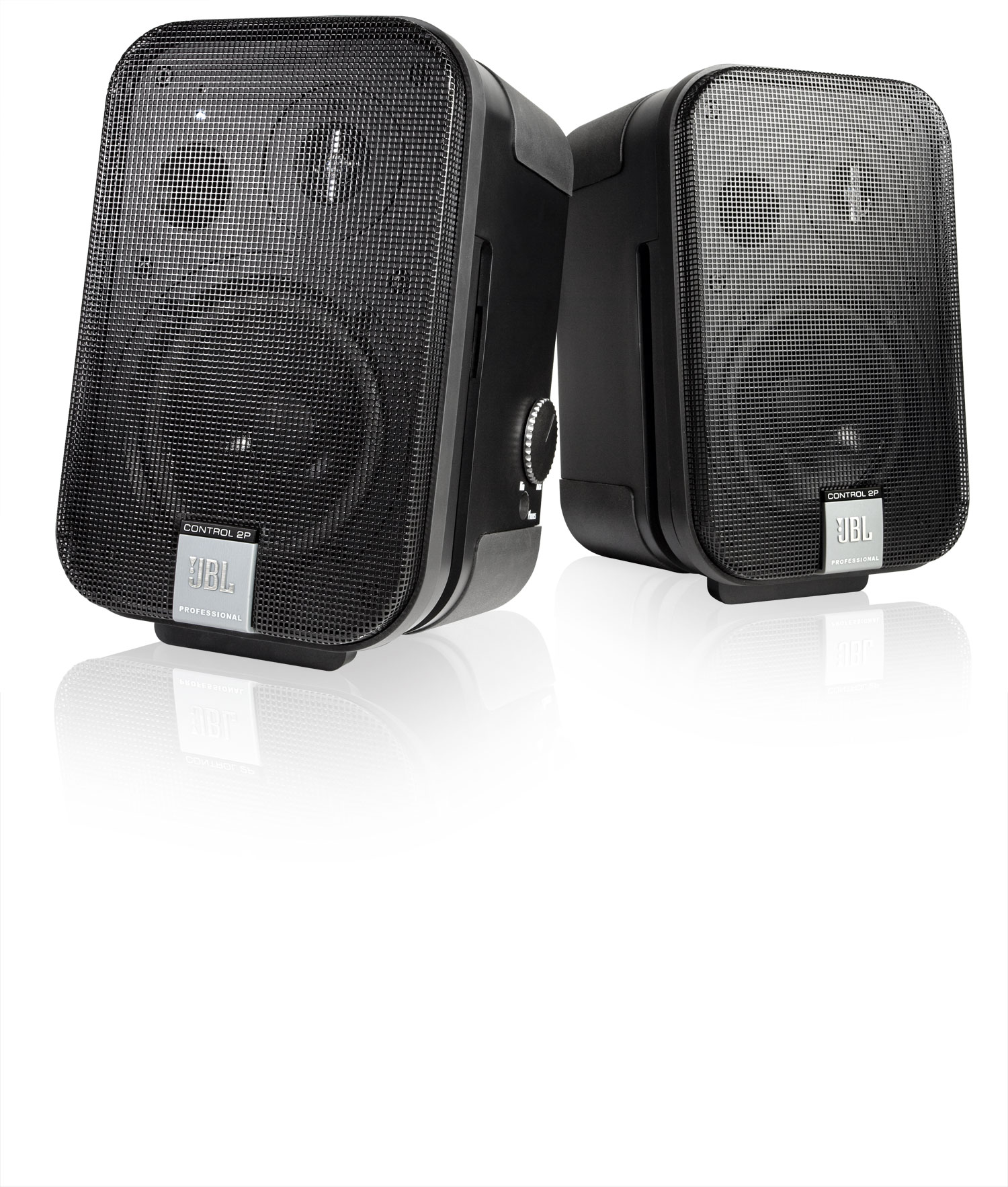

Control 2P Hi Res Image uppdaterad: apr 2019	461 KB	apr 2019

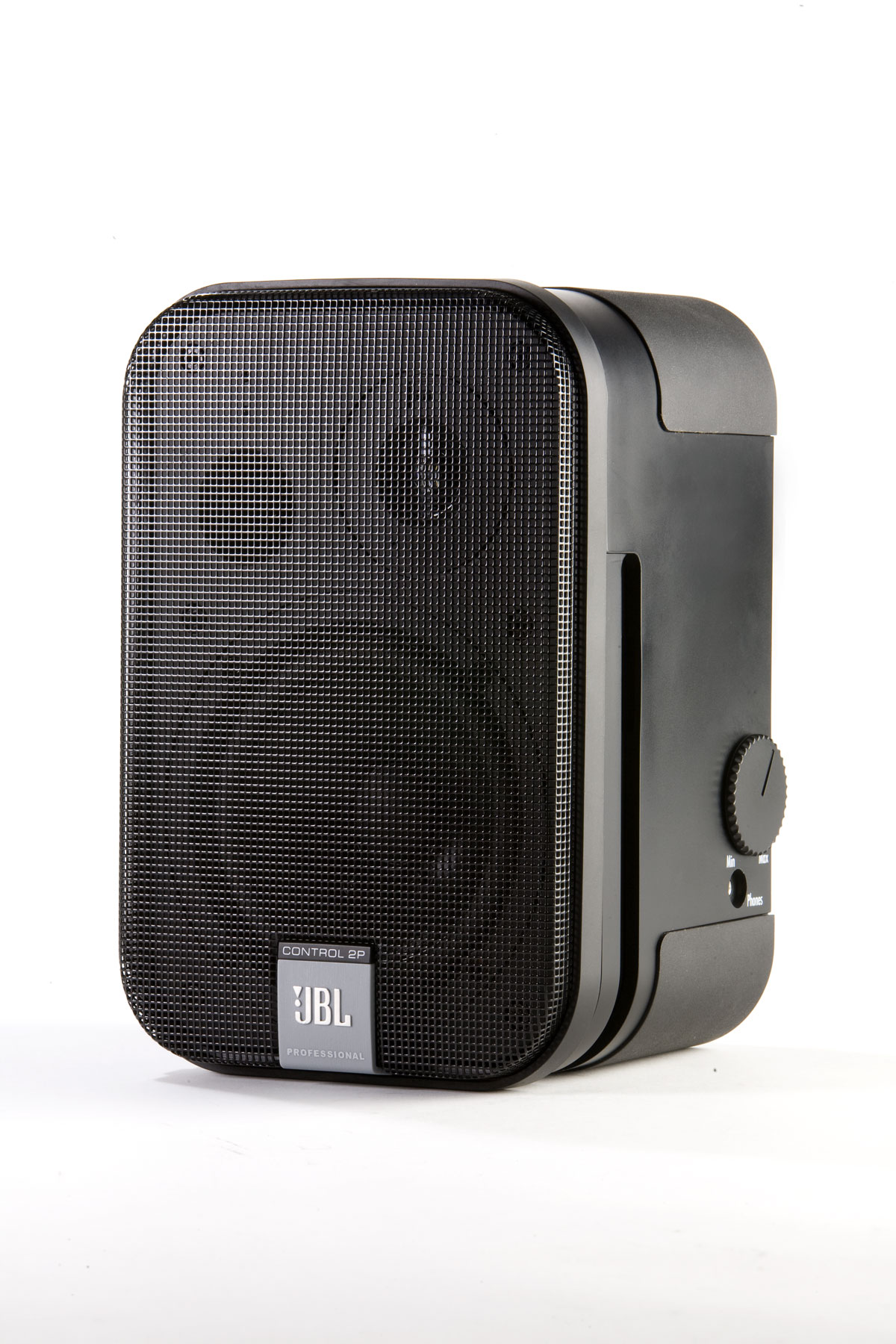

Control 2P Host Front uppdaterad: jul 2020	357 KB	jul 2020

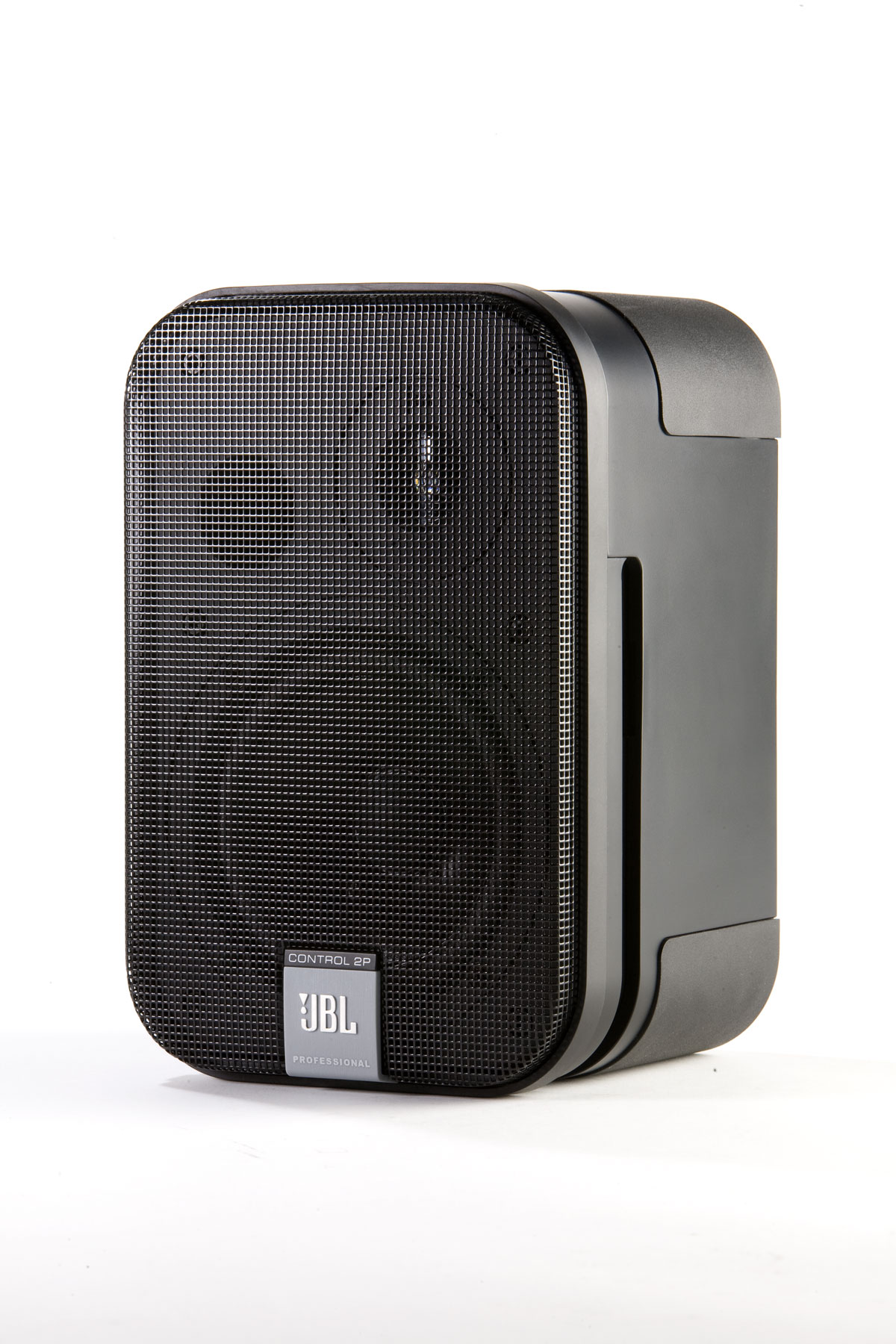

Control 2P Extension Front uppdaterad: apr 2019	354 KB	apr 2019

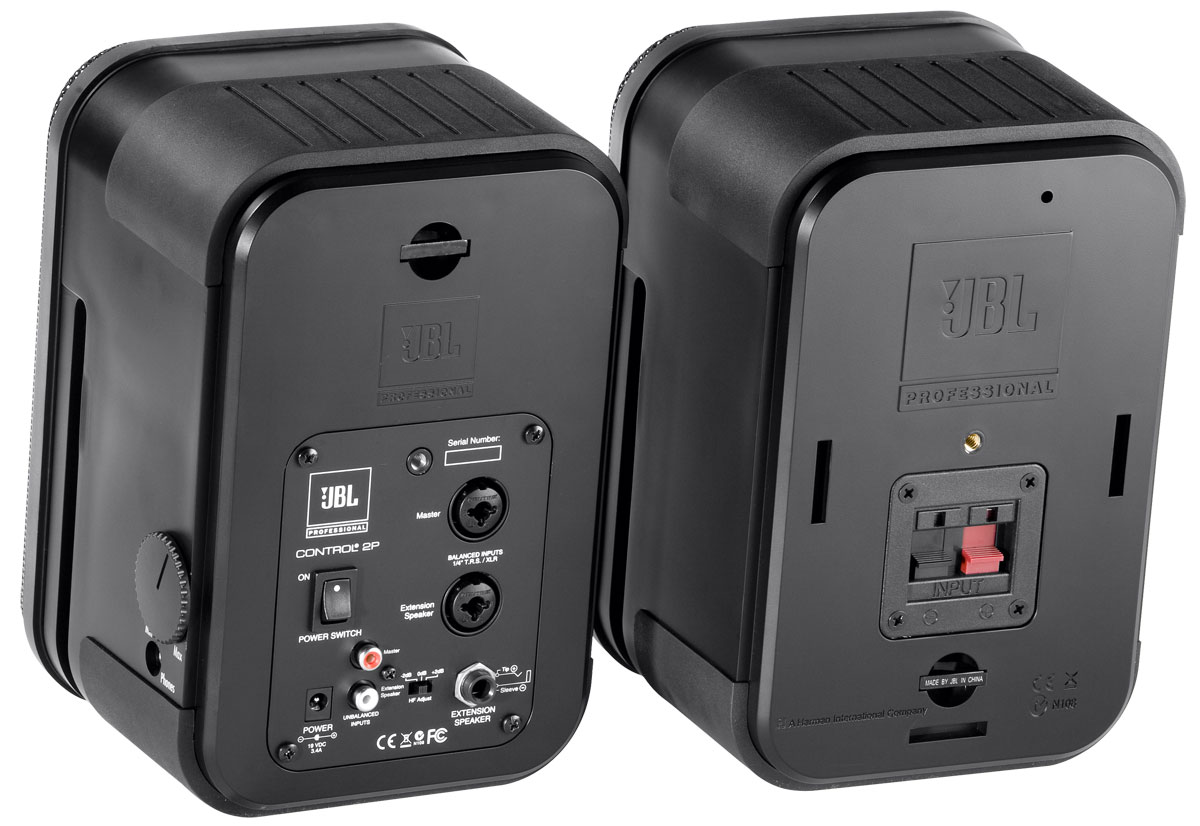

Control 2P Rear Views uppdaterad: apr 2019	117 KB	apr 2019

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Drivers	LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter
Frequency Range	80 Hz - 20 kHz
Amplifier Power Rating	35 Watts per channel
Maximum SPL (1m)	115 dB per pair
Crossover Frequency	4.2 kHz
Input Sensitivity	+4 dBu XLR 1/4"; 0 dBu RCA
Input Connectors	Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA
Power Requirements	19 VDC / 3.42 A - use only supplied power supply
Headphone Jack	3.5 mm (1/8")
Dimensions (H x W x D)	235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)
Net Weight (each)	4.8 kg (10 lb)
Grille	Zinc-plated steel
Mounting Hardware	Optional
Included Accessories	Speaker wire, power supply, 2 snap-on pedestals.

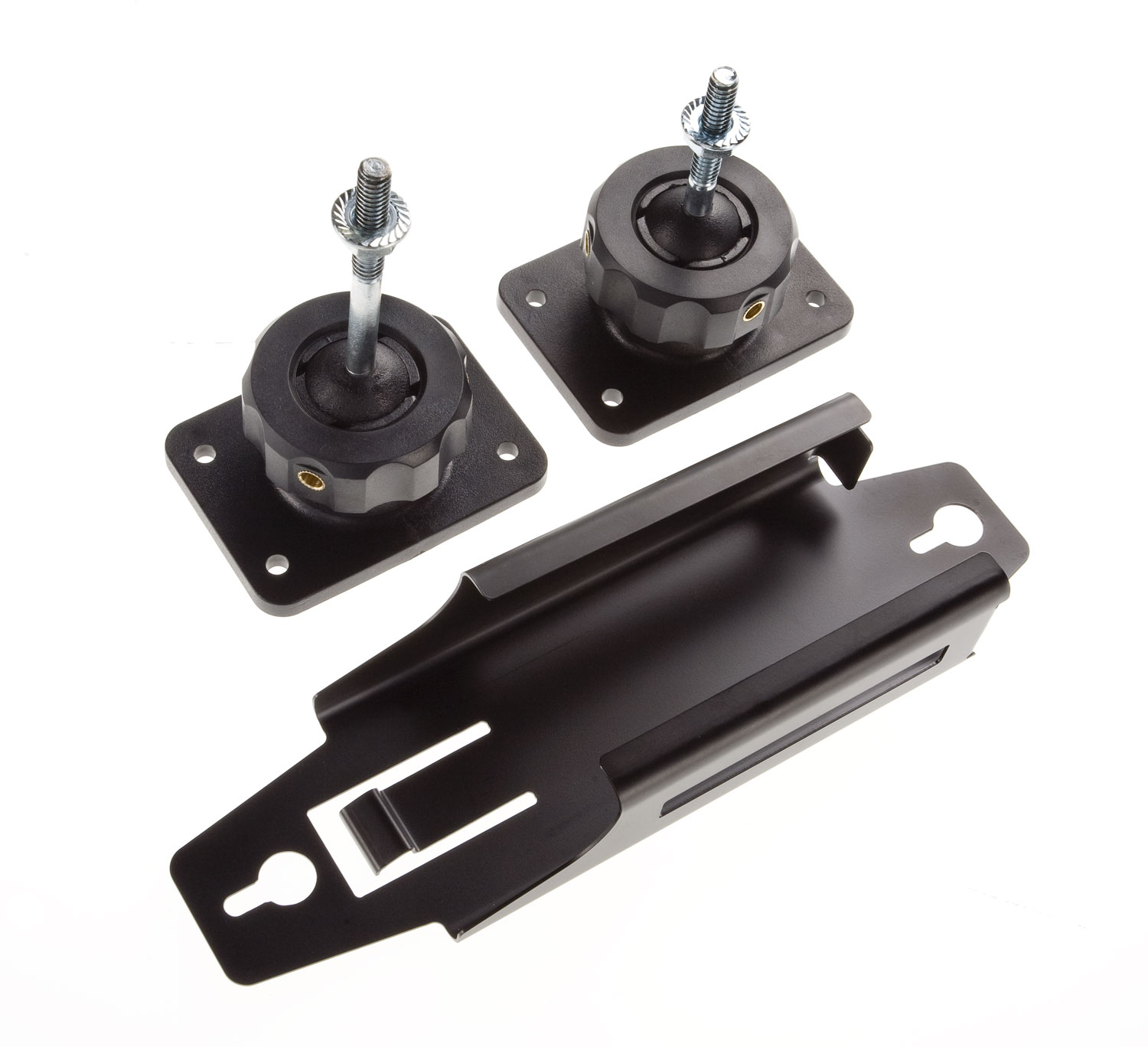

Optional Accessories	MTC-2P Mounting Kit (2 brackets, power supply holder)
	* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks of Neutrik.
LF Driver	5.25in (135mm)
LF Driver Power Handling	35 Watts per channel
Frequency Response (±3 dB)	100 Hz – 18 kHz
Maximum Peak SPL	115 dB
Enclosure	Polypropylene Structural Foam
Coverage Angle	120°H x120°V
