C2PS

Control 2P (Stereo Pair)

较大的图像

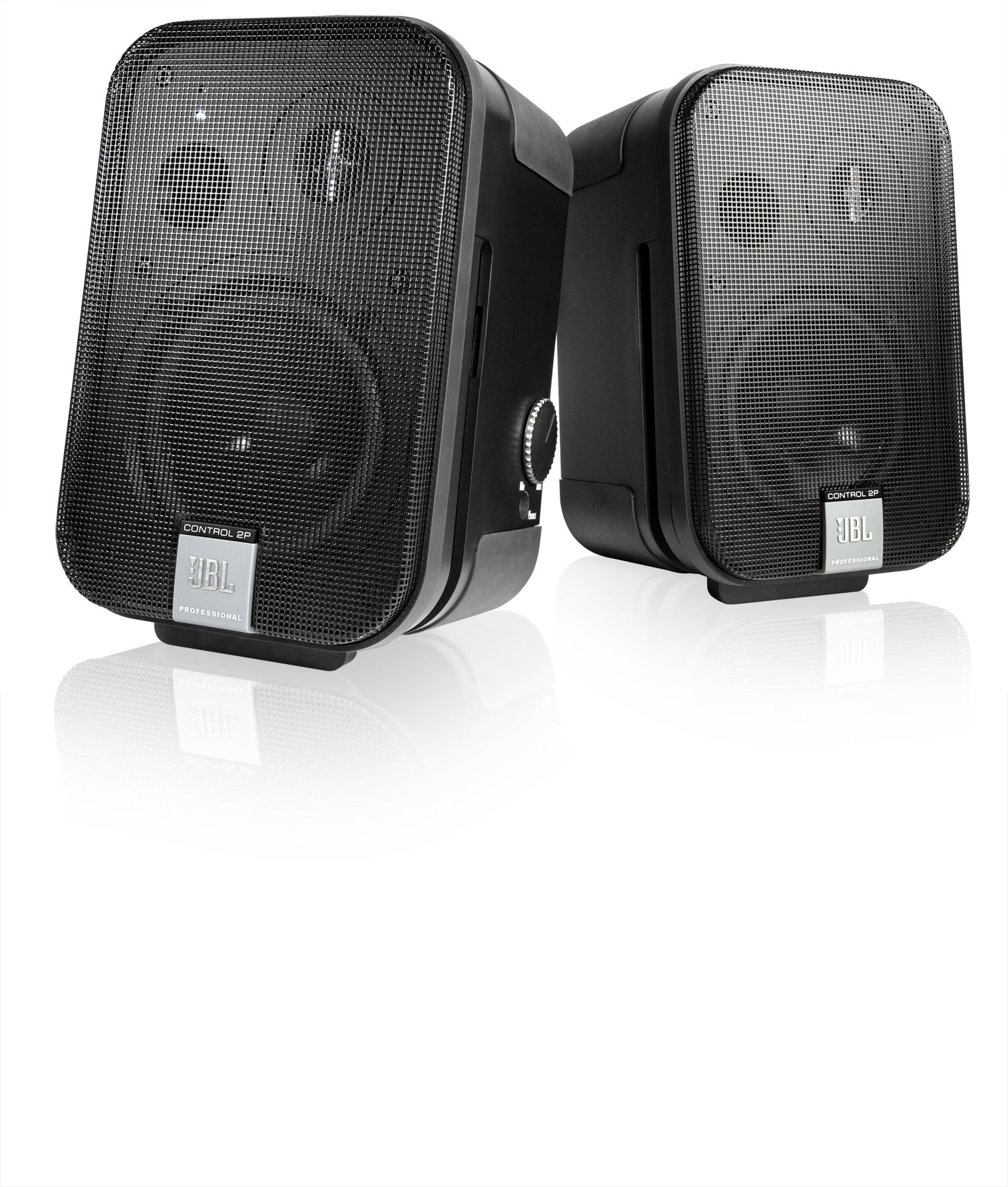

Model C2PS

Perfect for a range of professional applications including:

  • Recording / Video Production
  • Entertainment Installations
  • AV Presentations
  • Monitoring of Electronic Musical Instruments





特点

  • Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 Khz
  • 35 watt per-channel power amplifier and high sensitivity drivers produce exceptional output:
    115 DB max SPL per pair
  • Balanced XLR, ¼”, and unbalanced RCA inputs allow connection to a range of signal sources
  • Stereo headphone jack allows monitoring using headphones
  • Ergonomic, side-mounted volume control - simultaneously controls left and right speakers
  • High frequency adjust control - allows the user to contour HF response to application requirements
  • Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
  • Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
  • Wall-mount capable using optional MTC-2P mounting kit
  • Included snap-on pedestals optimize listening angle for desktop applications


下载

  Version Language Size Uploaded
Brochures
Control 2P Brochure
updated: 4月29日
    674.6 KB 4月29日
Recording & Broadcast Full Line Catalog
updated: 10月18日
    1.8 MB 10月18日
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Compliances
Control 2P Declaration of Conformity
updated: 10月18日
    128.6 KB 10月18日
JBL Control Series Passive Speakers DoC
updated: 12月17日
    179.3 KB 12月17日
Images
Control 2P Rear Views
updated: 4月29日
    117.0 KB 4月29日
Control 2P Extension Front
updated: 4月29日
    353.9 KB 4月29日
Control 2P Master Front
updated: 4月29日
    357.2 KB 4月29日
Control 2P Hi Res Image
updated: 4月29日
    460.7 KB 4月29日
User Guides
Control 2P Users Guide
updated: 4月29日
    1.8 MB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Drivers LF: 135 mm (5.25 in) low frequency loudspeaker
HF: 19 mm (.75 in) Polycarbonate dome tweeter
频率范围 80 Hz - 20 kHz
Amplifier Power Rating 35 Watts per channel
Maximum SPL (1m) 115 dB per pair
分频频率 4.2 kHz
输入的灵敏度 +4 dBu XLR 1/4"; 0 dBu RCA
输入连接器 Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA
电源要求 19 VDC / 3.42 A - use only supplied power supply
Headphone Jack 3.5 mm (1/8")
尺寸(高 x 宽 x 厚) 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)
Net Weight (each) 4.8 kg (10 lb)
网罩 Zinc-plated steel
装配硬件 Optional

随附配件

Speaker wire, power supply, 2 snap-on pedestals.
Optional Accessories MTC-2P Mounting Kit (2 brackets, power supply holder)


* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks
of Neutrik.

低频驱动单元 5.25in (135mm)
LF Driver Power Handling 35 Watts per channel
Frequency Response (±3 dB) 100 Hz – 18 kHz
Maximum Peak SPL 115 dB
Enclosure Polypropylene Structural Foam

Accessories

MTC-2P Mounting kit | The Control 2P Master Speaker and Extension Speaker can be wall-mounted using the optional MTC-2P
MTC-2P Mounting kit Main photo
较大的图像

The Control 2P Master Speaker and Extension Speaker can be wall-mounted using the optional MTC-2P mounting kit.

Contains:
2 Mounting Brackets
1 Power Supply Holder
1 Mounting Bracket Wrench



Documentation
