PRX915XLF

Subwoofer Ativo Profissional de 15 polegadas

PRX915XLF
Imagens Grandes

Professional Powered 15-inch Subwoofer
The PRX915XLF subwoofer, part of the JBL PRX900 Series powered loudspeakers and subwoofers, takes professional portable PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability and complete BLE control via the JBL Pro Connect app. The PRX900 series is a versatile solution for DJs and bands, music venues, rental houses, corporate A/V providers, or anyone who needs durable professional systems that deliver powerful, room-filling sound in any portable or installed scenario.

This 15-inch powered subwoofer is built from the ground up to leverage JBL’s most advanced acoustic innovations. A high-performance driver—powered by an ultra-efficient 2,000-watt Class D amplifier—delivers clear, defined bass with smooth low-frequency extension at maximum volume.

The PRX915XLF’s class-leading DSP package, accessible via onboard LCD or the JBL Pro Connect app, includes 6-band parametric EQ for system tuning and nuanced tonal control, plus a lowpass filter and 20ms delay.

The JBL Pro Connect app provides complete hardware and DSP control of up to 10 speakers; integrate with JBL EON ONE MK2, PRX ONE and EON700 systems, and access app-only functions including speaker snapshots and grouping.

The PRX915XLF is designed to withstand the rigors of the road, and is enclosed in an 18mm birch cabinet with optimized bracing for smooth low-frequency response and improved durability. Like with every JBL product, everything is reinforced by industry-leading test and validation protocols.

Recursos

  • Transducer:
    • 915SG 15” ferrite magnet woofer
  • Low-noise, low-distortion gain staging design
  • Lightweight, efficient Class D amplification
  • Power: 2,000 watts peak/1,000 watts RMS
  • Frequency response: 36 Hz–98 Hz @2pi (-10 dB); 40 Hz–87 Hz @2pi (-3 dB)
  • Max SPL: 131 dB
  • Color LCD screen provides access to comprehensive DSP suite
  • DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
  • Optimized presets for pairing full-range speakers with subwoofers
  • JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
  • BLE networking via JBL Pro Connect app
  • Ultra-low system latency: <1ms
  • I/Os:
    • 2 XLR balanced Combo jacks
    • 2 XLR pass-through outs
  • Two integrated handles (top and side)
  • Mount: M20 pole cup
  • 18mm birch cabinet features optimized bracing for smooth low-frequency response
  • Quiet fanless operation
  • Net weight: 28.6 kg (63 lbs); gross weight: 33.6 kg (74 lbs)
  • Dimensions: 549 mm x 480 mm x 580 mm (21.6 in x 18.9 in x 22.8 in) (H x W x D)
  • Shipping dimensions: 588 mm x 592 mm x 692 mm (23.1 in x 23.3 in x 27.2 in) (H x W x D)

Downloads

BIM Objects
  Tamanho Enviado
file type icon PRX915XLF BIM Object
atualizado: dez 2022
dez 2022
Software
  Versão Tamanho Enviado
iOS download icon Pro Connect
versão 2.4, lançado: nov 2025
2.4   nov 2025
Android download icon Pro Connect
versão 2.4, lançado: nov 2025
2.4   nov 2025
download icon for Pro Connect Pro Connect
versão 2.4, atualizado: mai 2026
2.4   59,5 MB mai 2026
User Guides
  Idioma Tamanho Enviado
file type icon PRX900XLF User Guide
de atualizado: out 2022
de  7,52 MB out 2022
file type icon PRX900XLF User Guide
en atualizado: out 2022
en  7,54 MB out 2022
file type icon PRX900XLF User Guide
pt atualizado: out 2022
pt  7,53 MB out 2022
file type icon PRX900XLF User Guide
it atualizado: out 2022
it  7,51 MB out 2022
file type icon PRX900XLF User Guide
fr atualizado: out 2022
fr  7,52 MB out 2022
file type icon PRX900XLF User Guide
es atualizado: out 2022
es  7,52 MB out 2022
Spec Sheets
  Idioma Tamanho Enviado
file type icon PRX915XLF Spec Sheet
en atualizado: out 2022
en  573 KB out 2022
file type icon PRX915XLF Spec Sheet
zh atualizado: fev 2023
zh  2,81 MB fev 2023
Quick Start Guides
  Idioma Tamanho Enviado
file type icon PRX915/918XLF Quick Start Guide
es atualizado: out 2022
es  539 KB out 2022
file type icon PRX915/918XLF Quick Start Guide
fr atualizado: out 2022
fr  540 KB out 2022
file type icon PRX915/918XLF Quick Start Guide
it atualizado: out 2022
it  539 KB out 2022
file type icon PRX915/918XLF Quick Start Guide
pt atualizado: out 2022
pt  539 KB out 2022
file type icon PRX915/918XLF Quick Start Guide
en atualizado: out 2022
en  536 KB out 2022

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Frequency Range (-10dB) 36 Hz - 98 Hz (2π)
Frequency Range (-3 dB) 40 Hz - 87 Hz (2π)
PADRÃO DE COBERTURA Omni
Transducer Impedence Rated: 4 Ω
SPL MÁXIMO 131 dB @ 1m/2π
Power Rating 2000W peak / 1000W RMS
Cooling Natural Convection
No Fan
Frequência de Crossover 80 Hz, 100 Hz, 120 Hz Selectable
I/O x2 Combo Inputs
x2 XLR Pass Through Outputs
Suspension/Mounting Pole Mount on Top Surface
Product Dimensions (H x W x D) 549 x 480 x 580 mm (21.6 x 18.9 x 22.8 in)
PESO LÍQUIDO 28.6 kg (63 lbs)

Acessórios

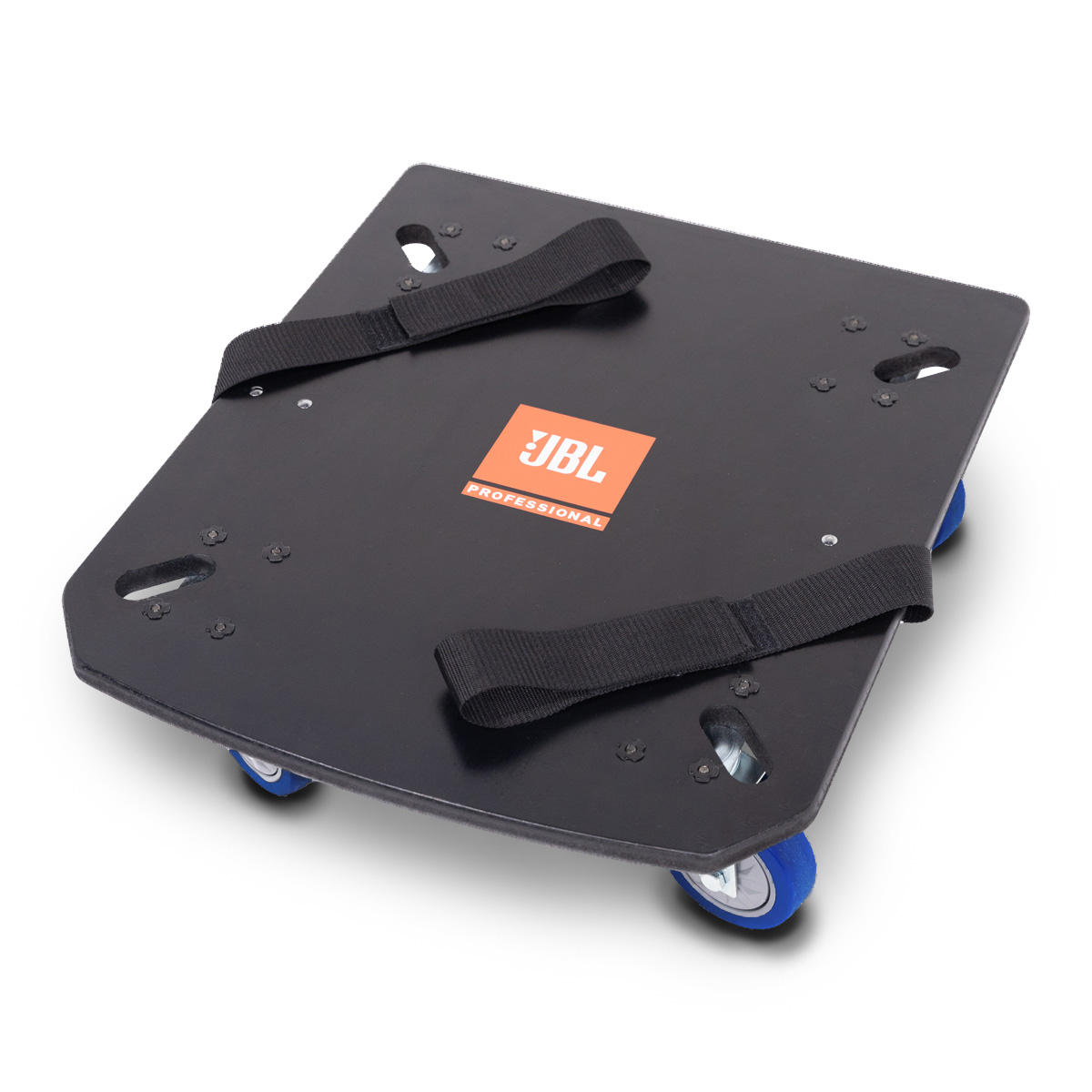

PRX915XLF-CASTERBRD | Heavy-Duty Caster Board Kit for JBL PRX 915XLF Powered 15-Inch Subwoofer
PRX915XLF-CASTERBRD Main photo
Imagens Grandes
PRX915XLF-CASTERBRD detail thumbnail #1 PRX915XLF-CASTERBRD detail thumbnail #2 PRX915XLF-CASTERBRD detail thumbnail #3 PRX915XLF-CASTERBRD detail thumbnail #4 PRX915XLF-CASTERBRD detail thumbnail #5

Caster Board for JBL PRX915XLF

  • 2-inch-Wide Hook-and-Loop Handle Locking Straps Keep Subwoofer Secured to Base
  • 0.75-Inch-Thick Plywood Base Contours to Subwoofer Shape for Clean Appearance
  • Heavy-Duty 4-Inch Swivel Casters for Transport Over Rugged Terrain
  • Product Dimensions: 23”/584mm (L) x 19”/483mm (W) x 5.75”/146mm (H), Net Weight: 13.6 lbs./6.2kg

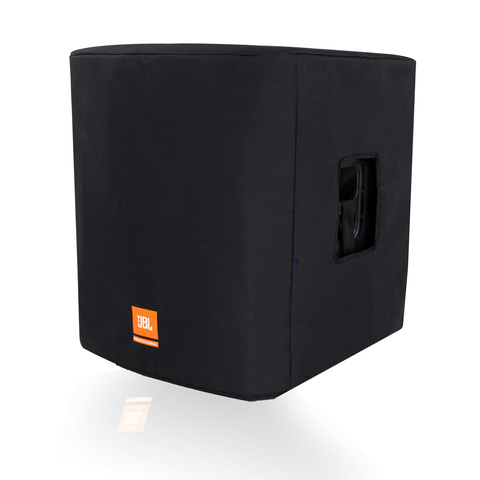

PRX915XLF-CVR | Speaker Slipcover for JBL PRX 915XLF Powered 15-Inch Subwoofer
PRX915XLF-CVR Main photo
Imagens Grandes
PRX915XLF-CVR detail thumbnail #1 PRX915XLF-CVR detail thumbnail #2 PRX915XLF-CVR detail thumbnail #3 PRX915XLF-CVR detail thumbnail #4

JBL Bags Cover for JBL PRX915XLF

  • Tough, Water-Resistant 600D Black Polyester Exterior Fabric
  • Soft, 210D Polyester Interior Fabric with Protective Padding
  • Dual Side Cutouts for Easy Access to Subwoofer Carry Handles
  • Exterior Dimensions: 27”/686mm (L) x 24.75”/629mm (W) x 28”/711mm (H), Net Weight: 2.8 lbs./1.3 kg
  • Interior Dimensions: 26.75”/679mm (L) x 24”/610mm (W) x 27.25”/692mm (H)
