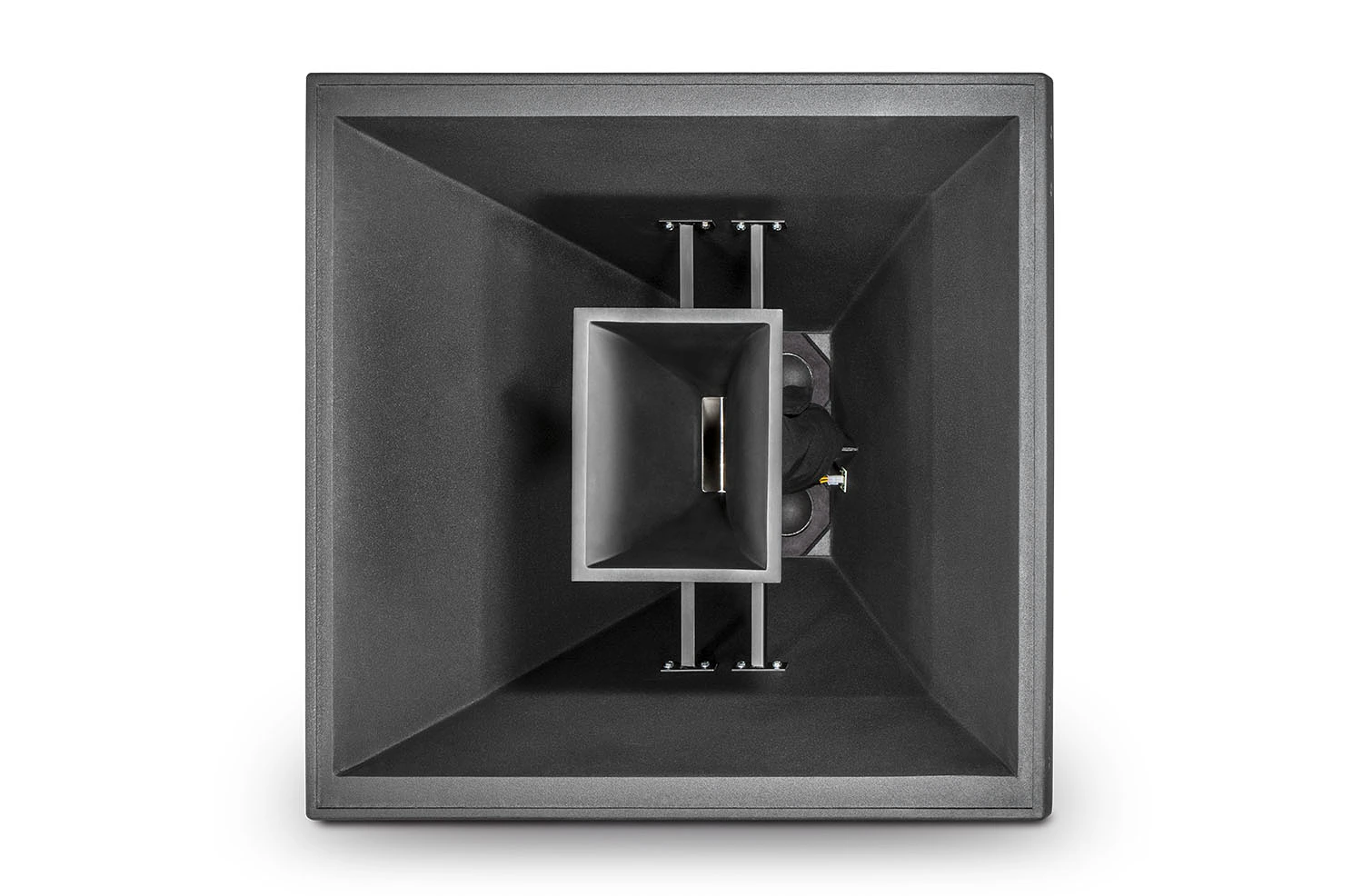

O alto-falante PD743i Precision Directivity™ oferece reforço sonoro de alto impacto em distâncias que ultrapassam o alcance de designs tradicionais de driver único. Um único módulo produz mais de 104 dB SPL (contínuo) a distâncias de 50 m (165 pés). O PD764i-215 pode ser utilizado em clusters com outros módulos da família PD ou individualmente como parte de um sistema distribuído.
To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.
| Tamanho | |
|
|
201 KB |
| Tamanho | |
|
|
86,1 KB |
| Tamanho | |
|
|
5,71 MB |
| Tamanho | |
|
|
1,26 MB |
|
|
4,32 MB |
| Tamanho | |
|
|
3,97 MB |
|
|
4,47 MB |
|
|
1,98 MB |
Tech Note: JBL Precision Directivity™ PD700 Series Co-Axial Mid/High Speaker Systems
atualizado: out 2019
|
389 KB |
|
|
658 KB |
| Tamanho | |
|
|
197 KB |
|
|
24 MB |
| Tamanho | |
|
|
420 KB |
Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.
| Frequency Range (-10dB) | 200 Hz to 19.5 kHz |
| RESPOSTA EM FREQUÊNCIA (±3 dB) | 230 Hz - 18.5 kHz |
| PADRÃO DE COBERTURA | 40° x 30° |
| Directivity Index (DI) | 16 dB |
| System Sensitivity (1w @ 1m) | Passive Mid-High: 110 dB SPL |
| Maximum Peak SPL | MHF - 142 dB Peak Passive Mode |
| Transducer Power Rating (AES) | MHF - 400 W (1600 W Peak) |
| Crossover Frequencies | 1.2 kHz |
| DSP | Custom DSP for Crown ITHD and IT4x3500HD amplifiers |
| MF Driver | 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil |
| HF Driver | 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Impedância nominal | MF: 4 ohms HF: 16 ohms |
| Enclosure | Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood |
| Enclosure WRC/WRX Version | For direct exposure or extreme environments, berglassed with stainless steel hardware |
| Grille | Black powder coated zinc treated 14 gauge perforated steel with black foam backing |
| Grille WRC/WRX Version | Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh |
| Input Connector | NL4 for bi-amp operation |
| Input Connectors WRC/WRX Version | 4 conductor 16 awg direct burial cable assy 20 length (or length TBD) |
| Suspension Attachment | 32 total points (7 top and bottom, 7 each side, 4 back), M10 threaded hardware |
| DIMENSÕES (AxLxP) | 991 mm x 991 mm x 1145.8 mm (39.0 x 39.0 x 45.1 in) |
| Net Weight (each) | 245 lbs (111.4 kg) |
| Crossover Modes | Passive |
| System Power Rating | MHF - 400 W (1600 W Peak) (IEC rated) |
| Environmental | Available WRC/WRX Version: IP55 |
