Control 28-1L

Coluna de Interior/Exterior com Elevada Potência de Saída, 8 Ohm, para Música de Fundo/Primeiro Plano

Control 28-1L
Imagens Grandes

Altifalante de Saída Elevada 8 Ohm para Interior/Exterior com Música de Fundo/Frente

O Control® 28-1L é um altifalante de duas vias com 8" de diâmetro e carácter sonoro rico, cobertura ampla, cobertura consistente, montagem versátil e um design contemporâneo e sofisticado que se integra numa vasta gama de espaços. Isto torna o Control 28-1L uma escolha excelente para uma ampla variedade de aplicações, incluindo lojas de retalho, restaurantes, health clubs, parques temáticos, instalações educacionais, hospitalidade, casas de música, espaços de lazer e qualquer local onde seja necessário um altifalante de saída elevada de elevada qualidade para interior/exterior com música de fundo/frente e/ou paging.

Recursos

  • Woofer de 8" com cone de fibra de vidro tecida
  • Tweeter com diafragma PEI de 1" e resfriamento por fluido
  • Aparência contemporânea e design sofisticado
  • Hardware de montagem InvisiBall® integrado, além de suporte U disponível
  • Enclosure e transdutores resistentes ao tempo
  • Cobertura ampla de 100° x 100°
  • Potência de 120 Watts (240 Watts de programa)
  • Caráter de som de alta fidelidade com resposta em frequência ampla de 45 Hz – 20 kHz.


Downloads

Specifications
  Versão Tamanho Enviado
file type icon Control 28-1L Spec Sheet
versão B, atualizado: mar 2020
B  463 KB mar 2020
Manuals
  Tamanho Enviado
file type icon MTC-23UB-1, 25UB-1, 28UB-1 U Bracket Install Guide
atualizado: out 2019
67,7 KB out 2019
Brochures
  Versão Idioma Tamanho Enviado
file type icon Loudspeakers for Sports Facilities
en atualizado: jul 2024
  en  5,71 MB jul 2024
file type icon Control Contractor Brochure (2024)
en versão D, atualizado: fev 2024
D  en  14 MB fev 2024
file type icon Control Contractor Brochure (2025)
en versão A, atualizado: mar 2026
A  en  23 MB mar 2026
file type icon Control Contractor Brochure (2026)
en atualizado: mar 2026
  en  21 MB mar 2026
CAD Drawings
  Tamanho Enviado
file type icon Control 23-1, 25-1, 28-1 Bracket 2D & 3D CAD, PDF
atualizado: out 2020
5,81 MB out 2020
file type icon Control 28-1/L 2D Drawing
atualizado: out 2020
485 KB out 2020
file type icon Control 28-1/L 3D Drawing
atualizado: out 2020
3,33 MB out 2020
BIM Objects
  Tamanho Enviado
file type icon Control 28-1 BIM Object
atualizado: ago 2019
ago 2019
Compliances
  Tamanho Enviado
file type icon JBL Control Series Passive Speakers DoC
atualizado: dez 2019
179 KB dez 2019
file type icon Control Contractor 20-1(L) Declaration of Conformity
atualizado: out 2019
75,9 KB out 2019
file type icon Control Contractor Series Declaration of Conformity
atualizado: out 2019
131 KB out 2019
Software
  Versão Tamanho Enviado
Windows download icon Distributed System Design (DSD)
versão 3.9, atualizado: nov 2025
3.9   612 KB nov 2025
Simulation Data
  Versão Tamanho Enviado
file type icon JBL Pro ALL CLF Files
versão 12-10-21, atualizado: mai 2023
12-10-21  24 MB mai 2023
Images
  Tamanho Enviado

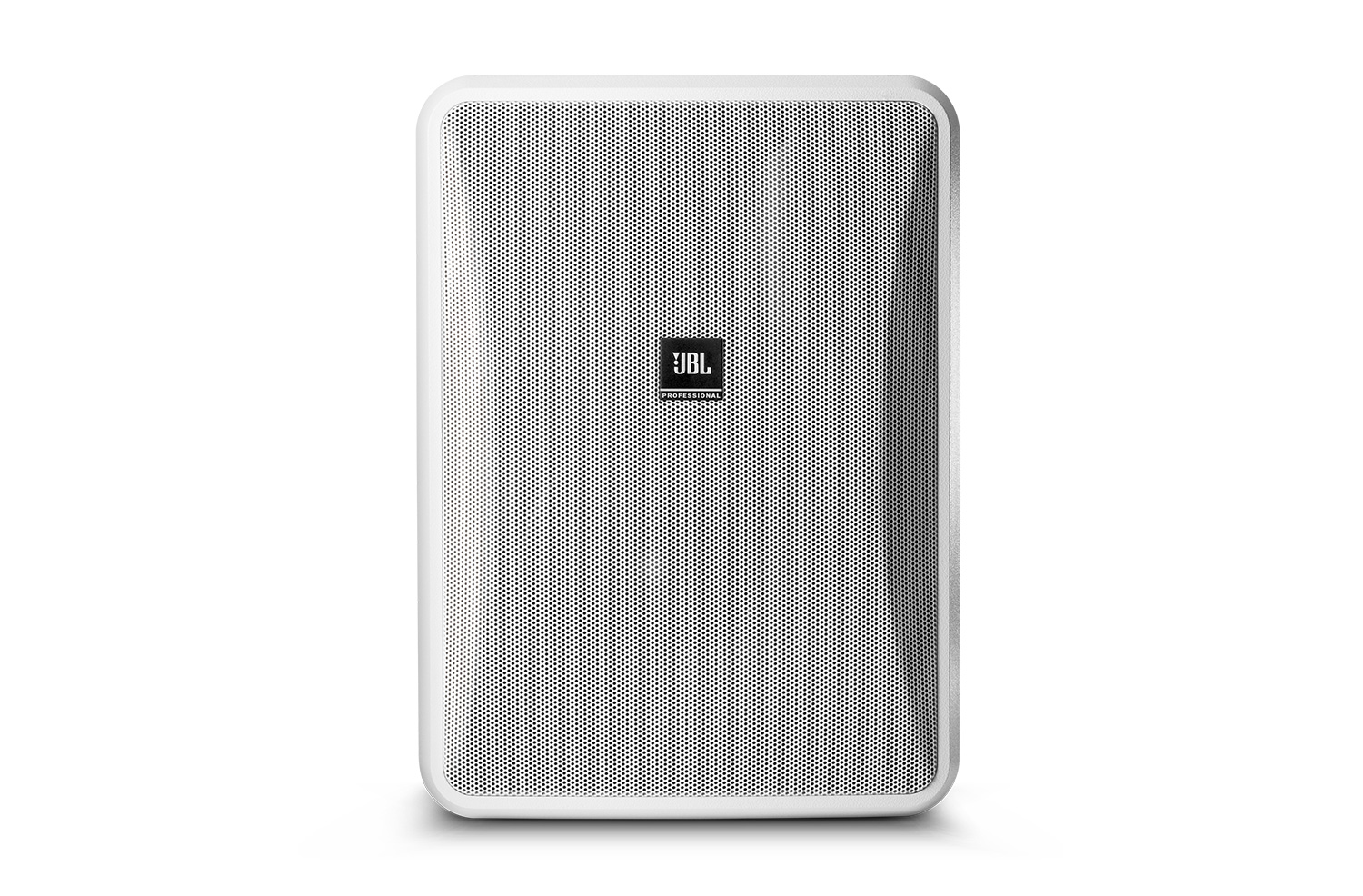

file type icon Control 28-1 Front White
atualizado: out 2020
339 KB out 2020
file type icon Control 28-1 Detail
atualizado: out 2020
806 KB out 2020

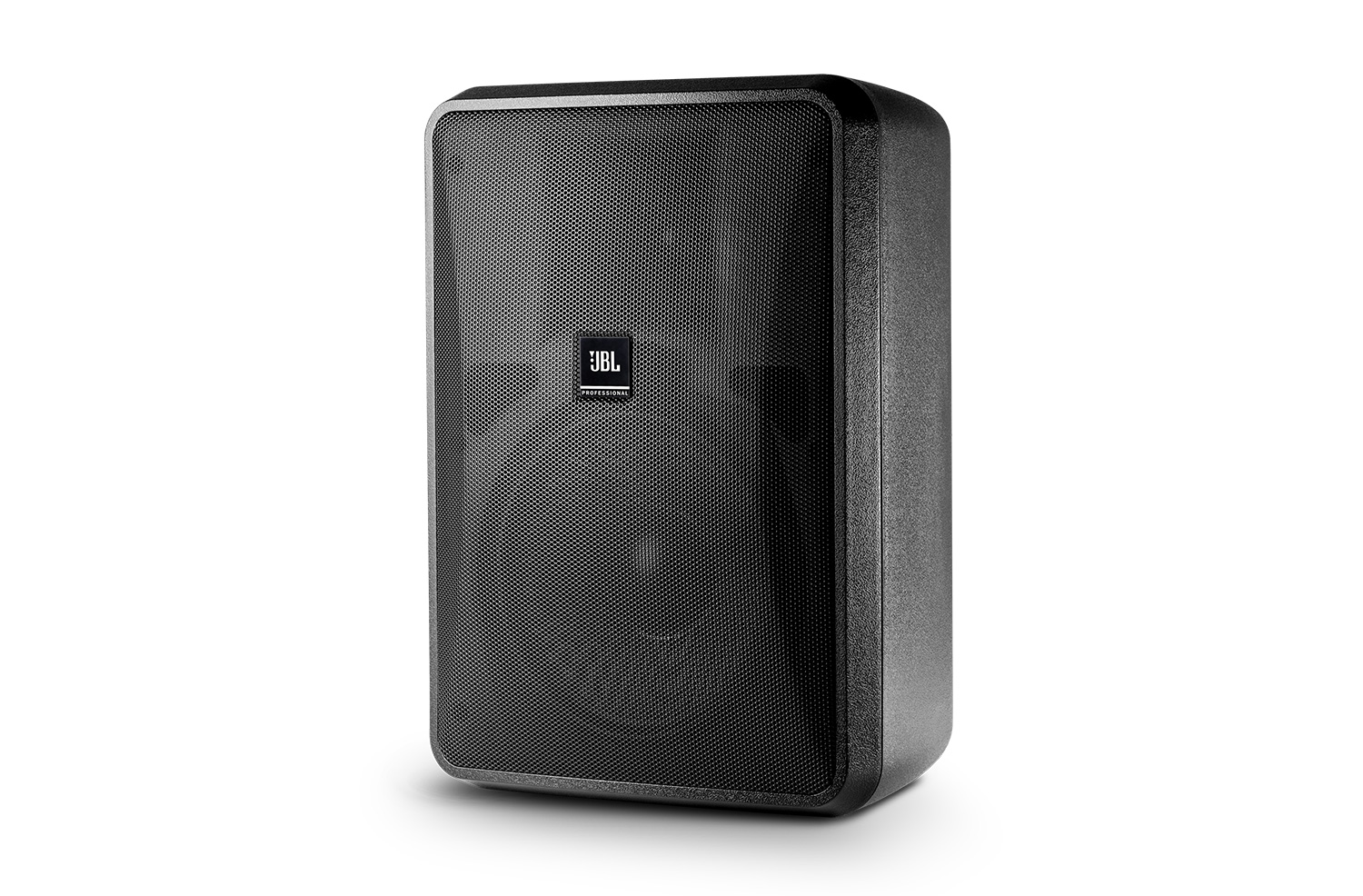

file type icon Control 28-1 Angle
atualizado: out 2020
330 KB out 2020
Accessories
  Tamanho Enviado
file type icon WeatherMax Grille Photos
atualizado: abr 2021
2,75 MB abr 2021
file type icon U-Bracket Install guide
atualizado: out 2020
67,7 KB out 2020
Install Guides
  Tamanho Enviado
file type icon Painting HIPS Loudspeaker Cabinets
atualizado: jun 2023
377 KB jun 2023
file type icon Guide to Business Music
atualizado: out 2020
52,4 KB out 2020
file type icon Invisiball™ Installation Instructions
atualizado: set 2019
227 KB set 2019
file type icon Attaching Control Contractor Speakers to Stands
atualizado: nov 2019
76,4 KB nov 2019
Speaker Tunings
  Versão Tamanho Enviado
file type icon Commercial, CBT, and AWC Tunings 220616
versão A, atualizado: mai 2023
A  557 KB mai 2023

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Frequency Range (-10dB) 45 Hz to 20 kHz
RESPOSTA EM FREQUÊNCIA (±3 dB) 62Hz - 16 kHz
Power Rating 240 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is conservative expression of the system’s ability to handle normal speech and music program material.
Maximum Input Voltage 27.5 V RMS (2 hrs), 55.0 V peak
Maximum SPL (1m) 112 dB ave. Continuous Pink Noise (118 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
Sensibilidade 91 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
Coverage Angle 100°H x 100°V
Directivity Factor (Q) 7.3 (averaged 1kHz – 16kHz)
Impedância 8 ohms
Crossover Type 2nd order low-pass, 1st order high-pass, plus conjugate shaping
Recommended Protective High-Pass 45 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
Drivers LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
CONEXÕES DE ENTRADA Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant
Colors Black (RAL9004) or white (-WH, RAL9016)
DIMENSÕES (AxLxP) 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
Net Weight (each) 6.2 kg (13.5 lbs)
Peso de Envio 13.4 kg (29.5 lbs) pair-packed (for 2 speakers)
Acessórios Inclusos InvisiBall™ wall-mounting system, 6 mm x 180 mm hex key
Optional Accessories MTC-28UB-1 – Yolk-type U-bracket (&-WH)
