C211

Caixa Acústica Cinema Bidirecional ScreenArray®

C211
Imagens Grandes

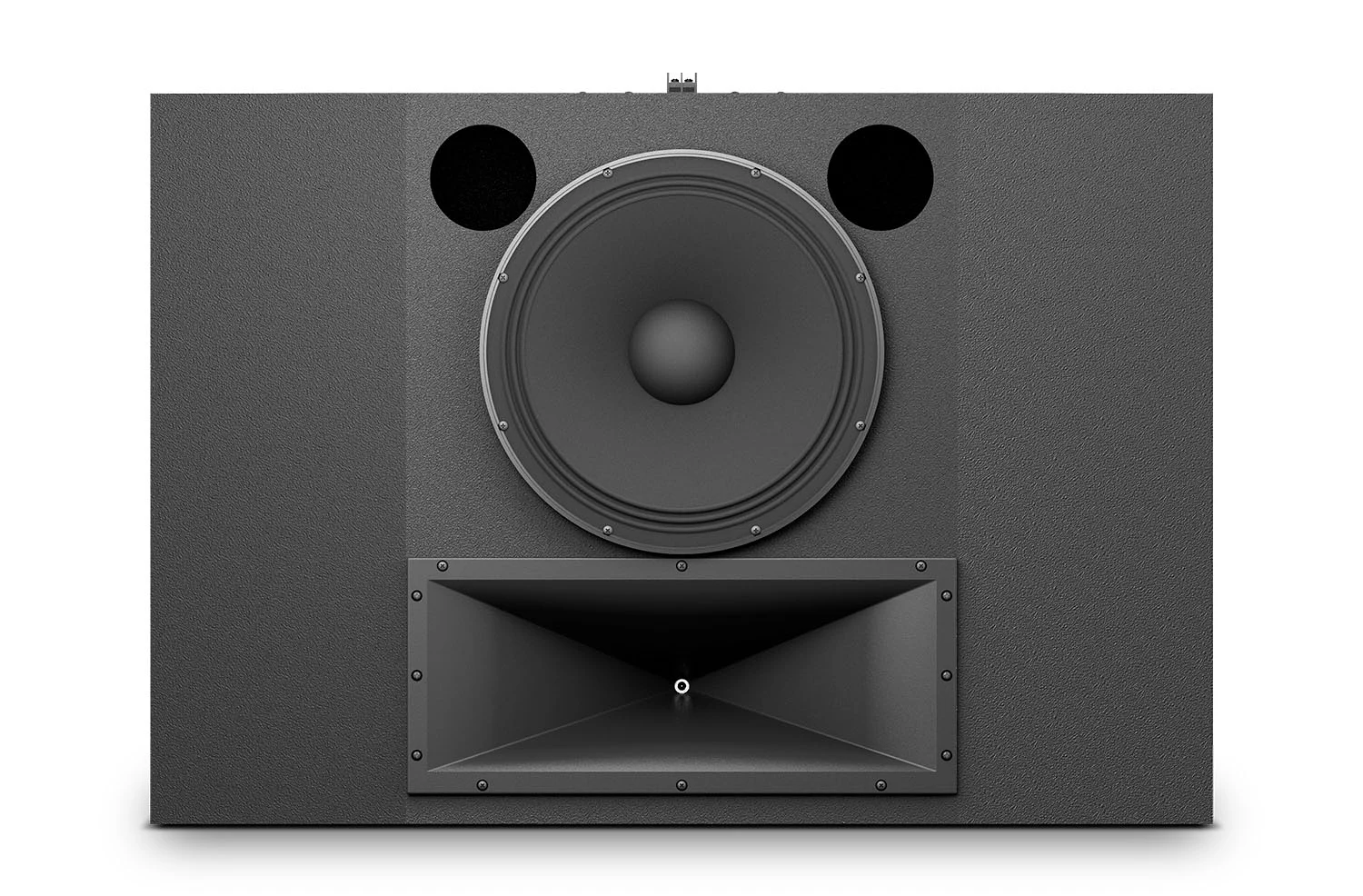

Two-Way ScreenArray Cinema Loudspeaker

The C211 Two-Way ScreenArray® Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. The C211 has a depth of 12", making it perfect for small cinemas with space constraints. The C211 uses the same high frequency driver technology that is found in the 7 Series master reference studio monitors, which is trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended. With a maximum throw of 16 m (52'), the C211 is designed for a small to medium cinema as well as VIP viewing rooms.



Recursos

  • Next-generation two-way ScreenArray® design for maximum output, improved coverage and minimum distortion
  • C211 2409H uses same HF driver as 7 Series master reference studio monitors
  • 12" footprint saves space without sacrificing performance
  • Advanced passive crossover network combined with leading edge DSP in the amplifier produce highly accurate playback and response
  • Designed for small cinemas and VIP rooms for a maximum throw of 13.5m (44.28ft)


Downloads

Data Sheets
  Versão Tamanho Enviado
file type icon C211 Spec Sheet
versão B, atualizado: nov 2024
146 KB nov 2024
Brochures
  Tamanho Enviado
file type icon 200 Series Brochure
atualizado: ago 2019
9,98 MB ago 2019
BIM Objects
  Tamanho Enviado
file type icon C211 BIM Object
atualizado: ago 2019
ago 2019
Compliances
  Tamanho Enviado
file type icon C211 Declaration of Conformity
atualizado: ago 2019
1,17 MB ago 2019
Install Guides
  Versão Tamanho Enviado
file type icon JBL C200 Installation Guide
versão A, atualizado: out 2021
1,45 MB out 2021
Speaker Tunings
  Tamanho Enviado
file type icon C211 DCi Series Tuning
atualizado: ago 2019
7,4 KB ago 2019
file type icon C211 DSi Series Tuning
atualizado: fev 2020
15,7 KB fev 2020
Drawings 2D/3Ds
  Tamanho Enviado
file type icon C211 2D Drawing PDF
atualizado: ago 2019
80,5 KB ago 2019
file type icon C211 2D Drawing
atualizado: ago 2019
287 KB ago 2019
file type icon C211 3D Drawing
atualizado: ago 2019
71,3 KB ago 2019
Ease Data
  Tamanho Enviado
file type icon C211 EASE Data
atualizado: ago 2019
1,54 MB ago 2019

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

RESPOSTA EM FREQUÊNCIA (±3 dB) 77Hz - 14kHz
Frequency Range (-10dB) 44Hz - 18kHz
Free Field Sensitivity 99 dB SPL@1W, 1M
Calculated Max SPL 125dB
Rated Impedance
Minimum Impedance 7Ω @167Hz
Power Handling (2Hr AES Rating) 300W
Power Handling (100Hr AES Rating) 175W
Furthest Seat 13.5m/44.28ft
Net Weight (each) 79lbs (35.82kg)
Dimensions (H x W x D) - Inches 31" x 40" x 12"
Dimensions (H x W x D) - CM 78.74 x 101.6 x 30.48
Sensibilidade 99 dB @ 1W, 1M
Maximum SPL (1m) 125dB
Impedância nominal
