C211

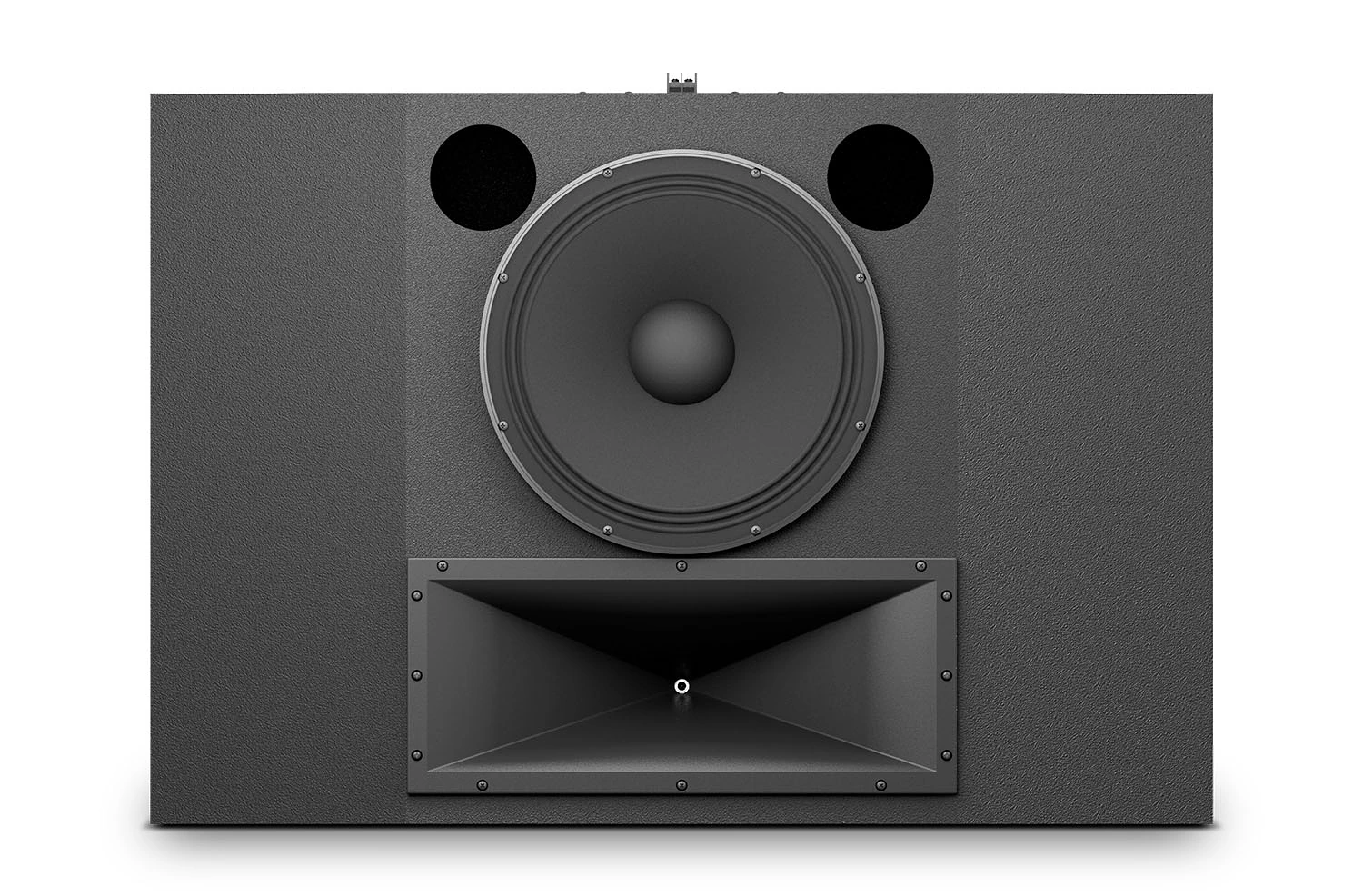

Two-Way ScreenArray® Cinema Loudspeaker

C211
Imágenes más grandes

Two-Way ScreenArray Cinema Loudspeaker

The C211 Two-Way ScreenArray® Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. The C211 has a depth of 12", making it perfect for small cinemas with space constraints. The C211 uses the same high frequency driver technology that is found in the 7 Series master reference studio monitors, which is trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended. With a maximum throw of 16 m (52'), the C211 is designed for a small to medium cinema as well as VIP viewing rooms.



Características

  • Next-generation two-way ScreenArray® design for maximum output, improved coverage and minimum distortion
  • C211 2409H uses same HF driver as 7 Series master reference studio monitors
  • 12" footprint saves space without sacrificing performance
  • Advanced passive crossover network combined with leading edge DSP in the amplifier produce highly accurate playback and response
  • Designed for small cinemas and VIP rooms for a maximum throw of 13.5m (44.28ft)


Descargas

Data Sheets
  Versión Tamaño Subido
file type icon C211 Spec Sheet
versión B, actualizado: nov 2024
146 KB nov 2024
Brochures
  Tamaño Subido
file type icon 200 Series Brochure
actualizado: ago 2019
9,98 MB ago 2019
BIM Objects
  Tamaño Subido
file type icon C211 BIM Object
actualizado: ago 2019
ago 2019
Compliances
  Tamaño Subido
file type icon C211 Declaration of Conformity
actualizado: ago 2019
1,17 MB ago 2019
Install Guides
  Versión Tamaño Subido
file type icon JBL C200 Installation Guide
versión A, actualizado: oct 2021
1,45 MB oct 2021
Speaker Tunings
  Tamaño Subido
file type icon C211 DCi Series Tuning
actualizado: ago 2019
7,4 KB ago 2019
file type icon C211 DSi Series Tuning
actualizado: feb 2020
15,7 KB feb 2020
Drawings 2D/3Ds
  Tamaño Subido
file type icon C211 2D Drawing PDF
actualizado: ago 2019
80,5 KB ago 2019
file type icon C211 2D Drawing
actualizado: ago 2019
287 KB ago 2019
file type icon C211 3D Drawing
actualizado: ago 2019
71,3 KB ago 2019
Ease Data
  Tamaño Subido
file type icon C211 EASE Data
actualizado: ago 2019
1,54 MB ago 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

RESPUESTA DE FRECUENCIA (±3 dB) 77Hz - 14kHz
Frequency Range (-10dB) 44Hz - 18kHz
Free Field Sensitivity 99 dB SPL@1W, 1M
Calculated Max SPL 125dB
Rated Impedance
Minimum Impedance 7Ω @167Hz
Power Handling (2Hr AES Rating) 300W
Power Handling (100Hr AES Rating) 175W
Furthest Seat 13.5m/44.28ft
Net Weight (each) 79lbs (35.82kg)
Dimensions (H x W x D) - Inches 31" x 40" x 12"
Dimensions (H x W x D) - CM 78.74 x 101.6 x 30.48
Sensitivity 99 dB @ 1W, 1M
Maximum SPL (1m) 125dB
Impedancia nominal
