JBL Professional Control 322CT

Larger Images

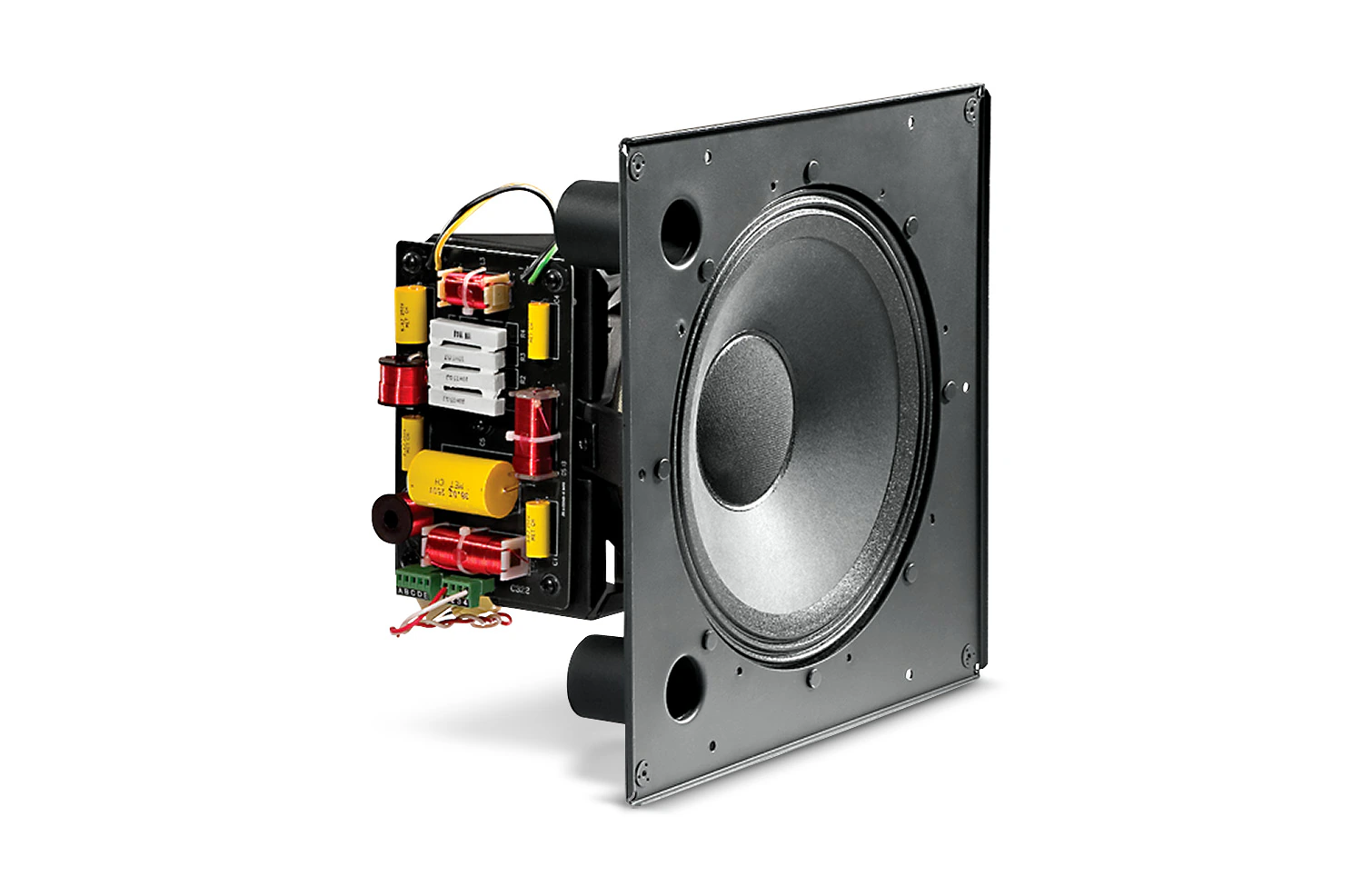

The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Consistent 90° broadband pattern control.
Components
• Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
• Medium-format compression driver.
Extraordinary clarity for speech and vocals with extended frequency response for music.
Power handling of 400 Watts with high sensitivity provides high SPL capability.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
Clean, contemporary grille and optional backbox available.

	Version	Language	Size	Uploaded
Specifications
Control 322C/CT Spec Sheet updated: kwi 2019			350 KB	kwi 2019
Manuals
Transformer Bypass on Control 321CT, Control 322CT, or Control 328CT updated: paź 2019			59,2 KB	paź 2019
Control 300 Series Transformer Insertion Loss Chart updated: paź 2019			15,4 KB	paź 2019
Ceiling Speaker Accessory Guide updated: paź 2019			127 KB	paź 2019
Brochures
Control 300 Brochure updated: kwi 2019			2,9 MB	kwi 2019
CAD Drawings
Control 300 Ceiling Speakers updated: paź 2019			1,39 MB	paź 2019
Compliances
JBL Control Series Passive Speakers DoC updated: gru 2019			179 KB	gru 2019
Control 300 Series Declaration of Conformity updated: paź 2019			92,7 KB	paź 2019
Software
Distributed System Design (DSD) version 3.7, updated: lis 2023	3.7		1,07 MB	lis 2023
Install Guides
Control 321 & 322 Installation Guide updated: kwi 2019			574 KB	kwi 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 220616 version A, updated: maj 2023	A		557 KB	maj 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Frequency Range (-10dB)	32 Hz – 20 kHz
Power Rating	see transformer taps
Transformer Taps	100W, 50W, 25W (& 12.5W @ 70V)
Frequency Response (±3 dB)	48 Hz – 19 kHz
Coverage Angle	90° conical, constant directivity
Directivity Factor (Q)	9 (1k - 16kHz)
Directivity Index (DI)	9.5dB (1k - 16kHz)
Sensitivity	95 dB (1 kHz - 16 kHz)
Maximum SPL (1m)	121 dB (top 70V/100V tap)
Dimensions (H x W x D)	366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
Input Connectors	Screw locking barrier strip for bare wire
Drivers	LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (wood-lined; accessory)
Baffle/Rim	Metal, driver pre-mounted to baffle, ported.
Ceiling Cutout Size	378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
Included Accessories	Ported baffle pre-attached, transformer on 322CT
Plenum Usage	Yes, with accessory backcan

Professional Series

Extra-thick 16 gauge metal construction.
Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
Knockouts on top and all four sides.
Dual mounting system for baffle.
Mounting platform for an optional high-power 70V/100V transformer.

Professional Series

Rugged 19 gauge metal construction for enduring reliability.
Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
Powder coat final finish minimizes scratching and can easily be repainted to match any room color.
