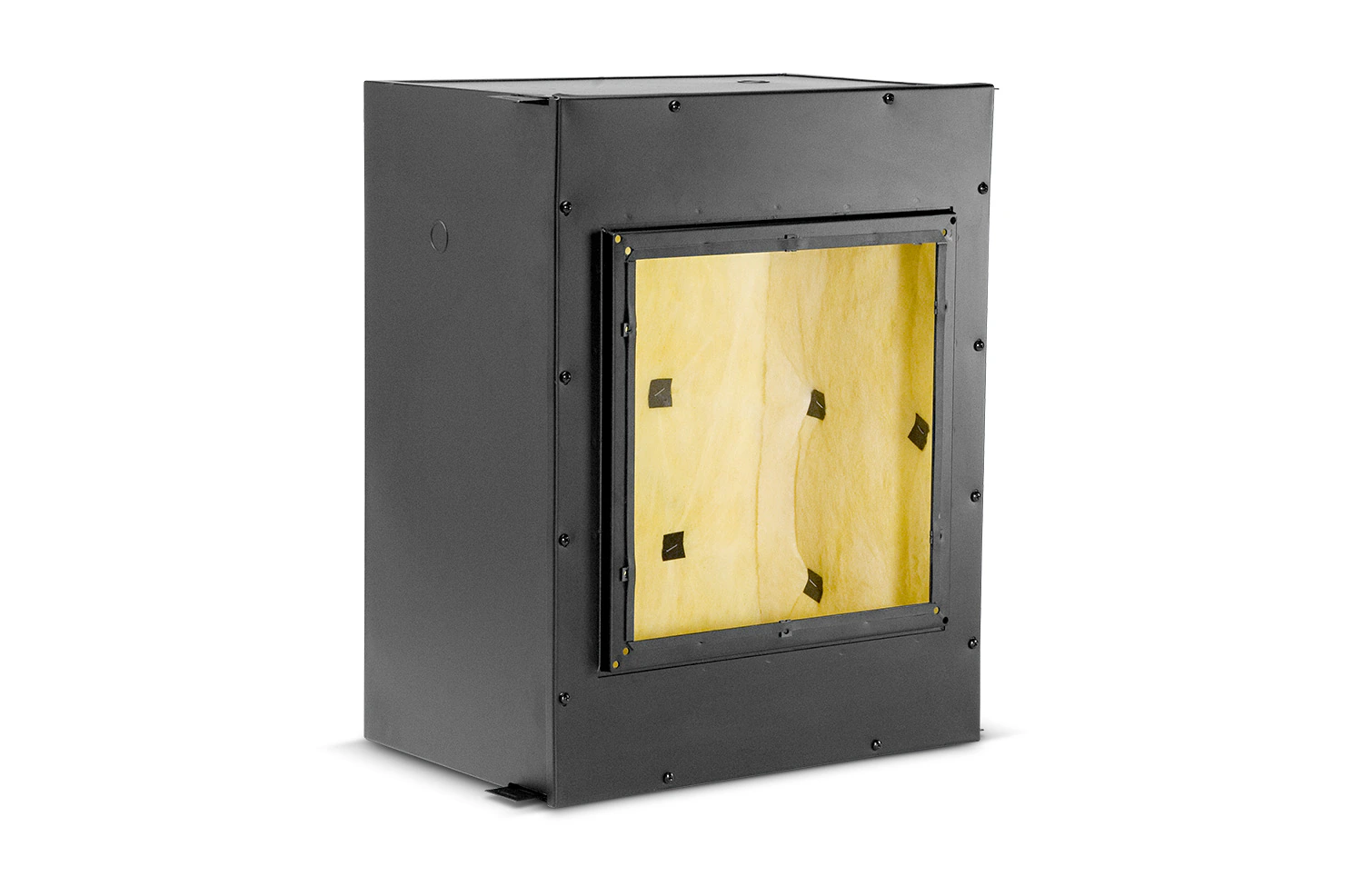

MTC-300BB12

3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers

MTC-300BB12
Larger Images

3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers

Professional Series

Features

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and all four sides.
  • Dual mounting system for baffle.
  • Mounting platform for an optional high-power 70V/100V transformer.

Downloads

  Version Language Size Uploaded
Specifications
file type icon MTC-300BB12 Spec Sheet
updated: kwi 2019
    2,54 MB kwi 2019
Manuals
file type icon Accessing the Conduit Knockouts
updated: paź 2020
    116 KB paź 2020
CAD Drawings
file type icon Control 300 Ceiling Speaker Backboxes / Backcans
updated: paź 2019
    1,1 MB paź 2019
file type icon Control 300 Ceiling Speakers
updated: paź 2019
    1,39 MB paź 2019
Compliances
file type icon JBL Brackets
updated: paź 2020
    152 KB paź 2020
file type icon Brackets Declaration of Conformity
updated: paź 2019
    141 KB paź 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

External Volume 3 cu ft, nominal
Internal Volume 2.4 cu ft.
Knockouts 22.1 mm (0.87 in) diameter openingFive (5) locations: 1 on top panel1 on each side and end
Height 308 mm (12.1 in) above ceiling324 mm (12.6 in) total height
Width 587 mm (23.1 in)
Depth 461 mm (18.2 in) cabinet505 mm (19.9 in) including side tabs
Ceiling Cutout Size 378 x 378 mm (14.9 x 14.9 in)
Shipping Weight 23.1 kg (51 lbs)
