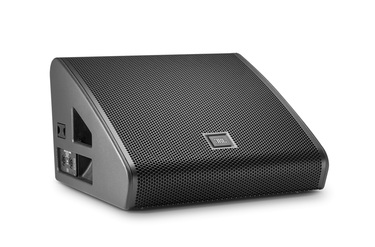

VTX M20

듀얼 10인치 프로페셔널 스테이지 모니터

VTX M20
큰 이미지

특징

  • 투어링 및 방송 애플리케이션에 적합한 우아하고 낮은 프로파일의 콤팩트 디자인
  • Differential Drive™ 콘 트랜스듀서 및 D2 듀얼 다이어프램 듀얼 보이스 코일 압축 드라이버를 포함한 최첨단 JBL 트랜스듀서
  • JBL의 특허 Image Control Waveguide Technology가 적용된 60x60 고주파 웨이브가이드
  • 시스템 구성 및 배포의 최대 유연성을 위한 싱글 채널(패시브) 및 듀얼 채널(바이앰프) 작동 모드

다운로드

Specifications
  언어 크기 업로드 날짜
file type icon VTX M20 Spec Sheet
en 업데이트: 2023년 7월
en  669KB 2023년 7월
Manuals
  버전 언어 크기 업로드 날짜
file type icon VTX M Series User Manual
en 버전 1.1, 업데이트: 2023년 7월
1.1  en  9.89MB 2023년 7월
file type icon VTX M20 Spare Parts
en 버전 B, 업데이트: 2023년 12월
en  62.8KB 2023년 12월
Brochures
  언어 크기 업로드 날짜
file type icon VTX M Series Brochure
en 업데이트: 2020년 12월
en  3.24MB 2020년 12월
CAD Drawings
  버전 크기 업로드 날짜
file type icon VTX M Series Customer Drawings
버전 1.0, 업데이트: 2022년 10월
1.0  2.59MB 2022년 10월
file type icon VTX M-Series Revit Files
버전 1.0, 업데이트: 2022년 10월
1.0  2.17MB 2022년 10월
file type icon VTX M-Series Sketchup Files
버전 1.0, 업데이트: 2022년 10월
1.0  578KB 2022년 10월
Compliances
  언어 크기 업로드 날짜
file type icon VTX M Series - Declaration of Conformity
en 업데이트: 2020년 12월
en  144KB 2020년 12월
Software
  버전 크기 업로드 날짜
Windows download icon PerformanceManager
버전 3.2.0, 업데이트: 2025년 9월
3.2.0   134MB 2025년 9월
Preset Libraries
  버전 크기 업로드 날짜
file type icon VTX M Series Preset Library
버전 1.1, 업데이트: 2020년 12월
1.1  3.02MB 2020년 12월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

Frequency Range (-10dB) 55 Hz - 19.5 kHz
Coverage Pattern (-6 dB) Horizontal: 60; Vertical: 60
System Input Power Rating Passive: 1250 W Continuous (IEC / 100 hour) Active: LF: 1250 W Continuous (IEC / 100 hour)             HF: 100 W Continuous (IEC / 100 hour)
Maximum SPL (1m) 136dB (Preset: VTX M20 FR)
System Latency3 3.33ms
System Processing Crown Audio I-Tech HD Series Crown Audio I-Tech 4x3500HD
Nominal Impedance Passive: 4 ohms
Active LF: 4 ohms
Active HF: 8 ohms
LF Driver 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
HF Driver 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Monitor Angle 30 degrees
Enclosure 18 mm, 11-ply Finnish birch plywood
Grille Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
Input Connectors Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Dimensions (H x W x D) 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)
Net Weight (each) 23 kg (51 lbs)
