Features

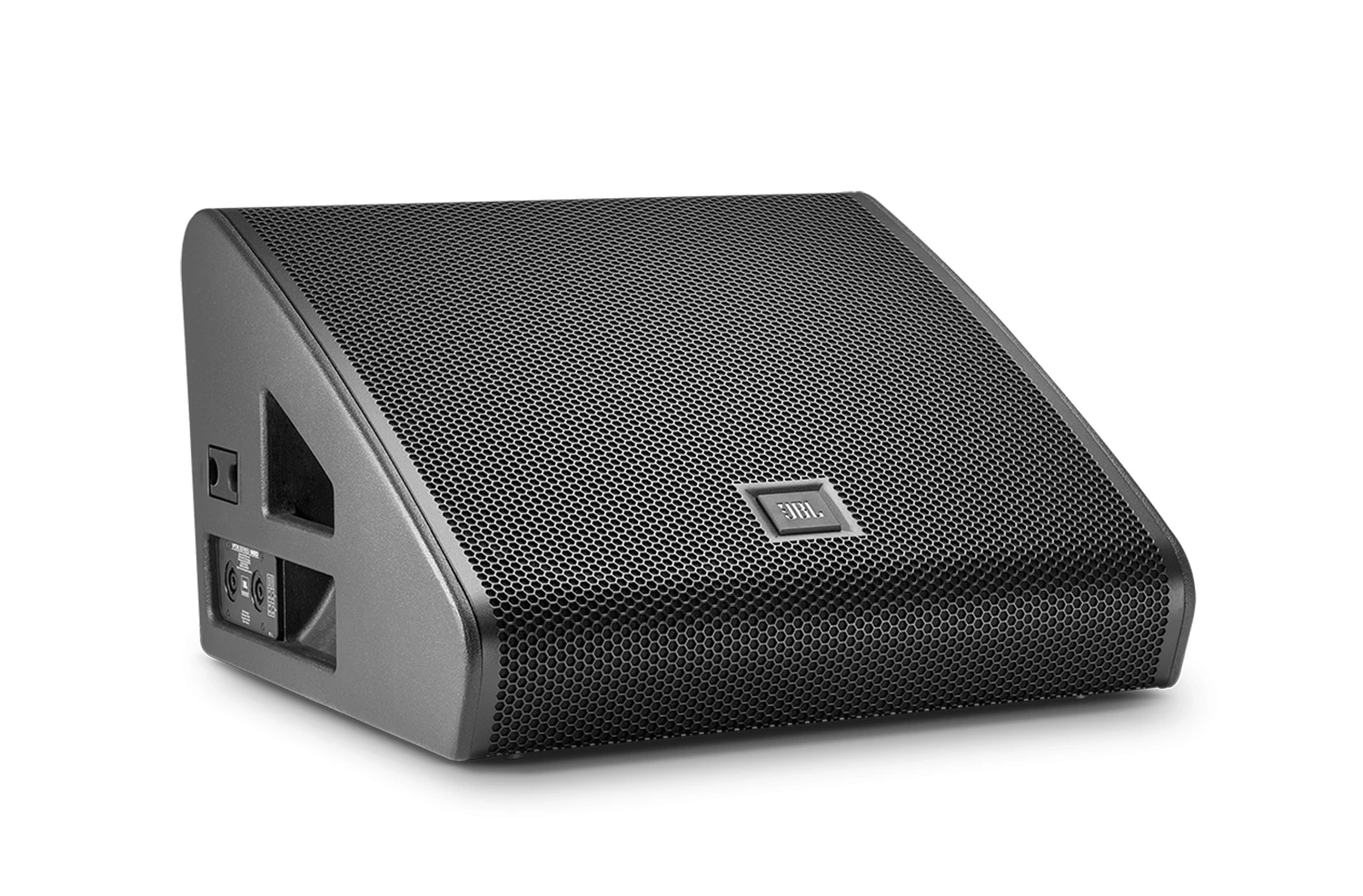

- Elegant, low profile, compact design suitable for touring and high profile broadcast applications
- State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
- 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Downloads
Size | ||||
Specifications | ||||
![]() |
669 KB | |||
Manuals | ||||
![]() |
9,89 MB | |||
![]() |
62,8 KB | |||
Brochures | ||||
![]() |
3,24 MB | |||
CAD Drawings | ||||
version 1.0,
updated: paź 2022
|
2,59 MB | |||
version 1.0,
updated: paź 2022
|
2,17 MB | |||
version 1.0,
updated: paź 2022
|
578 KB | |||
Compliances | ||||
![]() |
144 KB | |||
Software | ||||
version 2.9.1.5,
updated: sie 2023
|
117 MB | |||
Preset Libraries | ||||
version 1.1,
updated: gru 2020
|
3,02 MB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
Frequency Range (-10dB) | 55 Hz - 19.5 kHz |
Coverage Pattern (-6 dB) | Horizontal: 60; Vertical: 60 |
System Input Power Rating | Passive: 1250 W Continuous (IEC / 100 hour) Active: LF: 1250 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour) |
Maximum SPL (1m) | 136dB (Preset: VTX M20 FR) |
System Latency3 | 3.33ms |
System Processing | Crown Audio I-Tech HD Series Crown Audio I-Tech 4x3500HD |
Nominal Impedance | Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms |
LF Driver | 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™ |
HF Driver | 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil |
Monitor Angle | 30 degrees |
Enclosure | 18 mm, 11-ply Finnish birch plywood |
Grille | Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing |
Input Connectors | Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF) |
Dimensions (H x W x D) | 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in) |
Net Weight (each) | 23 kg (51 lbs) |
accessories
R&R VTX M20 CASE | Road Case for (2) VTX M20
The R&R-JBL-VTX-M20-Case is a tour grade road case for transporting 2x VTX M20 monitors made by R&R Cases. Measuring 24” wide by 30” deep, the R&R-JBL-VTX-M20-Case will travel 3x or 4x wide in a variety of standard-sized US trucks. The case includes top and bottom EthaFoam cutouts specifically sized for the M Series monitors to offer maximum protection and the lid fits either way. The case includes 2x spring-loaded handles on each side and the top includes a recessed write-on/write-off case label and stacking cups. Four R&R Flat “butterfly” style latches are included for securing the case. The unique R&R latches can lay flat and stay out of the way. The inside walls are covered in carpet and the exterior is made of 3/8” thick birch plywood with heavy duty laminate. The case is made and distributed by R&R cases in Des Plaines, IL.
Features:
- Heavy duty Colson 4x2 casters
- Stackable for easy storage and trucking
- Dimensioned for efficient truck pack (24” x 30”)
- EthaFoam cutouts for maximum protection
- Made and sold directly by R&R Cases
- 1 x R&R Case for 2x VTX M20 Monitors
Documentation
-
R&R VTX M20 CASE Specsheet [2,34 MB]
