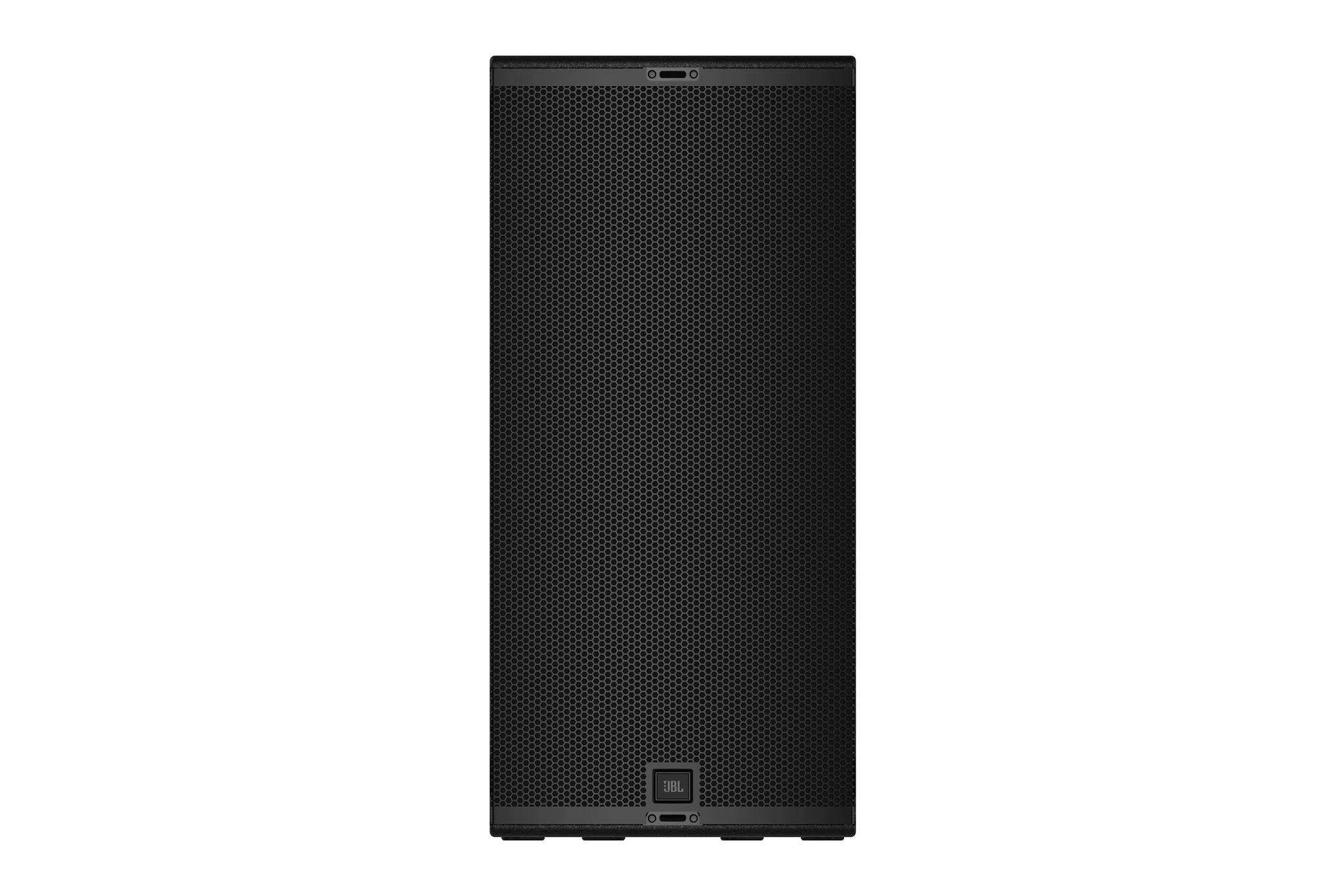

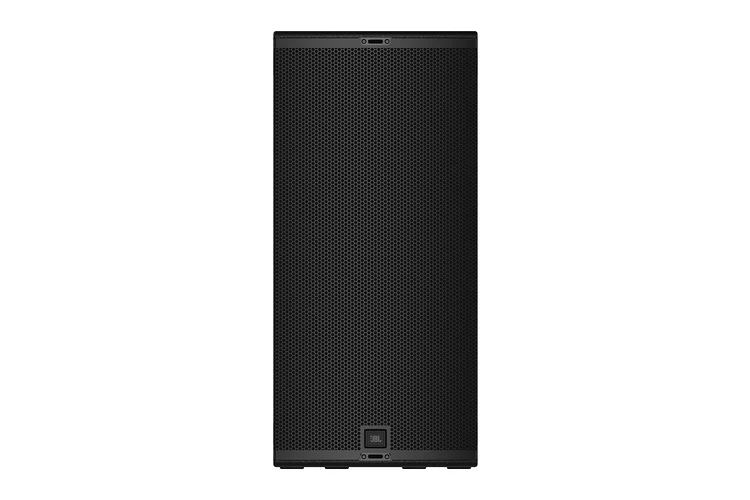

SRX922

Dual 12-inch Powered Point-source Speaker

រូបភាពធំជាង

The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a trapezoidal full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments.

The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15-inch three-way systems in a significantly more compact enclosure. Multiple M10 QuickLink™ suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications.

Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

លក្ខណៈពិសេស

  • Includes dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
  • Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
  • Dipole configuration delivers enhanced vertical directivity control
  • Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
  • Dual 90° × 60° Progressive Transition™ waveguides provide smooth, predictable coverage
  • Four large, flared ports extend low-frequency response down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers
  • Voicing and phase response carefully optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation
  • Rear LCD enables fast configuration
  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
  • Eight M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
  • Constructed from outdoor-grade Baltic birch plywood for excellent durability

ការទាញយក

Specifications
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX922 Spec Sheet
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  704 KB មករា 2026
Manuals
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series User Manual
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  12 MB មករា 2026
file type icon SRX900LA Rigging Manual
en កំណែ F, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  48.3 MB កុម្ភៈ 2026
file type icon SRX900PS Rigging Manual
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  8.28 MB មករា 2026
file type icon Assembly Instructions - powerCON TRUE1
en កំណែ 4.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2025
4.0  en  8.64 MB មករា 2025
CAD Drawings
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX922 Customer Drawings
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  1.93 MB មករា 2026
file type icon SRX900 Series Revit/BIM Files
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
3.0    74.2 MB កុម្ភៈ 2026
file type icon SRX900 Series Sketchup Files
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
3.0    10 MB កុម្ភៈ 2026
Software
  កំណែ ទំហំ បានផ្ទុកឡើង
download icon for Venue Synthesis Venue Synthesis
ចេញផ្សាយ: កក្កដា 2026
  កក្កដា 2026
download icon for ArrayLink ArrayLink
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for Performance Software Performance Software
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
កំណែ 1.2.0.0, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
1.2.0.0   4.15 MB មិនា 2026
Firmware
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series Firmware Changelog
en កំណែ 2.1.11, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
2.1.11  en  115 KB កក្កដា 2026
Simulation Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon SRX900LA - EASE GLL
កំណែ 2.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
2.0  20.6 MB មករា 2026
file type icon SRX900PS - EASE GLL
កំណែ 1.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
1.0  10.2 MB មករា 2026
Declaration of Conformity
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series - EU Declaration of Conformity
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  512 KB មិនា 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  441 KB មិនា 2026
Compliance Documentation
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series - CB Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
en  699 KB កក្កដា 2026
file type icon SRX900 Series - UL Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
en  1.55 MB កក្កដា 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
zh  2.55 MB កក្កដា 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko កំណែ C, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
ko  2.56 MB កក្កដា 2026
file type icon SRX900 Series - BIS Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
en  846 KB កក្កដា 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2026
zh  137 KB កក្កដា 2026
Service Notes
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX922 Spare Parts
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  89.4 KB កុម្ភៈ 2026

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB) 40 Hz-17.5 kHz
Coverage Pattern 90° x 60°
Maximum SPL 138 dB
System Type Point-source, acoustically three-way, bi-amplified, powered
Amplifier Design Class-D
Continuous Power Rating 1100 Watts | LF: 550 Watts | MHF: 550 Watts
LF Driver (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive®
MF Driver (1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
HF Driver (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
Suspension (8) JBL QuickLink M10 points
Dimensions (H x W x D) 944 mm x 440 mm x 505 mm
(37.2 in x 17.3 in x 19.9 in)
Net Weight (each) 45.5 Kg (100 lbs)

គ្រឿងបន្លាស់

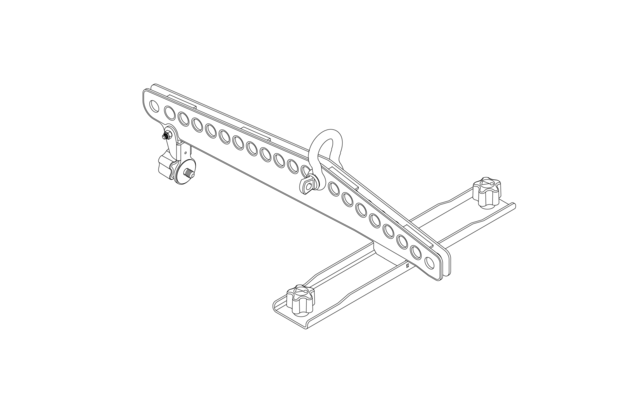

SRX922 AF | Array Frame for the SRX922
SRX922 AF Main photo
រូបភាពធំជាង
SRX922 AF detail thumbnail #1 SRX922 AF detail thumbnail #2 SRX922 AF detail thumbnail #3 SRX922 AF detail thumbnail #4

Highlights:

  • Compact and lightweight design
  • Designed for precise aiming
  • Supports single-point and dual-point configurations
  • Compatible with the RC500

Included:

  • (1) 1/2-inch Shackle

ឯកសារ

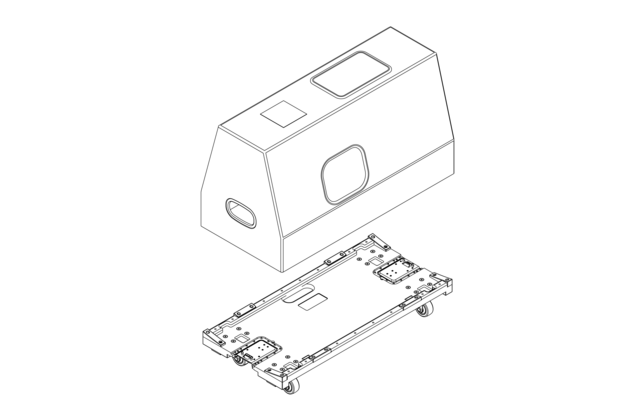

SRX922 ACC | Accessory Caster-board and Cover for the SRX922
SRX922 ACC Main photo
រូបភាពធំជាង
SRX922 ACC detail thumbnail #1 SRX922 ACC detail thumbnail #2 SRX922 ACC detail thumbnail #3 SRX922 ACC detail thumbnail #4

Highlights:

  • Transport accessory for a single SRX922
  • Includes padded, reinforced cover
  • Stackable design for convenient storage
  • Rugged dolly caster board
  • Stackable caster board

Included:

  • (1) Caster-board for SRX922
  • (1) Padded protective cover

ឯកសារ

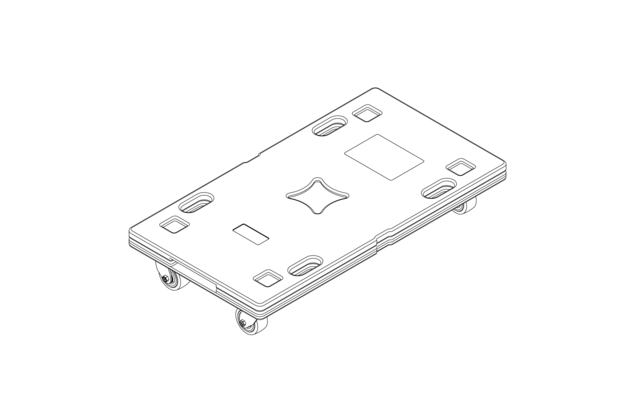

SRX922 VT | Vertical Transporter for (2) SRX922
SRX922 VT Main photo
រូបភាពធំជាង
SRX922 VT detail thumbnail #1 SRX922 VT detail thumbnail #2 SRX922 VT detail thumbnail #3 SRX922 VT detail thumbnail #4

Highlights:

  • Vertical transport cart for SRX922
  • Support for two cabinets
  • Truck-friendly dimensions
  • Built-in stacking features for easy storage
  • Heavy-duty casters
  • One black ratchet strap included

Included:

  • (1) Vertical Transporter
  • (1) Black Ratchet Strap

ឯកសារ
SRX900 RC2 | Rain Cover, compatible with point-source products
SRX900 RC2 Main photo
រូបភាពធំជាង
SRX900 RC2 detail thumbnail #1 SRX900 RC2 detail thumbnail #2 SRX900 RC2 detail thumbnail #3 SRX900 RC2 detail thumbnail #4

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX912M
  • SRX915M
  • SRX922

Included:

  • (1) Rain Cover
  • (7) T15 M4 Screws

ឯកសារ
RC500 | Rotating Clamp
RC500 Main photo
រូបភាពធំជាង
RC500 detail thumbnail #1 RC500 detail thumbnail #2 RC500 detail thumbnail #3 RC500 detail thumbnail #4

Highlights:

  • Universal truss/pipe clamp adapter
  • Support for up to 500 kg (1100 lbs)
  • Adjustable clamping mechanism
  • Pipe range: 0.5 in – 2 in
  • Includes bearing for smooth 360∞ rotation
  • 10-degree rotation marks for horizontal array aiming

Included:

  • (1) VTX RC500 Rotating Clamp

Compatibility:

  • VTX A6 MF
  • VTX A8 MF
  • SRX906LA AF
  • SRX910LA AF
  • SRX922 AF

ឯកសារ

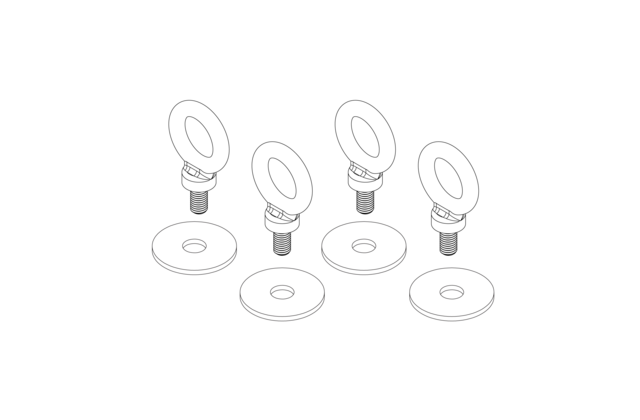

EBK4 M10-20 | Universal M10 eyebolt kit
EBK4 M10-20 Main photo
រូបភាពធំជាង
EBK4 M10-20 detail thumbnail #1 EBK4 M10-20 detail thumbnail #2 EBK4 M10-20 detail thumbnail #3 EBK4 M10-20 detail thumbnail #4

Highlights:

  • Universal eye bolt kit
  • Compatible with QuickLinkTM fitted products
  • Threads: M10
  • Shank length: 20 mm

Included:

  • (4) M10 Eye Bolts
  • (4) Washers

ឯកសារ
