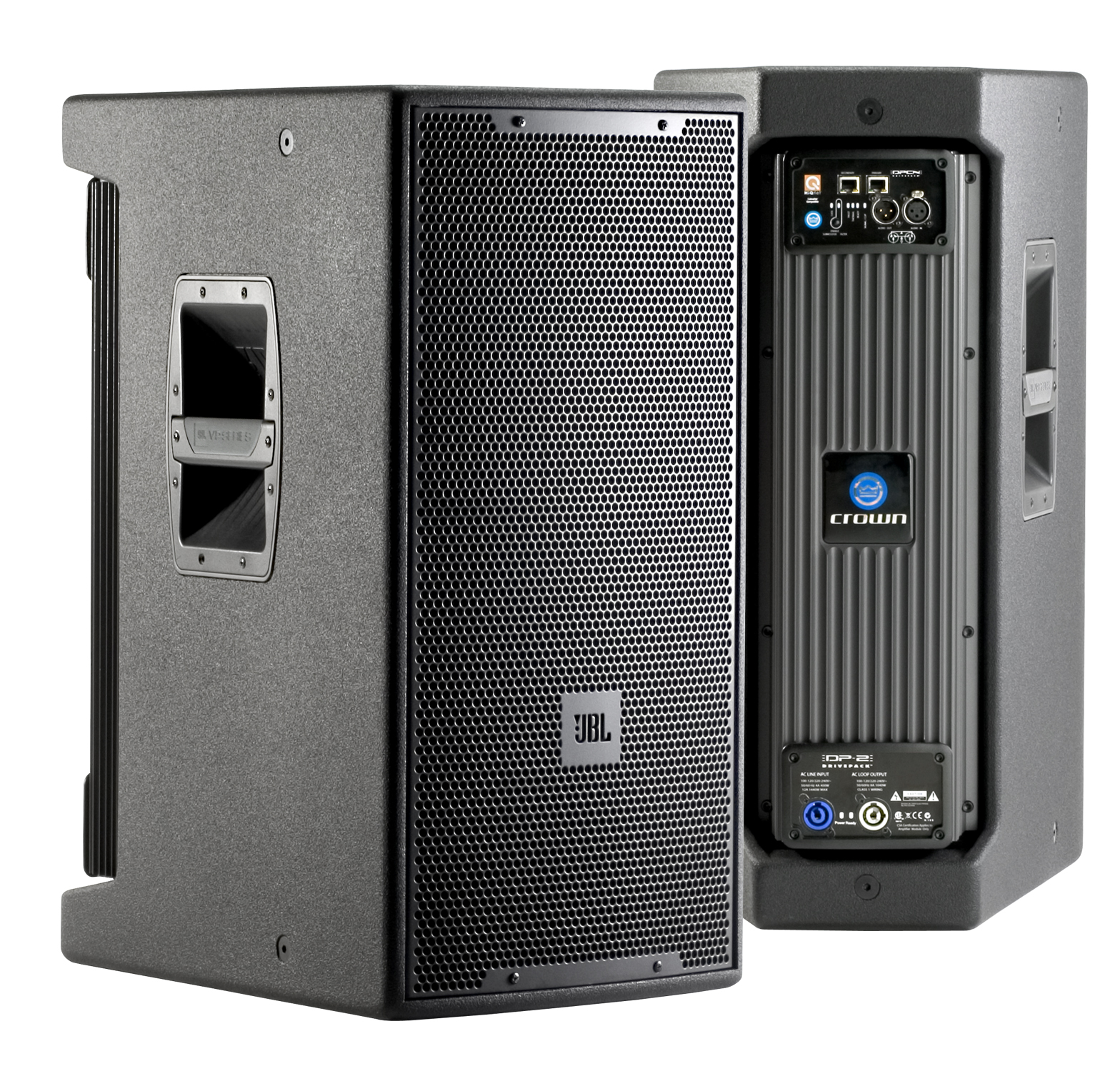

Powered 12 in. 2-way Integrated Loudspeaker System
The VP7212/95DPAN is a powered 12" 2-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.
Larger Images
Features
- Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
- 2200 Watts peak output power, 1100 Watts continuous.
- HiQnet compatible; network control.
- 12-inch Differential Drive low-frequency driver for extended low-frequency output .
- 90° x 50°coverage.
- Stylized and ergonomically designed powder-coated die cast aluminum handles.
- Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).
Downloads
| Size | ||||
VP Series Brochure
updated: 9月 2023
|
2.73MB | |||
|
DPDA Input Module Spec Sheet
updated: 9月 2023
|
475KB | |||
|
VP7212/95DP Spec Sheet
updated: 9月 2023
|
1.07MB | |||
Specifications | ||||
VP DPDA Spec Sheet
updated: 7月 2019
|
5.85MB | |||
|
DPDA Input Module Spec Sheet
updated: 7月 2019
|
475KB | |||
|
VP7212-95DP Spec Sheet
updated: 7月 2019
|
896KB | |||
Manuals | ||||
|
VP User's Guide
updated: 10月 2019
|
1.54MB | |||
Brochures | ||||
|
VP Series Brochure
updated: 7月 2019
|
2.73MB | |||
CAD Drawings | ||||
|
VP Series
updated: 10月 2019
|
2.54MB | |||
|
VP7212/64DP/95DP 2D DXF
updated: 10月 2019
|
234KB | |||
|
VP7212/64DP/95DP 2D PDF
updated: 10月 2019
|
53.8KB | |||
|
VP7212/95DP 3D DXF
updated: 7月 2019
|
341KB | |||
Ease Data | ||||
|
VP Series Ease Files
updated: 10月 2019
|
261KB | |||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21MB | |||
Images | ||||
|
VP7212 photo
updated: 7月 2019
|
1.37MB | |||
Simulation Data | ||||
|
JBL Pro ALL CLF Files
version 12-10-21,
updated: 5月 2023
|
24MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 47 Hz to 20 kHz (-10 dB) |
| Frequency Response | 63 Hz to 18 kHz ( ± 3 dB) |
| Coverage Pattern | 90°x 50°rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output1 | 136 dB SPL 1m |
| Low Frequency Section | JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 4 ohms |
| High Frequency | JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit |
| DP2 Internal Amplification Output (at nominal load) | 2200 Watts Peak, 1100 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/350HF Watts |
| DP2 Output Section | 2-Channel, Class I |
| Audio Input Connector | XLR with loop-through |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | Auto Select 90-132VAC/216-264VAC, 50/60Hz |
| AC Line Voltage | 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 6 standard air-cargo 3 in. track and 14 M10 fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 701.8 x 383.8 x 523.5 mm(27.63 x 15.11 x 20.61 in.) |
| Net Weight | 35.4 kg (78 lb) |
