VP7212/95DP (停产)

Powered 12 in. 2-way Integrated Loudspeaker System

VP7212/95DP

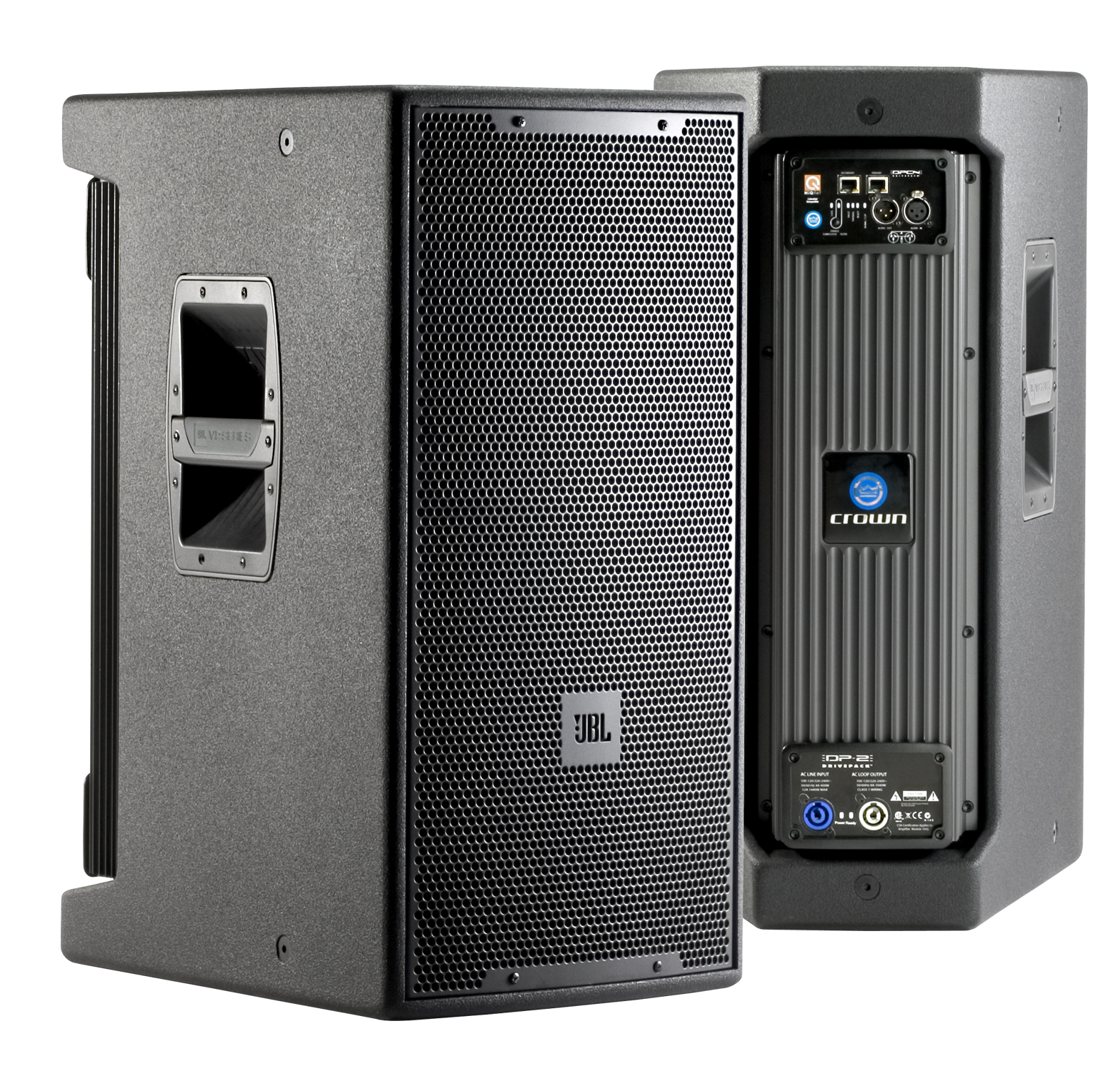

较大的图像

Powered 12 in. 2-way Integrated Loudspeaker System

The VP7212/95DPAN is a powered 12" 2-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.

特点

  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
  • 2200 Watts peak output power, 1100 Watts continuous.
  • HiQnet compatible; network control.
  • 12-inch Differential Drive low-frequency driver for extended low-frequency output .
  • 90° x 50°coverage.
  • Stylized and ergonomically designed powder-coated die cast aluminum handles.
  • Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

下载

  Version Language Size Uploaded
file type icon VP Series Brochure
en updated: 3月13日
  en  2.7 MB 3月13日
file type icon DPDA Input Module Spec Sheet
en updated: 3月13日
  en  475.0 KB 3月13日
file type icon VP7212/95DP Spec Sheet
en updated: 3月13日
  en  1.1 MB 3月13日
Specifications
file type icon VP DPDA Spec Sheet
updated: 7月08日
    5.9 MB 7月08日
file type icon DPDA Input Module Spec Sheet
updated: 7月08日
    475.0 KB 7月08日
file type icon VP7212-95DP Spec Sheet
updated: 7月08日
    896.0 KB 7月08日
Manuals
file type icon VP User's Guide
updated: 10月18日
    1.5 MB 10月18日
Brochures
file type icon VP Series Brochure
updated: 7月08日
    2.7 MB 7月08日
CAD Drawings
file type icon VP Series
updated: 10月18日
    2.5 MB 10月18日
file type icon VP7212/64DP/95DP 2D DXF
updated: 10月09日
    234.2 KB 10月09日
file type icon VP7212/64DP/95DP 2D PDF
updated: 10月09日
    53.8 KB 10月09日
file type icon VP7212/95DP 3D DXF
updated: 7月08日
    340.9 KB 7月08日
Ease Data
file type icon VP Series Ease Files
updated: 10月18日
    261.0 KB 10月18日
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月15日
    21.0 MB 3月15日
Images
file type icon VP7212 photo
updated: 7月08日
    1.4 MB 7月08日
CLF Files
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 12月13日
12-10-21    24.0 MB 12月13日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 47 Hz to 20 kHz (-10 dB)

频率响应

63 Hz to 18 kHz ( ± 3 dB)
覆盖范围 90°x 50°rotatable waveguide
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Maximum Peak Output1 136 dB SPL 1m
Low Frequency Section JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
High Frequency JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
DP2 Internal Amplification Output (at nominal load) 2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/350HF Watts
DP2 Output Section 2-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range Auto Select 90-132VAC/216-264VAC, 50/60Hz
AC 线路电压 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 6 standard air-cargo 3 in. track and 14 M10 fittings
网罩 14 Gauge Black powder-coated perforated steel with foam backing
尺寸(高 x 宽 x 厚) 701.8 x 383.8 x 523.5 mm(27.63 x 15.11 x 20.61 in.)
净重量 35.4 kg (78 lb)
