VTX G28
Fuori produzione

Ground Stack-Only, Dual 18-inch Subwoofer

VTX G28
Immagini più grandi

Dual 18" Subwoofer - Ground Stackable

VTX series dual 18" subwoofers employ two 2269H 18" transducers featuring Differential Drive technology with two voice coils, two neodymium magnets and extremely high peak-to peak excursion capabilities to deliver extended very low frequency performance.

The VTX G28 is ground stackable only with a practical form factor for convenient stacking and additional enclosure volume plus port tuning that delivers true sub performance down to 22 Hz @ -10 dB.

Caratteristiche

  • JBL’s patented Differential Drive® technology
  • Crown VRack DSP and Amplification
  • JBL HiQnet Performance Manager™ System

Ulteriori dettagli

DIFFERENTIAL DRIVE® TECHNOLOGY
Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE


System Integration

System Integration & Management

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE


Training & Support

Training & Support

In addition to designing the most sophisticated sound reinforcement system available, JBL Professional provides the expertise to achieve the maximum performance possible. Our 65+ years of expertise in the use of systems in venues around the world is an invaluable resource that is at the core of our training curriculum, helping you to maximize both the use and your investment in the VTX System.

LEARN MORE

Download

Specifications
  Dimensione Caricato
file type icon VTX G28 Spec Sheet
aggiornato: dic 2020
425 KB dic 2020
Manuals
  Versione Lingua Dimensione Caricato
file type icon VTX Subwoofer Wiring Guide
en versione 1.1, aggiornato: ott 2023
1.1  en  7,54 MB ott 2023
Brochures
  Dimensione Caricato
file type icon VTX V25 System Brochure
aggiornato: dic 2020
6,48 MB dic 2020
CAD Drawings
  Dimensione Caricato
file type icon VTX G28/S28 2D Drawings
aggiornato: dic 2020
185 KB dic 2020
file type icon VTX G28 3D Drawings
aggiornato: dic 2020
2,12 MB dic 2020
Compliances
  Dimensione Caricato
158 KB dic 2020
Software
  Versione Dimensione Caricato
Windows download icon PerformanceManager
versione 3.2.0, aggiornato: set 2025
3.2.0   134 MB set 2025
Windows download icon Line Array Calculator III
versione 3.9.1, rilasciato: set 2025
3.9.1   24,2 MB set 2025
Service Notes
  Versione Lingua Dimensione Caricato
file type icon VTX G28 Spare Parts
en versione A, aggiornato: apr 2026
en  63,1 KB apr 2026

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

System Type Ground Stack-Only, Cardioid-Arrayable, Dual 18-inch Subwoofer
Frequency Range (-10dB) 22 Hz - 80 Hz (Preset: VTX G28)
Coverage Omnidirectional or Cardioid
Maximum SPL (1m) 140 dB (Preset: VTX G28 80)
System Amplification Crown Audio I-Tech HD
System Impedance 2x 8 ohms
LF Driver (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Enclosure Finnish birch plywood, Black DuraFlexTM finish, ten integral recessed handles
Dimensions (H x W x D) 493 mm x 1211 mm x 1211 mm
19.4 in x 47.7 in x 47.7 in
Net Weight (each) 92.5 kg (204 lb)

Accessori

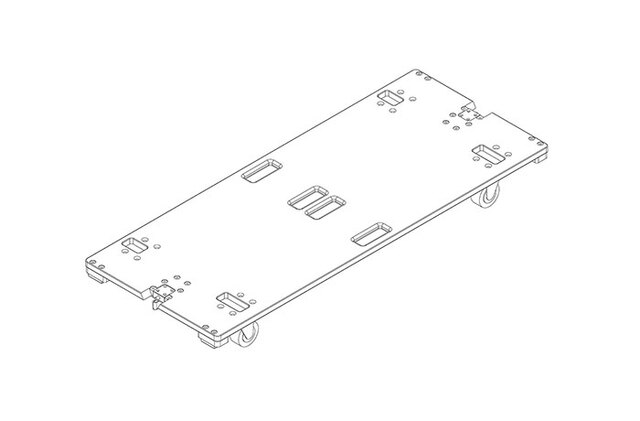

VTX G28 ACC | Accessory Cover and Casterboard
VTX G28 ACC Main photo
Immagini più grandi
VTX G28 ACC detail thumbnail #1 VTX G28 ACC detail thumbnail #2 VTX G28 ACC detail thumbnail #3 VTX G28 ACC detail thumbnail #4
VTX Series S28 Accessory Kit for transportation and protection of one VTX G28 enclosure. Includes: padded, reinforced protective cover with handle cutouts and rear panel access flap; dolly caster-board with rugged tour grade casters and rotating cam mechanism for secure attachment to G28 enclosure.



Features:
  • Includes padded protective cover and caster-board
  • Handle cutouts and rear panel access flap
  • Speaker cabinets can be tested without fully removing the cover
  • Tour grade casters
  • Stackable for convenient storage
  • Rotating release/lock cam mechanisms for secure attachment to G28 enclosures
Included:
  • 1 x VTX G28 caster-board
  • 1 x padded protective cover
