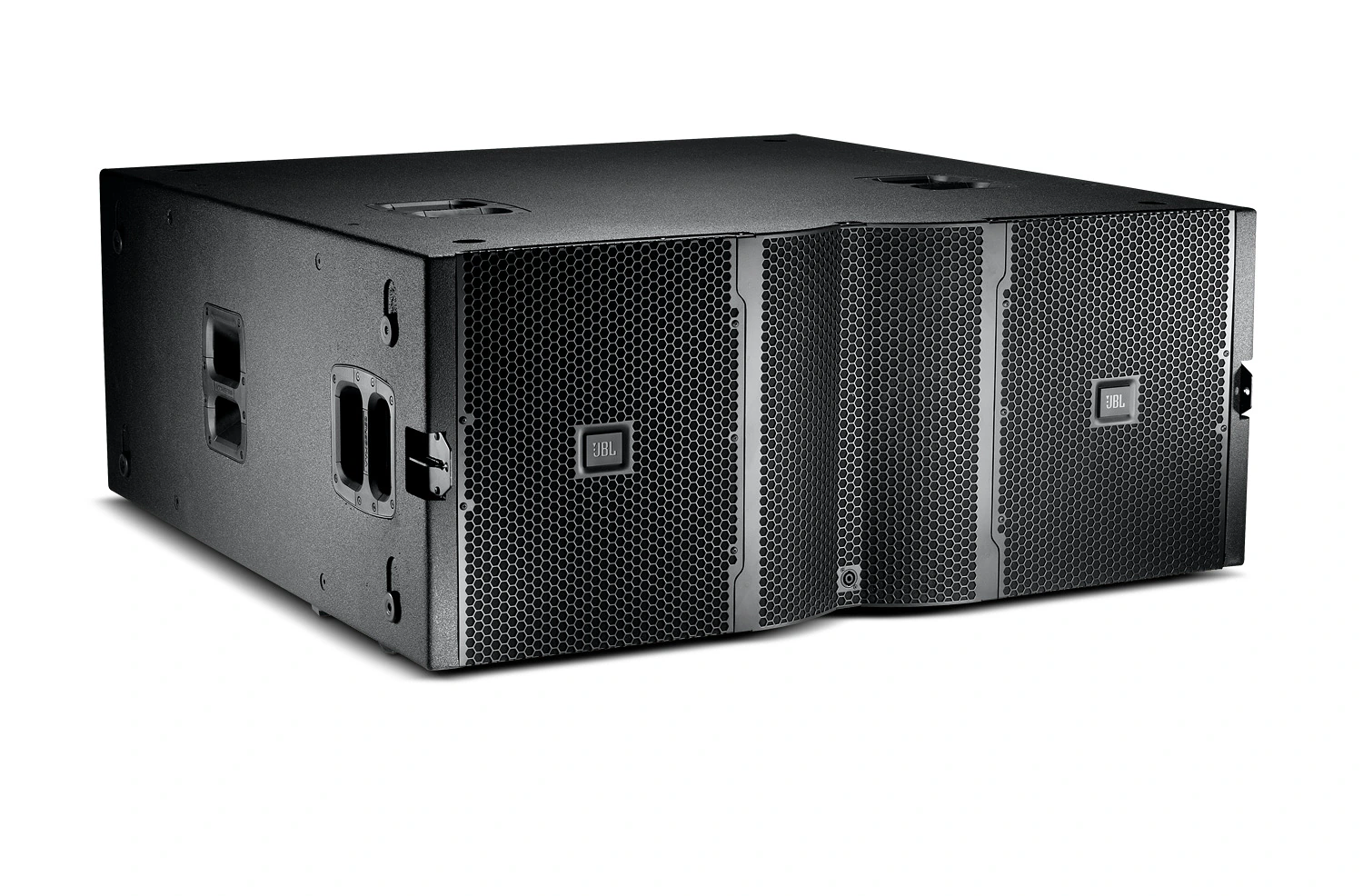

VTX G28
متوقف

Ground Stack-Only, Dual 18-inch Subwoofer ستاك أرضي فقط، ساب وفر مزدوج بحجم 18 بوصة

VTX G28
صور أكبر

ساب وووفر ثنائي 18 بوصة - قابل للتجميع على الأرض

تستخدم سلسلة VTX ساب وووفرات ثنائية 18 بوصة محرّكين من طراز 2269H بقطر 18 بوصة يتميزان بتقنية Differential Drive مع ملفي صوت وممغنطين من النيوديميوم وإمكانيات إزاحة عالية جداً من قمة إلى قمة لتحقيق أداء ممتد للترددات المنخفضة جداً.

يتميز VTX G28 بأنه قابل للتجميع على الأرض فقط مع عامل شكل عملي لتجميع مناسب وحجم علبة إضافي بالإضافة إلى ضبط المنفذ الذي يحقق أداء ساب حقيقية حتى 22 Hz @ -10 dB.

الميزات

  • JBL’s patented Differential Drive® technology
  • Crown VRack DSP and Amplification
  • JBL HiQnet Performance Manager™ System

مزيد من التفاصيل

DIFFERENTIAL DRIVE® TECHNOLOGY
Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE


System Integration

System Integration & Management

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE


Training & Support

Training & Support

In addition to designing the most sophisticated sound reinforcement system available, JBL Professional provides the expertise to achieve the maximum performance possible. Our 65+ years of expertise in the use of systems in venues around the world is an invaluable resource that is at the core of our training curriculum, helping you to maximize both the use and your investment in the VTX System.

LEARN MORE

التنزيلات

Specifications
  الحجم تاريخ التحميل
file type icon VTX G28 Spec Sheet
تم التحديث: ديسمبر 2020
425 KB ديسمبر 2020
Manuals
  الإصدار اللغة الحجم تاريخ التحميل
file type icon VTX Subwoofer Wiring Guide
en الإصدار 1.1, تم التحديث: أكتوبر 2023
1.1  en  7.54 MB أكتوبر 2023
Brochures
  الحجم تاريخ التحميل
file type icon VTX V25 System Brochure
تم التحديث: ديسمبر 2020
6.48 MB ديسمبر 2020
CAD Drawings
  الحجم تاريخ التحميل
file type icon VTX G28/S28 2D Drawings
تم التحديث: ديسمبر 2020
185 KB ديسمبر 2020
file type icon VTX G28 3D Drawings
تم التحديث: ديسمبر 2020
2.12 MB ديسمبر 2020
Compliances
  الحجم تاريخ التحميل
file type icon VTX V-Series Declaration of Conformity
تم التحديث: ديسمبر 2020
158 KB ديسمبر 2020
Software
  الإصدار الحجم تاريخ التحميل
Windows download icon PerformanceManager
الإصدار 3.2.0, تم التحديث: سبتمبر 2025
3.2.0   134 MB سبتمبر 2025
Windows download icon Line Array Calculator III
الإصدار 3.9.1, تاريخ الإصدار: سبتمبر 2025
3.9.1   24.2 MB سبتمبر 2025
Service Notes
  الإصدار اللغة الحجم تاريخ التحميل
file type icon VTX G28 Spare Parts
en الإصدار A, تم التحديث: أبريل 2026
en  63.1 KB أبريل 2026

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

System Type Ground Stack-Only, Cardioid-Arrayable, Dual 18-inch Subwoofer
Frequency Range (-10dB) 22 Hz - 80 Hz (Preset: VTX G28)
Coverage Omnidirectional or Cardioid
Maximum SPL (1m) 140 dB (Preset: VTX G28 80)
System Amplification Crown Audio I-Tech HD
System Impedance 2x 8 ohms
LF Driver (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Enclosure Finnish birch plywood, Black DuraFlexTM finish, ten integral recessed handles
Dimensions (H x W x D) 493 mm x 1211 mm x 1211 mm
19.4 in x 47.7 in x 47.7 in
Net Weight (each) 92.5 kg (204 lb)

الملحقات

VTX G28 ACC | Accessory Cover and Casterboard
VTX G28 ACC Main photo
صور أكبر
VTX G28 ACC detail thumbnail #1 VTX G28 ACC detail thumbnail #2 VTX G28 ACC detail thumbnail #3 VTX G28 ACC detail thumbnail #4
VTX Series S28 Accessory Kit for transportation and protection of one VTX G28 enclosure. Includes: padded, reinforced protective cover with handle cutouts and rear panel access flap; dolly caster-board with rugged tour grade casters and rotating cam mechanism for secure attachment to G28 enclosure.



Features:
  • Includes padded protective cover and caster-board
  • Handle cutouts and rear panel access flap
  • Speaker cabinets can be tested without fully removing the cover
  • Tour grade casters
  • Stackable for convenient storage
  • Rotating release/lock cam mechanisms for secure attachment to G28 enclosures
Included:
  • 1 x VTX G28 caster-board
  • 1 x padded protective cover
