VRX932LAP

Sistema di Diffusori a Schieramento Lineare Bivia Amplificato da 12 Pollici

VRX932LAP
Immagini più grandi

12 in. Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Caratteristiche

  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
  • JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
  • Array Configuration Selector permits "array shading".

Download

Specifications
  Dimensione Caricato
file type icon VRX932LAP Spec Sheet
aggiornato: ott 2020
704 KB ott 2020
Manuals
  Dimensione Caricato
file type icon VRX900P User Manual
aggiornato: lug 2023
3,58 MB lug 2023
Brochures
  Versione Lingua Dimensione Caricato
file type icon JBL 2025 PPA Brochure
en versione B, aggiornato: ago 2025
en  8,45 MB ago 2025
file type icon VRX900P Brochure
aggiornato: dic 2020
    630 KB dic 2020
file type icon VRX900 Series Brochure
aggiornato: dic 2020
    2 MB dic 2020
CAD Drawings
  Dimensione Caricato
file type icon VRX900 Series Customer Drawings
aggiornato: dic 2020
6,73 MB dic 2020
file type icon VRX932LAP BIM Object
aggiornato: lug 2023
lug 2023
Compliances
  Dimensione Caricato
93,2 KB ott 2019
Software
  Versione Dimensione Caricato
download icon for Venue Synthesis Venue Synthesis
rilasciato: gen 2025
  gen 2025
download icon for VRX Array Calculator VRX Array Calculator
versione 1.0, rilasciato: lug 2024
1.0   11,2 MB lug 2024
Simulation Data
  Versione Dimensione Caricato
file type icon VRX900 Series EASE DLL
versione 1.5.3, aggiornato: lug 2023
1.5.3  968 KB lug 2023

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Power Rating 1750 Watts Peak875 Watts Continuous
Frequency Range (-10dB) 57 Hz - 20 kHz
Dimensions (H x W x D) 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
Frequency Response 75 Hz - 20 kHz (+/-3db)
Maximum SPL (1m) 136 dB SPL
Coverage Pattern 100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
DPC-2 Output Section LF: Dual-Bridged Technology™, Class D
Inputs XLR with loop through
LF Driver 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver 3 x JBL 2408J, 38 mm (1.5 in)
User Controls Input Attenuator (0-16 dB)
Signal Processings DSP based, resident in Input Module
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 25/15 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight (each) 24 kg (52 lb)
Optional Accessories VRX-AF: Suspension array frame
Outputs 1 x XLR
System Type Constant Curvature 12" Two-Way Powered Line Array System
Nominal Impedance NA - amplification is integrated

Accessori

VRX932LAP-BAG | Deluxe Padded Protective Bag for VRX932LAP
VRX932LAP-BAG Main photo
Immagini più grandi
VRX932LAP-BAG detail thumbnail #1 VRX932LAP-BAG detail thumbnail #2 VRX932LAP-BAG detail thumbnail #3 VRX932LAP-BAG detail thumbnail #4

Padded carry bag for VRX932LAP. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Provision for Fastening (2x) VRX928LAP-BAG to VRX918S-STR.


VRX932LAP-CVR | Deluxe Padded Protective Cover for VRX932LAP
VRX932LAP-CVR Main photo
Immagini più grandi
VRX932LAP-CVR detail thumbnail #1 VRX932LAP-CVR detail thumbnail #2 VRX932LAP-CVR detail thumbnail #3 VRX932LAP-CVR detail thumbnail #4

Padded cover for VRX932LAP. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access, (4) Rubber Feet, Full Coverage 360-degree Protection.


JBL-FLIGHT-VRX932-LAP | Flight Case to Fit Two VRX932LAP Speakers
JBL-FLIGHT-VRX932-LAP Main photo
Immagini più grandi
JBL-FLIGHT-VRX932-LAP detail thumbnail #1

Stacking Flight Case with 1/2" Plywood construction, removable lid and 4 casters designed to hold two JBL VRX932LAP loudspeakers

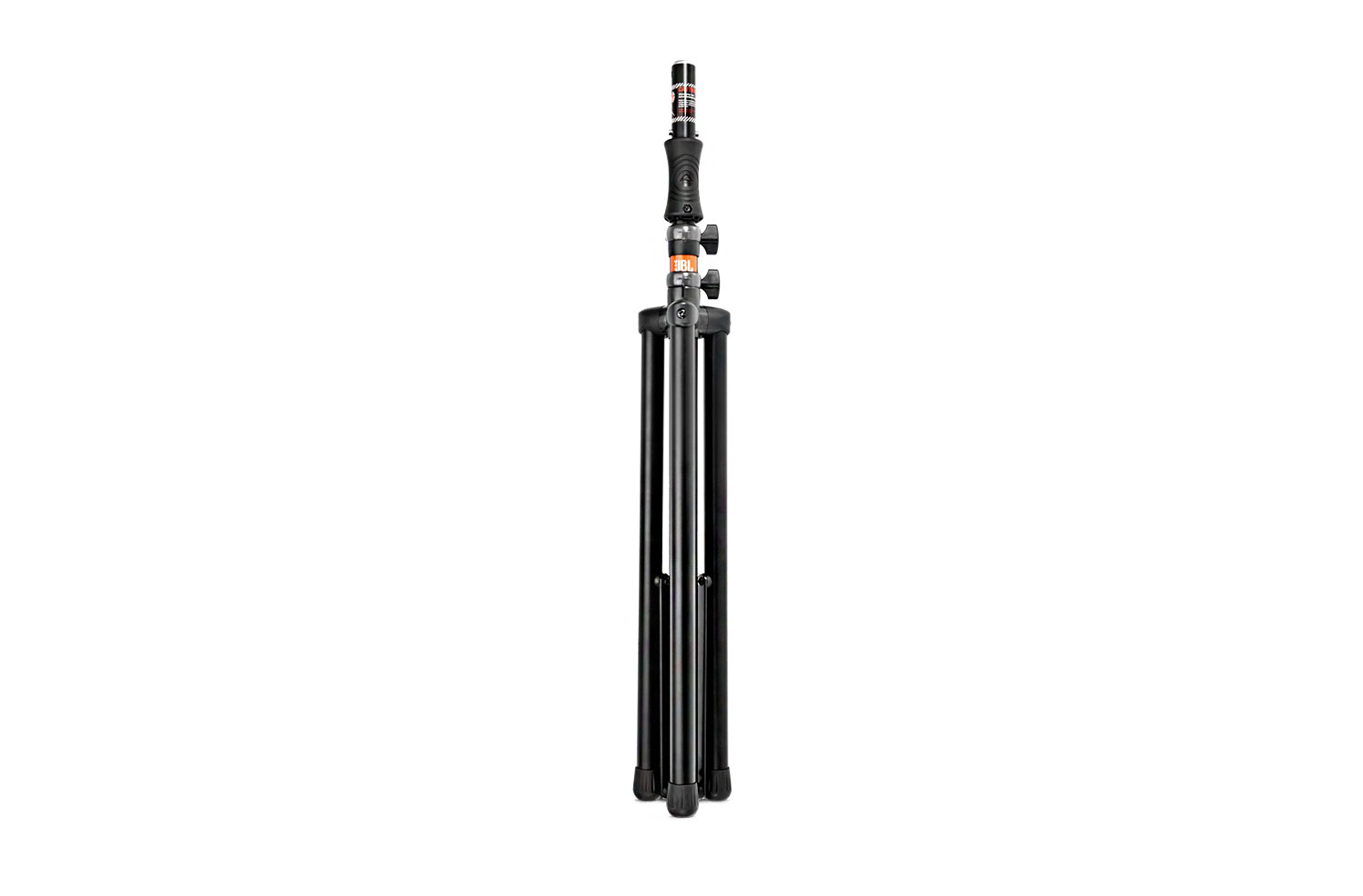

JBLTRIPOD-GA | Treppiede per Altoparlante JBL con Assistenza Pneumatica
JBLTRIPOD-GA Main photo
Immagini più grandi
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Supporto per diffusore in alluminio con sollevamento assistito e adattatore integrato per diffusore. Il JBLTRIPOD-GA è un supporto per diffusore incredibilmente facile da usare grazie allo shock pneumatico interno che solleva letteralmente il diffusore per te. Lo shock interno del supporto solleva facilmente diffusori che pesano 35 libbre o meno senza alcuno sforzo da parte dell'utente.
  • Regolazione assistita a gas da 3'8" (1118MM) a 6'7" (2007MM)
  • Treppiede con assistenza a gas che solleva l'altoparlante per te utilizzando uno shock pneumatico interno
  • Progettato per l'uso con i seguenti modelli JBL; JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentazione

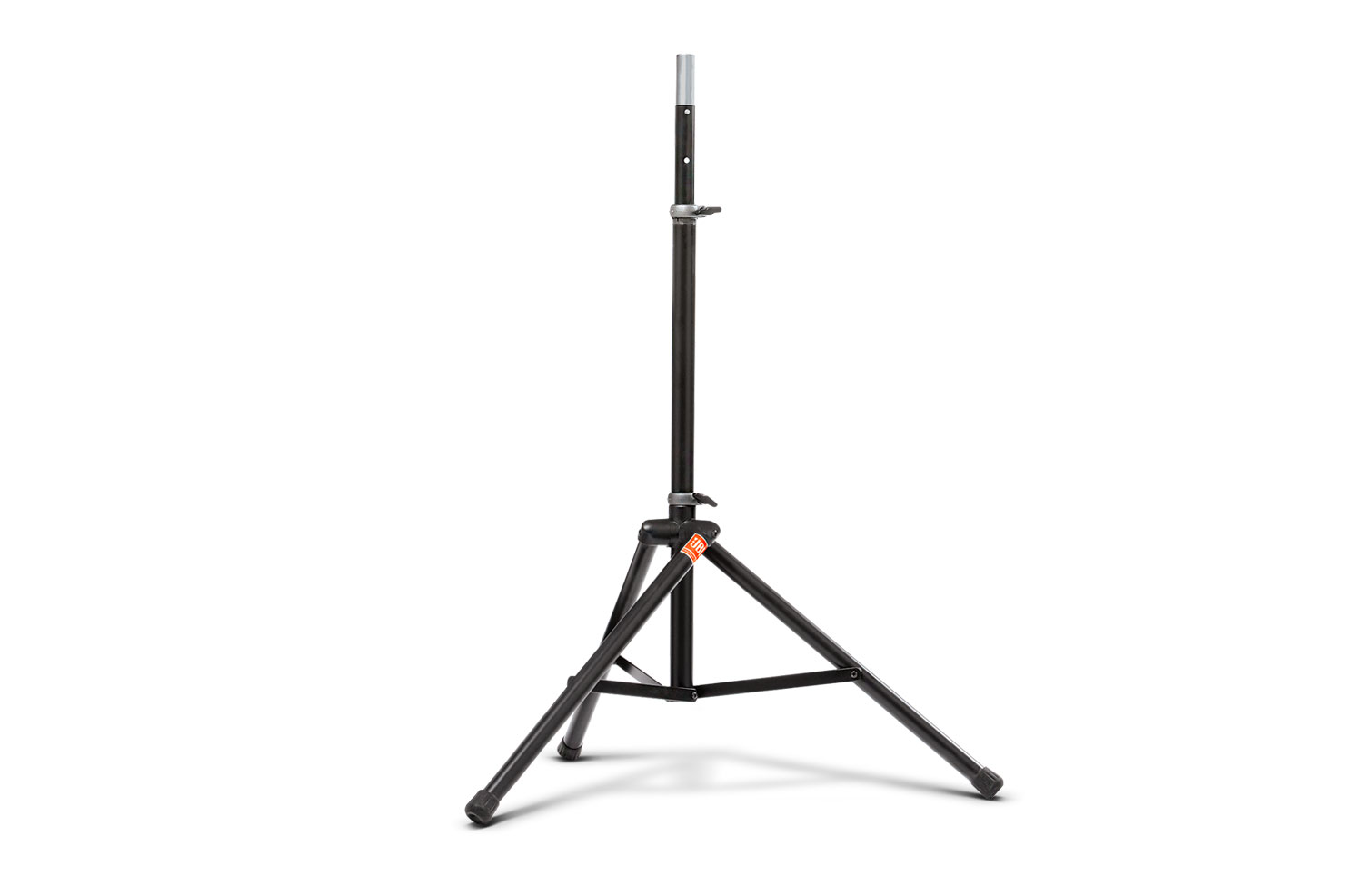

JBLTRIPOD-MA | Treppiede per Diffusore JBL con Regolazione Manuale
JBLTRIPOD-MA Main photo
Immagini più grandi
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Supporto per altoparlante in tripode in alluminio con perno di bloccaggio sicuro e capacità di carico di 150 lbs. Per assistervi nel sollevamento dell'altoparlante, abbiamo aggiunto un robusto anello di sollevamento sul tubo telescopico per dare una presa salda durante il sollevamento dell'altoparlante all'altezza desiderata.

  • Regolabile da 4'2" (1270MM) a 6'5" (1956MM)
  • Treppiede per altoparlante con regolazione manuale
  • Progettato per l'uso con i seguenti modelli JBL: JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentazione
JBLPOLE-GA | Supporto Altoparlante JBL con Assicurazione a Gas
JBLPOLE-GA Main photo
Immagini più grandi
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Asta Altoparlante con Assistenza Pneumatica e Estremità Inferiore Filettata M20, Asta da 38mm e Adattatore da 35mm. JBLPOLE-GA è l'asta per altoparlanti più facile da usare grazie allo shock pneumatico interno che letteralmente solleva l'altoparlante per te. Lo shock interno dell'asta solleva facilmente gli altoparlanti che pesano 35 libbre o meno senza alcuno sforzo da parte dell'utente.

  • Alza e Abbassa l'Altoparlante con Facilità!
  • Robusta e Intuitiva Manopola "Z"
  • Asta Incredibilmente Resistente
  • Supporto Asta Filettato M20
  • Compatible con la maggior parte dei subwoofer con filettatura asta standard M20 (JBL PRX, VRX, STX e SRX818) - Consultare i singoli prodotti

Documentazione
JBLPOLE-MA | Polo Regolabile Manualmente per Diffusore JBL
JBLPOLE-MA Main photo
Immagini più grandi

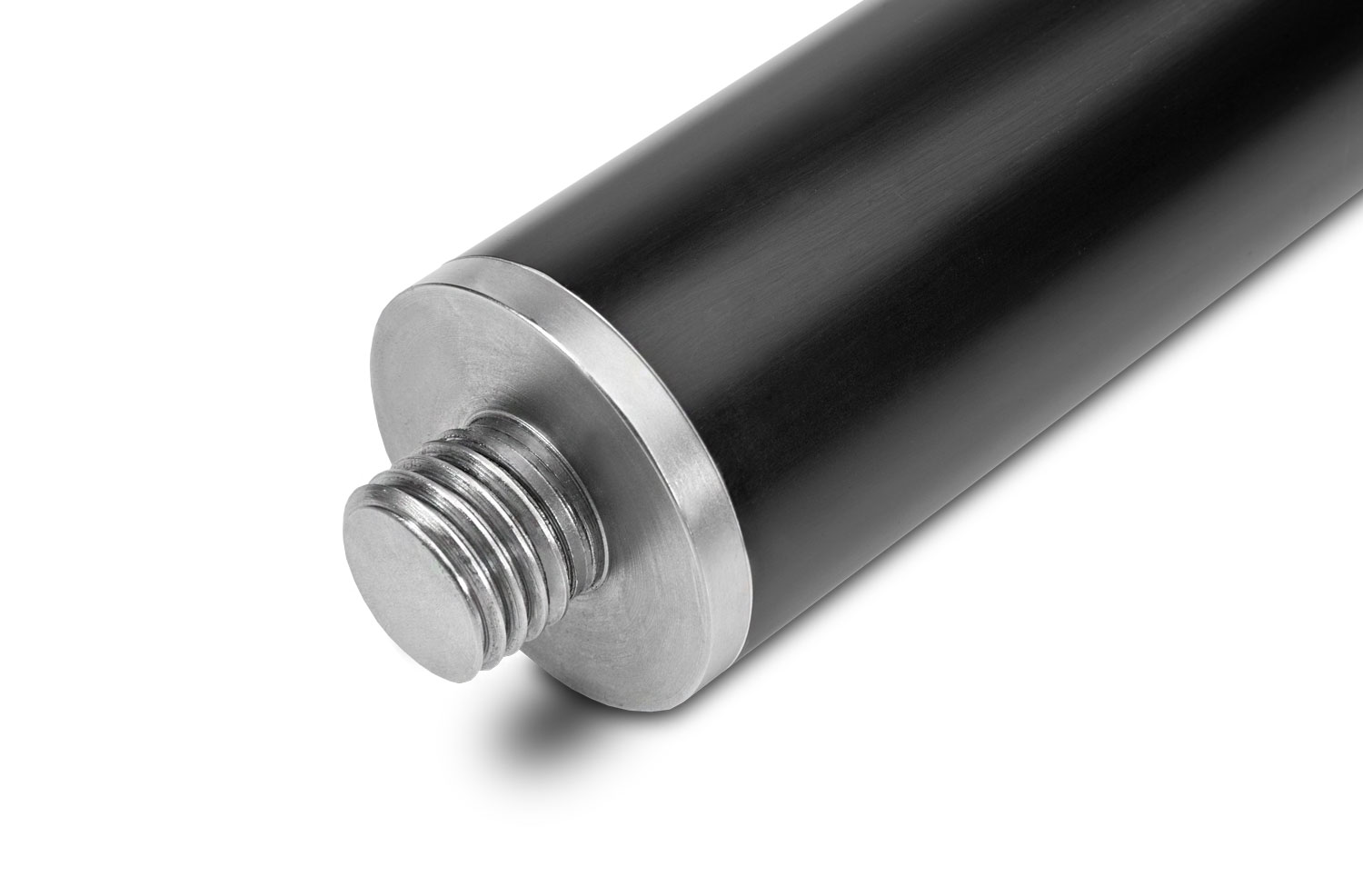

JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Asta Manuale Regolabile per Altoparlante con Estremità Inferiore Filettata M20, Asta 38mm e 35mm. La JBLPOLE-MA presenta un straordinario collare di regolazione dell'altezza dotato di una manopola ergonomica a "Z" che garantisce un'agevole regolazione. Realizzato con l'accoppiamento più robusto, il collare di regolazione dell'altezza previene il serraggio eccessivo e i problemi di rottura associati ai design interamente in plastica.

  • Leggero
  • Collari in alluminio pressofuso
  • Attacco filettato M20
  • Compatibile con tutti i subwoofer con filettatura palo standard M20 (JBL PRX, VRX, STX e SRX818) - Consultare i singoli prodotti per conferma

Documentazione
