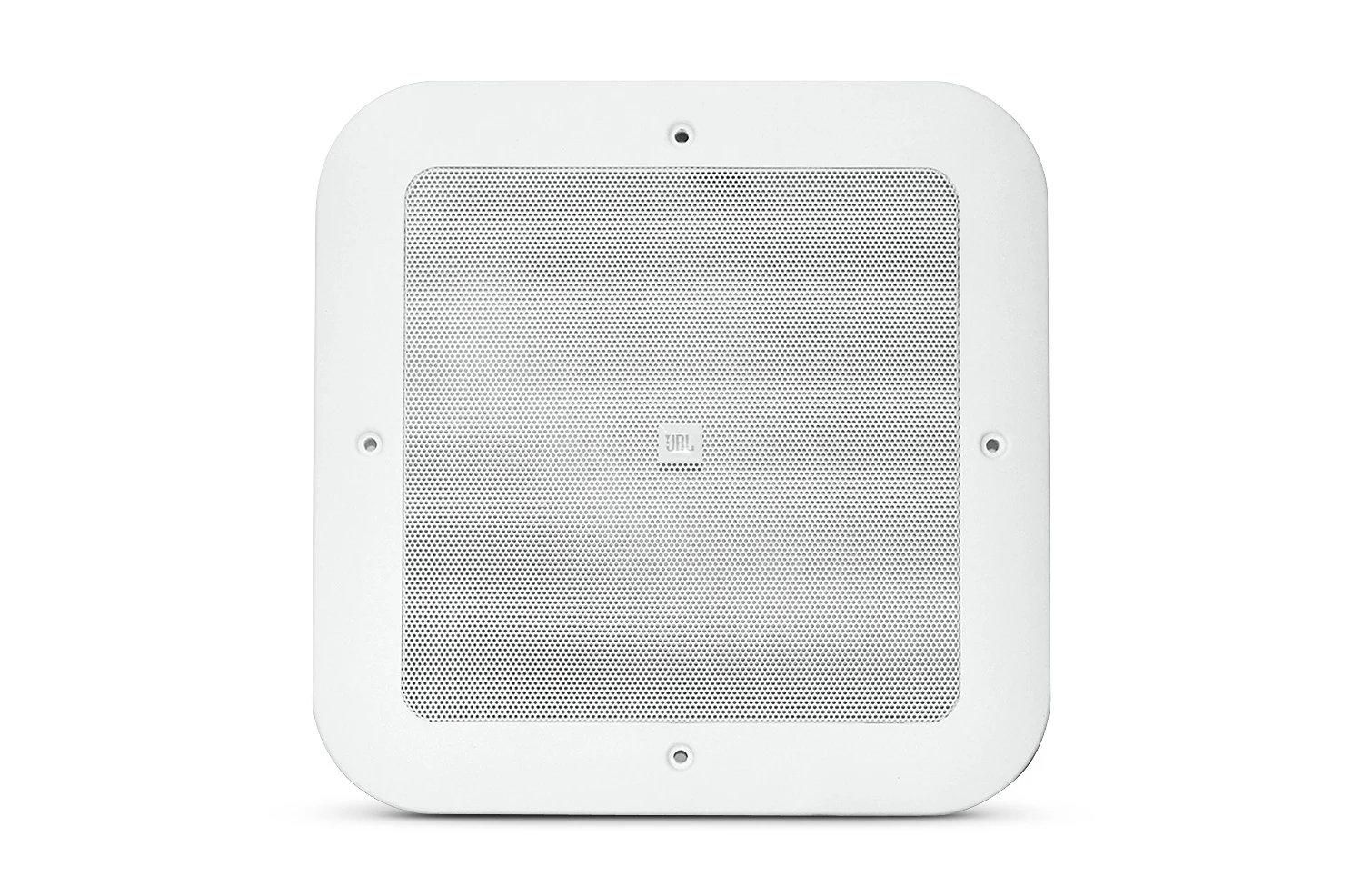

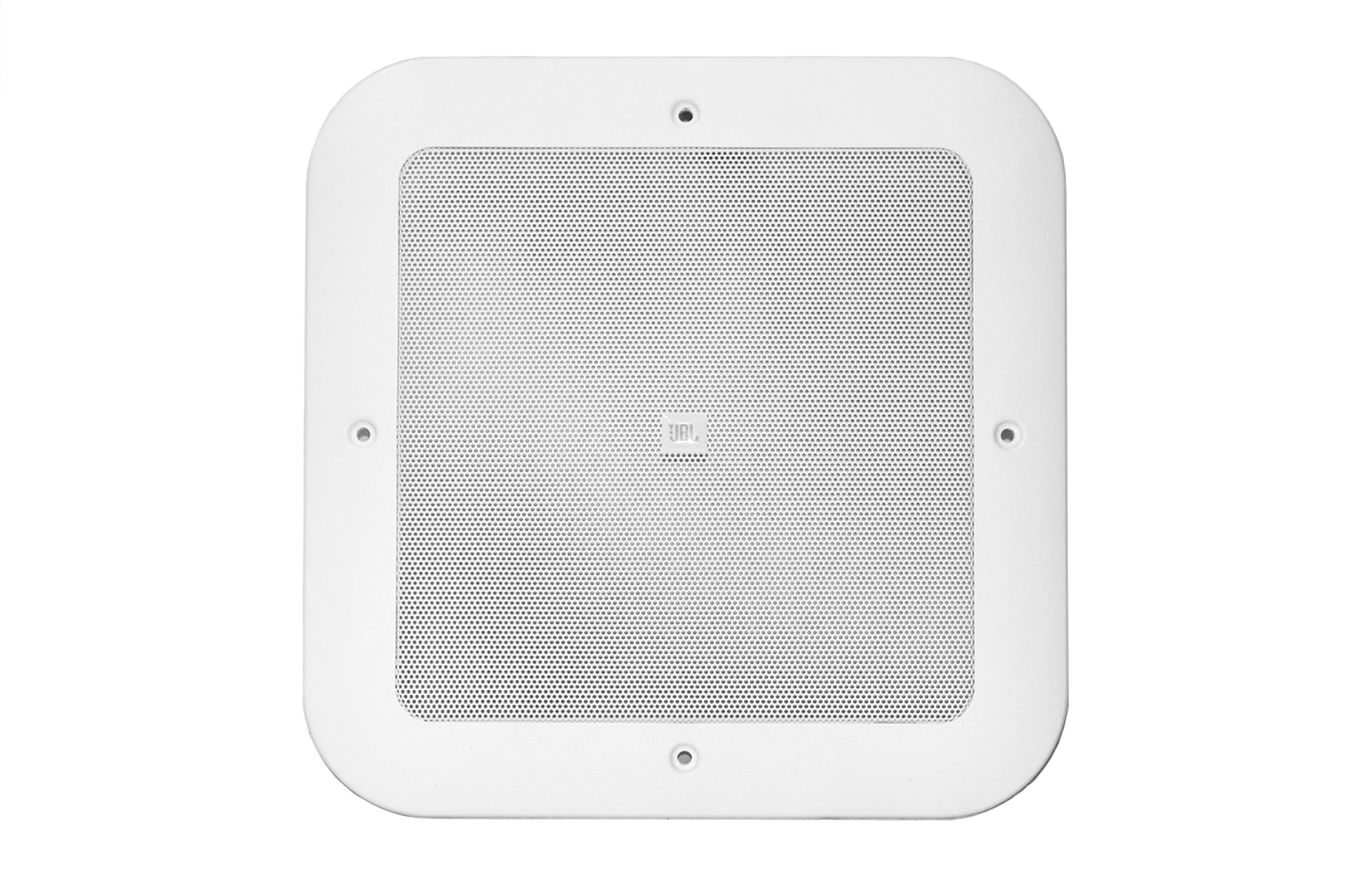

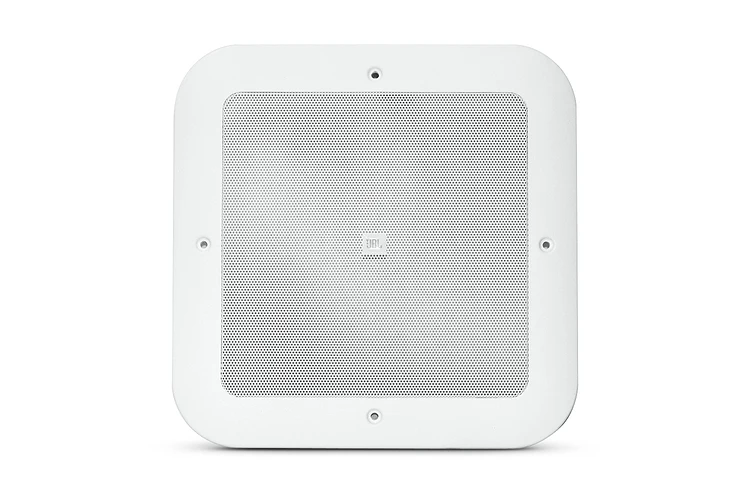

Square Grille for Control 200 and Control 300 Series
Immagini più grandi
Caratteristiche
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.
Download
Specifications
| Dimensione | |
|
|
557 KB |
Images
| Dimensione | |
|
|
337 KB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
Parti e assistenza
Specifiche
| Dimensions (H x W x D) | 340 x 340 mm (13.4 x 13.4 in)square grille x depth from baffle of 10 mm (0.4 in) |
| Material | Zinc plated 19 gauge steel |
| Finish | Powder coated RAL9016 “Traffic White”, satin finish |
| Grille Attachment to Baffle | 4 pcs M4 machine screws in corners |
| Net Weight | 0.7 kg (1.5 lbs) |
| Shipping Weight | 1.0 kg (2.2 lbs) |
| Included Accessories | 5 pcs M4 powder coated machine screws. 5 pcs M4 powder coated countersink washers |
