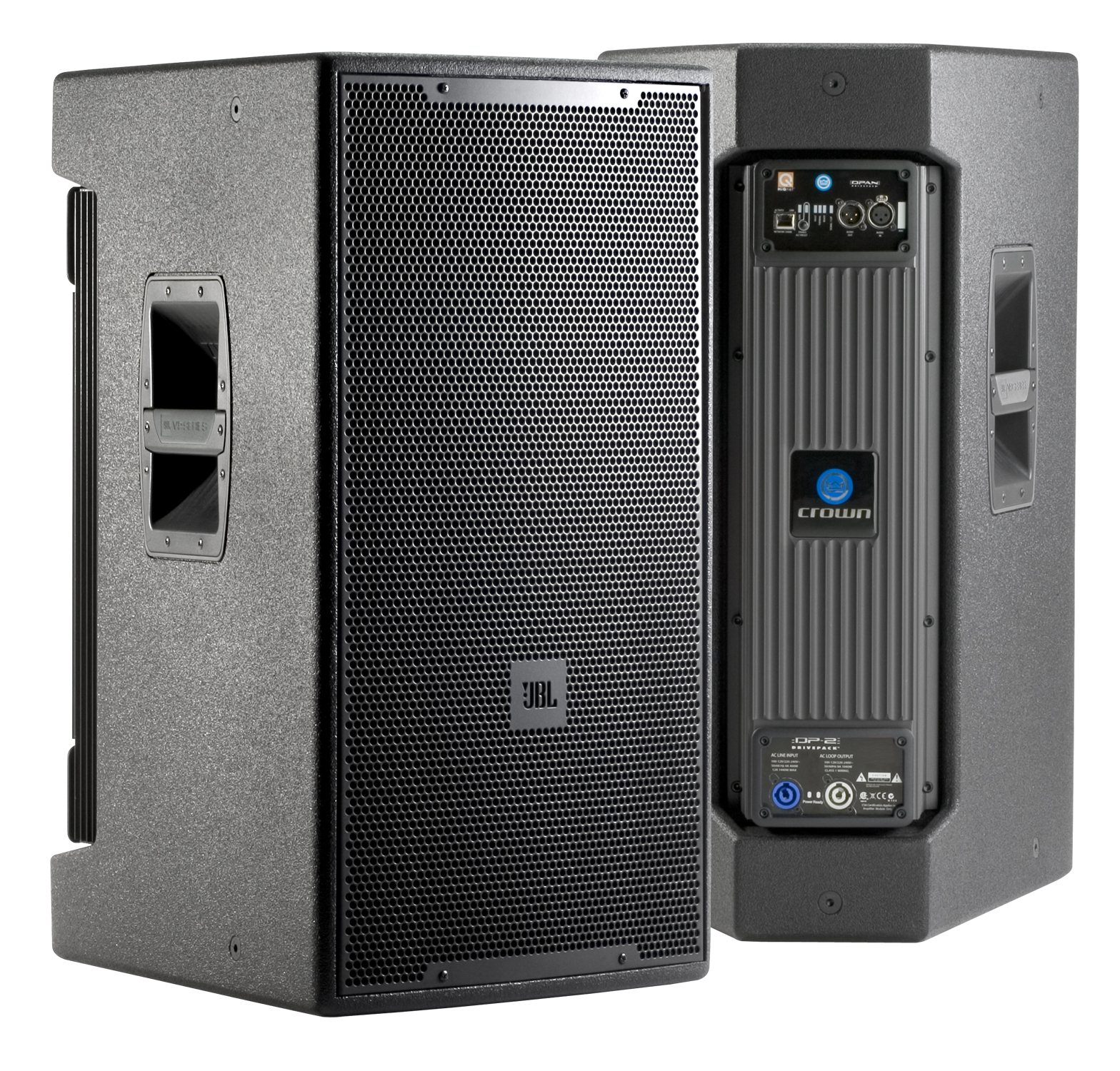

JBL Professional VP7215/64DP

Gambar Lebih Besar

Sistem Loudspeaker Terintegrasi 2-Arah Bertenaga 15 in.

VP7215/64DPAN adalah sistem loudspeaker terintegrasi 2-arah bertenaga 15" yang menampilkan daya keluaran puncak 2200 watt, 1100 watt berkelanjutan, dan pemrosesan sinyal digital onboard.

Fitur

Speaker full-range bi-amplified bertenaga dengan teknologi JBL DrivePack® untuk penggunaan portabel atau terpasang tetap.
Daya output puncak 2200 Watt, 1100 Watt berkelanjutan.
Kompatibel HiQnet™; kontrol jaringan.
Driver low-frequency Differential Drive® berdiameter 15 inci untuk output low-frequency yang diperluas.
Jangkauan 60° x 40°.
Pegangan aluminium die cast berlapis bubuk yang dirancang secara ergonomis dan bergaya.
Enam titik suspensi fly track berdiameter 3 inci dan empat belas fitting M10 (fitting flying yang dapat dilepas dan kit baut mata tempa tersedia sebagai opsional).

Unduhan

Dokumen

	Bahasa	Ukuran	Diunggah
VP Series Brochure diperbarui: Apr 2026		2,73 MB	Apr 2026
DPDA Input Module Spec Sheet diperbarui: Apr 2026		475 KB	Apr 2026
VP7215/64DP Spec Sheet diperbarui: Apr 2026		1,08 MB	Apr 2026

Specifications

	Ukuran	Diunggah
VP DPDA Spec Sheet diperbarui: Jul 2019	5,85 MB	Jul 2019
DPDA Input Module Spec Sheet diperbarui: Jul 2019	475 KB	Jul 2019
VP7215/64DP Spec Sheet diperbarui: Jul 2019	759 KB	Jul 2019

Manuals

	Ukuran	Diunggah
VP User's Guide diperbarui: Okt 2019	1,54 MB	Okt 2019

Brochures

	Ukuran	Diunggah
VP Series Brochure diperbarui: Jul 2019	2,73 MB	Jul 2019

CAD Drawings

	Ukuran	Diunggah
VP Series diperbarui: Okt 2019	2,54 MB	Okt 2019
VP7215/64DP 3D DXF diperbarui: Jul 2019	341 KB	Jul 2019
VP7215/64DP/95DP 2D DXF diperbarui: Okt 2019	217 KB	Okt 2019
VP7215/64DP 2D PDF diperbarui: Jul 2019	54,4 KB	Jul 2019

Compliances

	Ukuran	Diunggah
VP Series Declaration of Conformity diperbarui: Okt 2019	93,3 KB	Okt 2019

Simulation Data

	Versi	Ukuran	Diunggah
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024		21 MB	Mei 2024
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023

Ease Data

	Ukuran	Diunggah
VP Series Ease Files diperbarui: Okt 2019	261 KB	Okt 2019

Images

	Ukuran	Diunggah
VP7215 Photo diperbarui: Jul 2019	1,44 MB	Jul 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	45 Hz to 20 kHz (-10 dB)
Frequency Response	60 Hz to 18 kHz ( ± 3 dB)
Coverage Pattern	60°x 40° rotatable waveguide
Directivity Factor (Q)	15.8
Directivity Index (DI)	12 dB
Maximum Peak Output1	137 dB SPL 1m
Low Frequency Section	JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	4 ohms
High Frequency	JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
DP2 Internal Amplification Output (at nominal load)	2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance)	750LF/350HF Watts
DP2 Output Section	2-Channel, Class I
Audio Input Connector	XLR with loop-through
Signal Processing	DSP Based, resident in Input Module
System Management	DSP based limiters for mechanical and thermal protection
AC Power Operating Range	Auto Select 90-132VAC/216-264VAC, 50/60Hz
AC Input Connector	Neutrik PowerCon
AC Loop-thru	Neutrik PowerCon
AC Current Requirement	6A per system at 120V, 3A per system at 240V
Box Construction	5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System	6 standard air-cargo 3 in. track and 14 M10 fittings
Grille	14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D)	765.3 x 447.6 x 523.5 mm(30.13 x 17.62 x 20.61 in.)
Net Weight	38.6 kg (85 lb)
