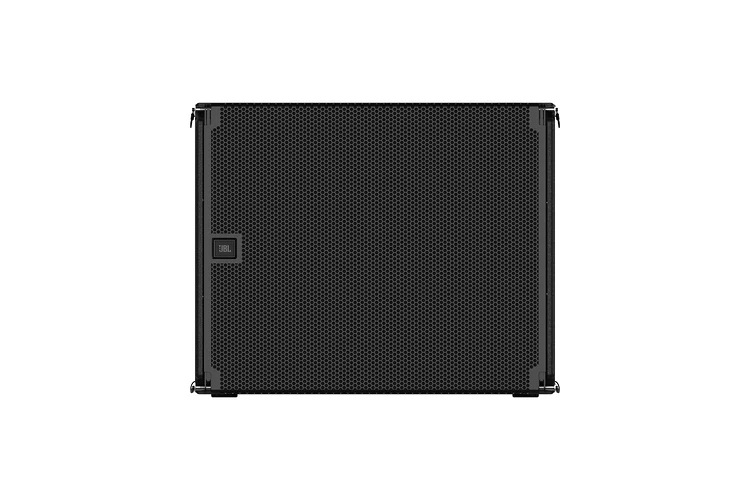

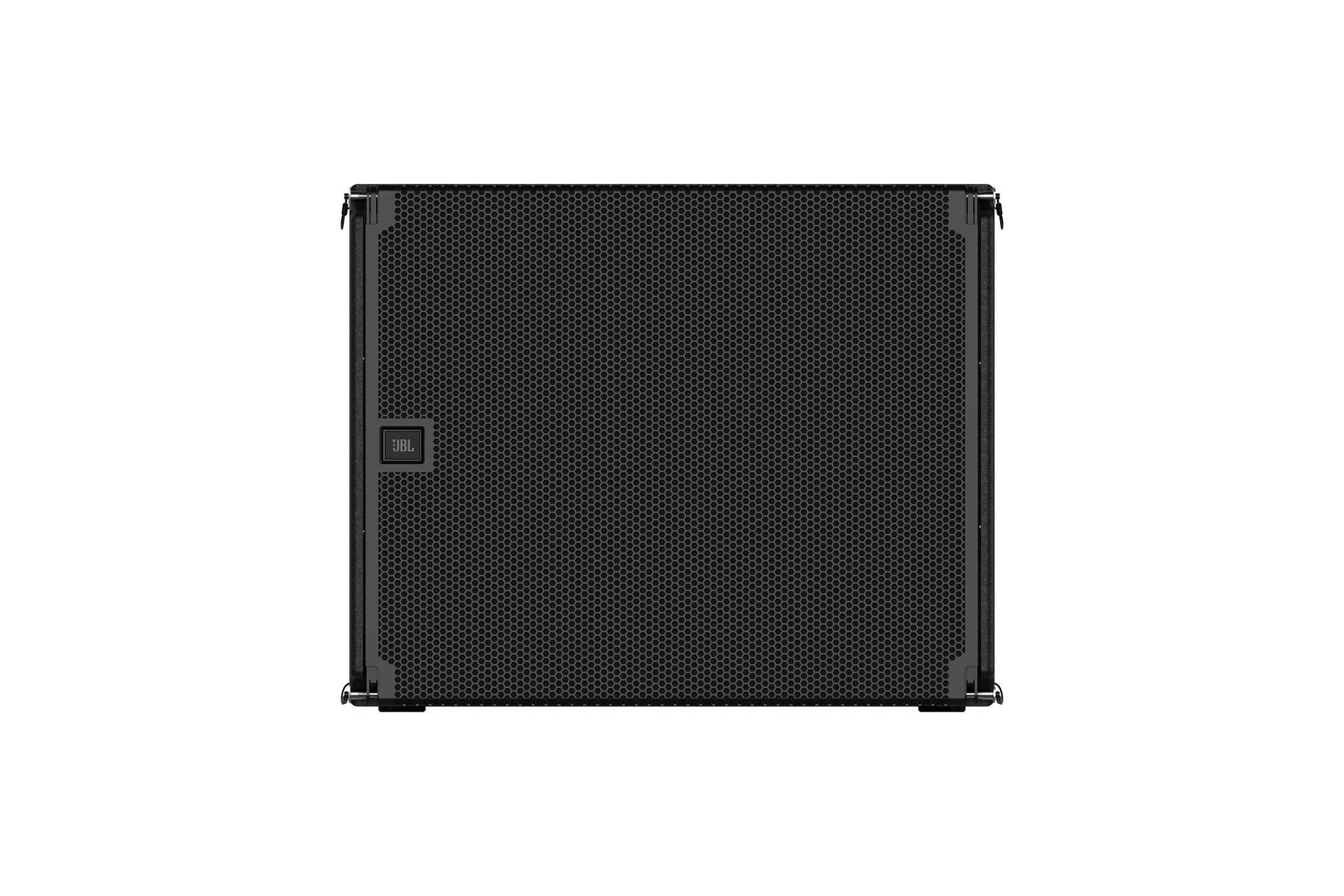

SRX918SF

18-inch Powered Flyable Subwoofer

SRX918SF adalah subwoofer single 18-inch bertenaga yang dapat terbang, dirancang untuk digunakan dalam konfigurasi tersuspensi atau ditumpuk di tanah untuk melengkapi sistem full-range SRX900 Series. Sistem rigging tiga-titik terintegrasi dalam SRX918SF memungkinkan unit ditangguhkan dalam array mandiri atau dikombinasikan dengan kabinet SRX910LA dalam konfigurasi array campuran.

Subwoofer ini dilengkapi dengan woofer 18-inch JBL 2279-1 yang menampilkan Differential Drive® – teknologi dual voice coil dan dual gap JBL – untuk memberikan dispersi panas yang lebih baik, kompresi daya yang lebih rendah, dan rentang dinamis yang lebih luas dibandingkan desain single-coil konvensional. DSP dan amplifikasi bawaan menawarkan pengalaman plug-and-play sambil memberikan konsistensi dan performa optimal di mana pun di dunia.

SRX918SF menggabungkan desain port low-frequency yang besar yang meningkatkan aliran udara dan mengurangi turbulensi yang terdengar, bahkan pada tingkat output tinggi. Kabinet plywood birch 18 mm yang diperkuat memastikan kekuatan dan daya tahan yang ditingkatkan. Paket perangkat lunak lengkap memberikan pengguna kontrol penuh atas sistem di berbagai platform, termasuk Windows, macOS, dan iPad OS. Pelajari lebih lanjut tentang JBL Performance di sini.

Fitur

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Complete control and configuration with JBL Performance software over HARMAN's HControl protocol
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides access to control features
  • Reinforced birch plywood enclosures
  • M20 threaded mount for pole mounting or ground stacking full range components
  • Integrated three-point rigging system

Unduhan

Specifications
  Versi Bahasa Ukuran Diunggah
file type icon SRX918SF Spec Sheet
en versi A, diperbarui: Jan 2025
en  443 KB Jan 2025
Manuals
  Versi Bahasa Ukuran Diunggah
file type icon SRX900 Series User Manual
en versi D, diperbarui: Jan 2026
en  12 MB Jan 2026
file type icon SRX900LA Rigging Manual
en versi F, diperbarui: Feb 2026
en  48,3 MB Feb 2026
file type icon SRX900PS Rigging Manual
en versi A, diperbarui: Jan 2026
en  8,28 MB Jan 2026
file type icon Assembly Instructions - powerCON TRUE1
en versi 4.0, diperbarui: Jan 2025
4.0  en  8,64 MB Jan 2025
CAD Drawings
  Versi Ukuran Diunggah
file type icon SRX918SF Customer Drawings
versi B, diperbarui: Jan 2025
1,99 MB Jan 2025
file type icon SRX900 Series Revit/BIM Files
versi 3.0, diperbarui: Feb 2026
3.0  74,2 MB Feb 2026
file type icon SRX900 Series Sketchup Files
versi 3.0, diperbarui: Feb 2026
3.0  10 MB Feb 2026
Software
  Versi Ukuran Diunggah
download icon for Venue Synthesis Venue Synthesis
dirilis: Jul 2026
  Jul 2026
download icon for ArrayLink ArrayLink
dirilis: Jan 2025
  Jan 2025
download icon for Performance Software Performance Software
dirilis: Jan 2025
  Jan 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
dirilis: Jan 2025
  Jan 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
versi 1.2.0.0, diperbarui: Mar 2026
1.2.0.0   4,15 MB Mar 2026
Firmware
  Versi Bahasa Ukuran Diunggah
file type icon SRX900 Series Firmware Changelog
en versi 2.1.11, diperbarui: Jul 2026
2.1.11  en  115 KB Jul 2026
Simulation Data
  Versi Ukuran Diunggah
file type icon SRX900LA - EASE GLL
versi 2.0, diperbarui: Jan 2026
2.0  20,6 MB Jan 2026
file type icon SRX900PS - EASE GLL
versi 1.0, diperbarui: Jan 2026
1.0  10,2 MB Jan 2026
Declaration of Conformity
  Versi Bahasa Ukuran Diunggah
file type icon SRX900 Series - EU Declaration of Conformity
en versi D, diperbarui: Mar 2026
en  512 KB Mar 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en versi D, diperbarui: Mar 2026
en  441 KB Mar 2026
Compliance Documentation
  Versi Bahasa Ukuran Diunggah
file type icon SRX900 Series - CB Certificate of Compliance
en versi D, diperbarui: Jul 2026
en  699 KB Jul 2026
file type icon SRX900 Series - UL Certificate of Compliance
en versi D, diperbarui: Jul 2026
en  1,55 MB Jul 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh versi D, diperbarui: Jul 2026
zh  2,55 MB Jul 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko versi C, diperbarui: Jul 2026
ko  2,56 MB Jul 2026
file type icon SRX900 Series - BIS Certificate of Compliance
en versi D, diperbarui: Jul 2026
en  846 KB Jul 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh versi B, diperbarui: Jul 2026
zh  137 KB Jul 2026
Service Notes
  Versi Bahasa Ukuran Diunggah
file type icon SRX918SF Spare Parts
en versi A, diperbarui: Feb 2026
en  115 KB Feb 2026

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB) 35 Hz -100 Hz
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 134 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Exterior grade birch plywood, Black DuraFlex finish
Dimensions (H x W x D) 575 mm x 710 mm x 683 mm
(22.6 in x 28.0 in x 26.9 in)
Net Weight (each) 54.4 kg (120 lbs)

Aksesori

SRX910LA AF | Array Frame for SRX910LA and SRX918SF
SRX910LA AF Main photo
Gambar Lebih Besar
SRX910LA AF detail thumbnail #1 SRX910LA AF detail thumbnail #2 SRX910LA AF detail thumbnail #3 SRX910LA AF detail thumbnail #4

Highlights:

  • Compact and lightweight design
  • Compatible with SRX910LA and SRX918SF
  • Precision pick-point resolution
  • Two-part collapsible design
  • Support for third-party laser inclinometers
  • Compatible shackle size: 1/2 in

Included:

  • (1) Spreader Bar
  • (1) Extension Bar
  • (1) 1/2-inch Shackle
  • (1) Laser Bracket and Hardware

Dokumentasi
ACK1 | Accessory Caster Kit
ACK1 Main photo
Gambar Lebih Besar
ACK1 detail thumbnail #1 ACK1 detail thumbnail #2 ACK1 detail thumbnail #3 ACK1 detail thumbnail #4

Highlights:

  • Universal caster kit for JBL products
  • Compatible with all SRX900 Series subwoofers
  • Black housing for discreet look
  • Black polyurethane wheel
  • Anti-rattle features for vibration-free operation

Included:

  • (4) Casters + Installation Hardware

Dokumentasi
SRX918SF CVR | Tutup untuk SRX918SF
SRX918SF CVR Main photo
Gambar Lebih Besar
SRX918SF CVR detail thumbnail #1 SRX918SF CVR detail thumbnail #2 SRX918SF CVR detail thumbnail #3 SRX918SF CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX918SF subwoofer
  • Handle cutouts for easy transportation
  • Includes folding feature for storage
  • Internally reinforced for grille protection

Included:

  • (1) Cover

Notes:

  • The SRX918SF CVR is not compatible with the SRX918S subwoofer
  • Use the SRX918S CVR for the SRX918S

Dokumentasi

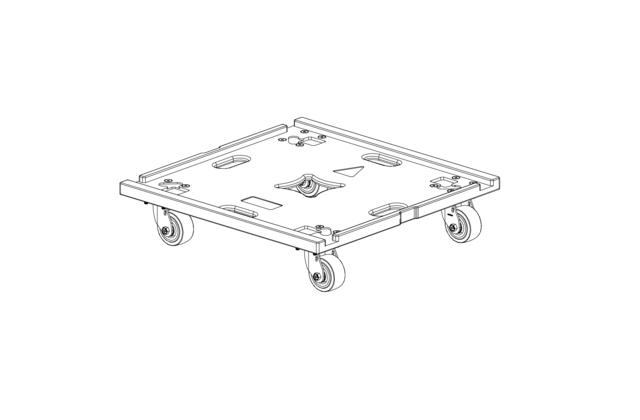

SRX918S VT | Vertical Transporter for SRX918S/SF
SRX918S VT Main photo
Gambar Lebih Besar
SRX918S VT detail thumbnail #1 SRX918S VT detail thumbnail #2 SRX918S VT detail thumbnail #3 SRX918S VT detail thumbnail #4

Highlights:

  • Vertical transport cart for SRX918S/SRX918SF
  • Support for up to three cabinets
  • Truck-friendly dimensions
  • Built-in stacking features for easy storage
  • Heavy duty casters
  • One black ratchet strap included

Included:

  • (1) SRX918S VT
  • (1) Black Ratchet Strap

Dokumentasi

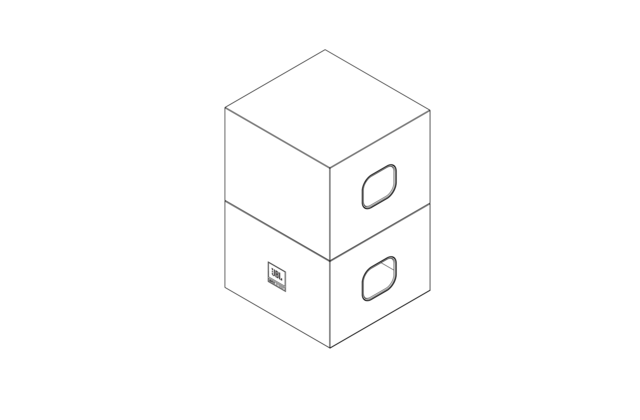

SRX918S VT CVR | Vertical Transporter Cover for SRX918S/SF
SRX918S VT CVR Main photo
Gambar Lebih Besar
SRX918S VT CVR detail thumbnail #1 SRX918S VT CVR detail thumbnail #2 SRX918S VT CVR detail thumbnail #3 SRX918S VT CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX918S/SRX918SF
  • Covers two or three enclosures
  • Includes amplifier flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy duty industrial-grade zippers
  • Foldable design for storage

Included:

  • (1) Cover

Dokumentasi
SRX900 RC1 | Rain Cover, compatible with all SRX900 models
SRX900 RC1 Main photo
Gambar Lebih Besar
SRX900 RC1 detail thumbnail #1 SRX900 RC1 detail thumbnail #2 SRX900 RC1 detail thumbnail #3 SRX900 RC1 detail thumbnail #4

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

Included:

  • (1) Rain Cover
  • (5) T15 M3.5 Screws

Dokumentasi
