CPi2000

Cinema Processor

CPi2000
Larger Images

Cinema Processor

CPi2000 is a professional-grade processor developed by JBL to provide audio enhancement and volume control for cinemas. It features DSP processing, room EQ tuning, volume control and system fault detection and can be configured through a tailor-designed GUI software.

CPi2000 offers four input options – Analog Input, Digital Input, Non-Sync Input and mono Mic Input. The Analog Input and Digital Input accept audio signal from any cinema server. Non-Sync Input receives line level stereo signal from a CD or DVD player for background music playback. Mic Input normally connects to a RTA microphone for room tuning.

CPi2000 installs ten (10) HD-15 Analog Output connectors for passive, bi-amp or tri-amp connection and a 25-pin Analog Output connector for connection with a third-party audio system. Its Redundant Output (work together with Analog Input) connector will bypass the CPi2000 system and directly output audio signals while power failure occurs.

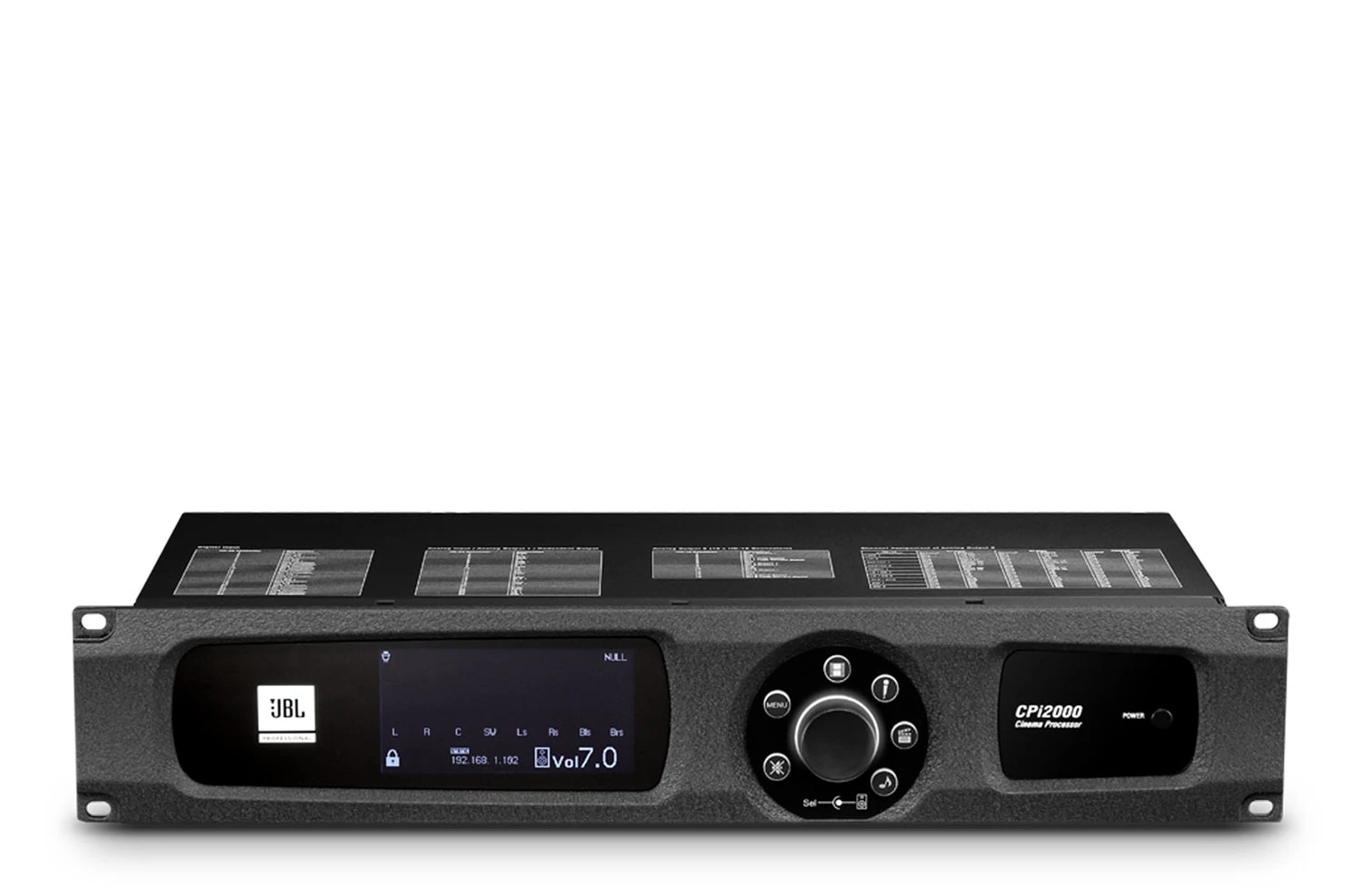

The large LCD display on the front panel is easy for technicians to run a quick check of system status. To make global output volume control easy and quick, the volume knob is designed front accessible. Thanks to the specially-designed GUI software, setting up cinema audio system now becomes less demanding.

CPi2000 provides a 1/3 octave GEQ for room tuning via the GUI software and is built-in with a list of variable crossover presets to accept a wide range of cinema speakers.

Designed to use with CROWN cinema amplifiers and JBL cinema speakers, CPi2000 is able to detect faults of amplifiers or speakers and send the fault information to a TMS or a 3rd party control system via its RJ45 connector.



Fitur

  • Built-in Crossover: Converts up to 7.1 channel audio to passive, bi-amp or tri-amp
  • Supports TMS Communication: Convenient for remote control and saves system operation cost
  • JBL Cinema Speaker Presets: Reduces tuning time
  • Specifically-designed GUI Software: Makes operation intuitive and simple
  • Large LCD Display: System status at one glance
  • USB Connector: For preset file import and export
  • Cinema audio processing and management


Downloads

  Version Language Size Uploaded
Data Sheets
file type icon CPi2000 Spec Sheet
updated: Okt 2020
    1,37 MB Okt 2020
file type icon CPi2000 Sell Sheet - Eng
updated: Okt 2020
    1,79 MB Okt 2020
file type icon CPi2000 Sell Sheet - Cn
updated: Okt 2020
    1,59 MB Okt 2020
Software
platform icon CPi2000 Software and Automation Commands
updated: Des 2019
    16 MB Des 2019
platform icon CPi2000 GUI Instructions (PDF)
updated: Feb 2020
    12,9 MB Feb 2020
User Guides
file type icon CPi2000 Users Guide - Eng & Cn
updated: Okt 2020
    7,84 MB Okt 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Digital Input Connector: Female HD-25 BalancedImpedance: 110 OhmsInput level: 0.5 - 10 Vpp
Analog Input Connector: Female HD-25 Balanced or UnbalancedImpedance: 50K Ohms (Balanced) or 25K Ohms (Unbalanced)Max. input level: +14.2 dBu
Mic Input Connector: Female XLR Balanced or UnbalancedImpedance: 660 Ohms (Balanced) or 330 Ohms (Unbalanced)Total gain: 40 dBE.I.N.: >113dB, 20K Hz Bandwidth
Music (Non-Sync) Input Connector: RCAImpedance: 25K OhmsMax. input level: +14.2 dBu
Analog Output 1 & Redundant Output Connector: Male HD-25 Balanced or UnbalancedImpedance: 30 Ohms (Balanced) or 15 Ohms (Unbalanced)Max. Level: +14.2 dBuFrequency Response: 20 Hz - 20K Hz, Ref 1K Hz +/-1dBTHD + N: <0.01%, 20 Hz - 20K Hz Dynamic Range: >102 dB
Analog Output 2 Connector: 10 x Female HD-15 Balanced or Unbalanced Impedance: 30 Ohms (Balanced) or 15 Ohms (Unbalanced) Max. Level: +14.2 dBu Frequency Response: 20 Hz - 20K Hz, Ref 1K Hz +/-1dB THD + N: <0.01%, 20 Hz - 20K Hz Dynamic Range: >102 dB
AC power input 100-240VAC, 50-60Hz
DC Power Input +12VDC, 2A
Rack Space 2U
Dimensions (w x h x d) 482 x 88 x 231 mm
Net Weight 4.0 kg
Shipping Weight 5.6 kg
