C2PM

Control 2P (Master Only)

$159.00
Buy It Now
Larger Images

Model C2PM

Perfect for a range of professional applications including:

  • Recording / Video Production
  • Entertainment Installations
  • AV Presentations
  • Monitoring of Electronic Musical Instruments





Features

  • Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 kHz
  • 35 watt power amplifier and high sensitivity drivers produce exceptional output: 111 dB peak SPL
  • Balanced XLR, ¼”, and unbalanced RCAinputs allow connection to a range of signal sources
  • Stereo headphone jack allows monitoring using headphones
  • Ergonomic, side-mounted volume control
  • High frequency adjust control - allows the user to contour HF response to application requirements
  • Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
  • Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
  • Wall-mount capable using optional MTC-2P mounting kit
  • Included snap-on pedestal to optimize listening angle for desktop applications


Downloads

  Version Language Size Uploaded
Brochures
Control 2P Brochure
updated: Apr 29, 2019
    675 KB Apr 29, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
Recording & Broadcast Full Line Catalog
updated: Oct 18, 2019
    1.81 MB Oct 18, 2019
Compliances
Control 2P Declaration of Conformity
updated: Oct 18, 2019
    129 KB Oct 18, 2019
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
User Guides
Control 2P Users Guide
updated: Apr 29, 2019
    1.81 MB Apr 29, 2019
Images

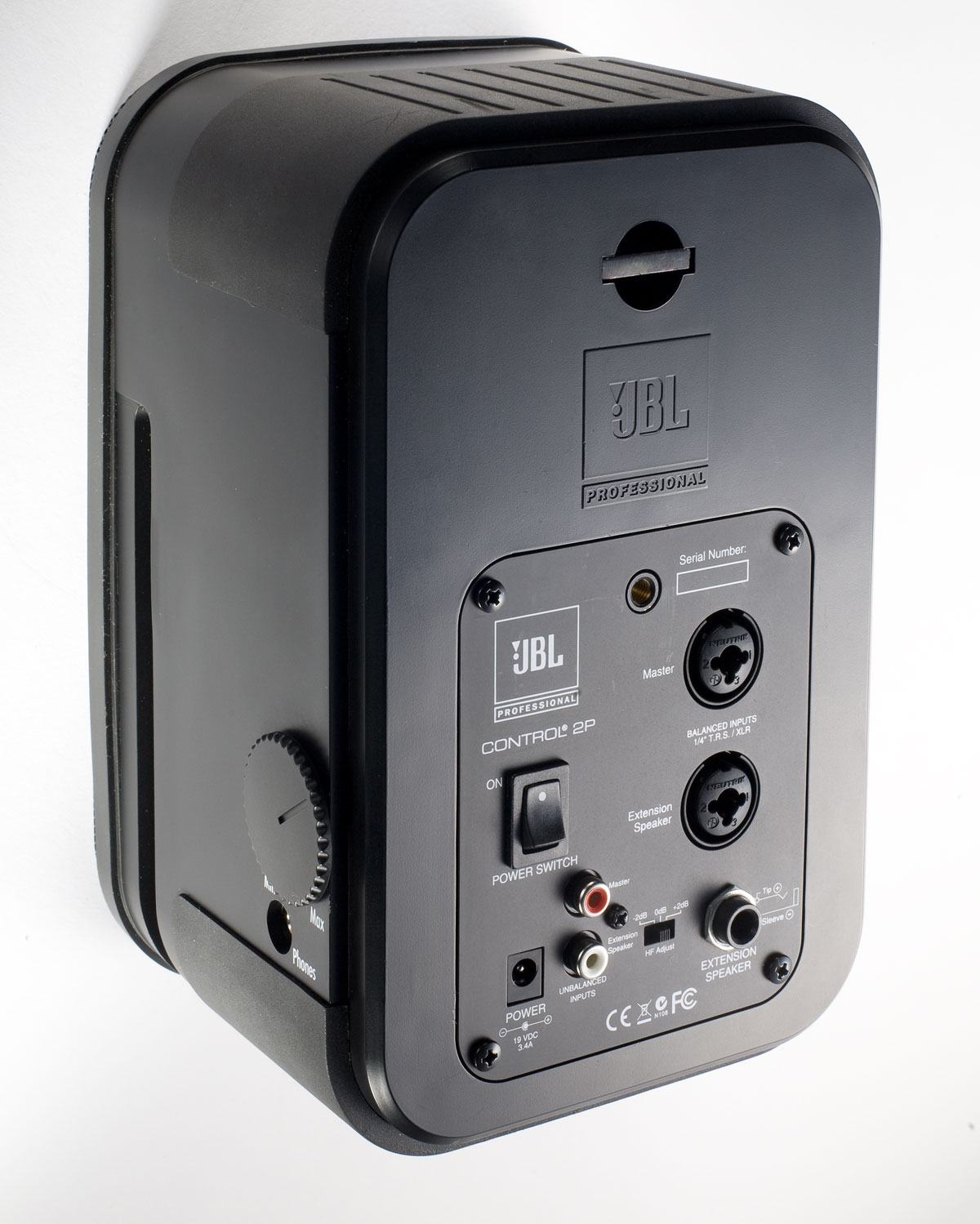

Control 2P Rear View
updated: Apr 29, 2019
    188 KB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Drivers LF: 135 mm (5.25 in) low frequency loudspeaker
HF: 19 mm (.75 in) Polycarbonate dome tweeter
Frequency Range 80 Hz - 20 kHz
Amplifier Power Rating 35 Watts
Maximum SPL (1m) 111 dB
Crossover Frequency 4.2 kHz
Input Sensitivity +4 dBu XLR 1/4"; 0 dBu RCA
Input Connectors Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA
Power Requirements 19 VDC / 3.42 A - use only supplied power supply
Headphone Jack 3.5 mm (1/8")
Dimensions (H x W x D) 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)
Net Weight (each) 2.6 kg (5.5 lb)
Grille Zinc-plated steel
Mounting Hardware Optional
Included Accessories Speaker wire, power supply, 2 snap-on pedestals.
Optional Accessories MTC-2P Mounting Kit (2 brackets, power supply holder)


* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks
of Neutrik.

LF Driver 5.25in (135 mm)
LF Driver Power Handling 35 Watts per channel
Frequency Response (±3 dB) 100 Hz – 18 kHz
Maximum Peak SPL 111 dB
Enclosure Polypropylene Structural Foam

Accessories

MTC-2P Mounting kit | The Control 2P Master Speaker and Extension Speaker can be wall-mounted using the optional MTC-2P
MTC-2P Mounting kit Main photo
Larger Images

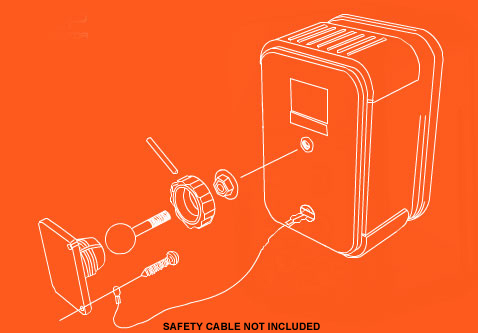

The Control 2P Master Speaker and Extension Speaker can be wall-mounted using the optional MTC-2P mounting kit.

Contains:
2 Mounting Brackets
1 Power Supply Holder
1 Mounting Bracket Wrench
