15" Bi-Amplified 2-Way System

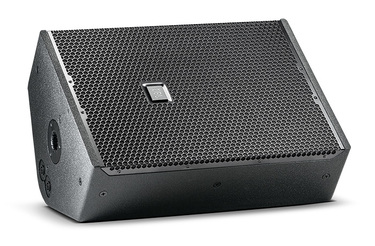

The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.



  • D2430K D2 Dual Diaphragm Dual Driver
  • Progressive Transition Waveguide (90° x 50°)
  • Bi-Amplified 2-Way System
  • BSS Audio OmniDriveHD V5 Processing
  • For use with Crown ITechHD and Crown VRack
  • JBL HiQnet Performance Manager Control™

plus de détails


The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.


Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.



System Integration and Management

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.



  Version Language Size Uploaded
file type icon VTX F15 Spec Sheet
updated: oct. 2020
    1,13 Mo oct. 2020
file type icon VTX F15 Spare Parts
en version A, updated: août 2023
en  65,6 ko août 2023
file type icon VTX F Series Brochure
updated: oct. 2020
    487 ko oct. 2020
CAD Drawings
file type icon VTX F15 Customer Drawings
version 1, updated: déc. 2020
  64,9 ko déc. 2020
file type icon VTX F Series Declaration of Conformity
updated: oct. 2020
    141 ko oct. 2020
platform icon PerformanceManager
version, updated: août 2023     117 Mo août 2023
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: mars 2022
    21 Mo mars 2022
Preset Libraries
file type icon VTX F Series Preset Library
version 2.1, updated: déc. 2020
2.1    624 ko déc. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

System Type 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver
Components 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Coverage Pattern 90 x 50 degrees
Frequency Range (-10dB) 43 Hz - 21.5 kHz (short throw mode, free field) 42 Hz - 21.5 kHz (monitor mode, half-space)
Frequency Response (±3 dB) 59 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space)
Sensitivity 98 dB LF, 108 dB HF
Nominal Impedance LF = 8 ohms
HF = 20 ohms
Transducer Power Rating (AES 2 hour) 1000W LF, 200W HF cont 4000W LF, 800W HF peak
Dimensions (H x W x D) 640.1mm x 457.2mm x 327.7mm (25.2in x 18in x 12.9in)
Net Weight (each) 22.9 kg (50.5 lbs)
Maximum Peak Output *2 134 dB (Preset: VTX F15 80)
LF Driver 1 x 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer
HF Driver 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Enclosure Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish; integral recessed handle
Suspension / Mounting Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available


VTX F15 UB Main photo
Grandes images

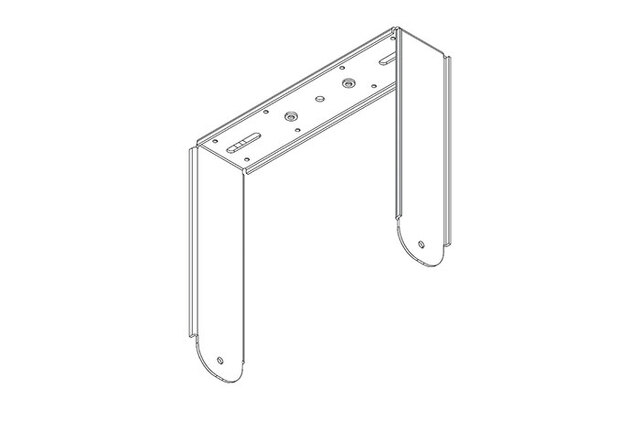

The VTX-F15-UB is a universal mounting bracket that attaches to the M10 mount points on the sides of the VTX F15 cabinet. The VTX-F15-UB allows for ground stacking, pole mounting, truss mounting or fixed installation of a single F15 enclosure. The mount bracket provides continuous tilt angle adjustment and two thumbscrews and friction washers are included to secure the F15 enclosure at the desired down or up tilt angle.
  • Detachable pole mount adapter included
  • Ground-stacking stabilizer legs included
  • Truss mounting support with optional Martin Professional Lighting Half-Coupler Clamp
  • Continuous tilt angle adjustment
  • 8 mount points for permanent installation
  • Central M12 hole for drop-down extension rod mounting
  • 1 x Universal Bracket for VTX F15
  • 2 x M10 Thumbscrews and Friction Washers
  • 1 x Pole Mount Adapter and Mount Hardware
  • 2 x Ground Support Legs with Mount Hardware

SS5-BK Main photo
Grandes images
The SS5-BK is JBL’s versatile hand-crank adjustable extension rod for ease of use and setup. For use with smaller line array setups or point-and-shoot loudspeakers, the SS5-BK allows users to lift loads up to 75 lbs efficiently and safely. The patented Ring Lock system has an adjustable diameter from 1.378 to 1.457”, providing a wobble and vibration-free connection to the pole mount socket.
  • Hand crank height adjustment (36” to 59”) with push button security feature and locking screw for additional safety
  • Rated up to 75lbs (height dependent)
  • M20 threaded bolt for secure attachment to companion subwoofer
  • 1 x JBL SS5-BK

229-00009-01 | M10 Eyebolt Kit
229-00009-01 Main photo
Grandes images


  • M10 x 35 mm Eyebolts
  • Forged Shoulder Steel Construction
  • Includes washers and spacers


  • (3) M10 x 35 mm Eyebolts
  • (3) 38 mm Washers
  • (3) 13 mm Spacers for EON and 300 Series
