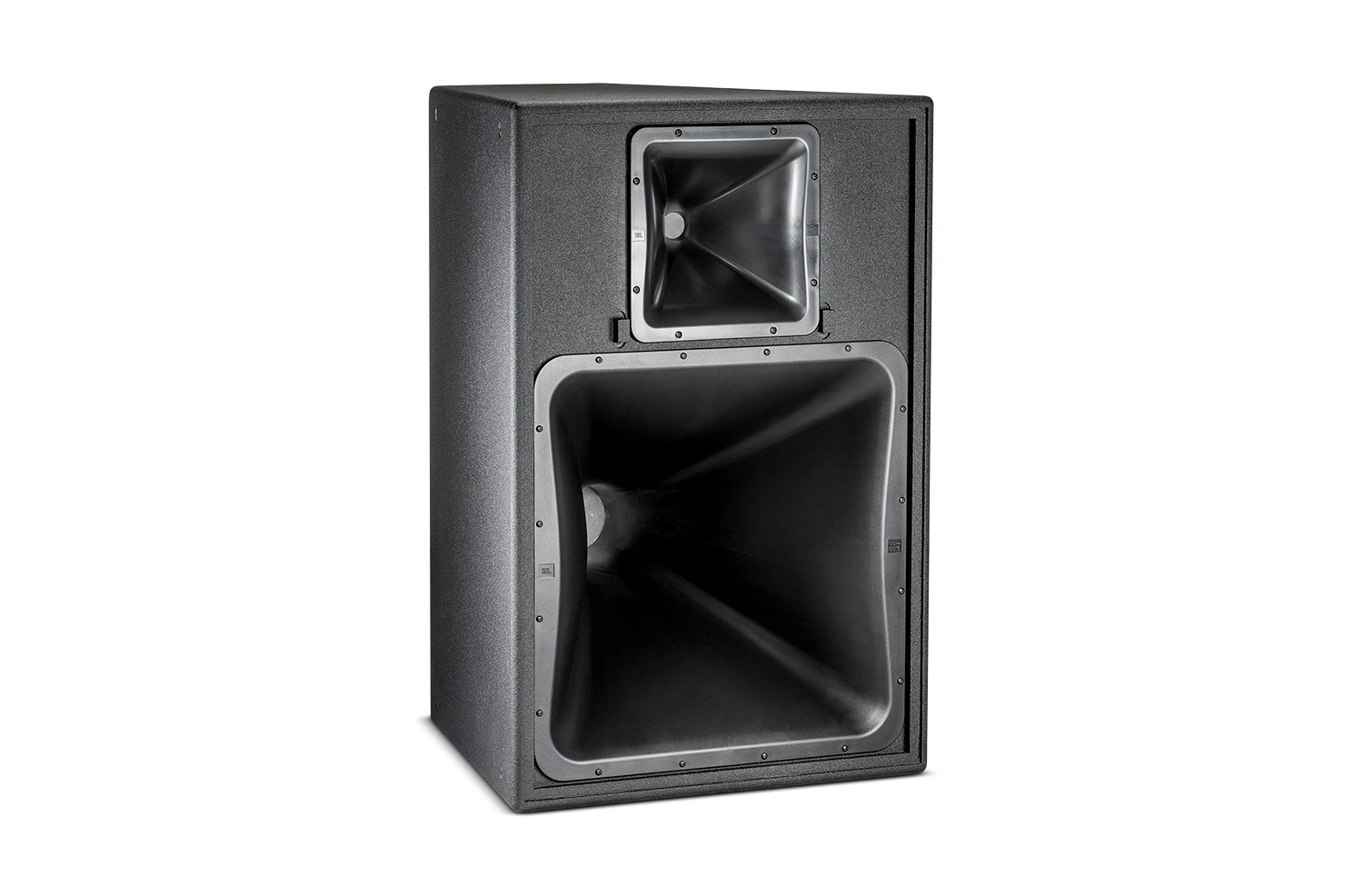

PD6200/95

Precision Directivity Mid-High Frequency Loudspeakers

PD6200/95
Grandes images

Precision Directivity Mid-High Frequency Loudspeakers

The PD6200 Series Precision Directivity mid-high frequency loudspeakers are designed for applications requiring high output capability with excellent pattern control.



Caractéristiques

  • High power 200 mm (8 in) dual-coil CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT™ Progressive Transition™ waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable waveguides allow either horizontal or vertical cabinet orientation.

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.



Téléchargements

  Version Language Size Uploaded
Specifications
file type icon PD6200/95 Spec Sheet
updated: oct. 2020
    944 ko oct. 2020
Manuals
file type icon Weather Resistant Configurations
en version A, updated: mai 2023
en  86,1 ko mai 2023
file type icon PD Array Guide
updated: oct. 2019
    2,12 Mo oct. 2019
file type icon AE/PD Connector Pinout Guide
updated: oct. 2019
    8,25 ko oct. 2019
Brochures
file type icon PD6000 Brochure
updated: oct. 2020
    17,1 Mo oct. 2020
CAD Drawings
file type icon PD6000 3D DXF
updated: oct. 2020
    125 ko oct. 2020
file type icon PD6000 2D PDF
updated: oct. 2020
    5,05 Mo oct. 2020
file type icon PD6000 2D DXF
updated: oct. 2020
    4,11 Mo oct. 2020
file type icon PD6000 3D DXF Drawings
updated: oct. 2020
    125 ko oct. 2020
Compliances
file type icon PD6000 Series
updated: oct. 2020
    142 ko oct. 2020
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: mai 2021
  en  5,71 Mo mai 2021
CLF Files
file type icon PD6000 CLF Data
updated: oct. 2020
    1,47 Mo oct. 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: mars 2022
    21 Mo mars 2022
file type icon PD6000 Series Ease Data
updated: oct. 2020
    652 ko oct. 2020
Speaker Tunings
file type icon PD6000 Series Tunings
updated: oct. 2020
    12,2 Mo oct. 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: mai 2023
12-10-21    24 Mo mai 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB) 200 Hz to 17 kHz
Frequency Response (±3 dB) 240 Hz to 15 kHz
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB / oct) Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF: 350 W (1400 W peak), 100 hrs
HF: 75 W (300 W peak), 2 hrs (AES rated)
System Power Rating Passive Mode: 300 W (1200 W peak), 100 hrs. (IEC rated)
Maximum SPL (1m) Bi-amp mode: MF: 134 dB-SPL cont avg (140 dB peak)
HF: 133 dB-SPL cont avg (139 dB peak) Passive mode: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 109 dB SPL
MF Driver CMCD–82H cone mid-range compression driver with integral 200 mm (8 in) diameter Neodymium Differential Drive NDD™ dual voice coil driver
HF Driver 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Nominal Impedance 8 ohms
Enclosure Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight (each) 58.8 kg (130 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
