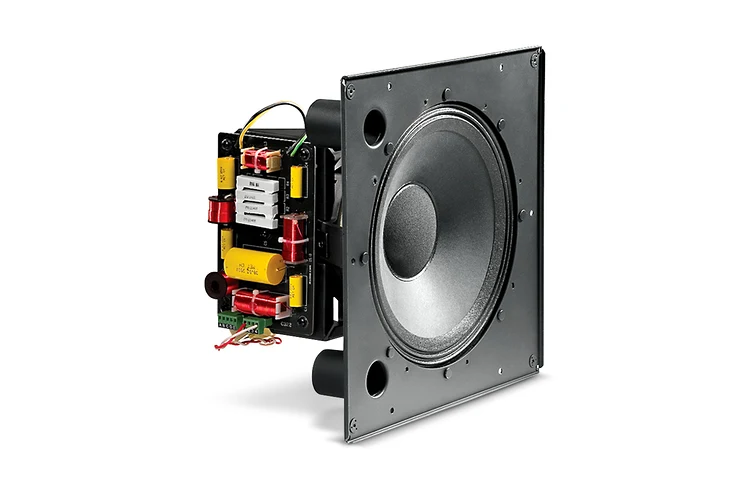

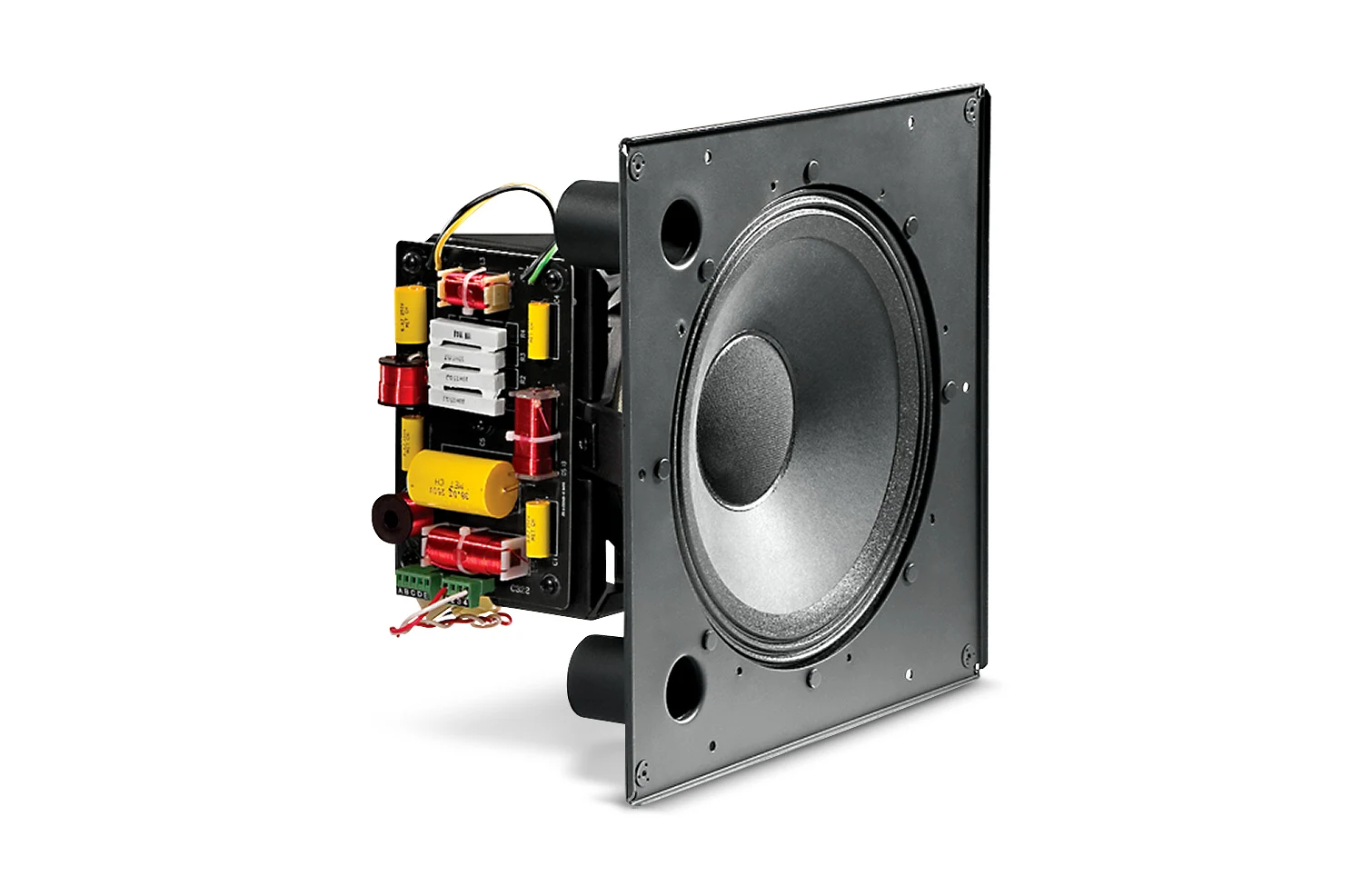

JBL Professional Control 322C

Grandes images

High-output 12 in. Coaxial Ceiling Loudspeaker

The Control 322C delivers exceptional next-generation performance in a coaxial point source design
ceiling loudspeaker.

Caractéristiques

Consistent 90° broadband pattern control.
Components
• Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
• Medium-format compression driver.
Extraordinary clarity for speech and vocals with extended frequency response for music.
Power handling of 400 Watts with high sensitivity provides high SPL capability.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
Clean, contemporary grille and optional backbox available.

Téléchargements

Specifications

	Taille	Téléchargé
Control 322C/CT Spec Sheet mis à jour : avr. 2019	350 ko	avr. 2019

Manuals

	Taille	Téléchargé
Compatible Third-Party Backboxes for Control 300 Series Speakers mis à jour : oct. 2019	128 ko	oct. 2019

Brochures

	Version	Langue	Taille	Téléchargé
Control Contractor Brochure (2025) version A, mis à jour : mars 2026	A		23 Mo	mars 2026
Control Contractor Brochure (2024) version D, mis à jour : fév. 2024	D		14 Mo	fév. 2024
Control 300 Brochure mis à jour : avr. 2019			2,9 Mo	avr. 2019
Control Contractor Brochure (2026) mis à jour : mars 2026			21 Mo	mars 2026

CAD Drawings

	Taille	Téléchargé
Control 300 Ceiling Speakers mis à jour : oct. 2019	1,39 Mo	oct. 2019

Compliances

	Taille	Téléchargé
JBL Control Series Passive Speakers DoC mis à jour : déc. 2019	179 ko	déc. 2019
Control 300 Series Declaration of Conformity mis à jour : oct. 2019	92,7 ko	oct. 2019

Software

	Version	Taille	Téléchargé
Distributed System Design (DSD) version 3.9, mis à jour : nov. 2025	3.9	612 ko	nov. 2025

Simulation Data

	Taille	Téléchargé
Ease SPK/DLL Files - Full JBL Pro Line mis à jour : mai 2024	21 Mo	mai 2024

EASE Files

	Taille	Téléchargé
Control 300 Series GLL Files mis à jour : mai 2024	1,08 Mo	mai 2024

User Guides

	Taille	Téléchargé
Control 300 User Guide mis à jour : avr. 2019	2,02 Mo	avr. 2019

Accessories

	Version	Taille	Téléchargé
Ceiling Speaker Accessory Guide version 2026-04, mis à jour : mai 2026	2026-04	570 ko	mai 2026

Speaker Tunings

	Version	Taille	Téléchargé
Commercial, CBT, and AWC Tunings 220616 version A, mis à jour : mai 2023	A	557 ko	mai 2023

Install Guides

	Taille	Téléchargé
Control 321 & 322 Installation Guide mis à jour : avr. 2019	574 ko	avr. 2019

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB)	32 Hz – 20 kHz
Power Rating	IEC Long-Term System Power Rating: 400 W continuous pink noise (1600 W peak), 2 hrs 250 W continuous pink noise (1000 W peak), 100 hrs
Sensitivity	95 dB (1 kHz - 16 kHz)
Frequency Response (±3 dB)	48 Hz – 19 kHz
Coverage Angle	90° conical, constant directivity
Directivity Factor (Q)	9 (1k - 16kHz)
Directivity Index (DI)	9.5dB (1k - 16kHz)
Crossover Network	1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Impedance	8 ohms
Dimensions (H x W x D)	366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
Maximum SPL (1m)	121 dB (127 dB peak)
Input Connectors	Screw locking barrier strip for bare wire
Drivers	LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (wood-lined; accessory)
Baffle/Rim	Metal, driver pre-mounted to baffle, ported.
Ceiling Cutout Size	378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)

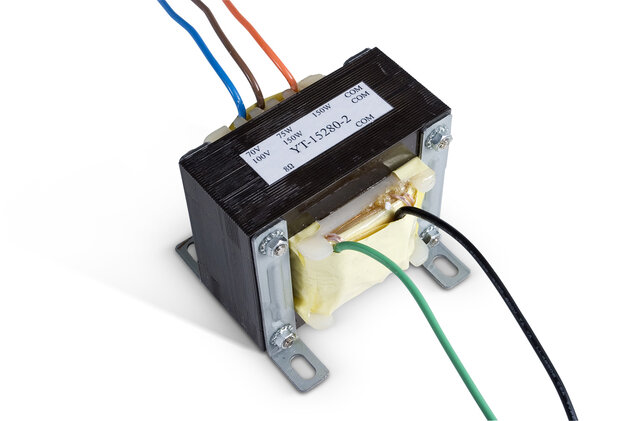

Optional Accessories	MTC-300SG12 Grille, square contoured, white. MTC-300BB12 Backbox, 80 liters (3 cubic feet) MTC-300T150 Transformer, 150 W for use with 322C.
Plenum Usage	Yes, with accessory backcan

Accessoires

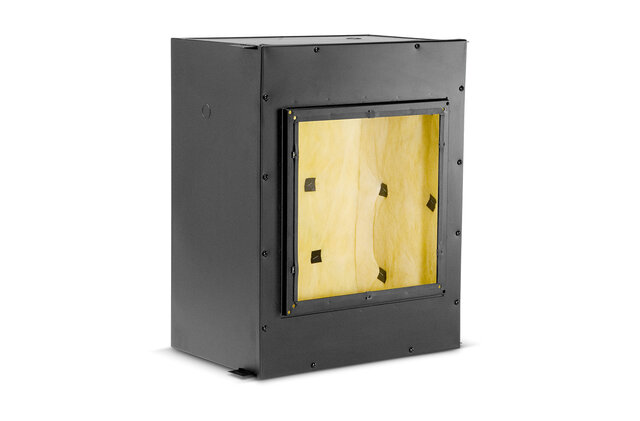

MTC-300BB12 | 3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers

Grandes images

3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers

Professional Series

Extra-thick 16 gauge metal construction.
Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
Knockouts on top and all four sides.
Dual mounting system for baffle.
Mounting platform for an optional high-power 70V/100V transformer.

Documentation

MTC-300BB12 Spec Sheet [2,54 Mo]
Accessing the Conduit Knockouts [116 ko]
Control 300 Ceiling Speaker Backboxes / Backcans [1,1 Mo]
Control 300 Ceiling Speakers [1,39 Mo]
JBL Brackets [152 ko]
Brackets Declaration of Conformity [141 ko]

MTC-300SG12 | Square Grille for Control 300 Series 12 in. Drivers

Grandes images

Square Grille for Control 300 Series 12 in. Drivers

Professional Series

Rugged 19 gauge metal construction for enduring reliability.
Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
Powder coat final finish minimizes scratching and can easily be repainted to match any room color.
